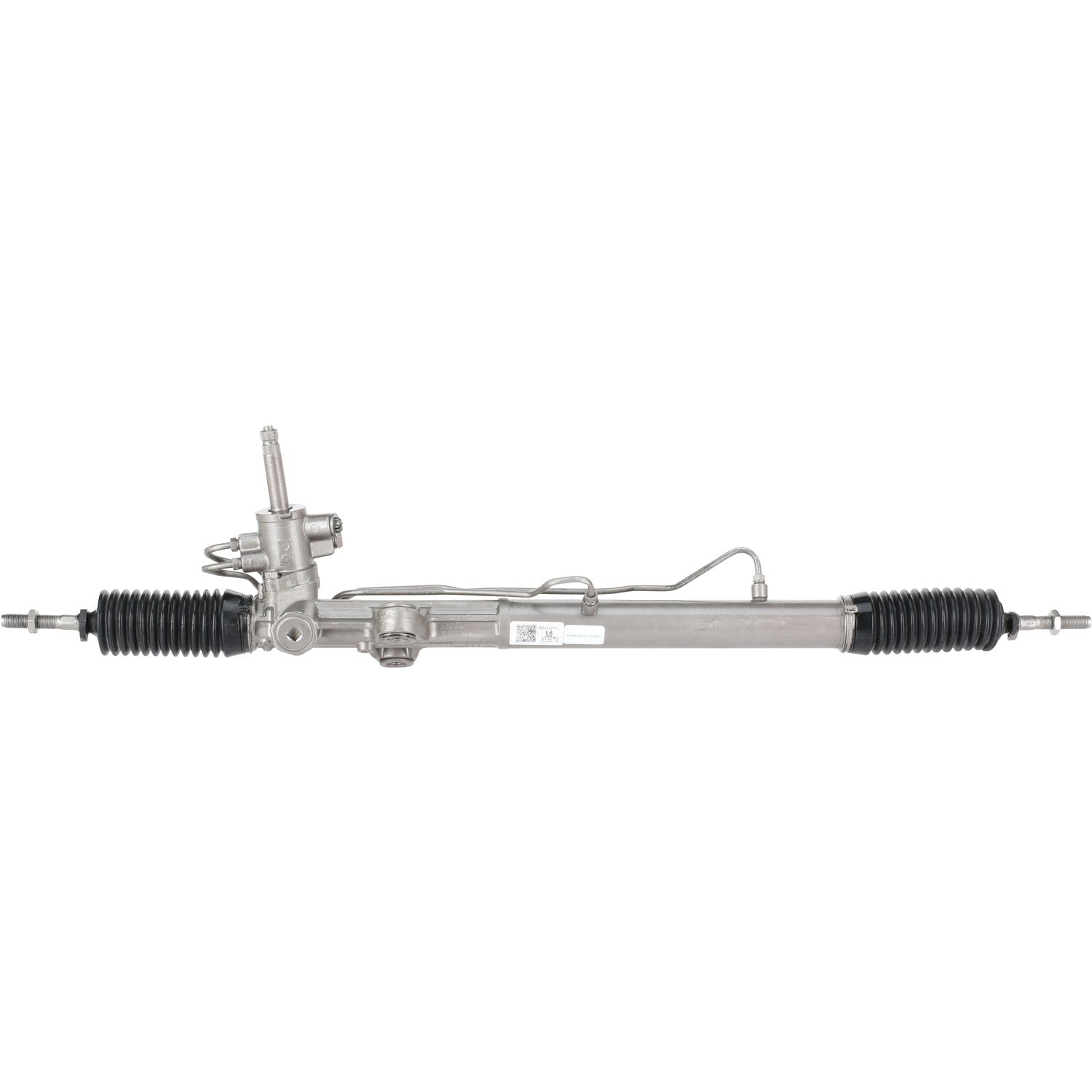

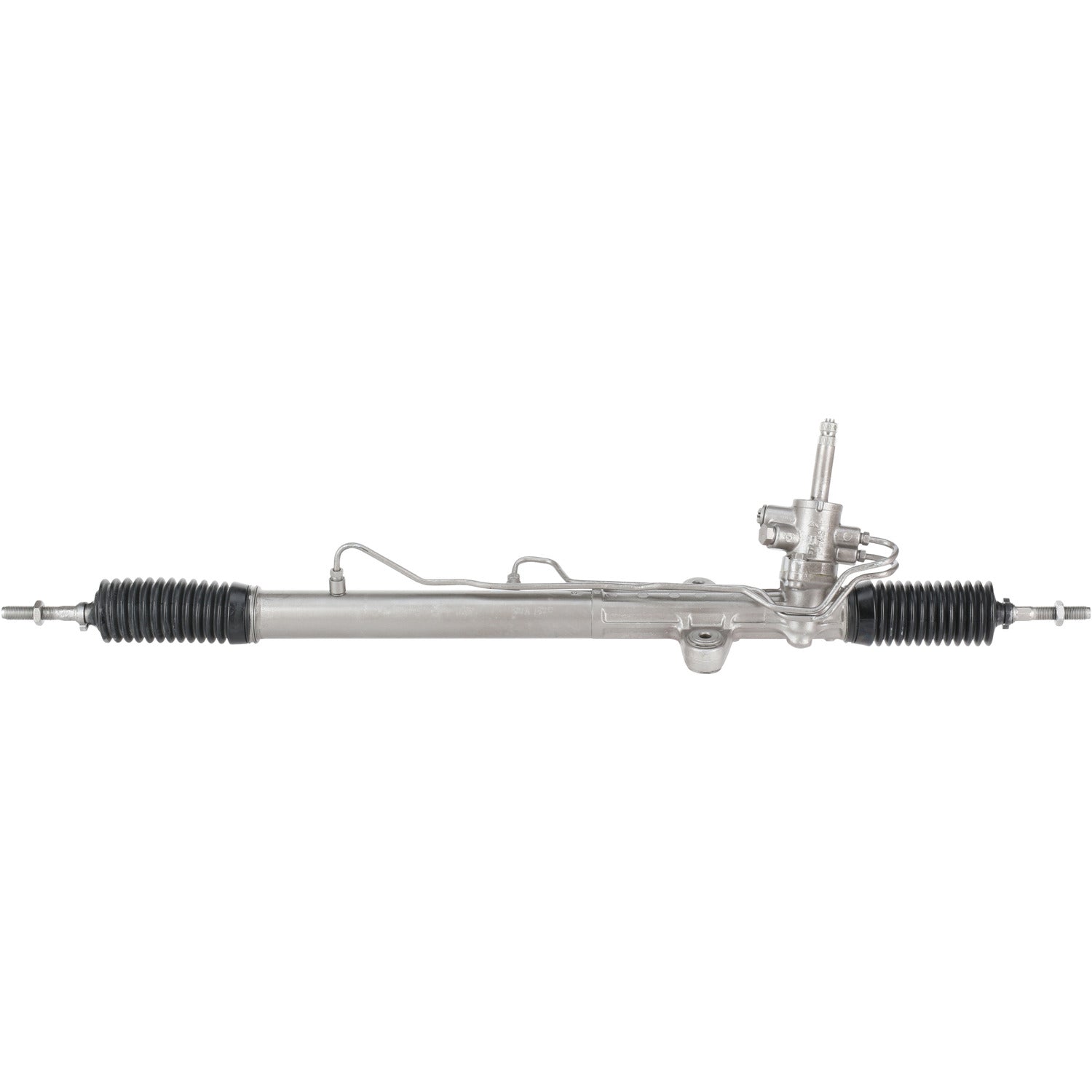

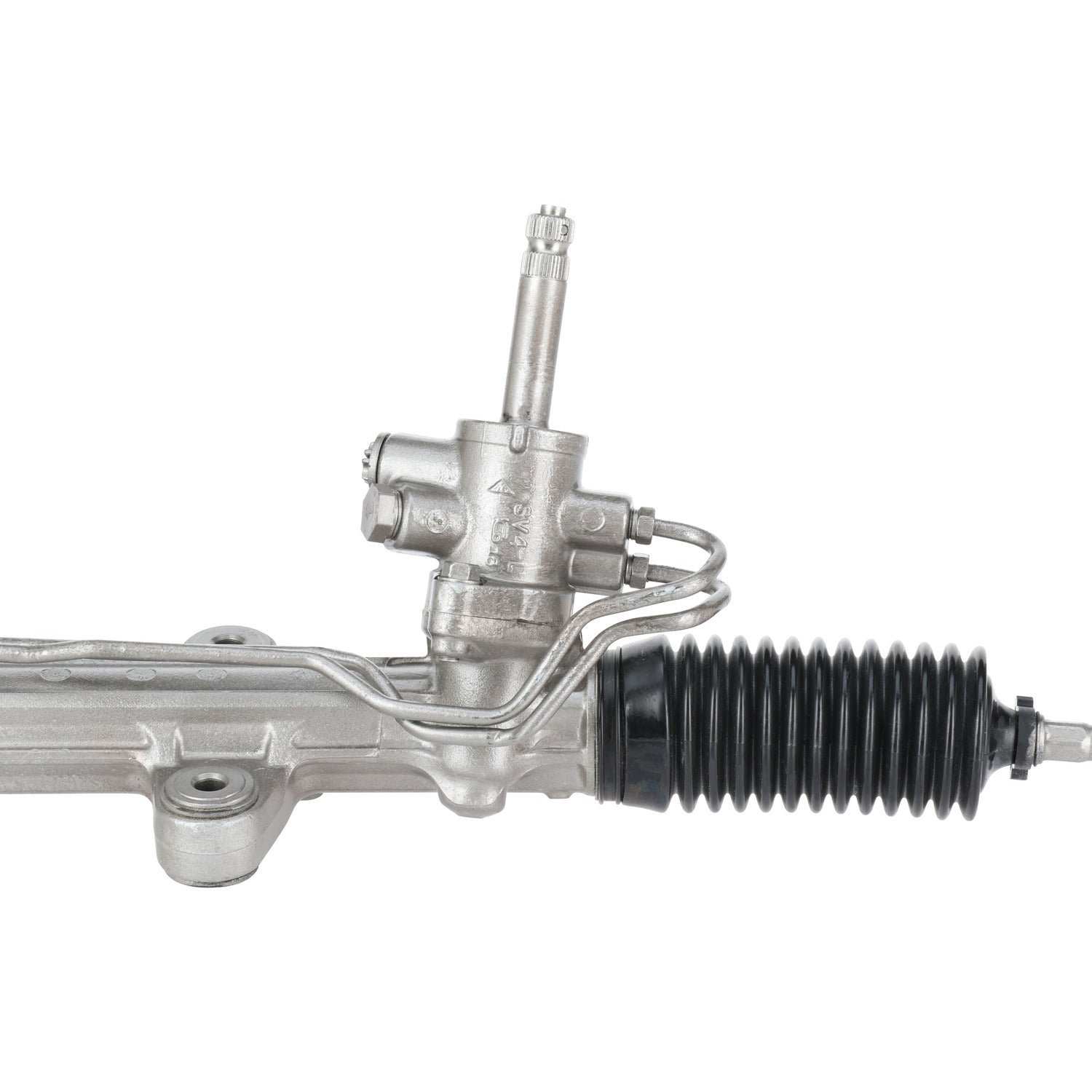

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93367M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93367M

SKU:93367M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 4.25 IN
Distance Between Mounting Holes 107.95 MM
Hose Port Type Seat
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.42 MM
Input Shaft Length 3.07 IN
Input Shaft Length 77.85 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 40.25 IN
Rack Length 1022.35 MM
Return Port Thread Size M16 x 1.5
Thread Length 2 IN
Thread Length 50.8 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.25

Application Info: Honda Odyssey (1998)

Interchange: Isuzu - 53601-SX0-A01

BBB Cross-Reference:

Cardone Cross-Reference: 26-1772

To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance. Click For Tech Bulletin.
