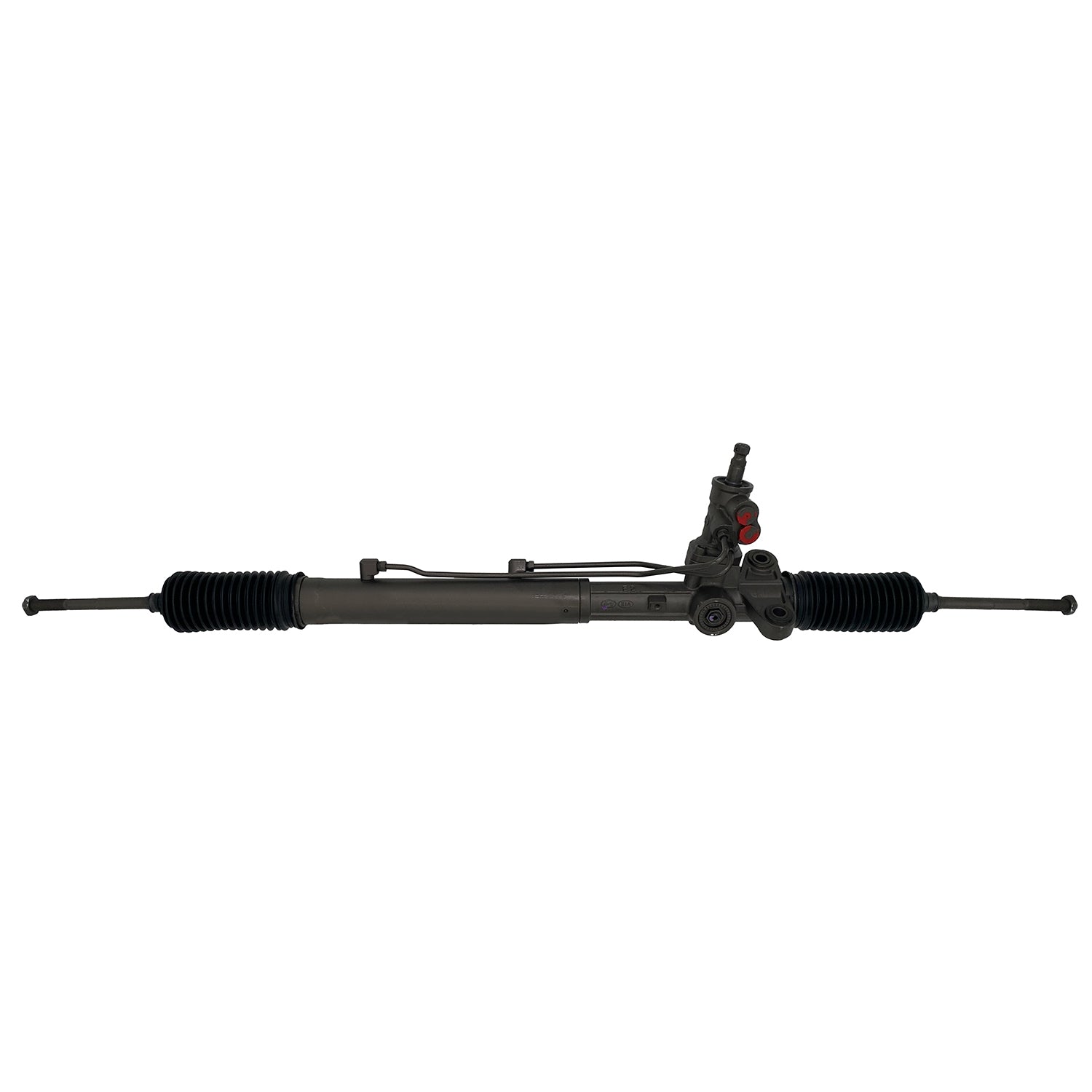

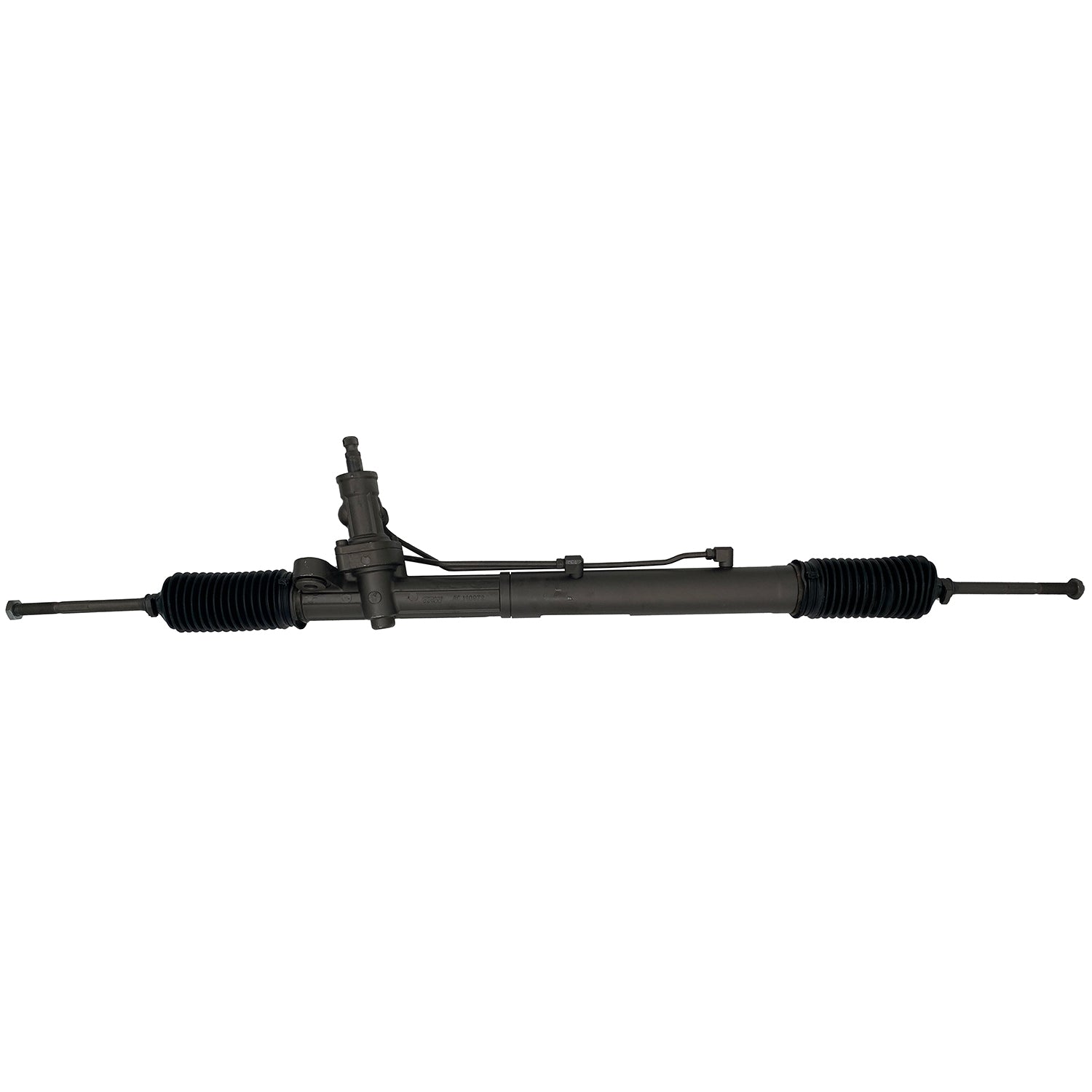

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93366M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93366M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.5 IN
Distance Between Mounting Holes 88.9 MM
Hose Port Type O-Ring

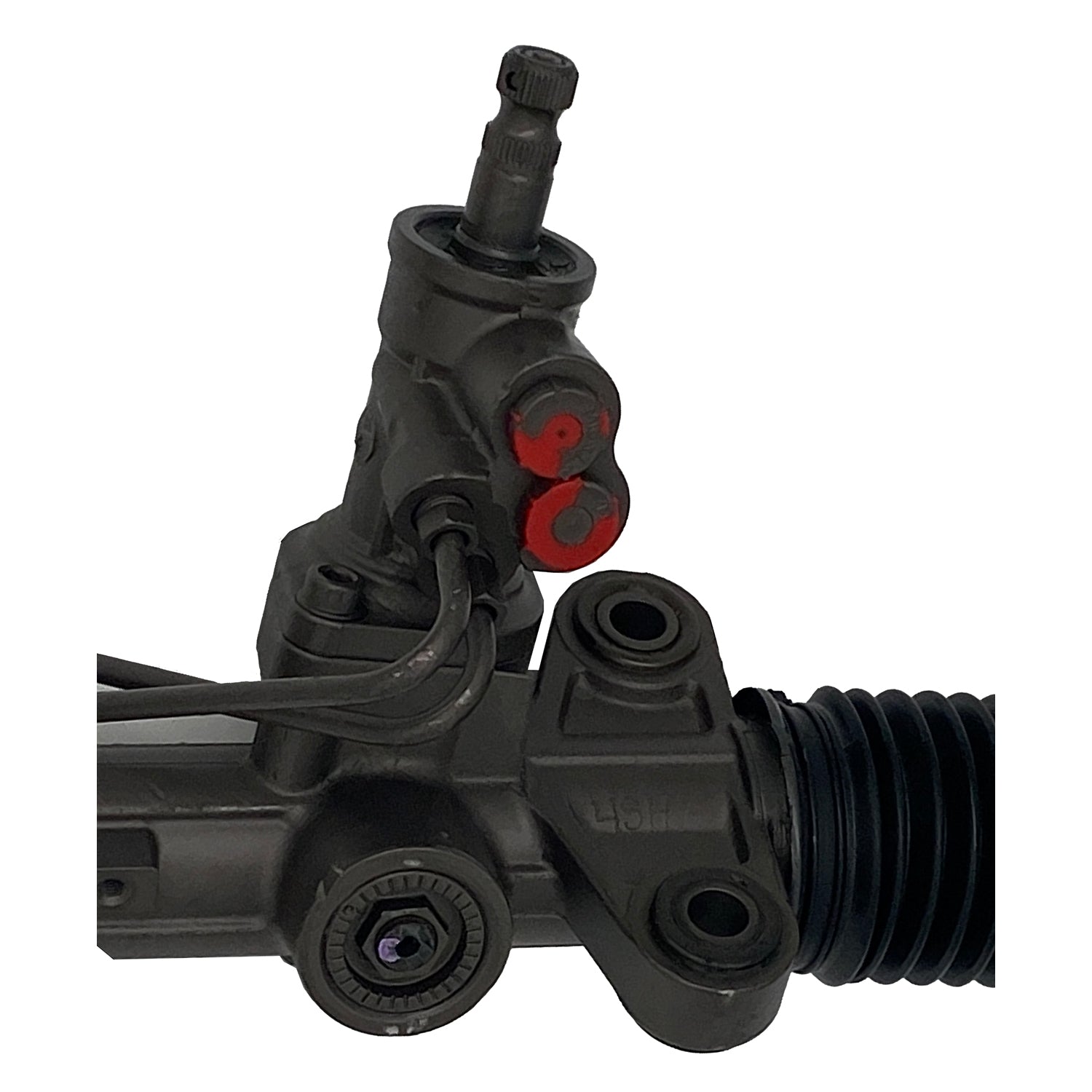

Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19 MM
Input Shaft Length 1.69 IN
Input Shaft Length 42.86 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 47.25 IN
Rack Length 1200.15 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.93 IN
Thread Length 48.97 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3

Application Info: Hyundai Genesis 4.6L V8 (2009-2011)

Interchange: Hyundai - 57700-3M760

BBB Cross-Reference:

Cardone Cross-Reference: 26-2447

Instructions - 1               Instructions - 2
