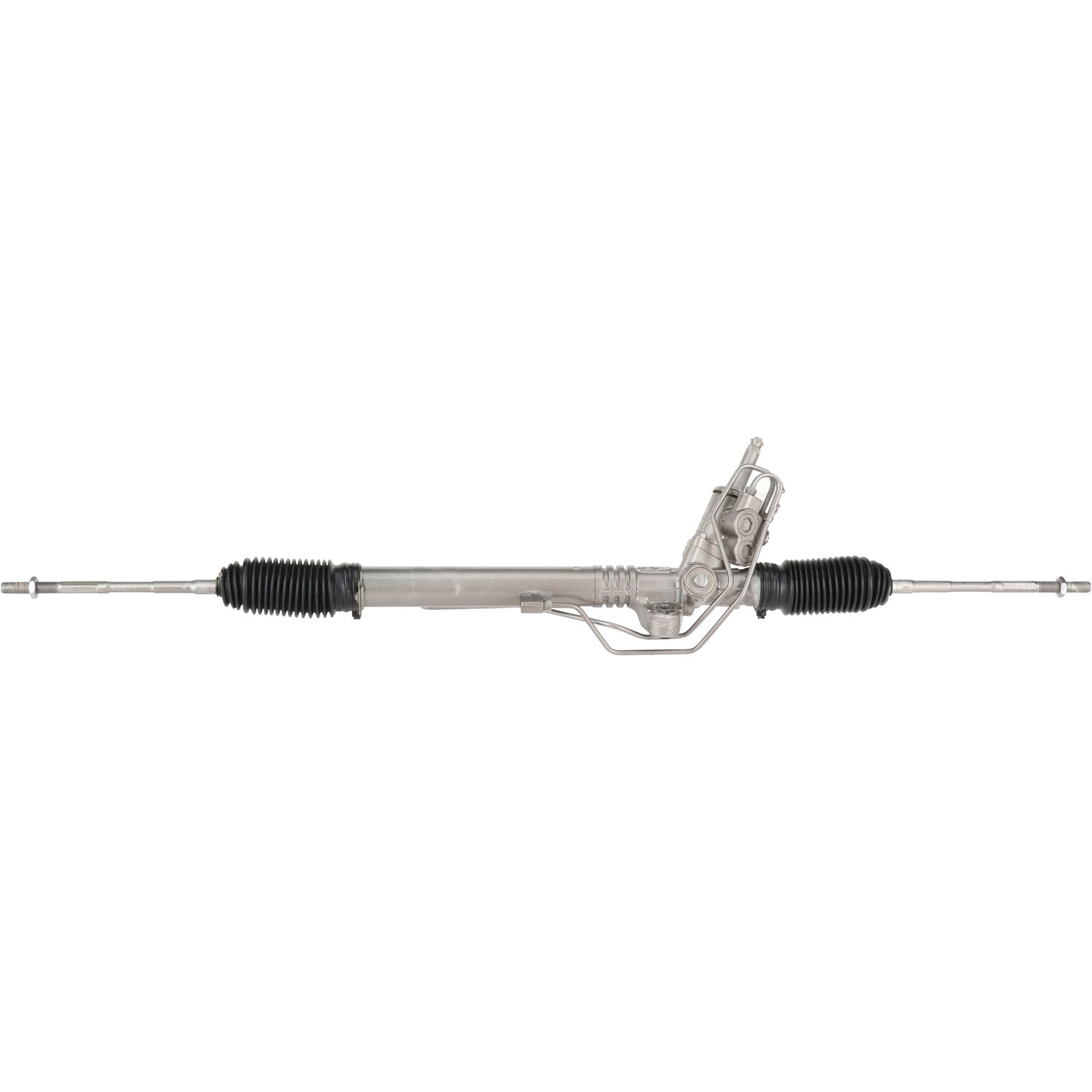

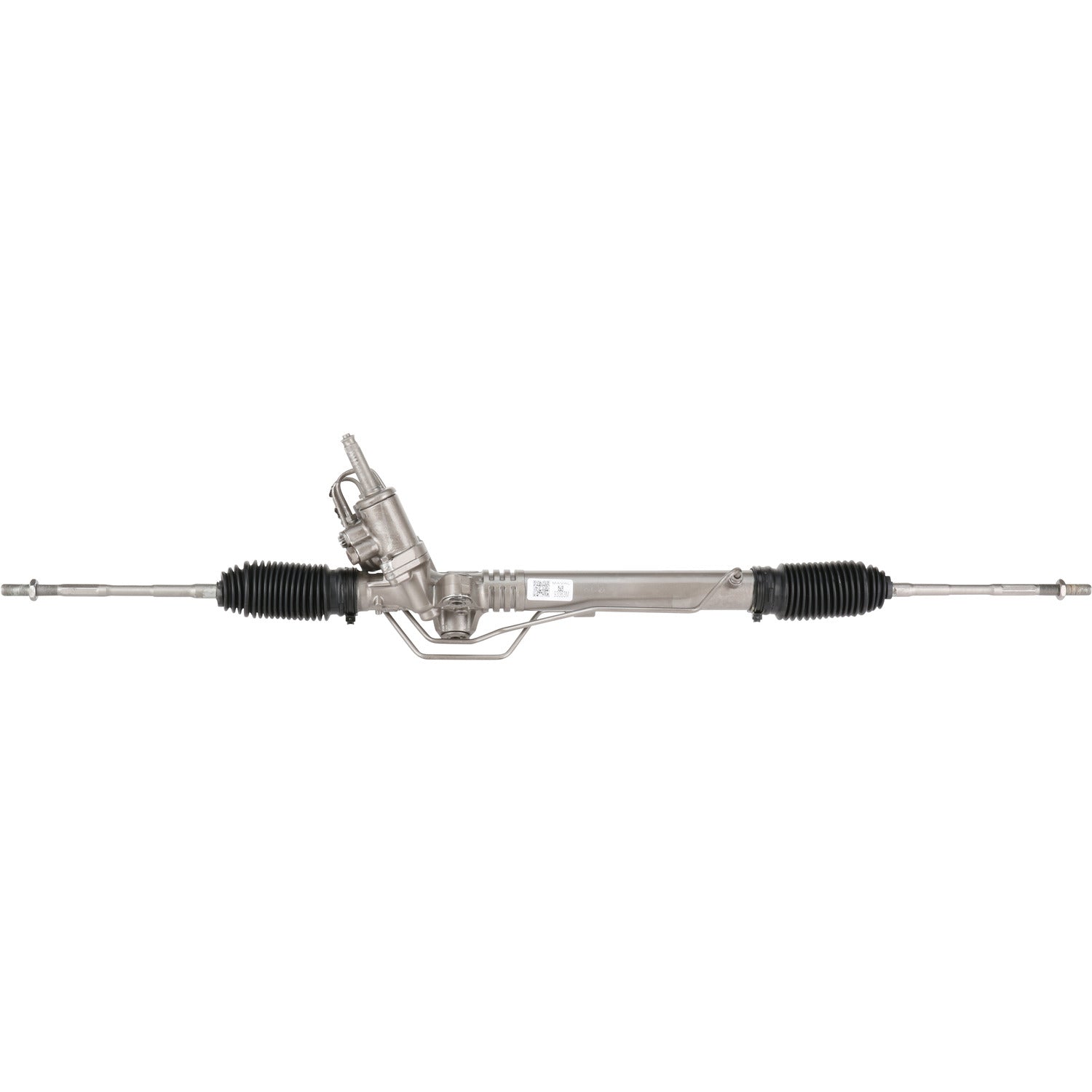

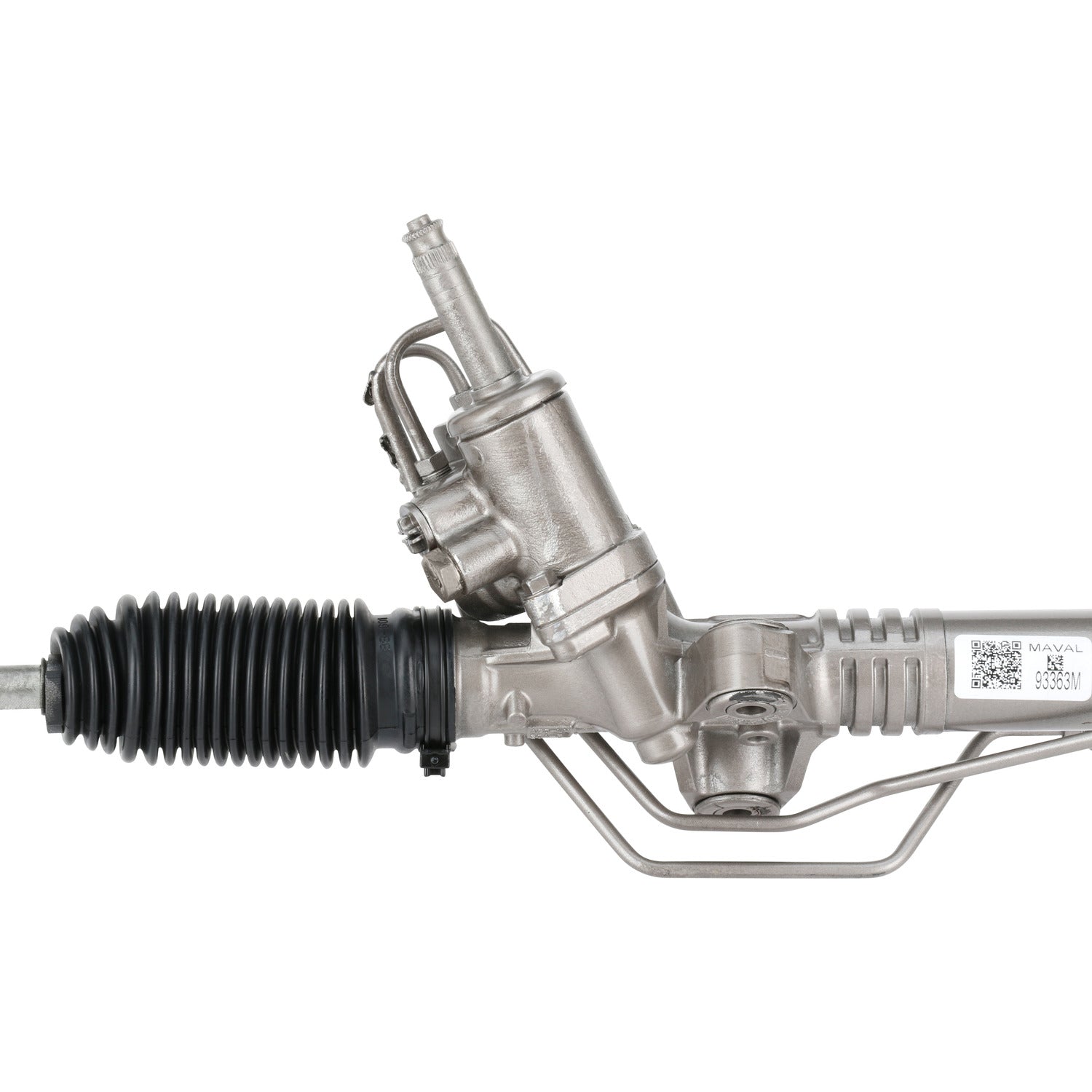

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93363M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93363M

SKU:93363M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.44 IN
Distance Between Mounting Holes 87.33 MM
Hose Port Type Seat
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.42 MM
Input Shaft Length 2.94 IN
Input Shaft Length 74.6 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 44.44 IN
Rack Length 1128.73 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.18 IN
Thread Length 55.37 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.81

Application Info: Subaru Impreza WRX, WRX Limited, WRX Premium (2009-11) ***W/Sport Shift***

Interchange: Subaru - 34110FG080

BBB Cross-Reference: 313-0356

Cardone Cross-Reference: 26-2328

Instructions - 1               Instructions - 2
