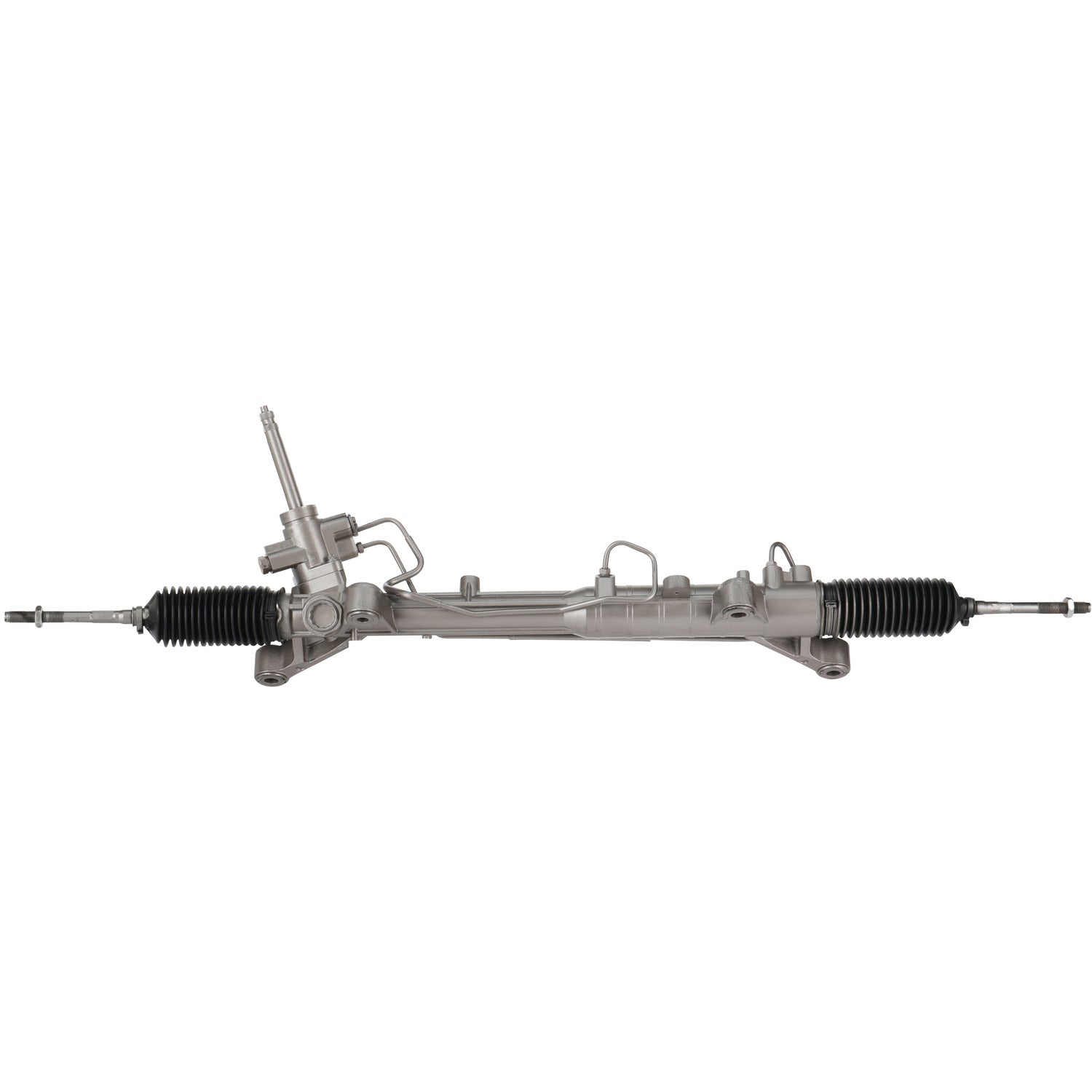

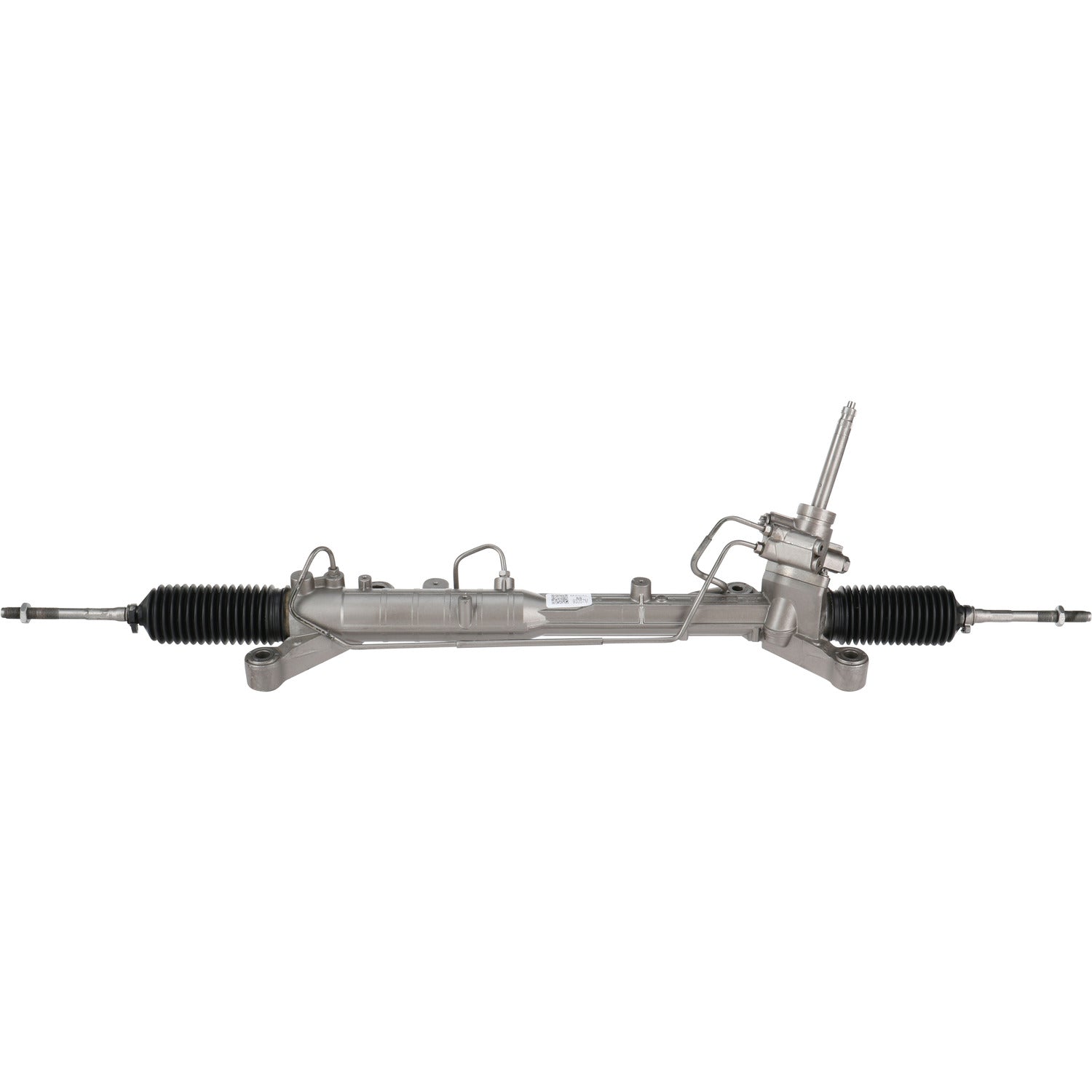

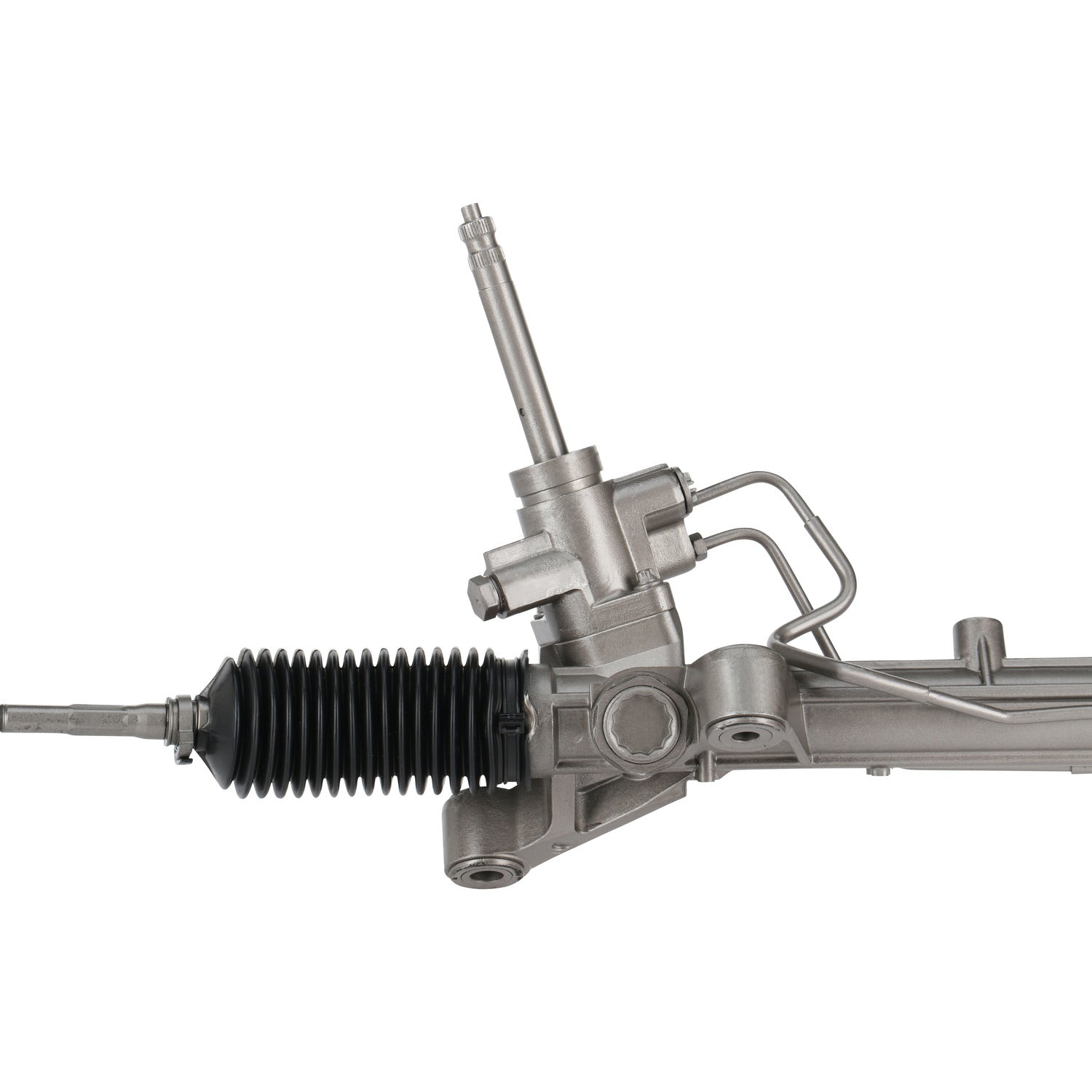

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93357M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93357M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 25.19 IN
Distance Between Mounting Holes 639.78 MM
Hose Port Type Banjo/Washer
Input Shaft Diameter 0.69 IN
Input Shaft Diameter 17.5 MM
Input Shaft Length 4.81 IN
Input Shaft Length 122.22 MM
Mounting Hole Quantity 4
Pressure Port Thread Size M14 x 1.5
Rack Length 47 IN
Rack Length 1193.8 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.25 IN
Thread Length 57.15 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.06

Application Info: Mazda CX-9 (2010-12)

Interchange: Mazda - TD1132110F

BBB Cross-Reference: 308-0170

Cardone Cross-Reference: 26-2057
