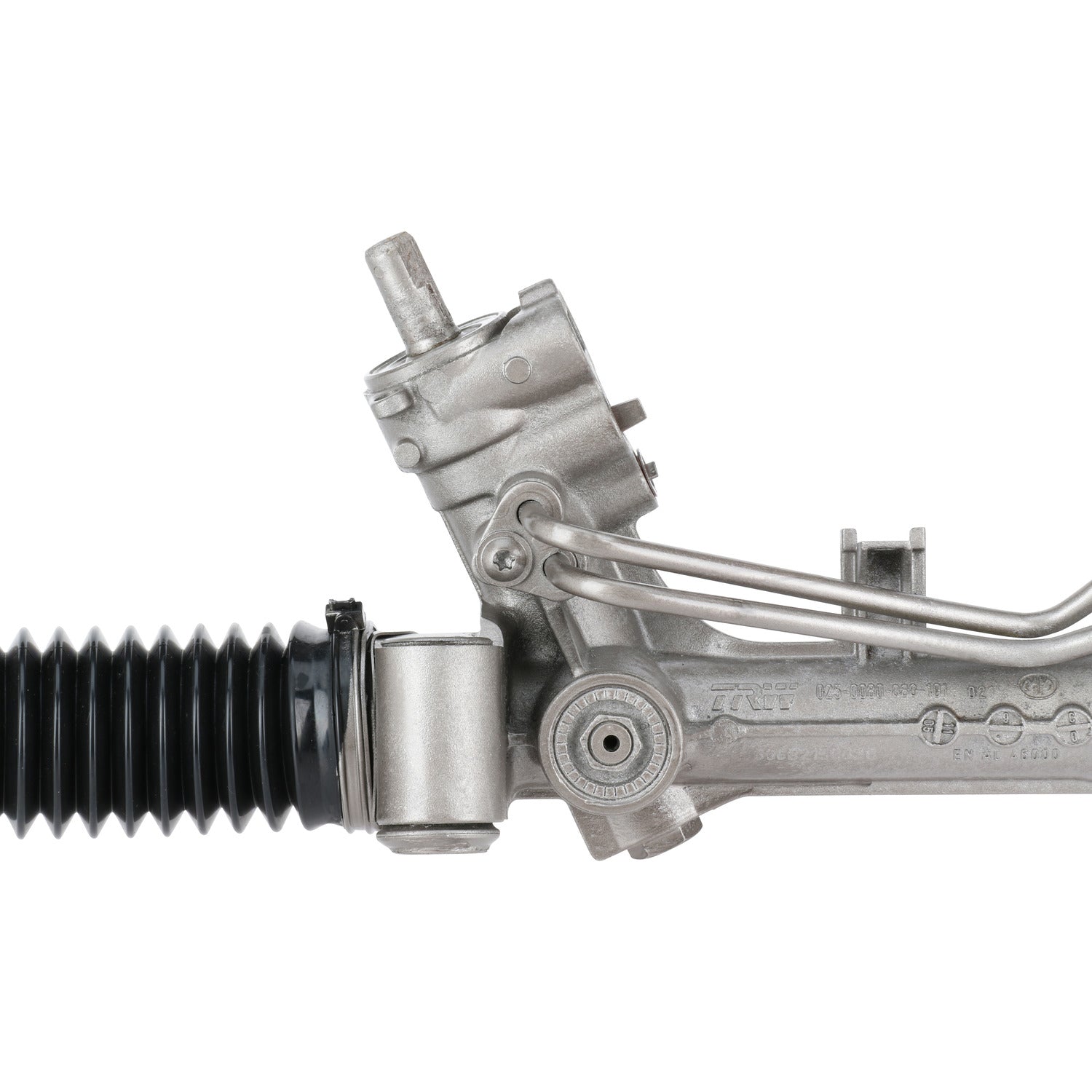

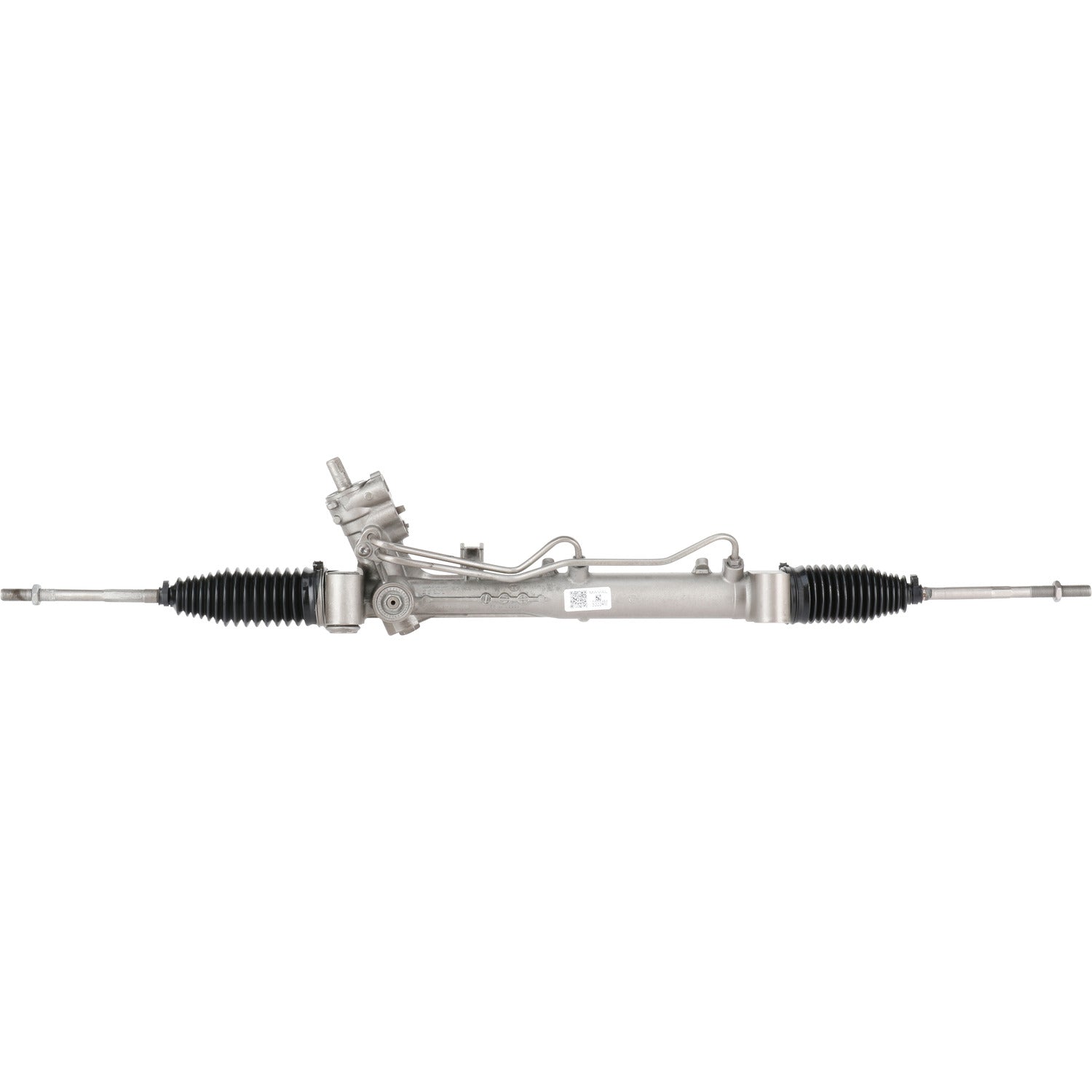

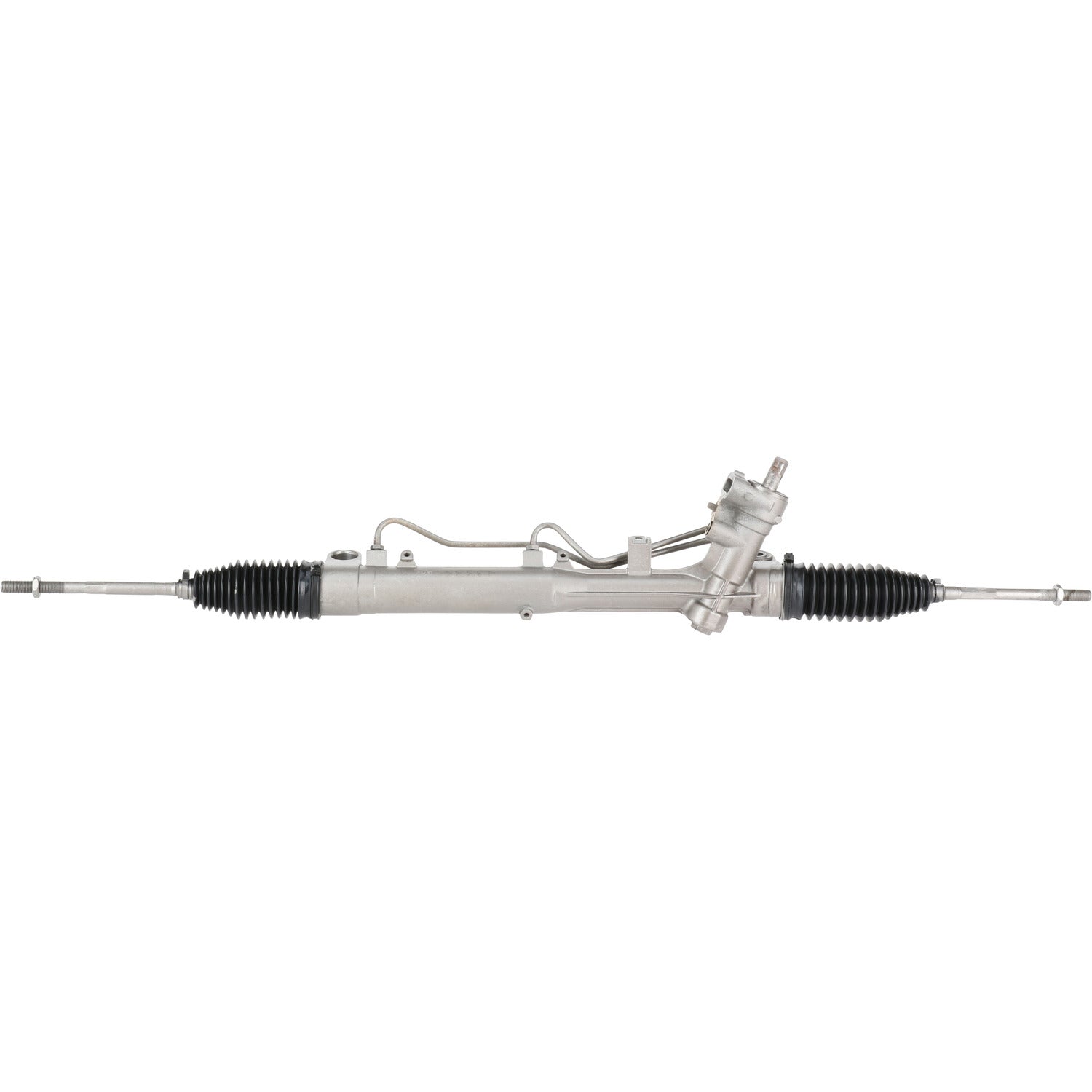

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93334M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93334M

SKU:93334M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Type Hydraulic
Inner Tie Rods Included Yes
Input Shaft Diameter 0.687 IN
Input Shaft Diameter 17.45 MM
Input Shaft Length 1.437 IN
Input Shaft Length 36.5 MM
Mounting Hole Quantity 2
New Or Remanufactured Remanufactured
Pressure Port Thread Size 11mm
Rack Length 46.125 IN
Rack Length 1171.575 MM
Return Port Thread Size 11mm
Total Turns Lock To Lock 2.75



Application Info: Saab 9-3 (2006-2009) ***RWD W/2.8L V6***

Interchange: Saab - 93186527

BBB Cross-Reference: 313-0236

Cardone Cross-Reference: 26-2519
