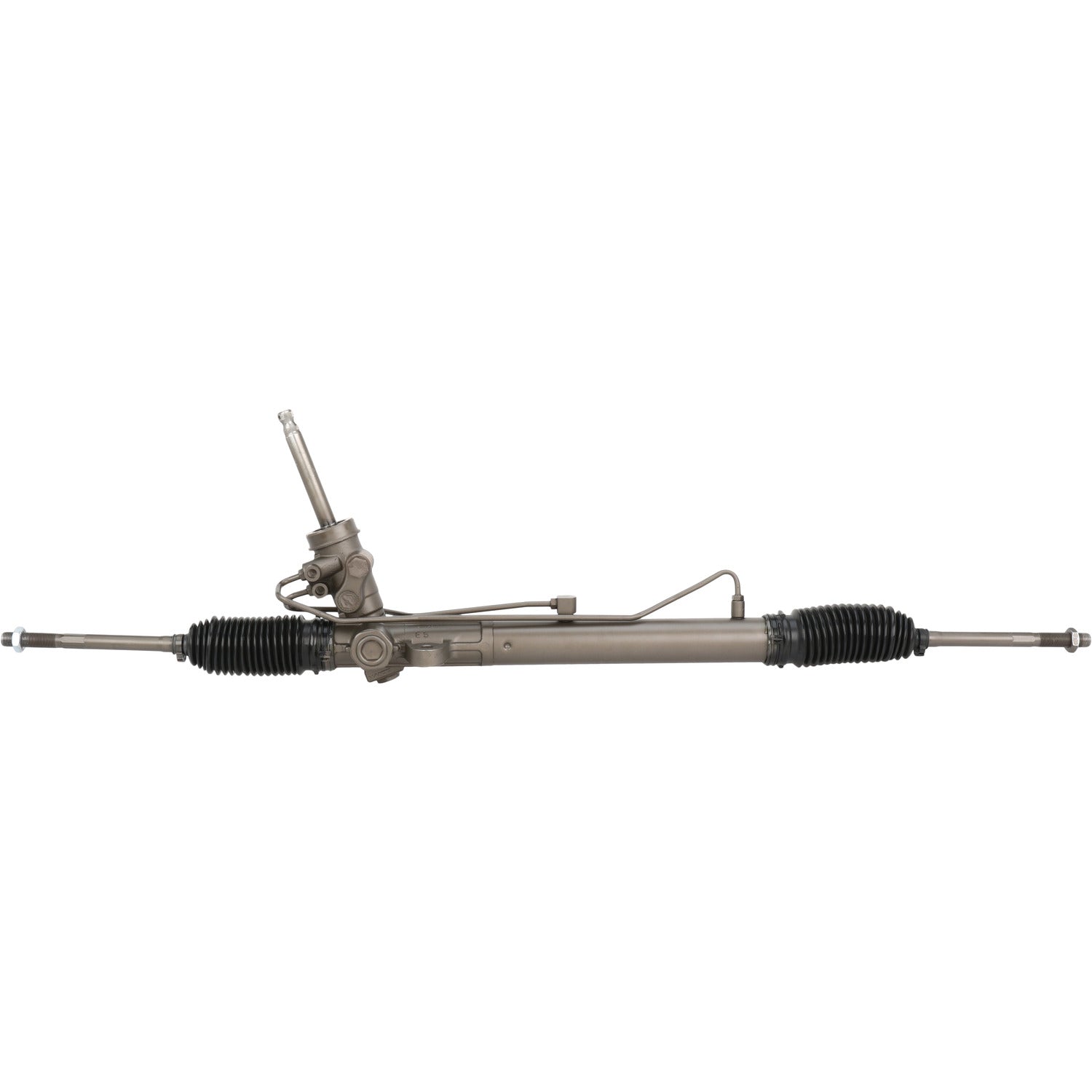

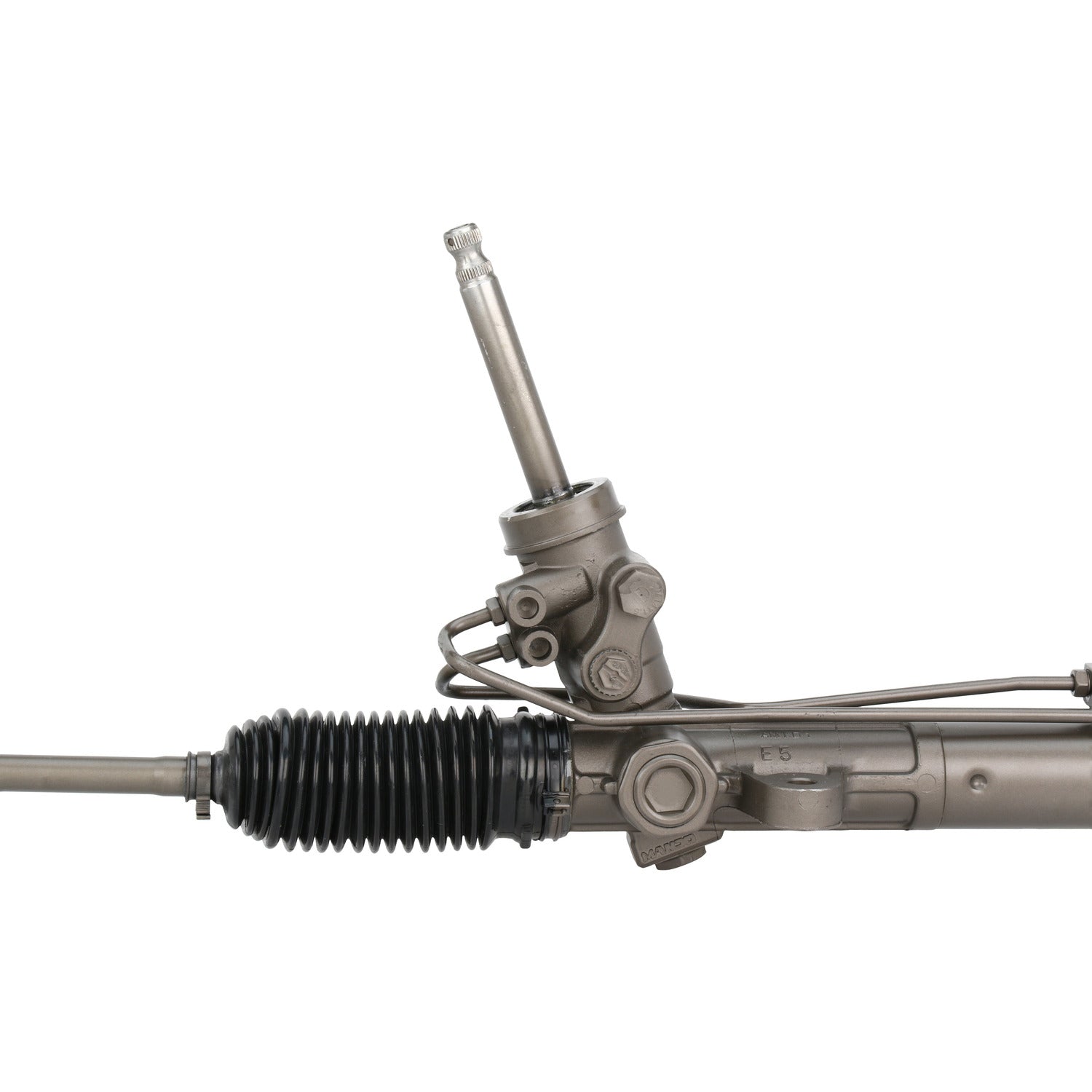

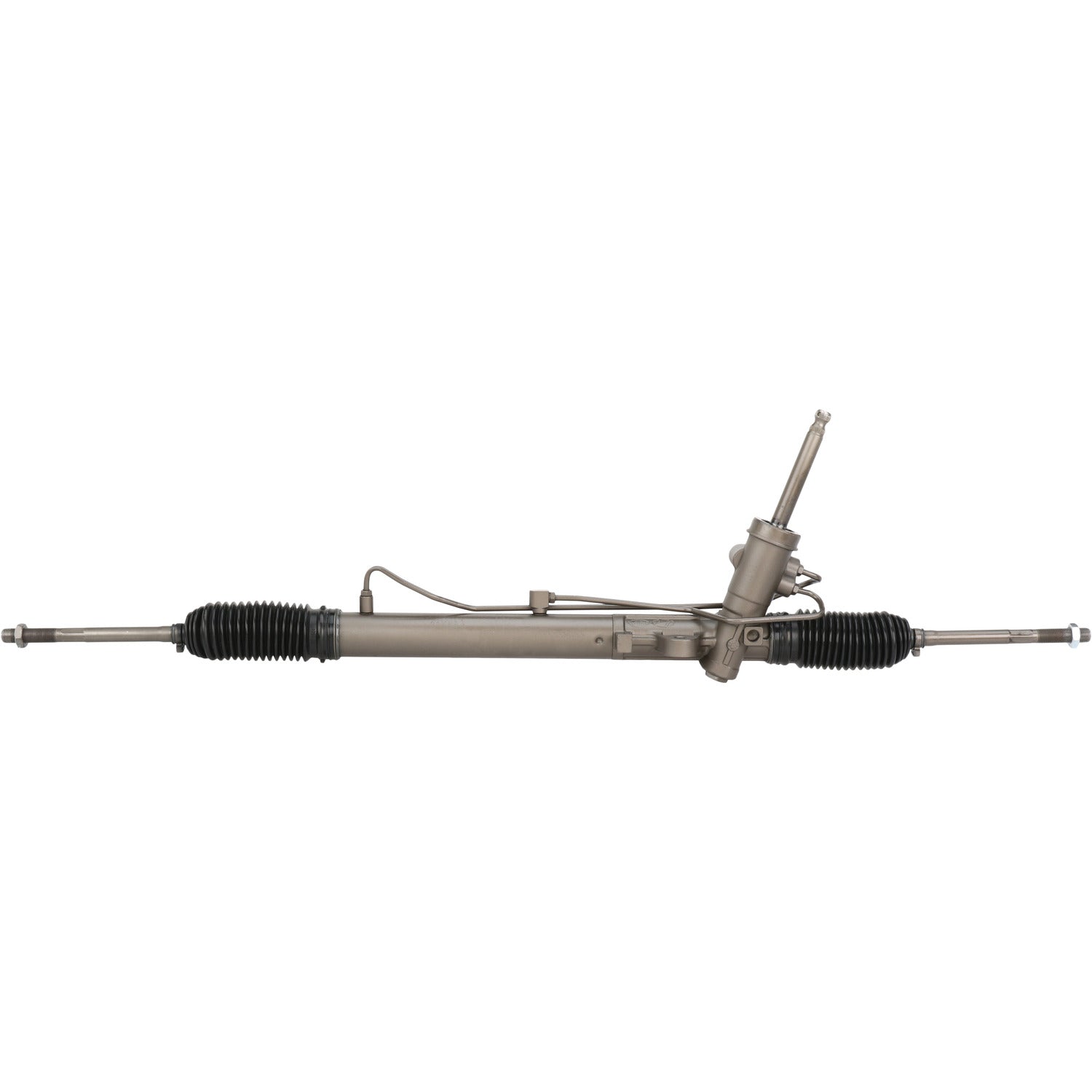

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93326M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93326M

SKU:93326M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.69 IN
Distance Between Mounting Holes 93.68 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 4.93 IN
Input Shaft Length 125.27 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 44.25 IN
Rack Length 1123.95 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.1 IN
Thread Length 53.24 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 2.81

Application Info: Kia Soul (2010-2011)

Interchange: Kia - 57700-2K000

BBB Cross-Reference: 313-0371

Cardone Cross-Reference: 26-2448
