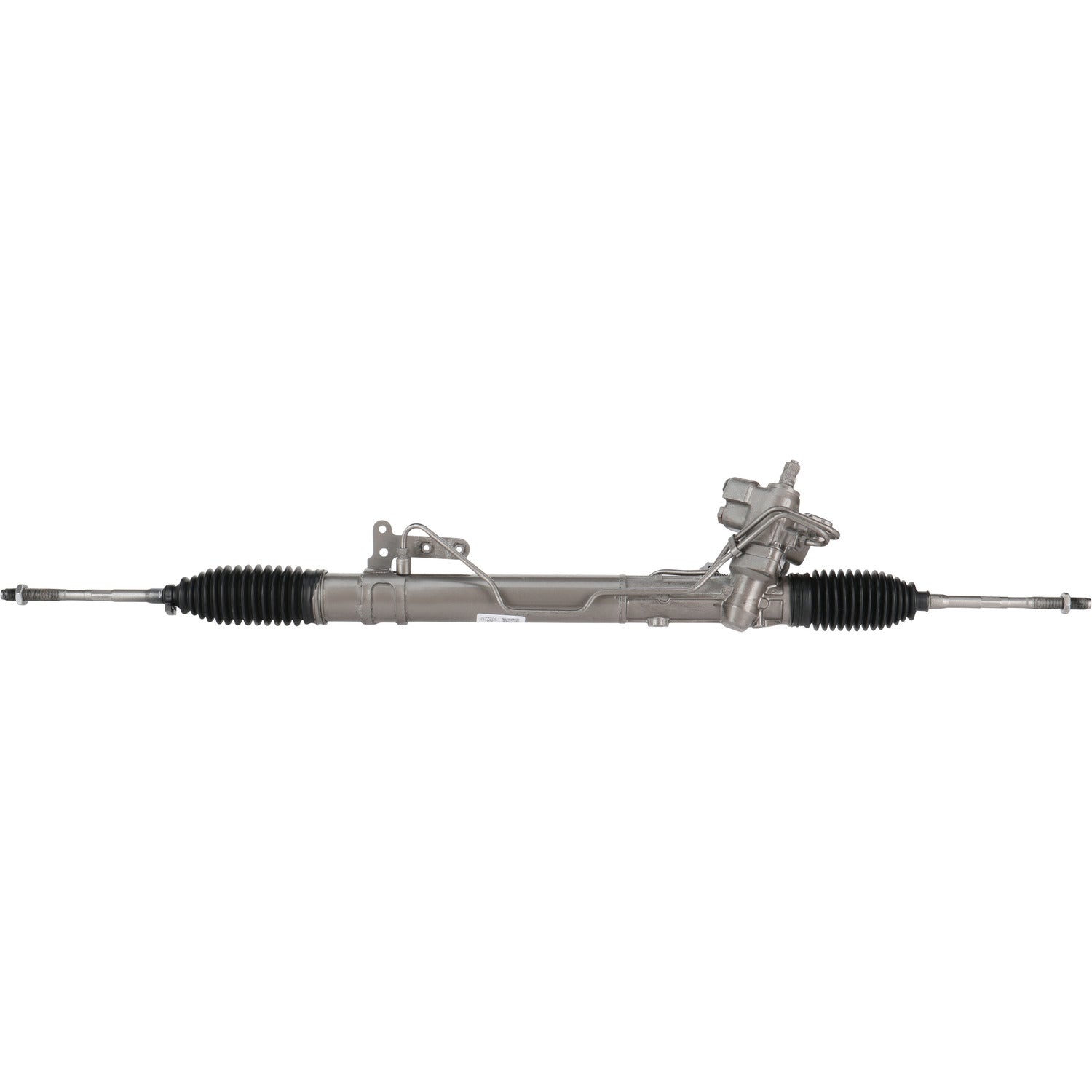

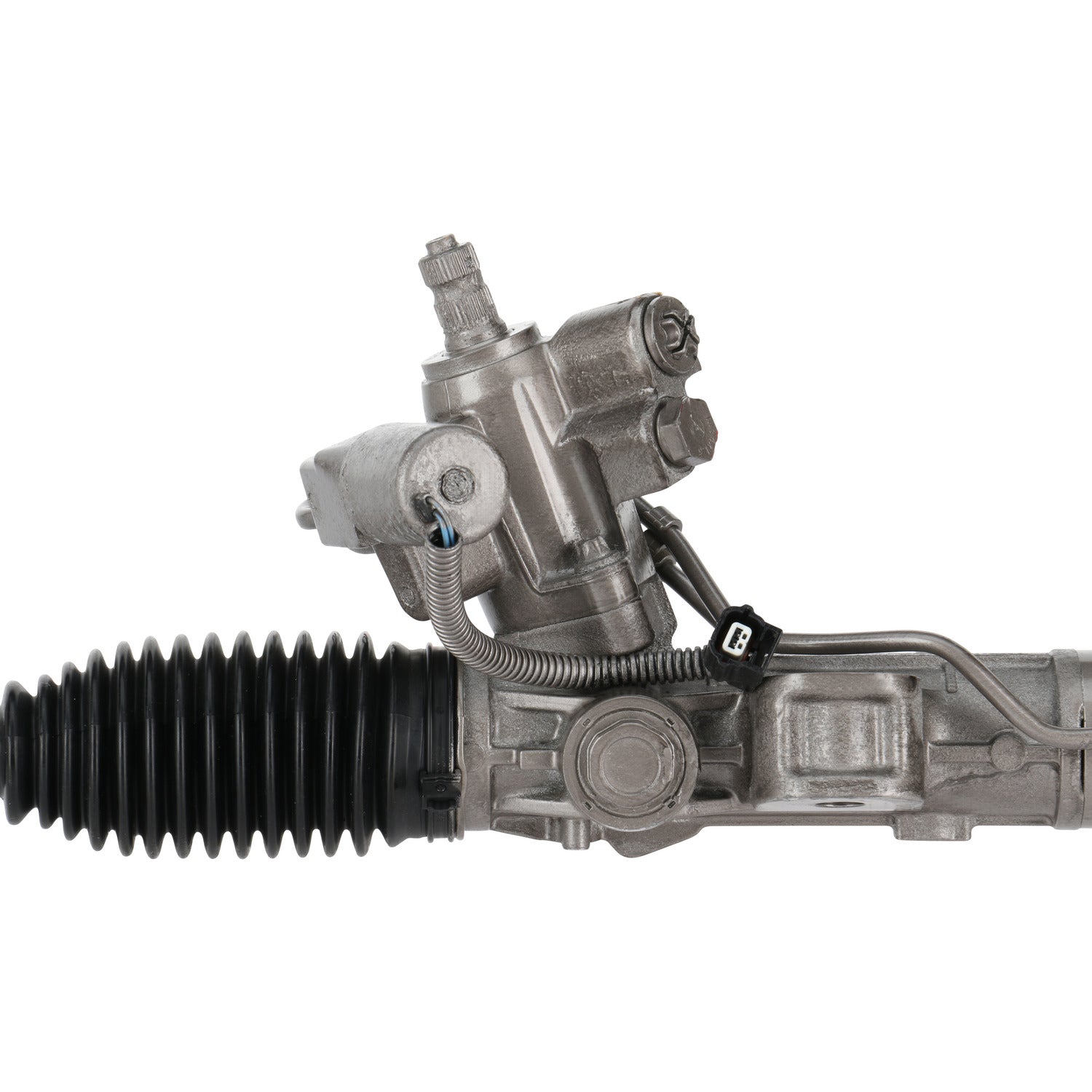

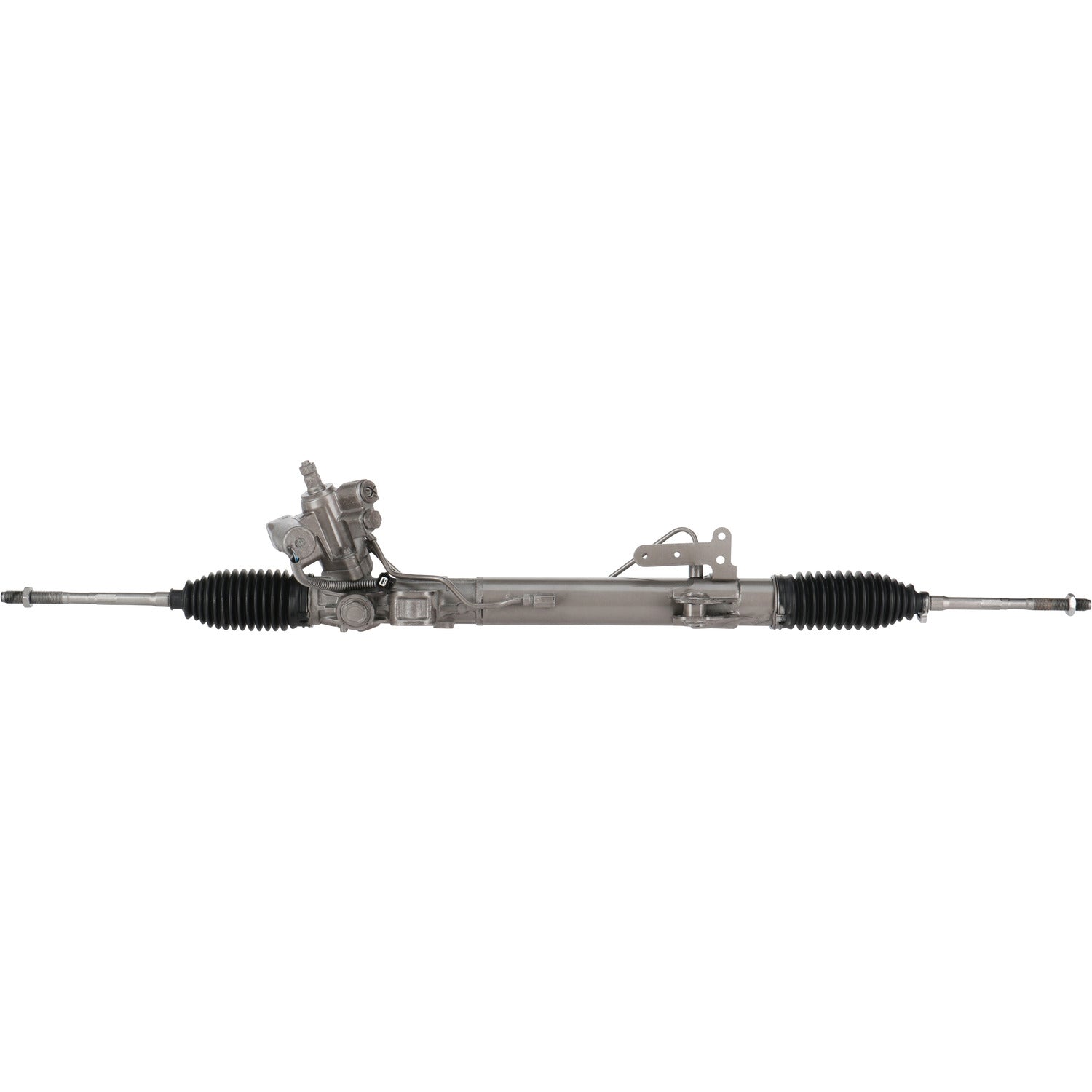

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93322M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93322M

SKU:93322M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 11.5 IN
Distance Between Mounting Holes 292.1 MM
Hose Port Type Washer
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 1.13 IN
Input Shaft Length 28.58 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 44.88 IN
Rack Length 1139.83 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.37 IN
Thread Length 60.2 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.13

Application Info: Nissan Murano (2009-14) ***AWD Applications ONLY***

Interchange: Nissan - 49001-1AA0A

BBB Cross-Reference: 310-0193

Cardone Cross-Reference: 26-3063
