MAVAL

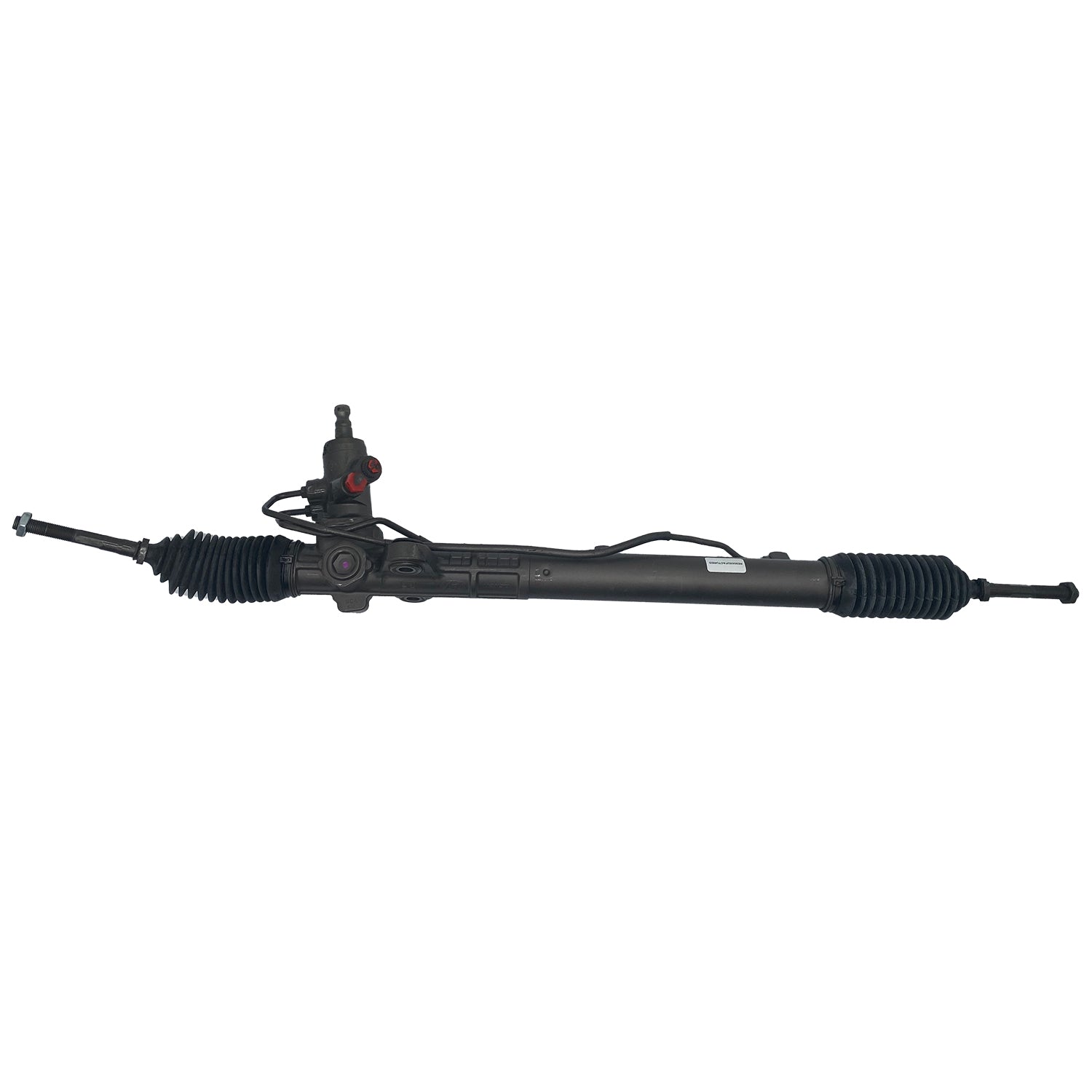

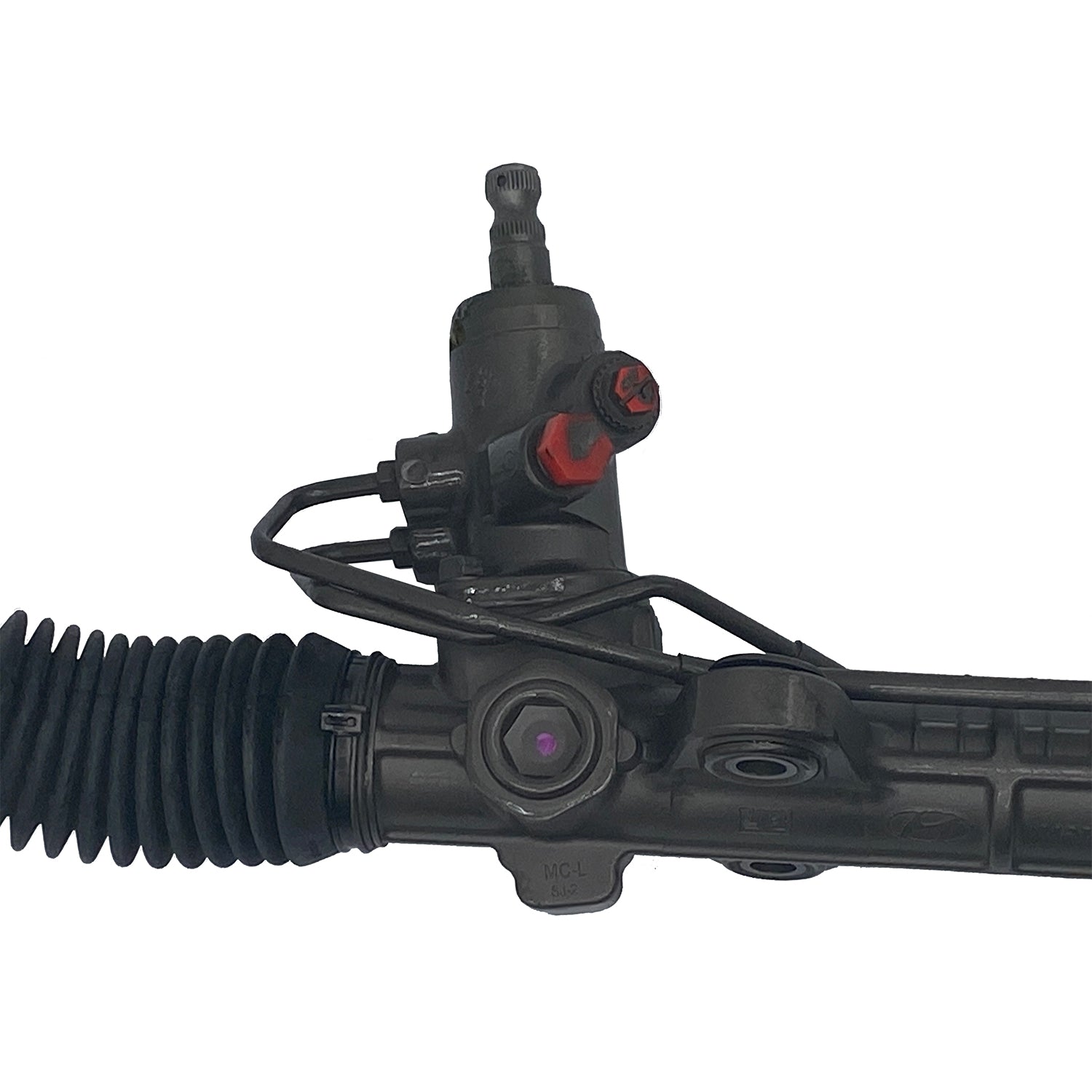

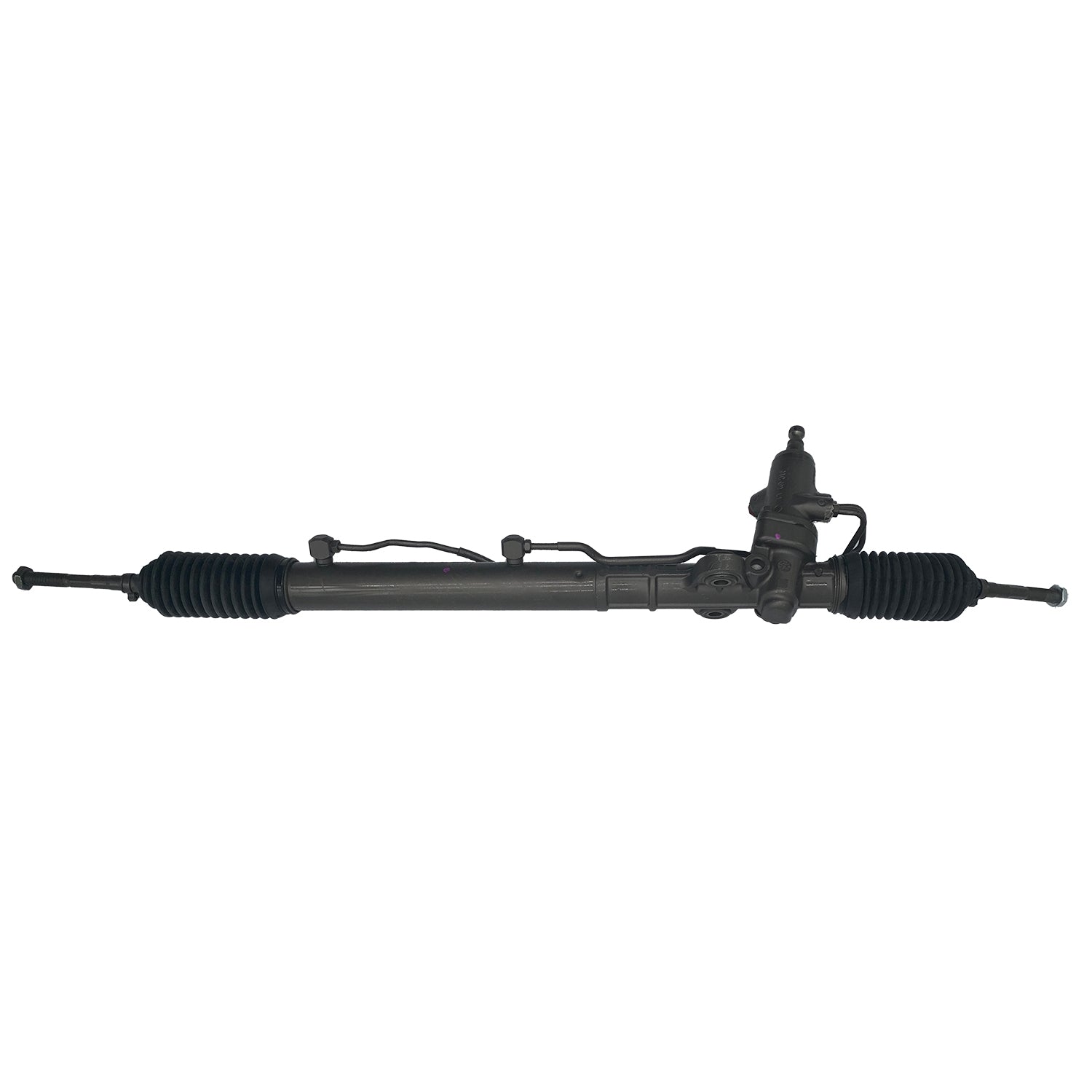

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93318M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93318M

SKU:93318M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 3.5 IN
Distance Between Mounting Holes 90.5 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.669 IN
Input Shaft Diameter 17 MM
Input Shaft Length 1.75 IN
Input Shaft Length 44.45 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 41.5 IN
Rack Length 1054.1 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.869 IN
Thread Length 47.47 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.063

Application Info: Hyundai Accent (2007-2011) ***W/O Sport Suspension***

Interchange: Hyundai - 57700-1E100

BBB Cross-Reference:

Cardone Cross-Reference: 26-2421
