MAVAL

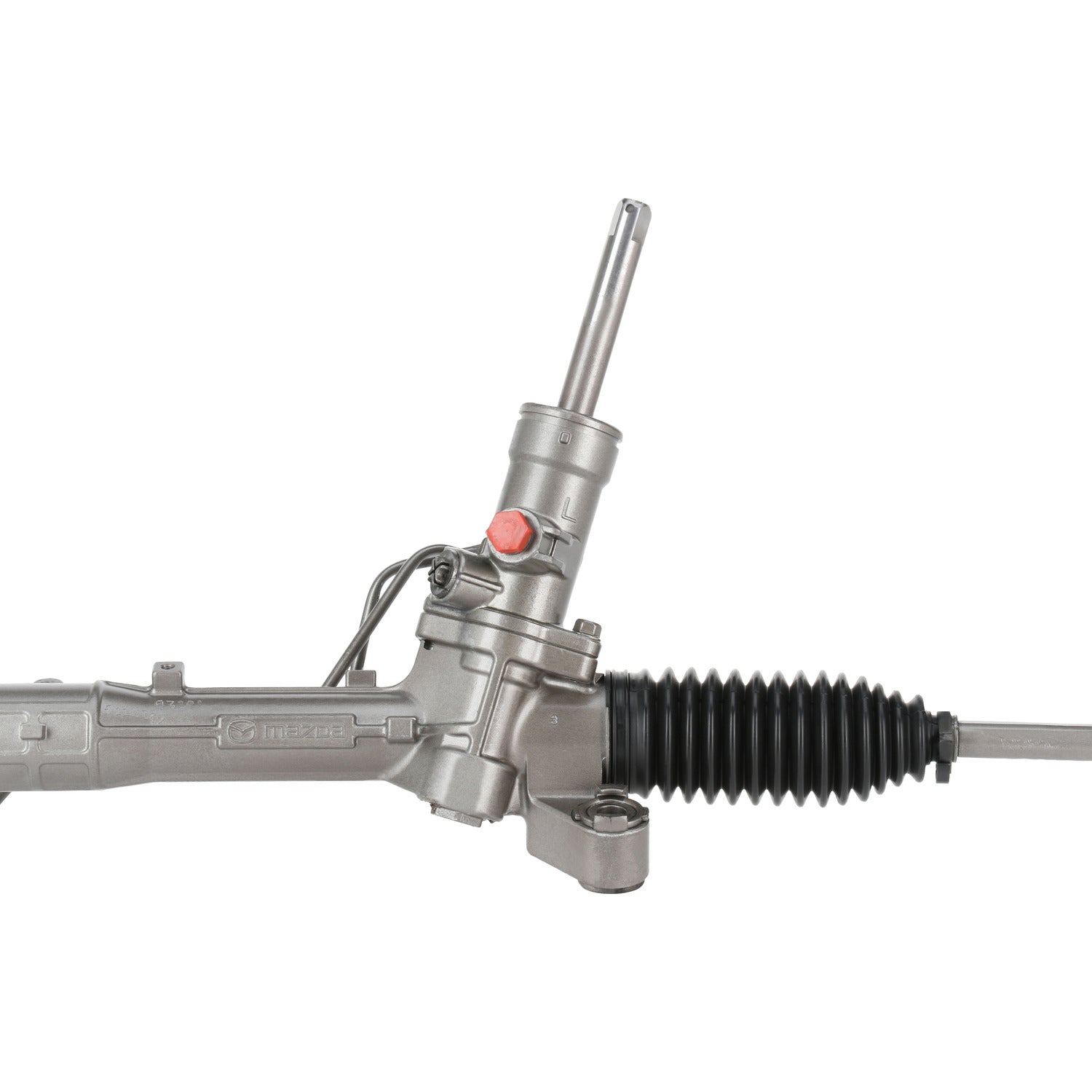

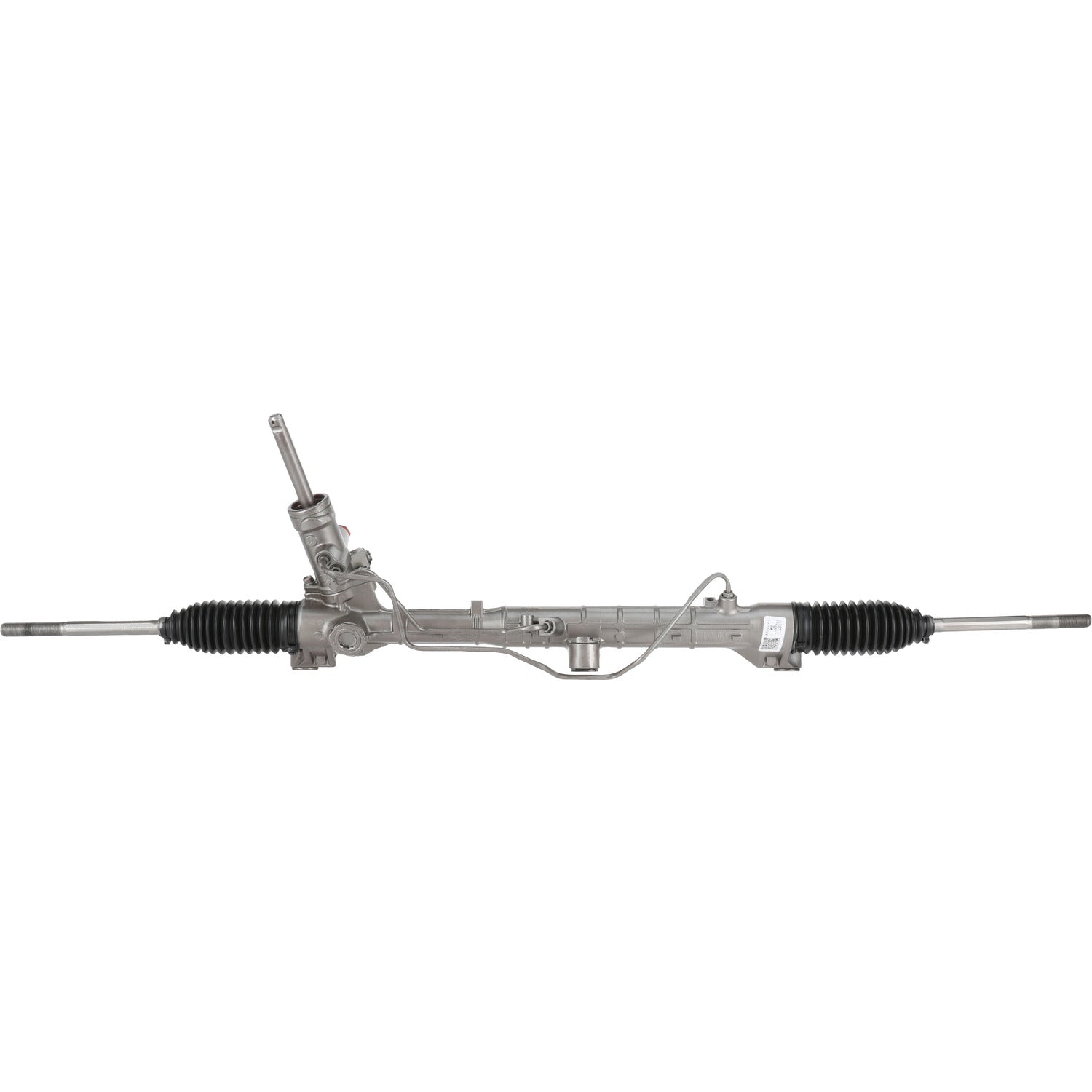

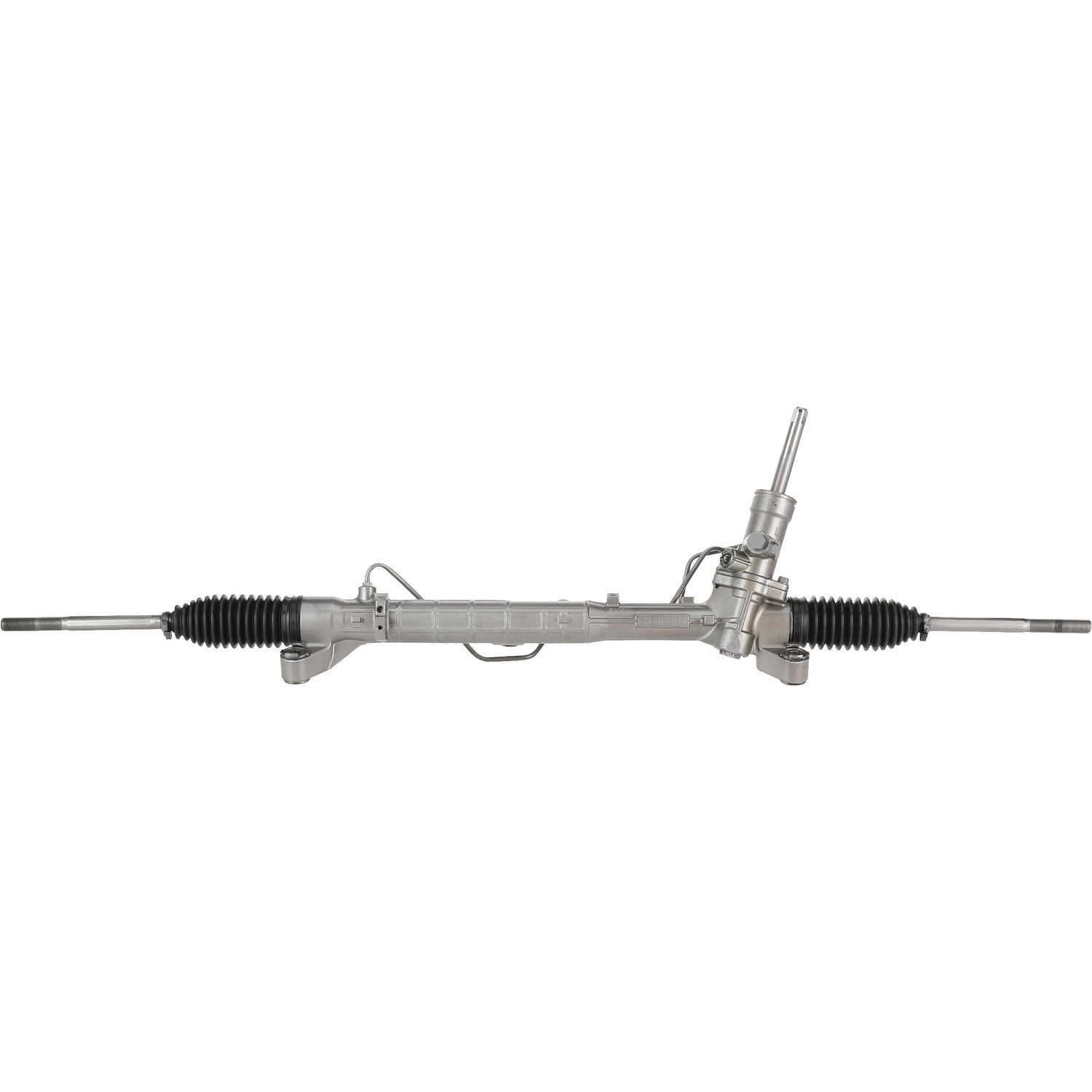

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93292M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93292M

SKU:93292M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 23.06 IN
Distance Between Mounting Holes 585.8 MM
Hose Port Type Seat
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.52 MM
Input Shaft Length 4.31 IN
Input Shaft Length 109.52 MM
Mounting Hole Quantity 3
Pressure Port Thread Size M14 x 1.5
Rack Length 50.5 IN
Rack Length 1282.7 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.59 IN
Thread Length 65.71 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.94

Application Info: Mazda 3 (2010-13) ***Naturally Aspirated Applications ONLY***

Interchange: Mazda - BBM4-32-110C

BBB Cross-Reference: 308-0176

Cardone Cross-Reference: 26-2076
