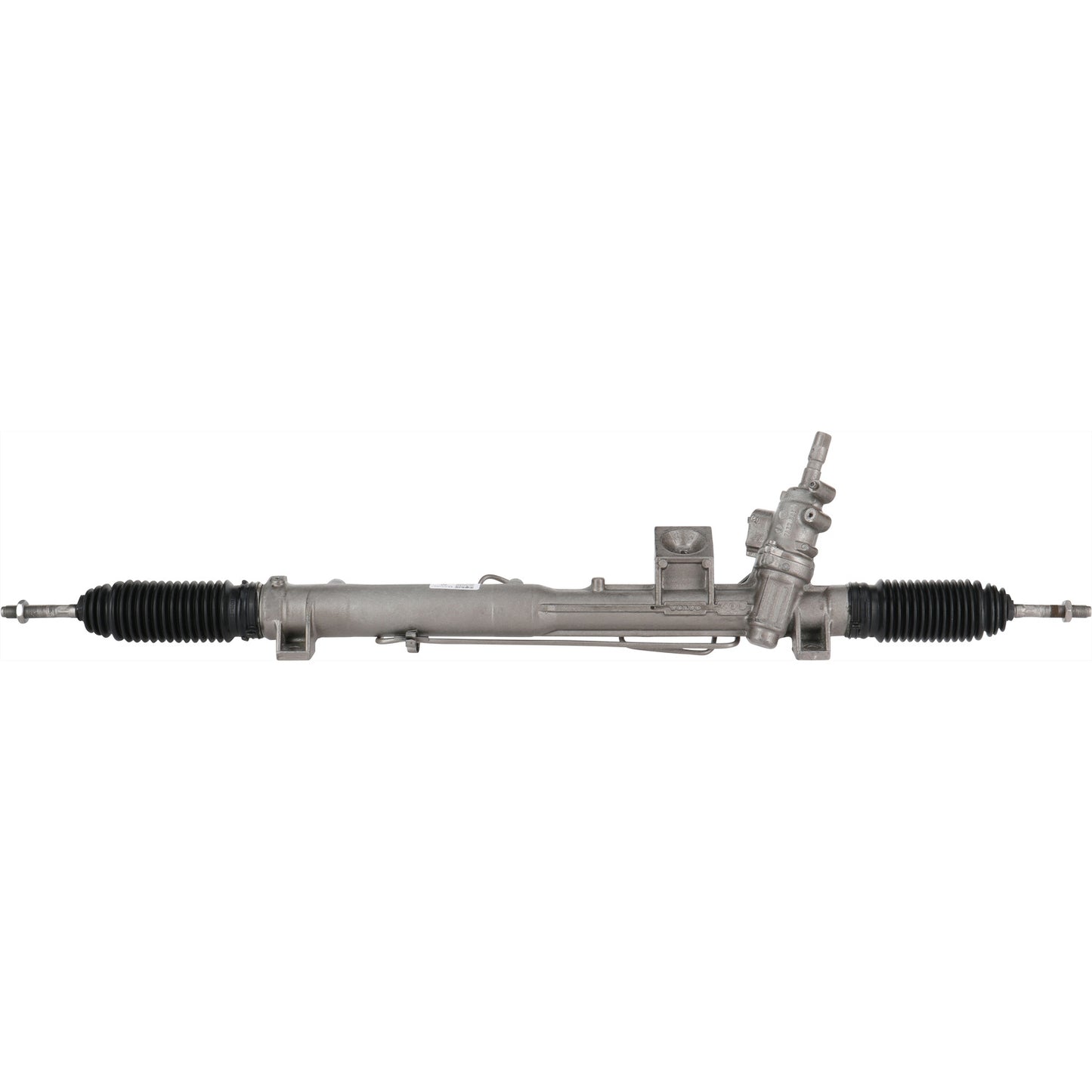

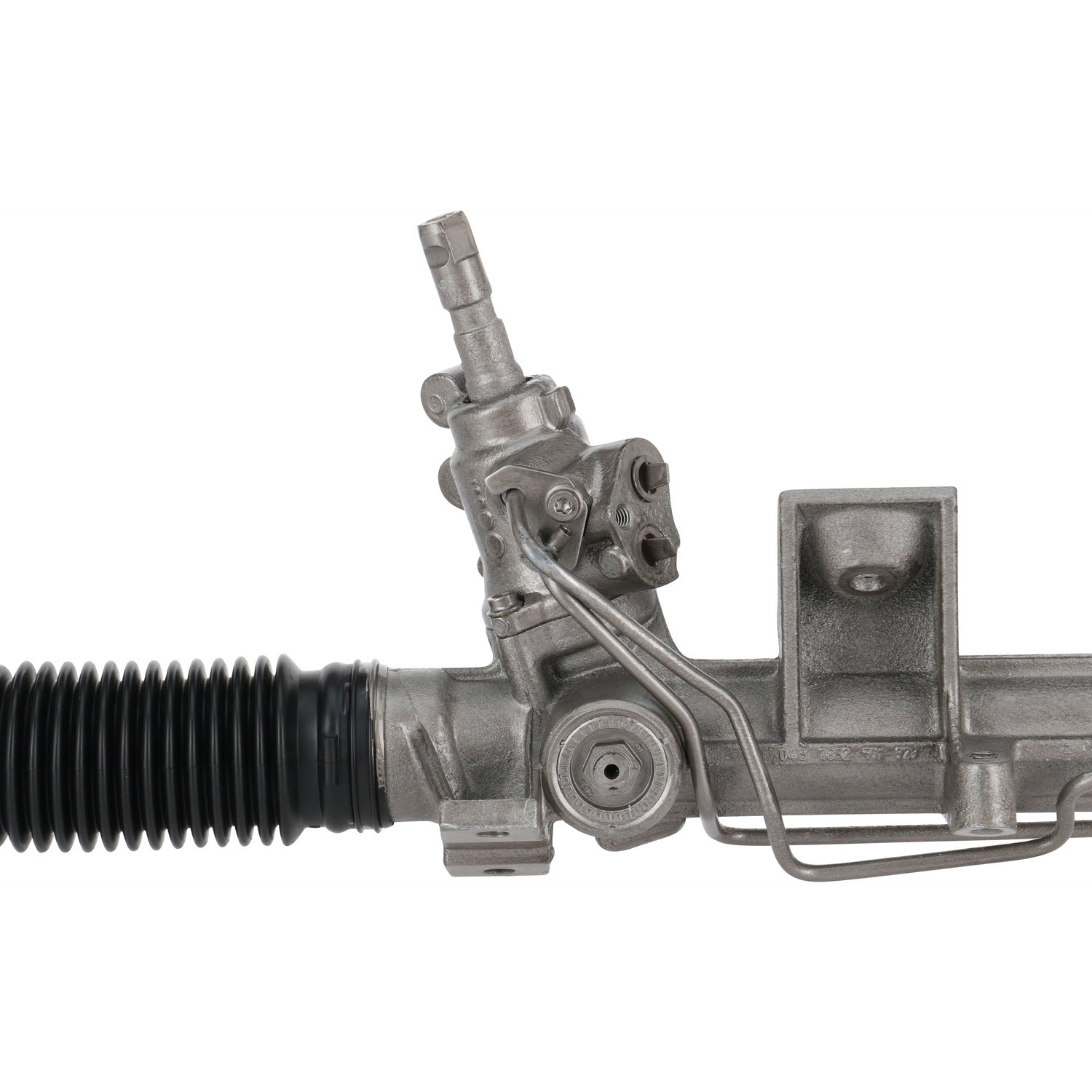

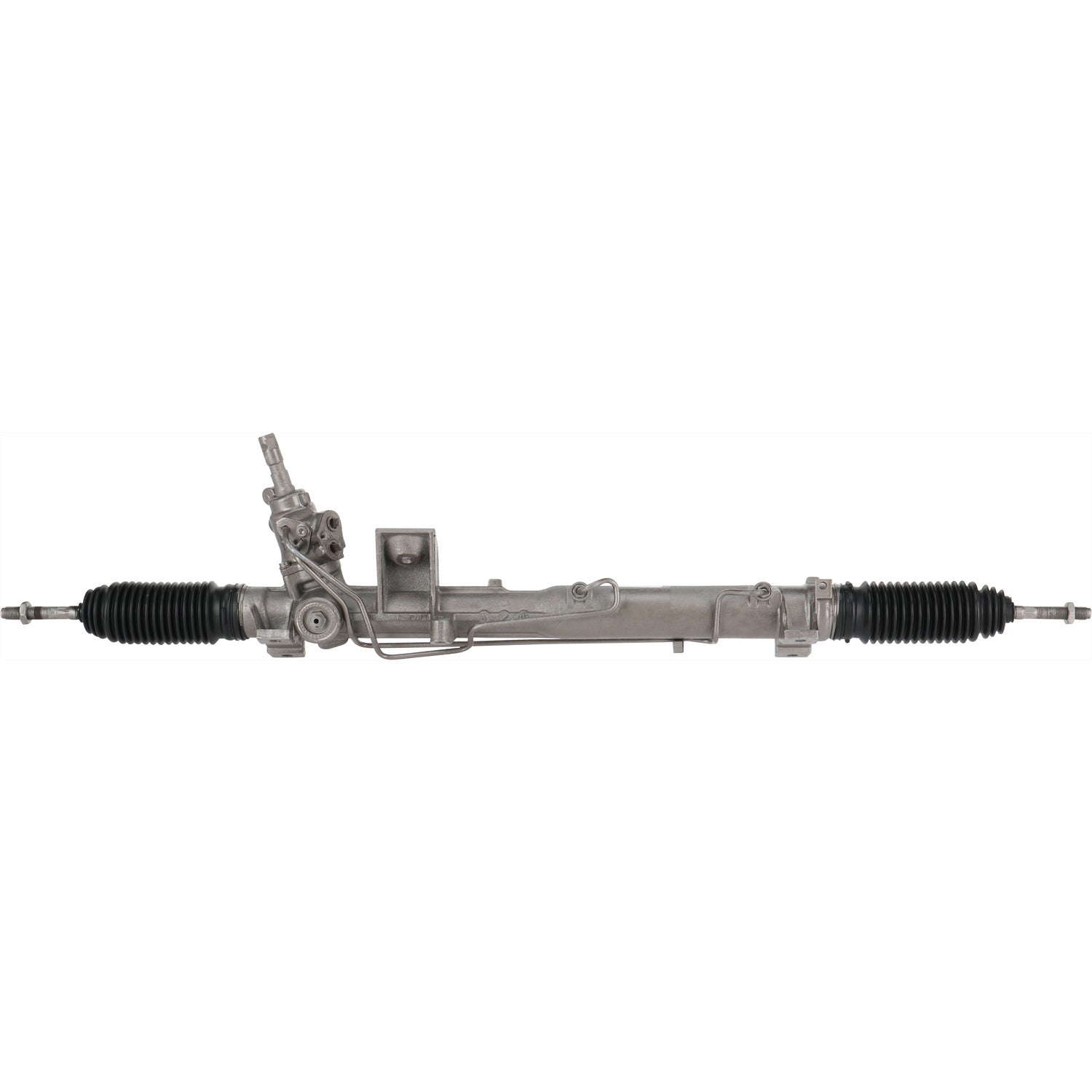

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93282M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93282M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Distance Between Mounting Holes 20.5 IN
Distance Between Mounting Holes 520.7 MM
Type Hydraulic
Inner Tie Rods Included Yes
Input Shaft Diameter 0.704 IN
Input Shaft Diameter 17.879 MM
Input Shaft Length 2.438 IN
Input Shaft Length 61.913 MM
Mounting Hole Quantity 4
New Or Remanufactured Remanufactured
Pressure Port Thread Size 11mm
Rack Length 43.125 IN
Rack Length 1095.375 MM
Return Port Thread Size 12mm
Total Turns Lock To Lock 2.75

Application Info: Volvo V70 (2005-2007), Volvo S60 (2008-2009) ***W/O Speed Assisted Steering***

Interchange: Volvo - 36002630

BBB Cross-Reference: 307-0158

Cardone Cross-Reference: 26-2532

Instructions - 1               Instructions - 2
