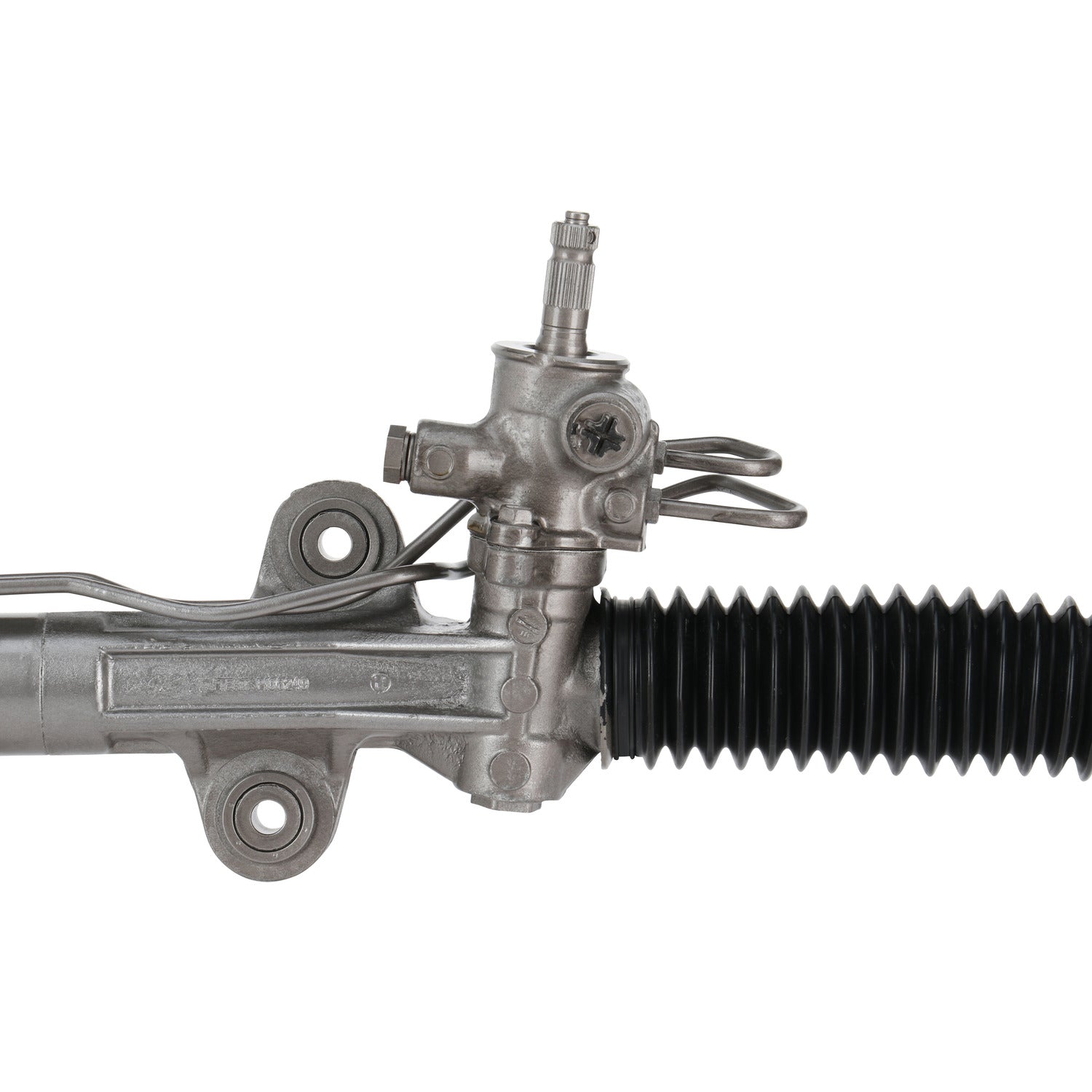

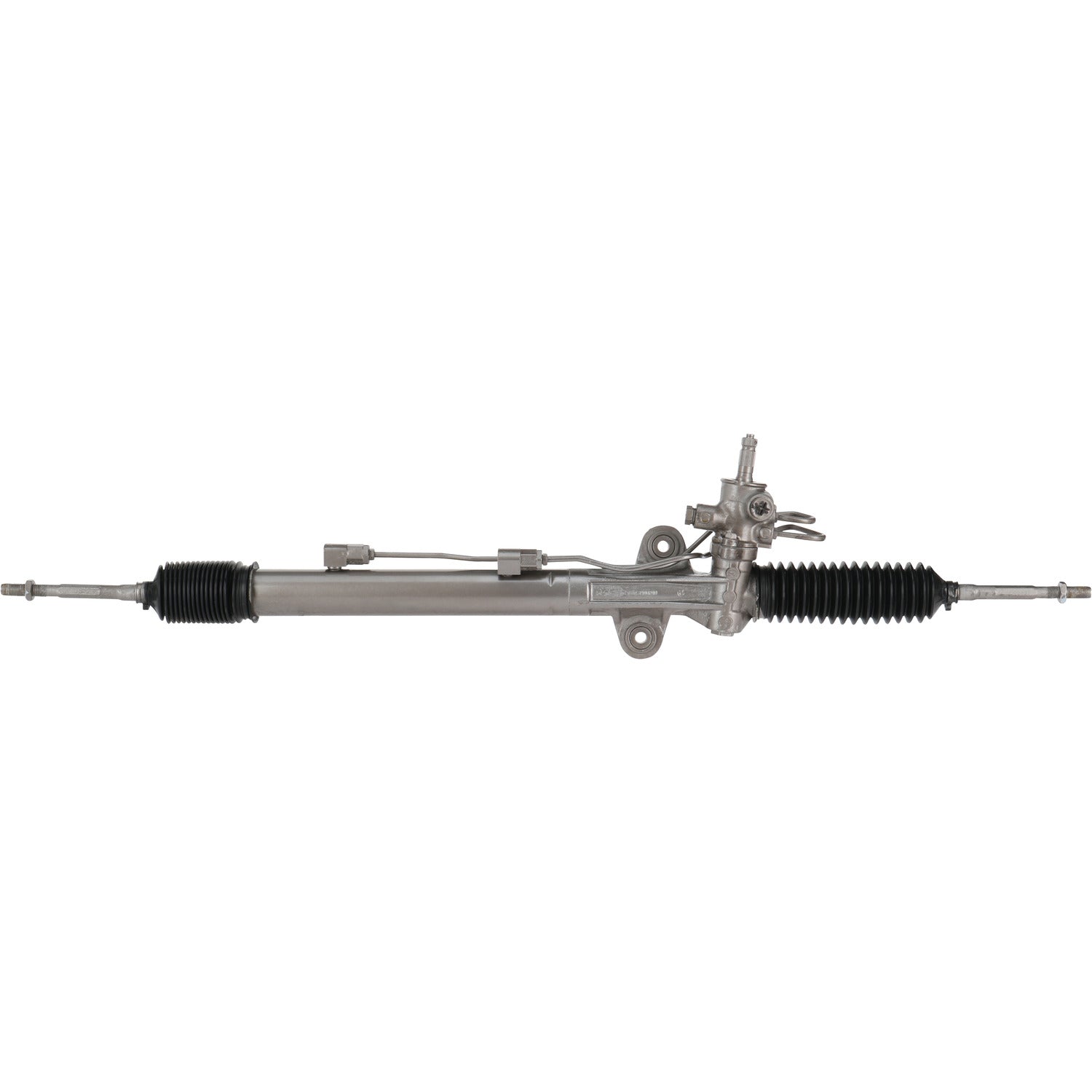

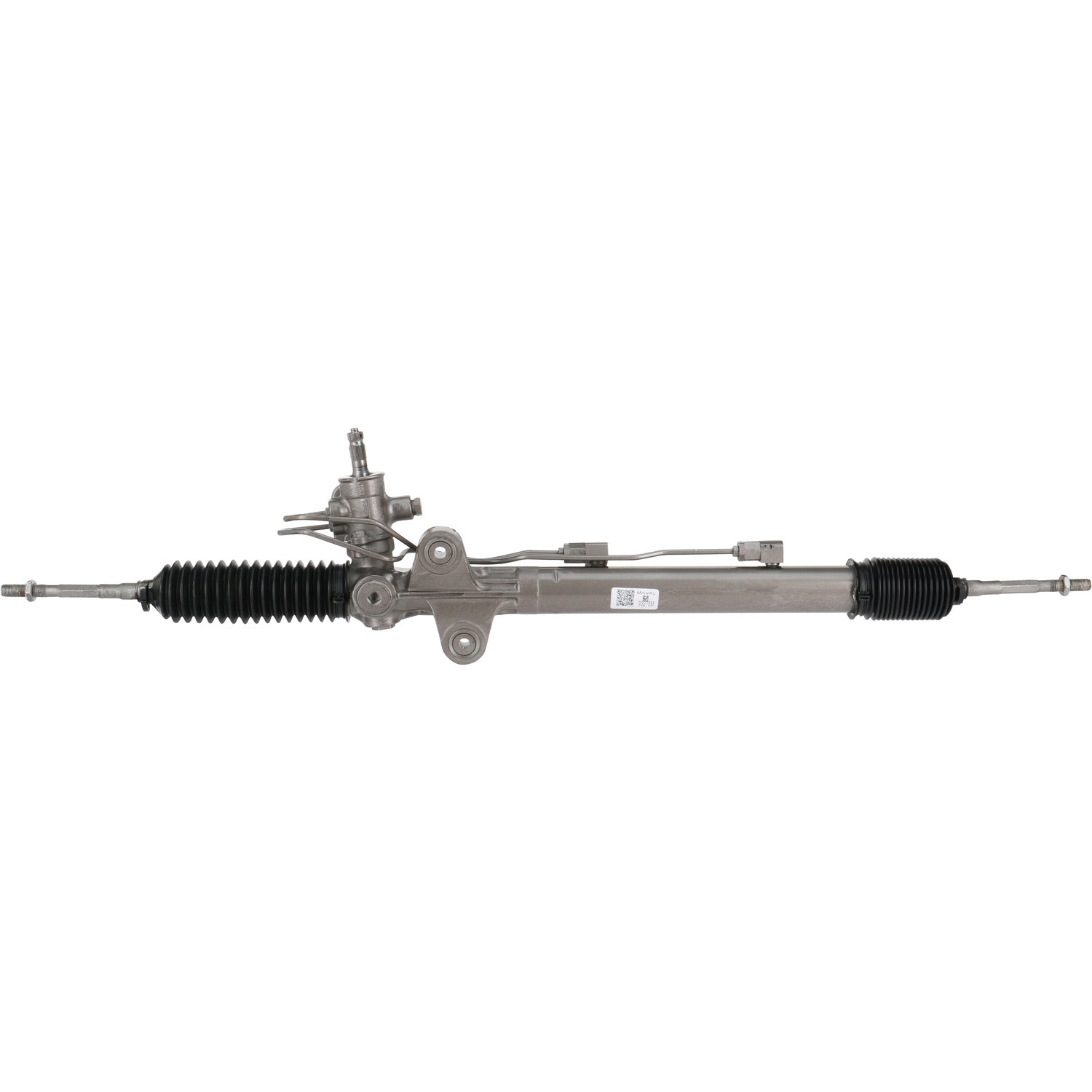

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93275M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93275M

SKU:93275M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Distance Between Mounting Holes 3.94 IN
Distance Between Mounting Holes 100.076 MM
Type Hydraulic
Inner Tie Rods Included Yes
Input Shaft Diameter 0.654 IN
Input Shaft Diameter 16.599 MM
Input Shaft Length 2.5 IN
Input Shaft Length 63.5 MM
Mounting Hole Quantity 2
New Or Remanufactured Remanufactured
Pressure Port Thread Size M16x1.50
Rack Length 45.687 IN
Rack Length 1160.45 MM
Return Port Thread Size M16x1.50
Total Turns Lock To Lock 3.25

Application Info: Acura MDX (2007-13)

Interchange: Honda - 53601-STX-A01

BBB Cross-Reference: 305-0168

Cardone Cross-Reference: 26-2732

To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance. Click For Tech Bulletin.
