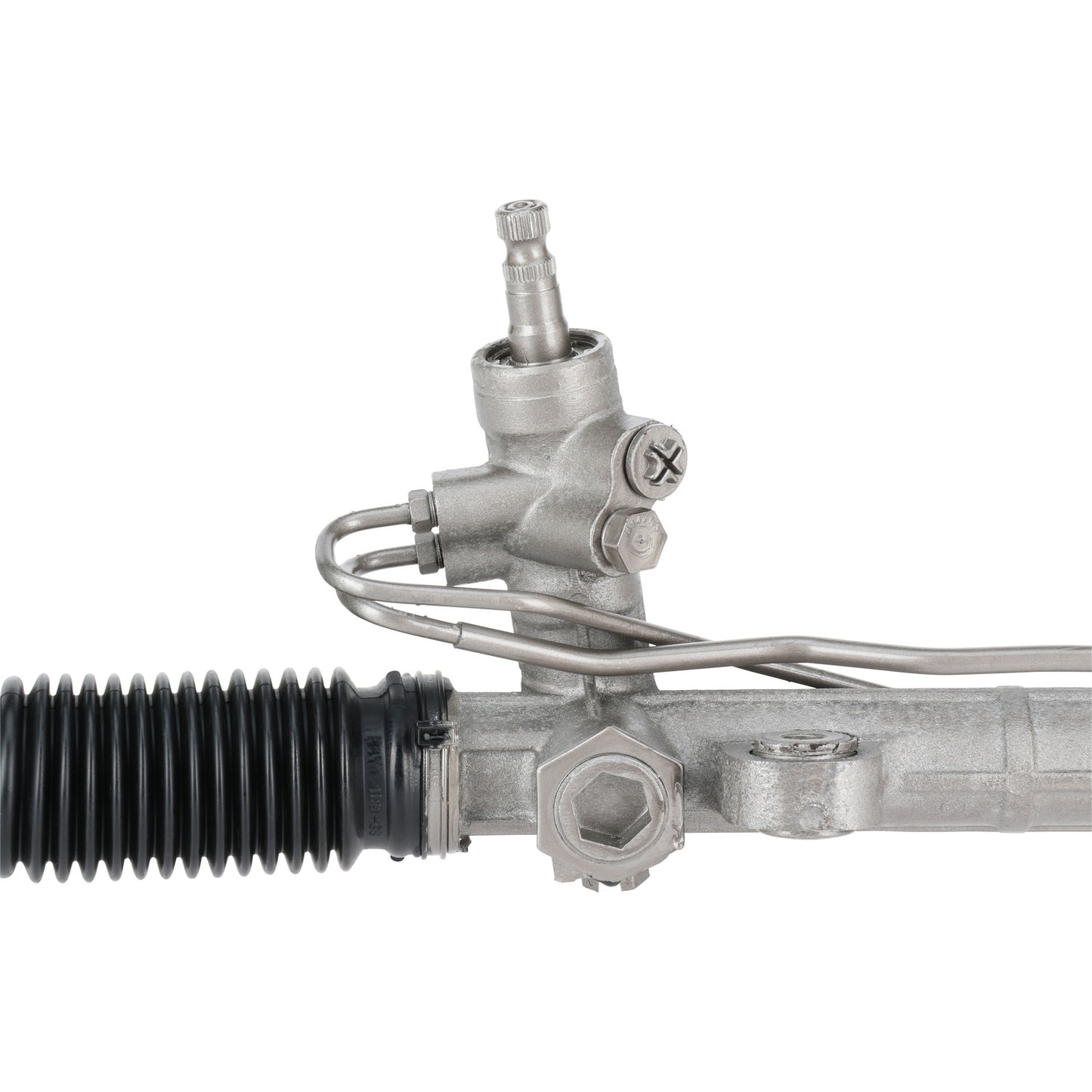

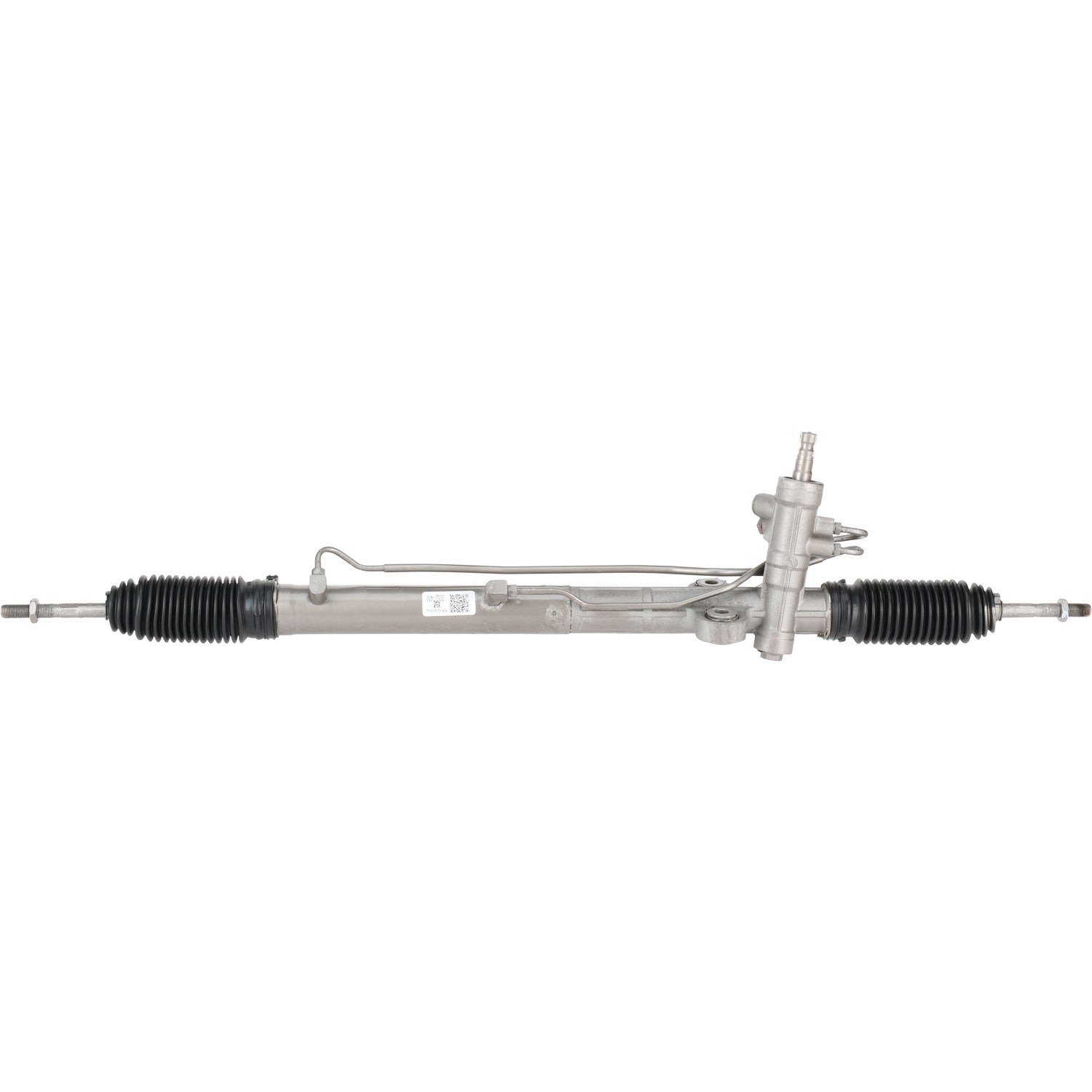

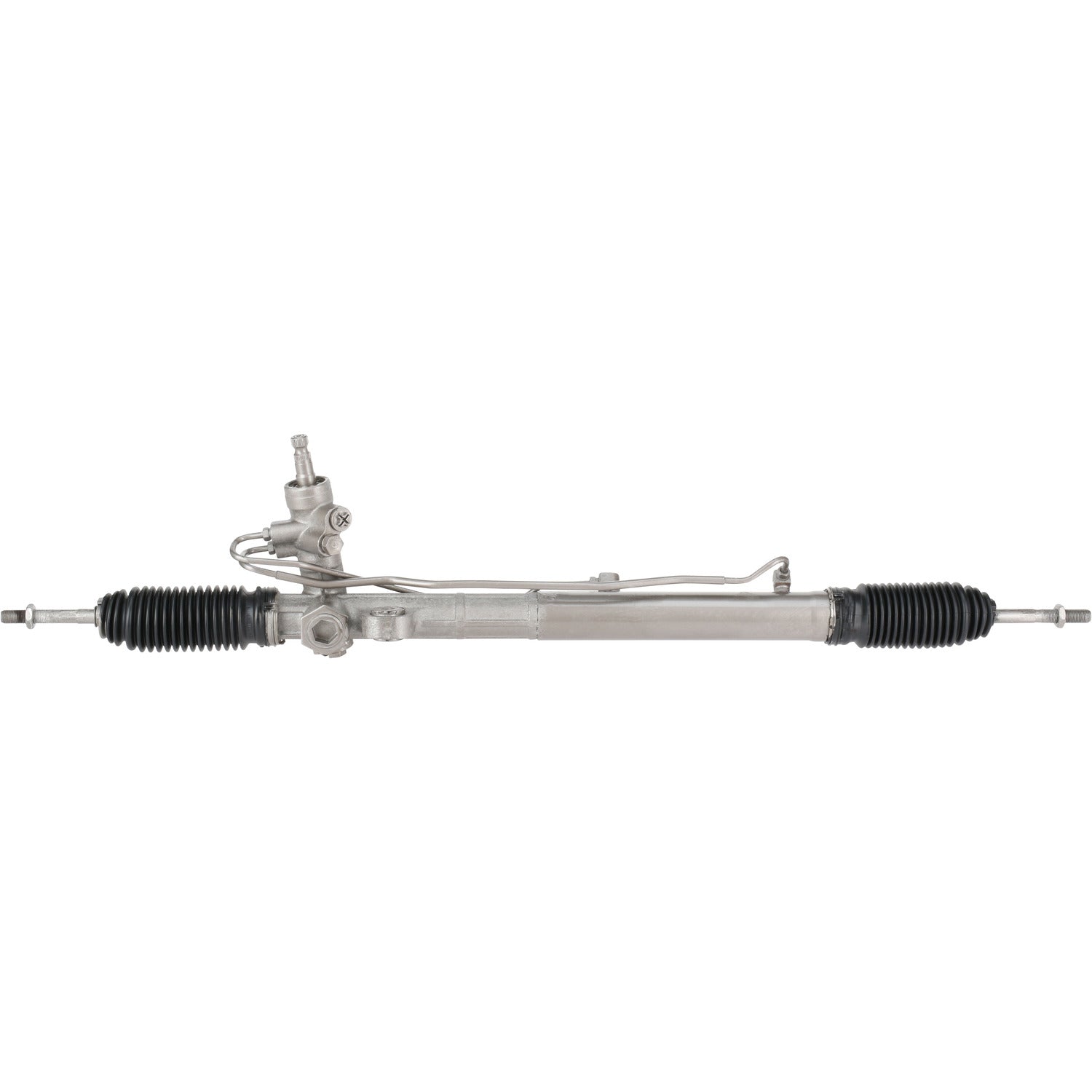

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93274M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93274M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.5 IN
Distance Between Mounting Holes 88.9 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 2.07 IN
Input Shaft Length 52.5 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 41 IN
Rack Length 1041.4 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.95 IN
Thread Length 49.53 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.13

Application Info: Kia Rio (2006-2011), Kia Rio5 (2006-2011)

Interchange: Kia - 57700-1G150

BBB Cross-Reference: 313-0217

Cardone Cross-Reference: 26-2423

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4
