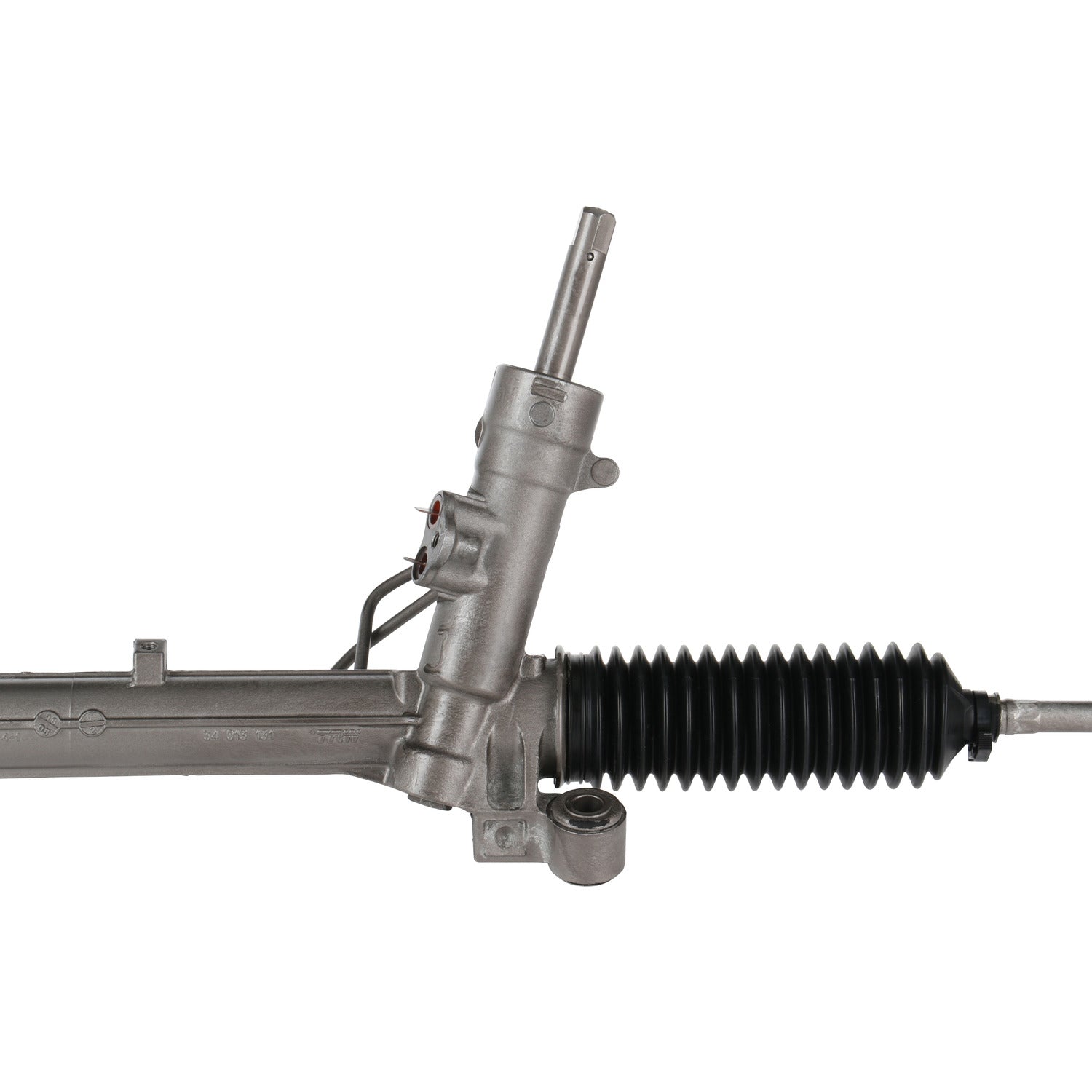

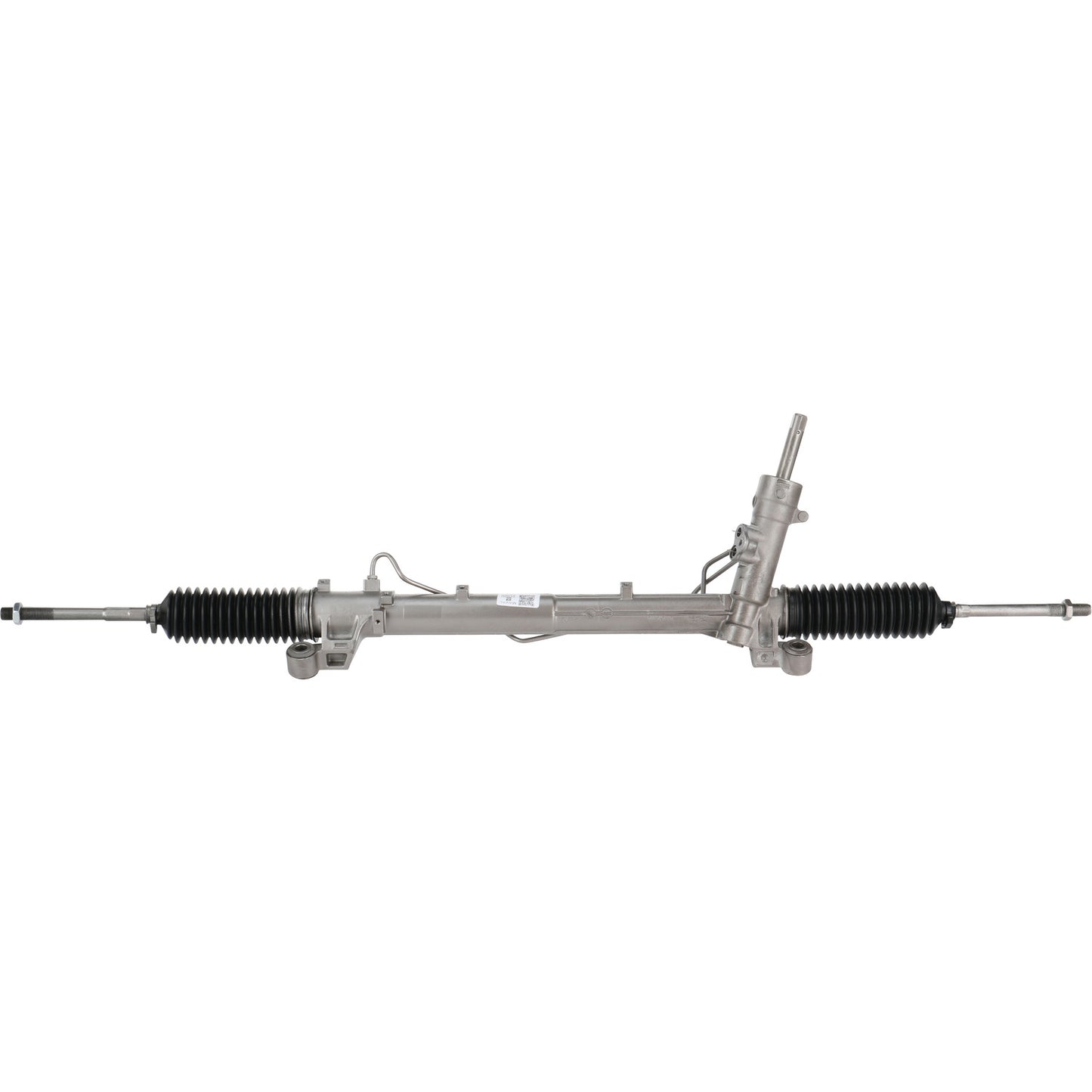

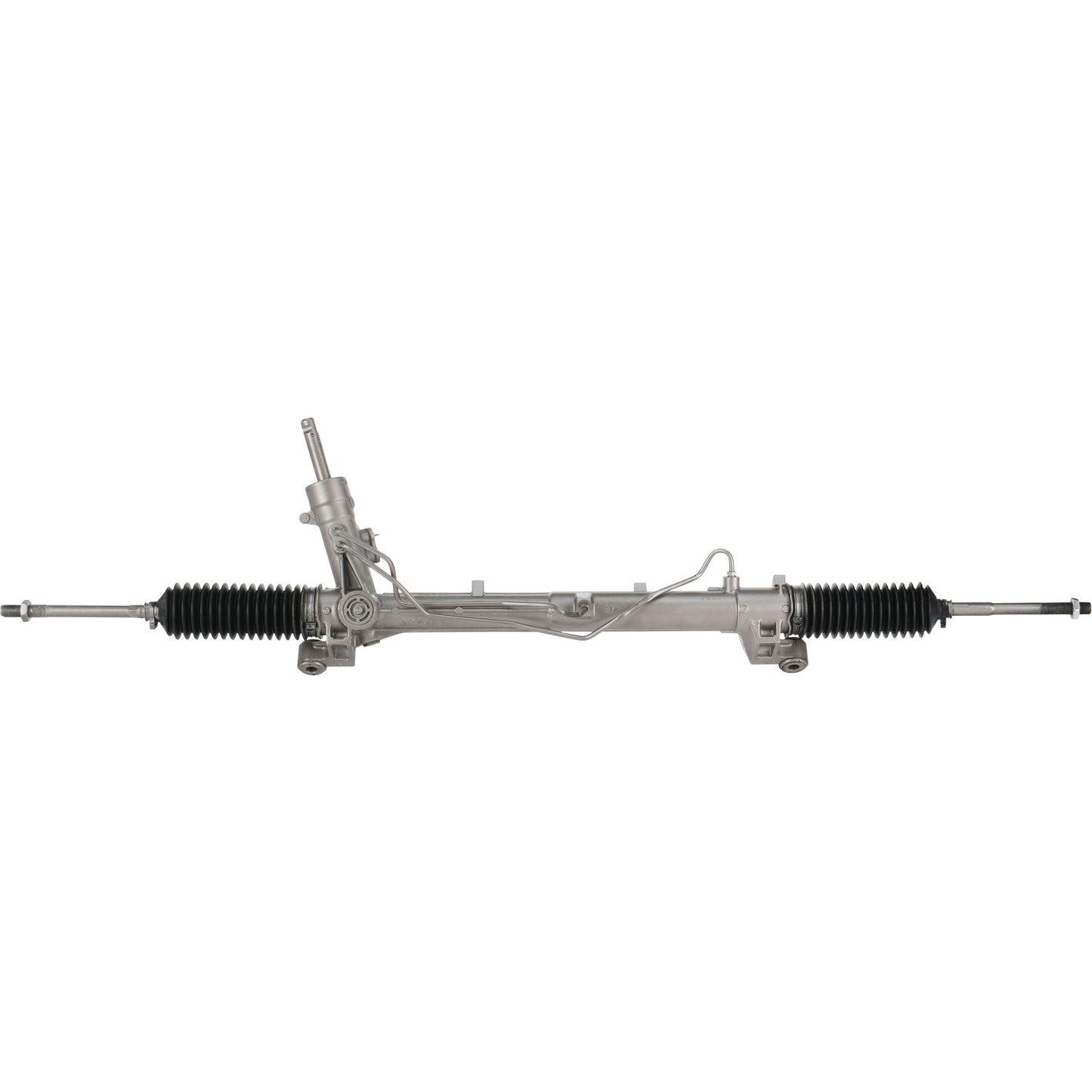

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93266M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93266M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Aluminum
Distance Between Mounting Holes 23.13 IN
Distance Between Mounting Holes 587.38 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.52 MM
Input Shaft Length 3.25 IN
Input Shaft Length 82.55 MM
Mounting Hole Quantity 2
Port ID Size 0.436
Rack Length 50.63 IN
Rack Length 1285.88 MM
Return Port ID Size 0.386
Thread Length 1.97 IN
Thread Length 50.04 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.88


Application Info: Volvo C30 (2008-12), C70 (2006-12), S40 (2004-12), V50 (2005-11) ***W/17" Wheels***

Interchange: 274502, 36000764, 36000805, 36001241, 8602853, 86028537, 8603574, 86035740, 8603583, 8603859

BBB Cross-Reference: 307-0145

Cardone Cross-Reference: 26-2518

Instructions - 1          Instructions - 2
