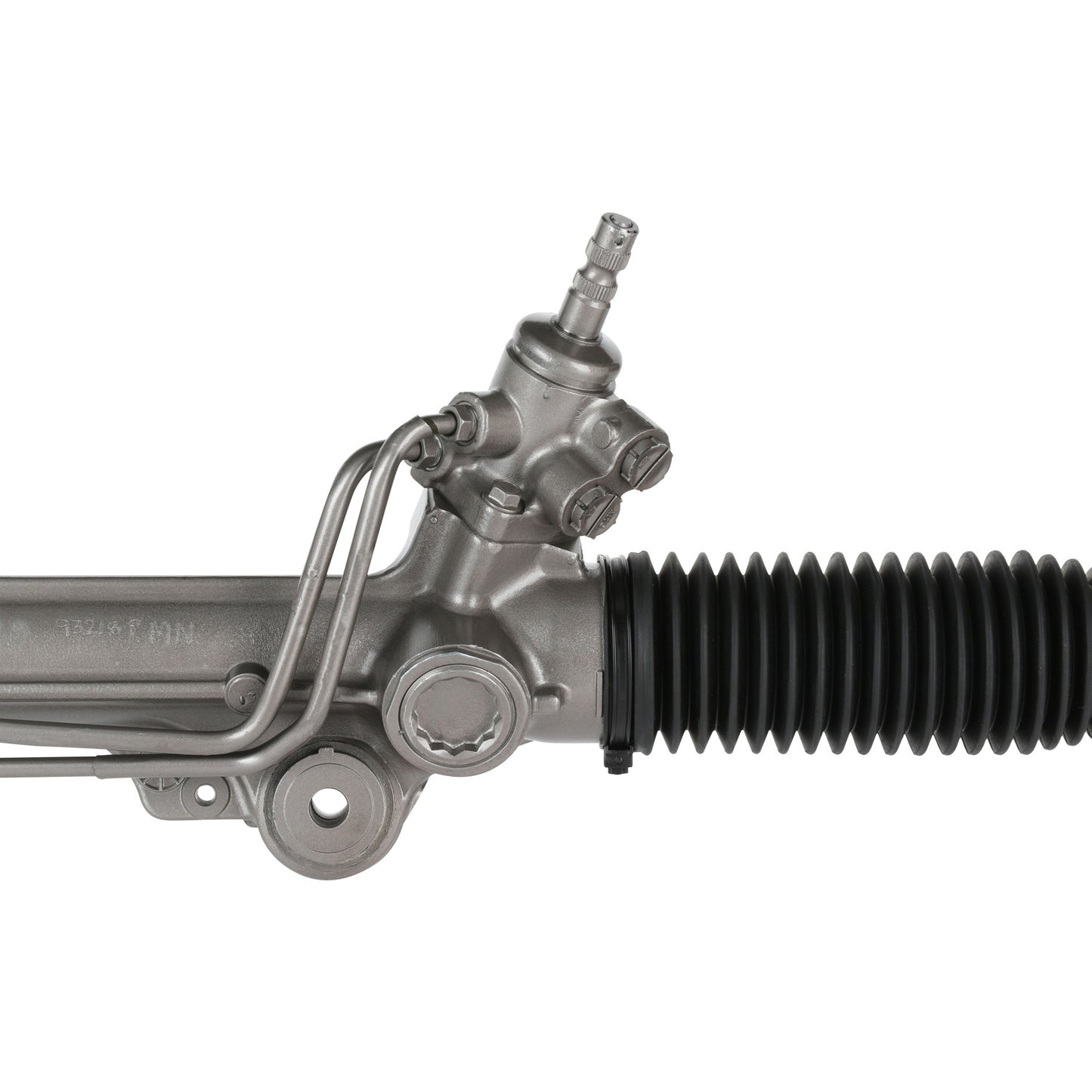

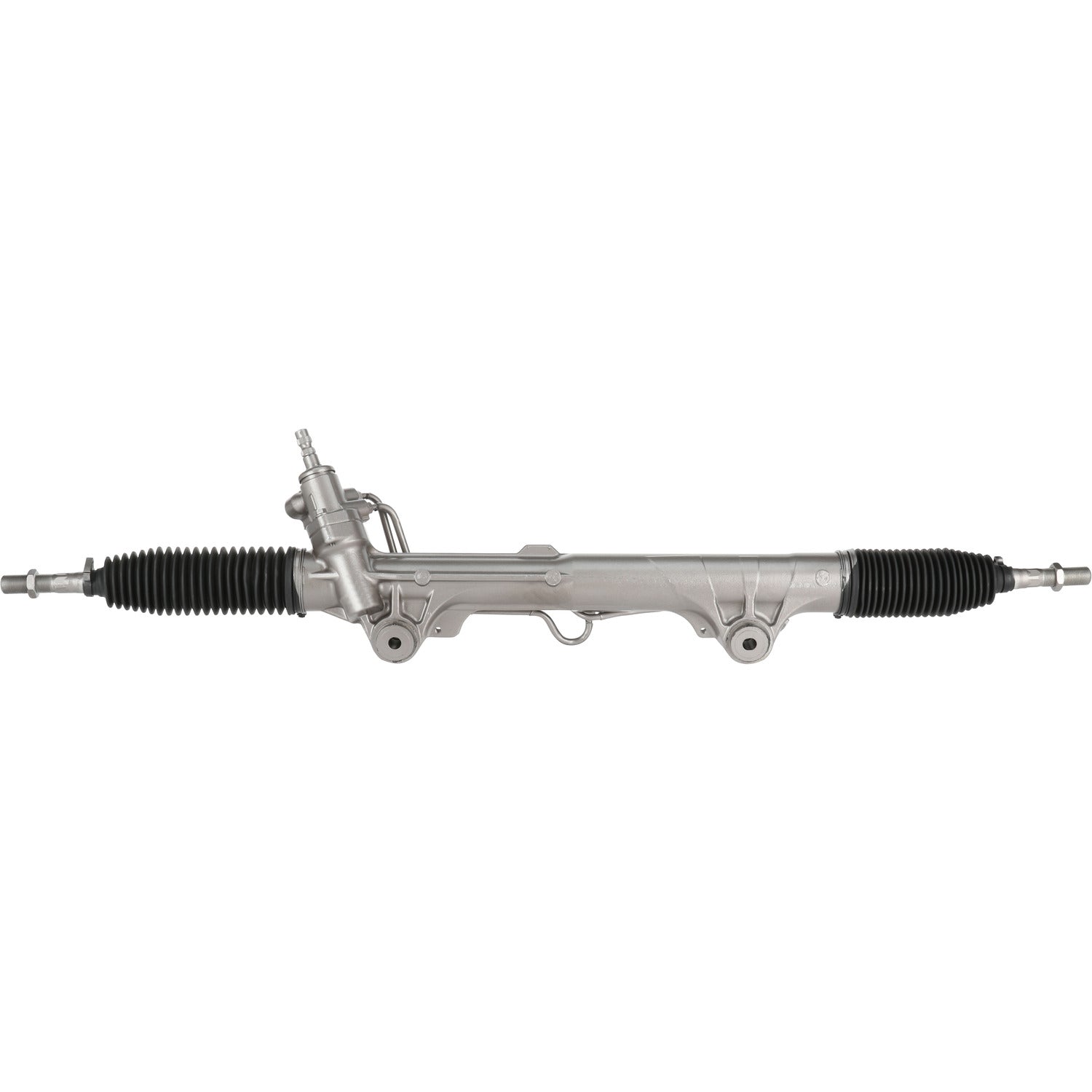

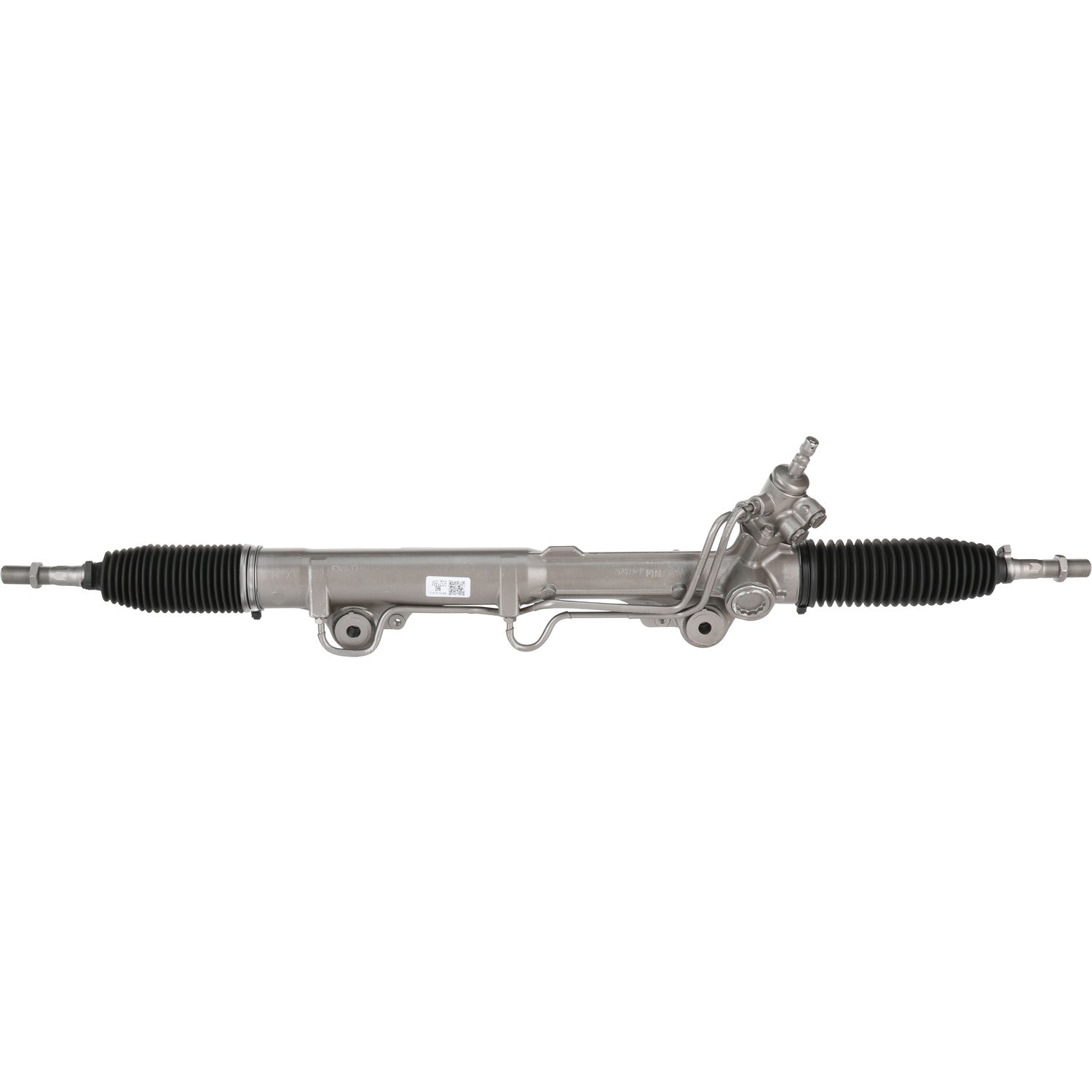

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93218M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93218M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 16.13 IN
Distance Between Mounting Holes 409.58 MM
Hose Port Type Banjo/Washer
Input Shaft Diameter 0.71 IN
Input Shaft Diameter 18.14 MM
Input Shaft Length 2.19 IN
Input Shaft Length 55.55 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 49.38 IN
Rack Length 1254.13 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.09 IN
Thread Length 53.09 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.69

Application Info: Toyota Sequoia (2008-21), Tundra (2007-21)

Interchange: 44250-0C070, 44250-0C090, 44250-0C091, 44250-0C100, 44250-0C110, 44250-0C120, 44250-0C130, 44250-0C131, 44250-0C160, 44250-0C170

BBB Cross-Reference: 311-0224

Cardone Cross-Reference: 26-2633

Instructions - 1          Instructions - 2
