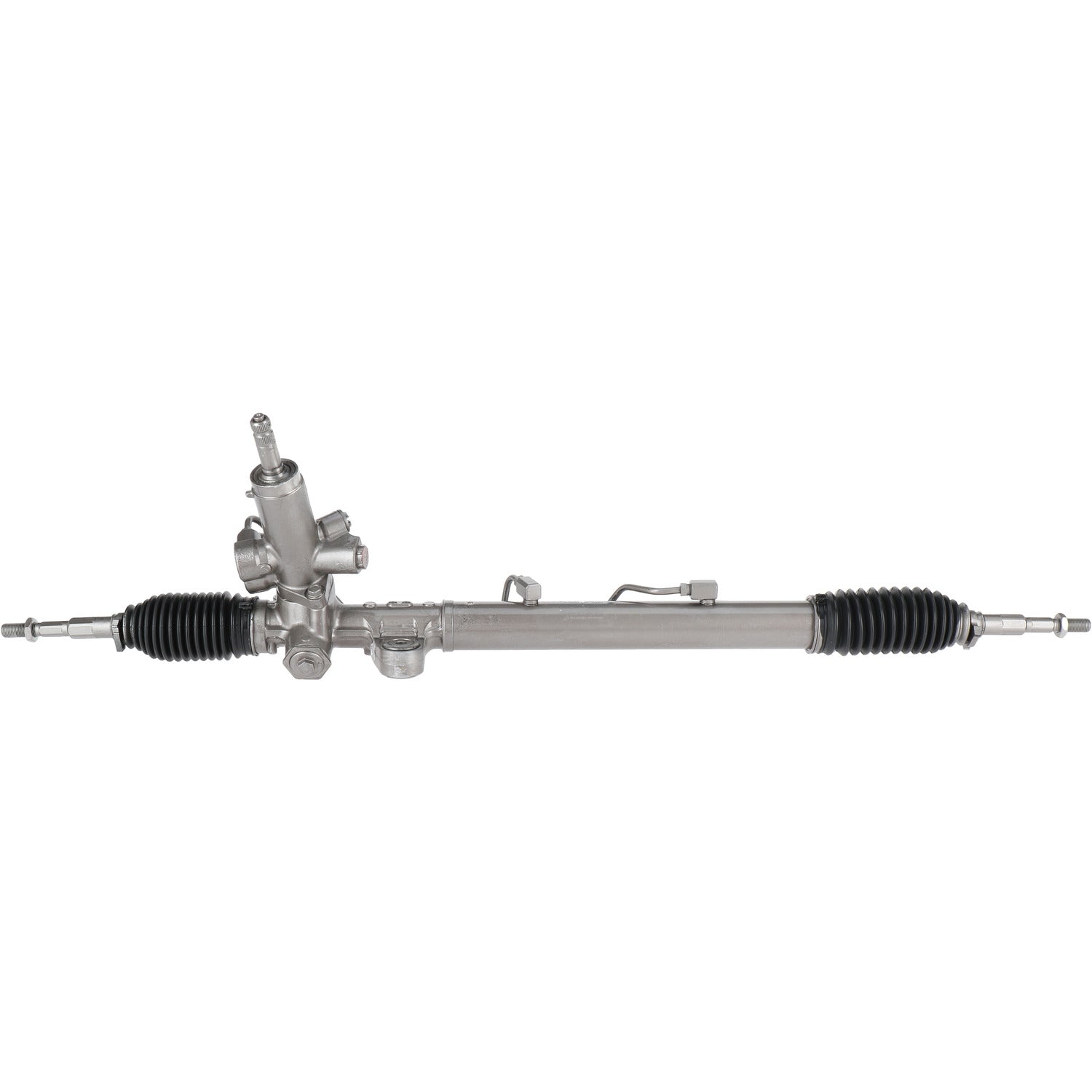

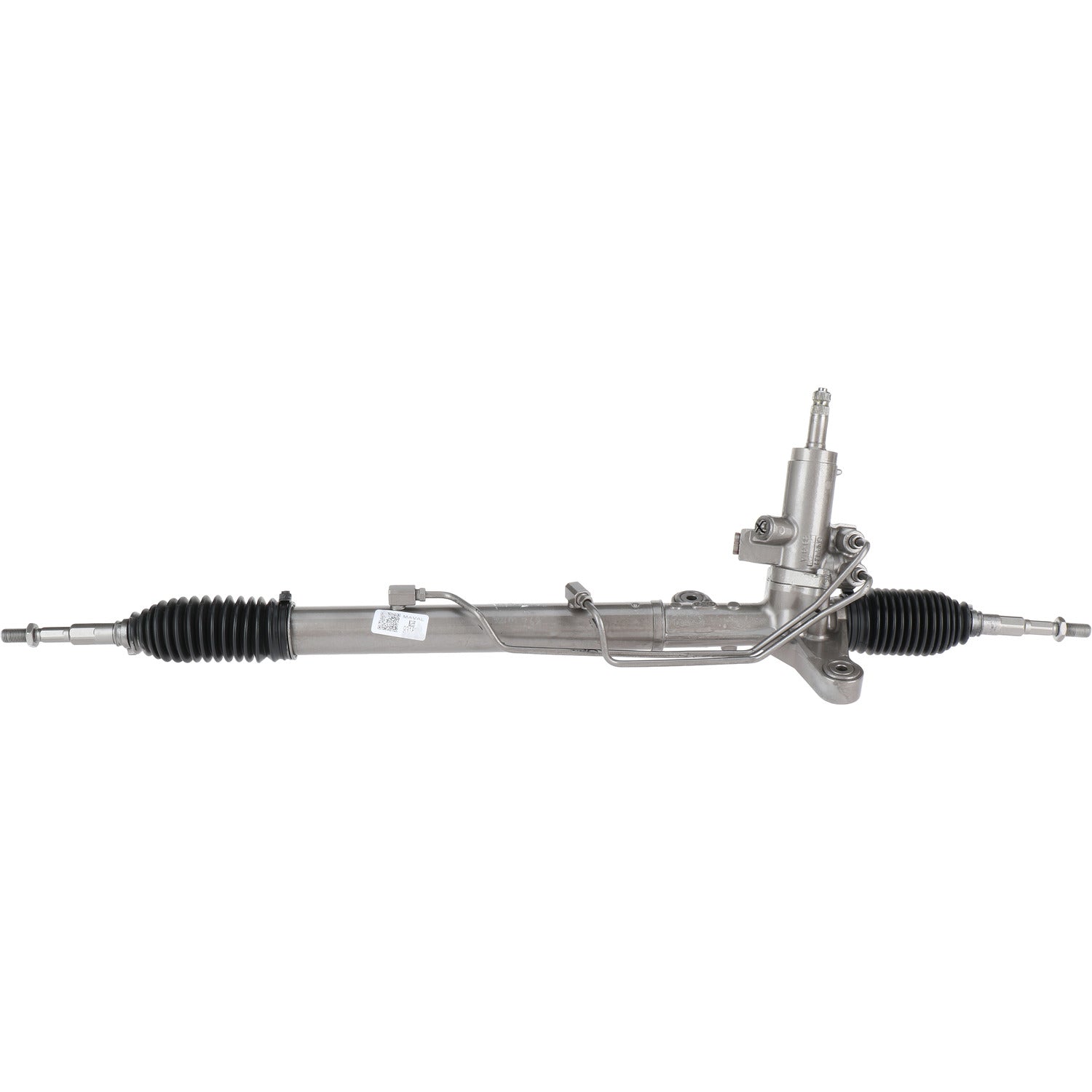

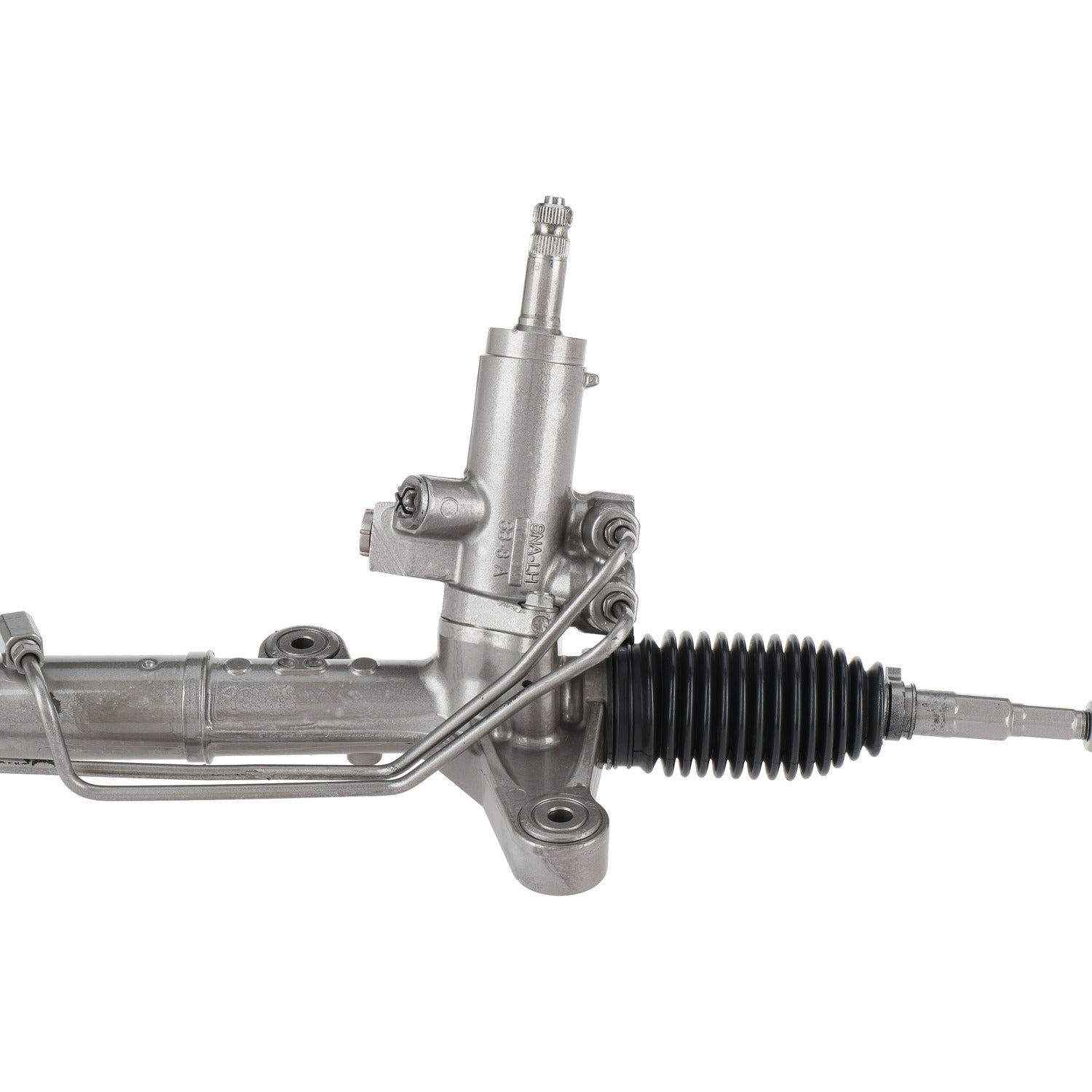

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93189M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93189M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 7.39 IN
Distance Between Mounting Holes 187.7 MM
Hose Port Type Seat
Input Shaft Length 1.65 IN
Input Shaft Length 42 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M18 x 1.5
Rack Length 41.1 IN
Rack Length 1044 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.77 IN
Thread Length 45 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.69

Application Info: Honda Civic (2006) ***W/DX OR GX Trim***

Interchange: 53601-SNA-A12

BBB Cross-Reference: 305-0173

Cardone Cross-Reference: 26-2718

To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance. Click For Tech Bulletin.

Instructions - 1          Instructions - 2
