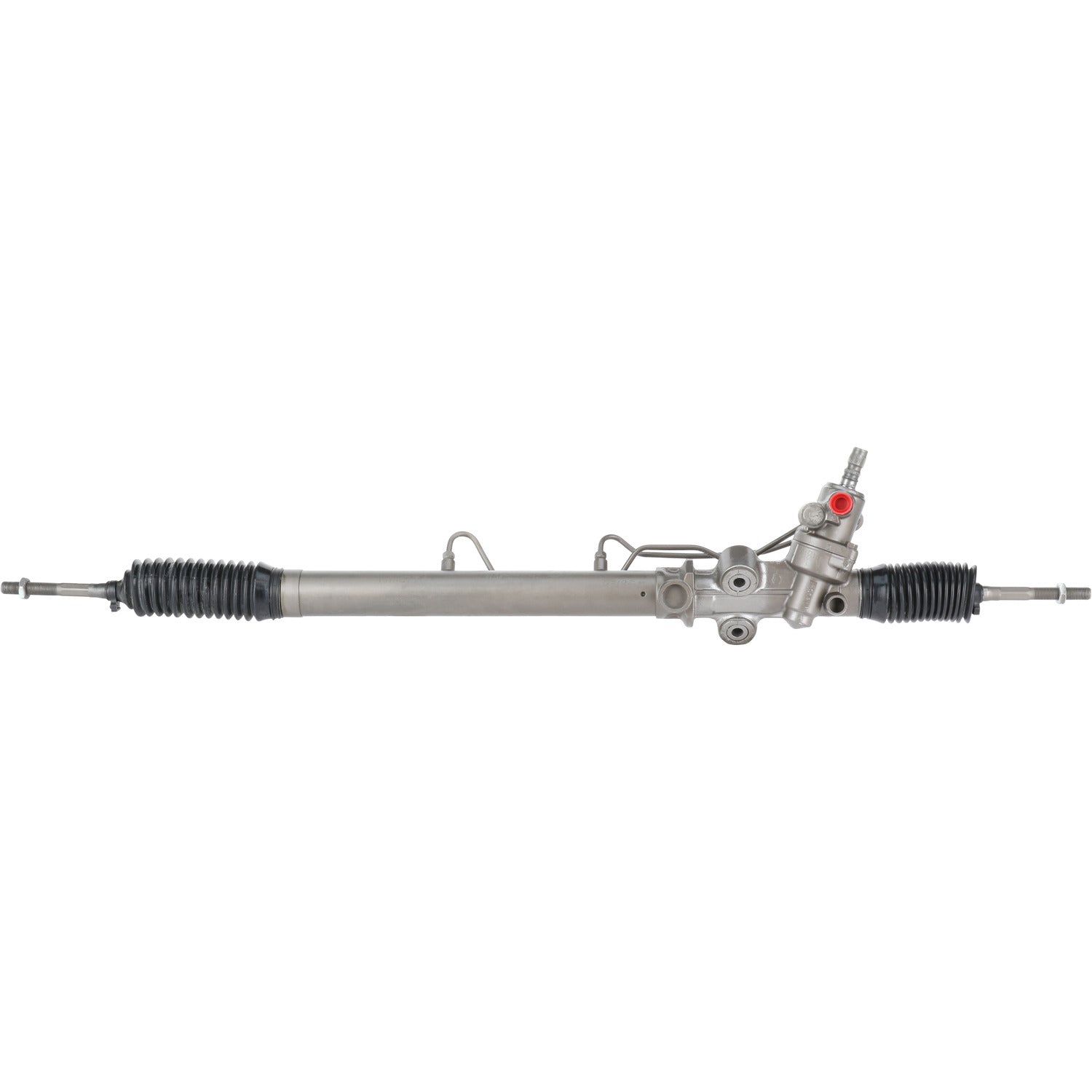

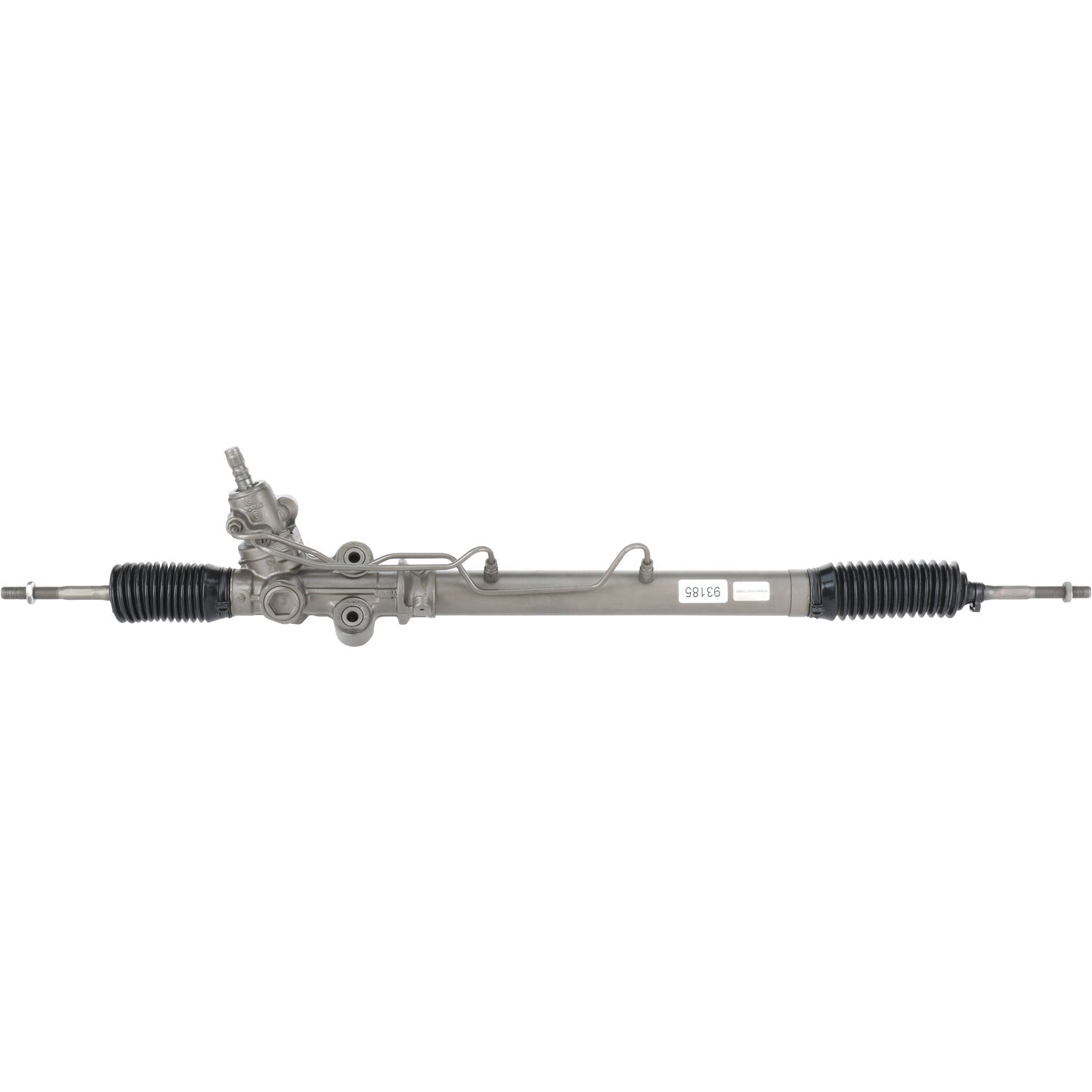

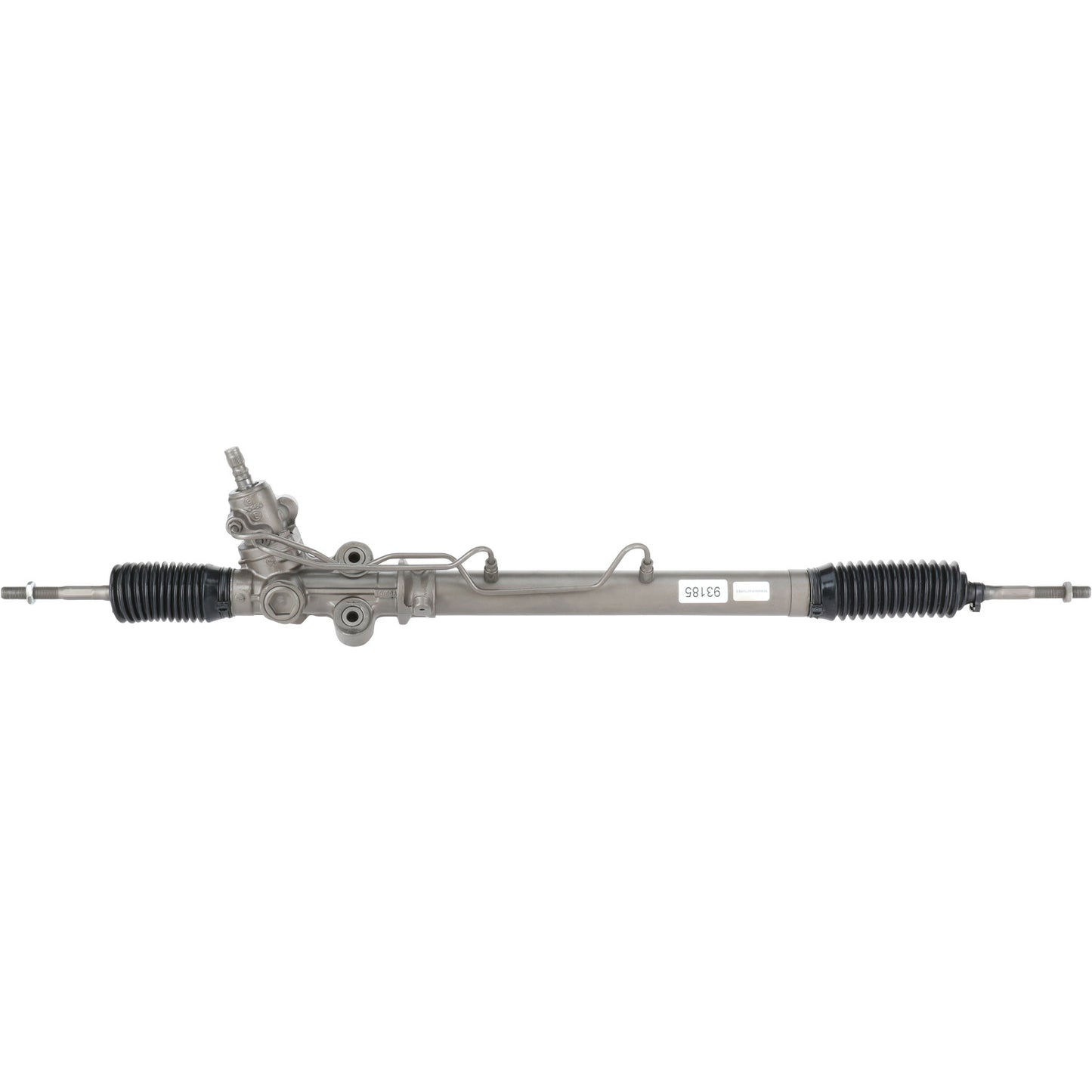

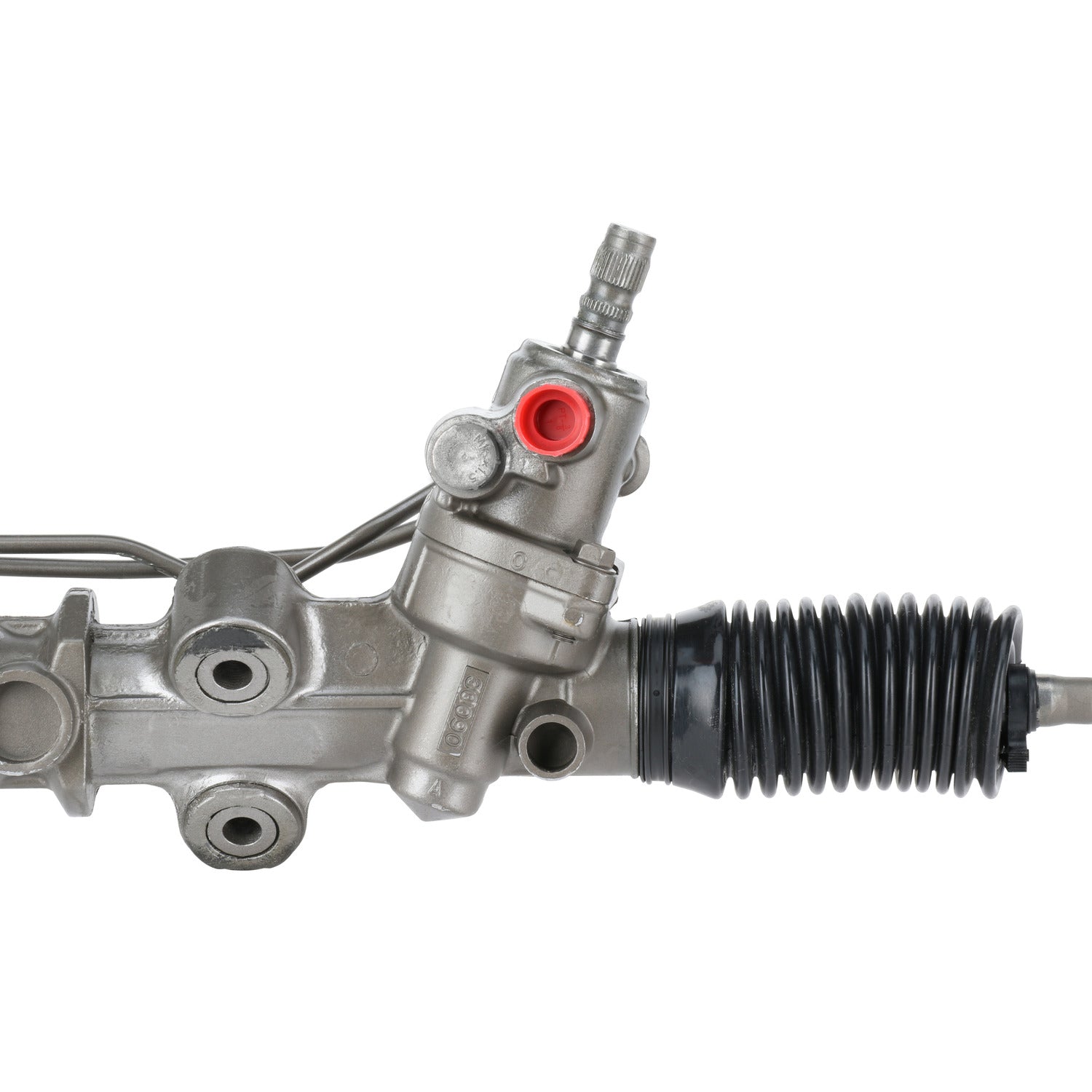

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93185M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93185M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 2.56 IN
Distance Between Mounting Holes 65.1 MM
Hose Port Type Banjo/Washer
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19 MM
Input Shaft Length 1.82 IN
Input Shaft Length 46.23 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 44.38 IN
Rack Length 1127.13 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.2 IN
Thread Length 55.75 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.38

Application Info: Lexus GS300 (2002-2005), Lexus GS430 (2002-2005)

Interchange: Toyota - 44200-30290

BBB Cross-Reference: 311-0179

Cardone Cross-Reference: 26-2620

Instructions - 1               Instructions - 2
