MAVAL

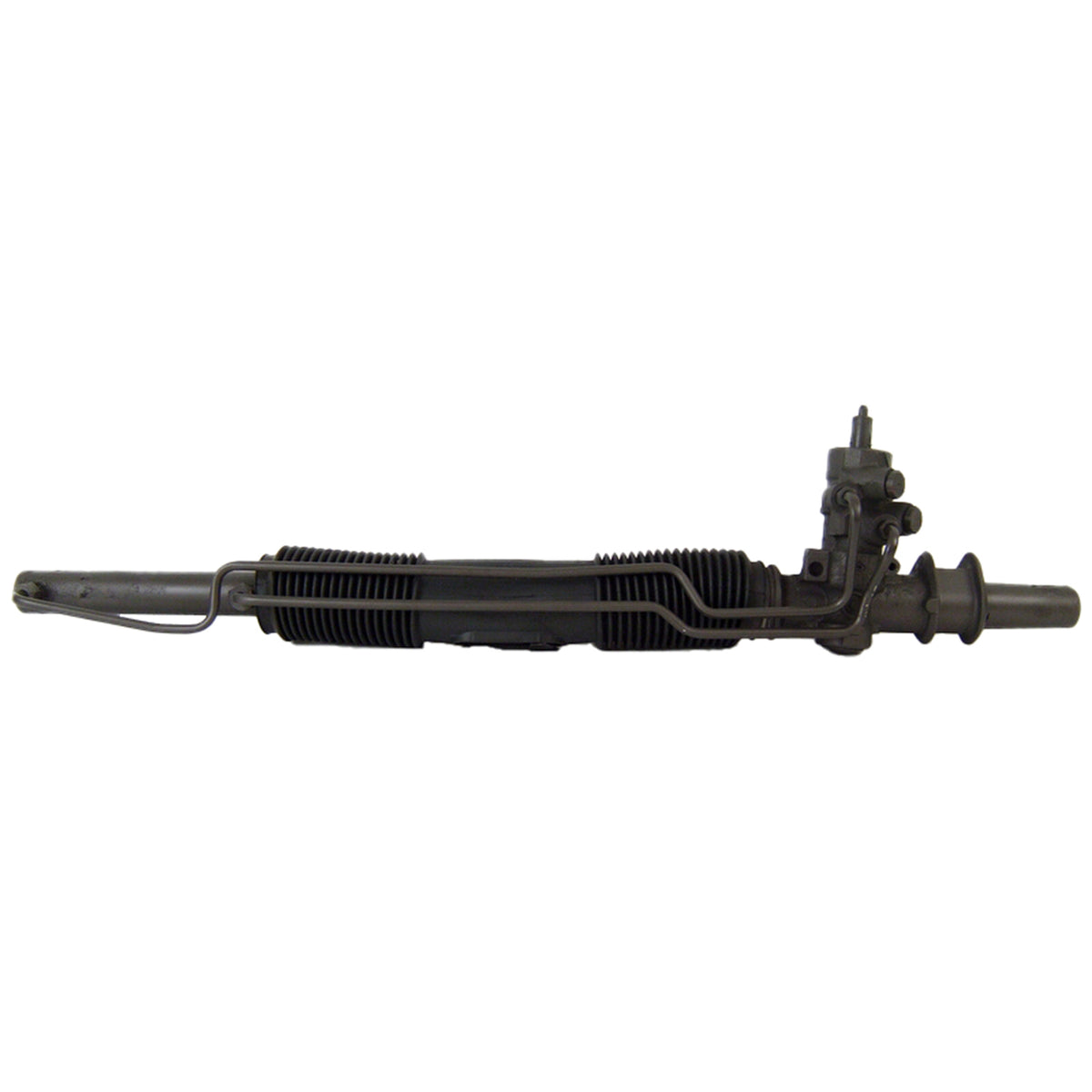

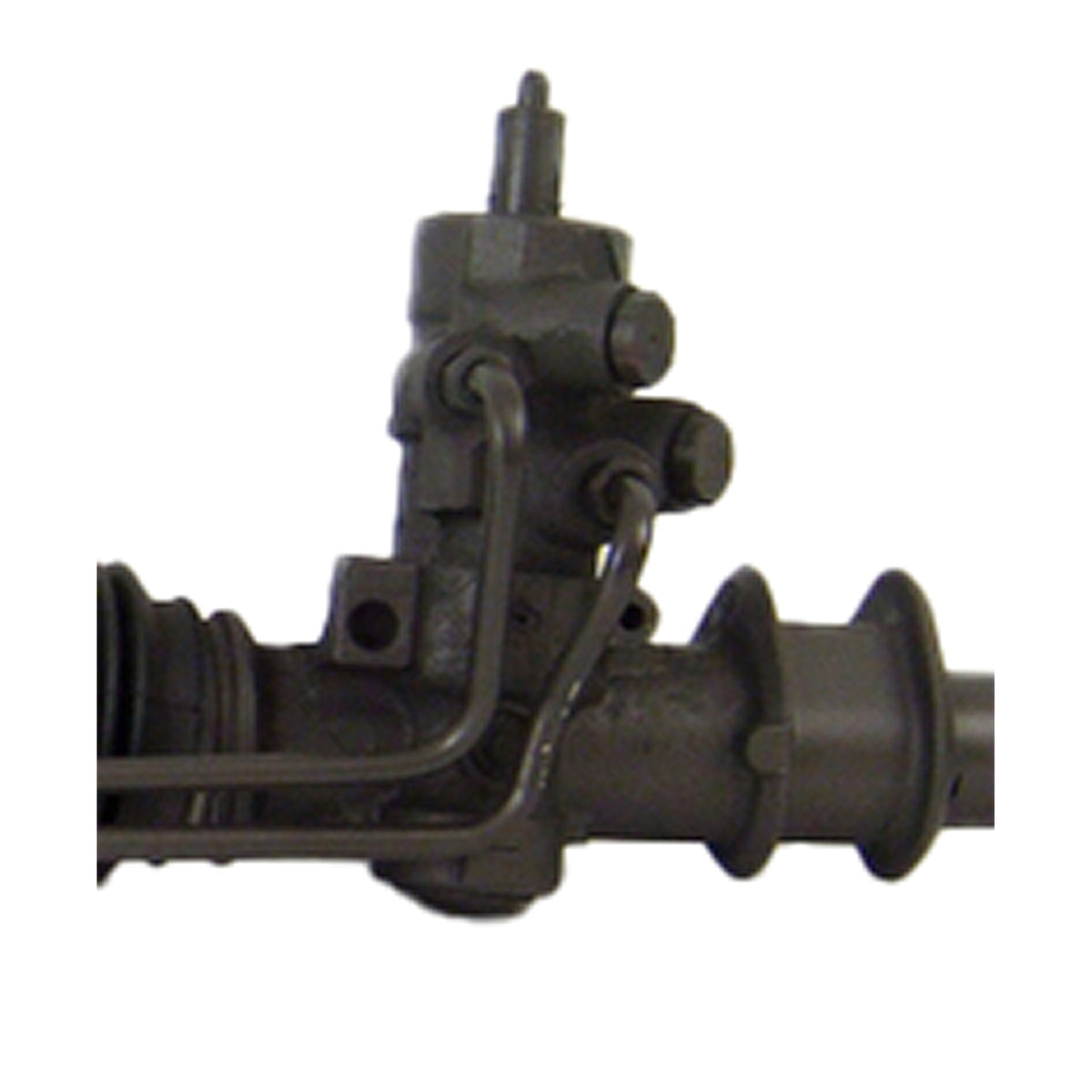

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93183M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93183M

SKU:93183M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Steel; Aluminum
Distance Between Mounting Holes 1.97 IN
Distance Between Mounting Holes 50.01 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.79 IN
Input Shaft Diameter 19.96 MM
Input Shaft Length 1.13 IN
Input Shaft Length 28.58 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 33.75 IN
Rack Length 857.25 MM
Return Port Thread Size M16 x 1.5
Thread Length 0 IN
Thread Length 0 MM
Inner Tie Rods Included No
Total Turns Lock To Lock 2.88

Application Info: Saab 9-3 (2002-2003)

Interchange: Saab - 5238720

BBB Cross-Reference: 313-0176

Cardone Cross-Reference: 22-1015

Instructions - 1               Instructions - 2
