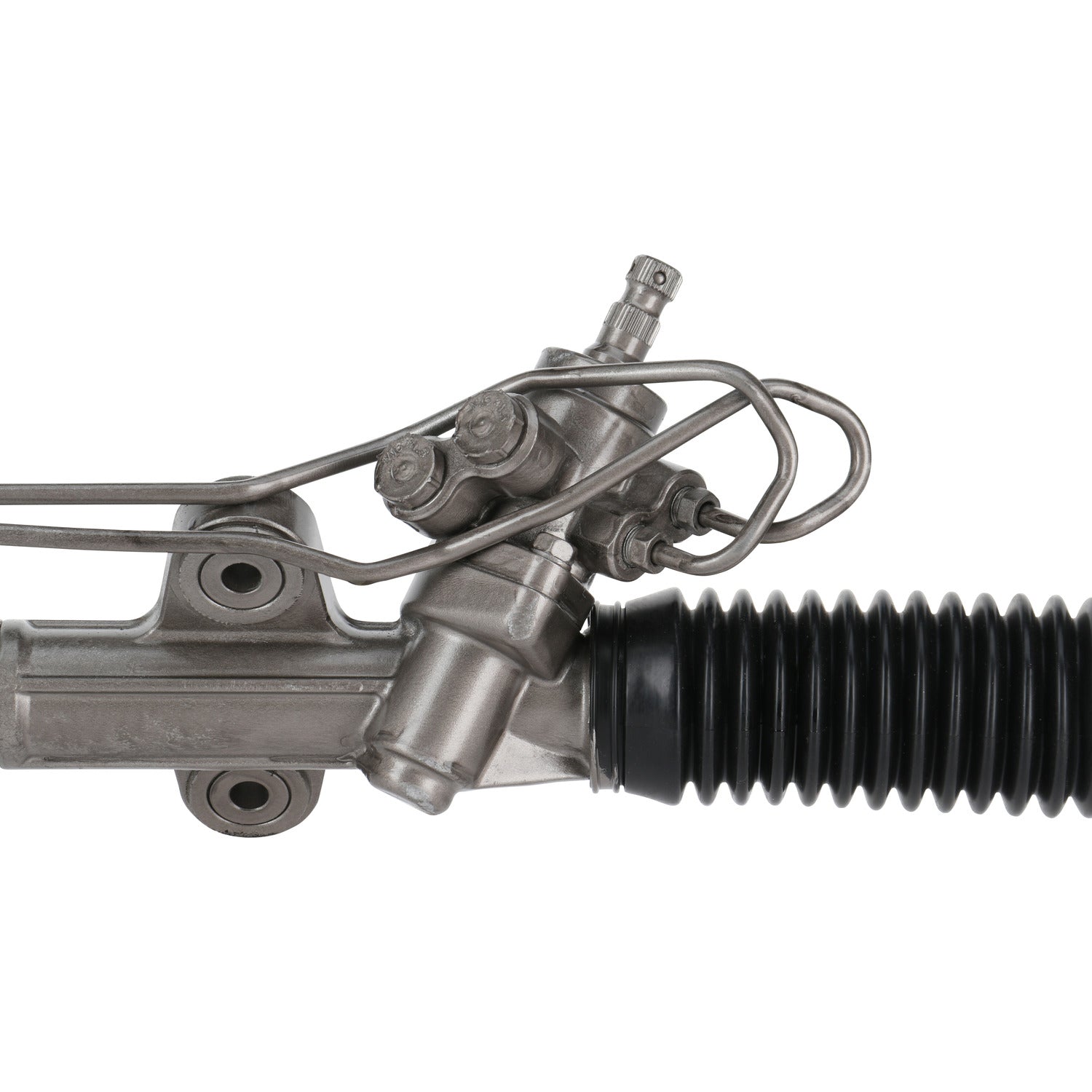

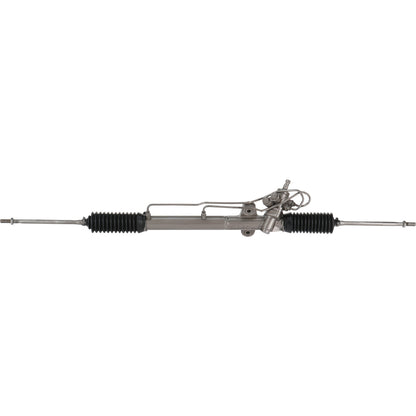

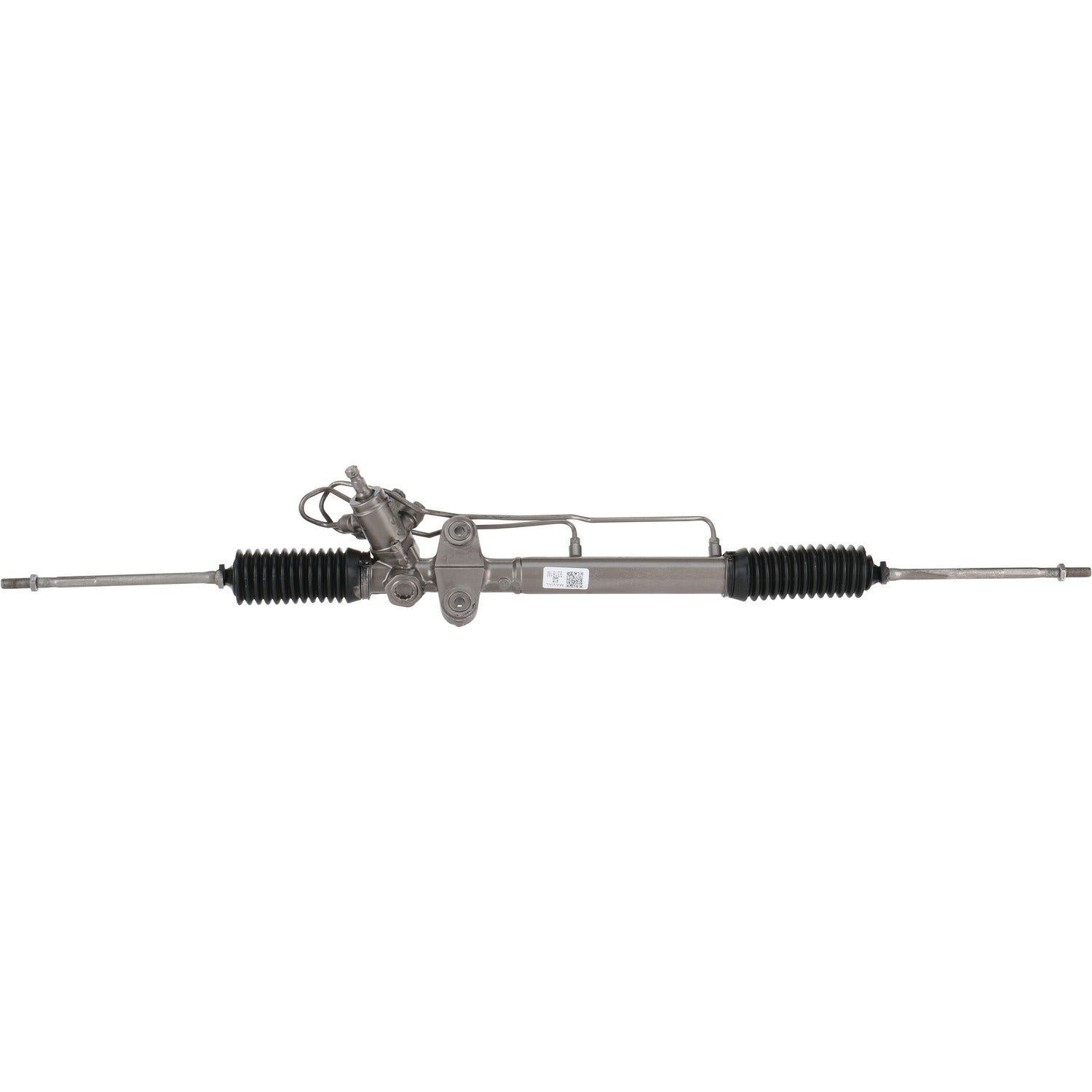

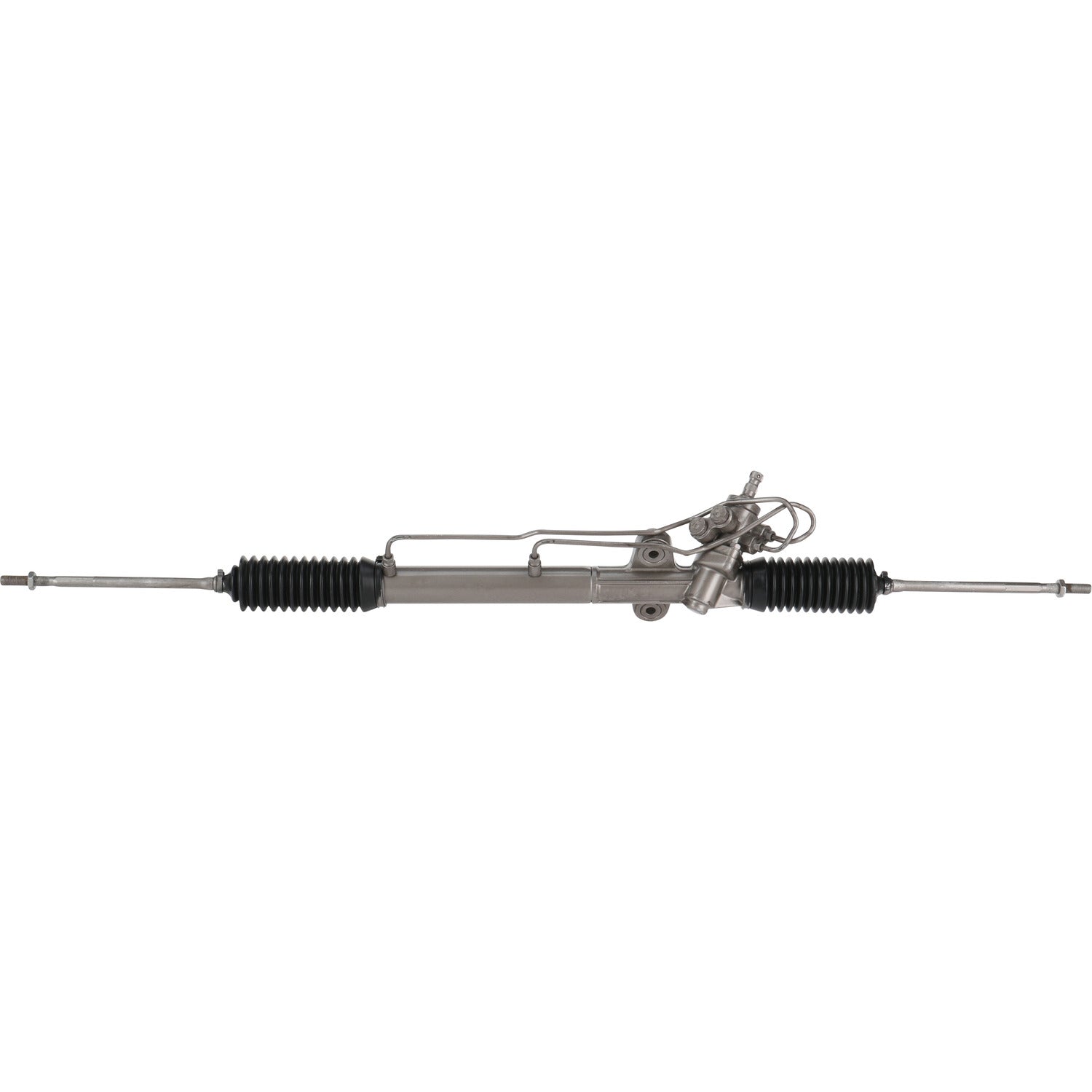

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93181M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93181M

SKU:93181M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.44 IN
Distance Between Mounting Holes 87.33 MM
Hose Port Type Seat
Input Shaft Diameter 0.74 IN
Input Shaft Diameter 18.72 MM
Input Shaft Length 1.44 IN
Input Shaft Length 36.5 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 46.88 IN
Rack Length 1190.63 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.96 IN
Thread Length 49.86 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3



Application Info: Suzuki Aerio (2002-07)

Interchange: 48580-54G21, 48580-54G22, 48580-54G23, 48830-54G00

BBB Cross-Reference: 313-0204

Cardone Cross-Reference: 26-8003
