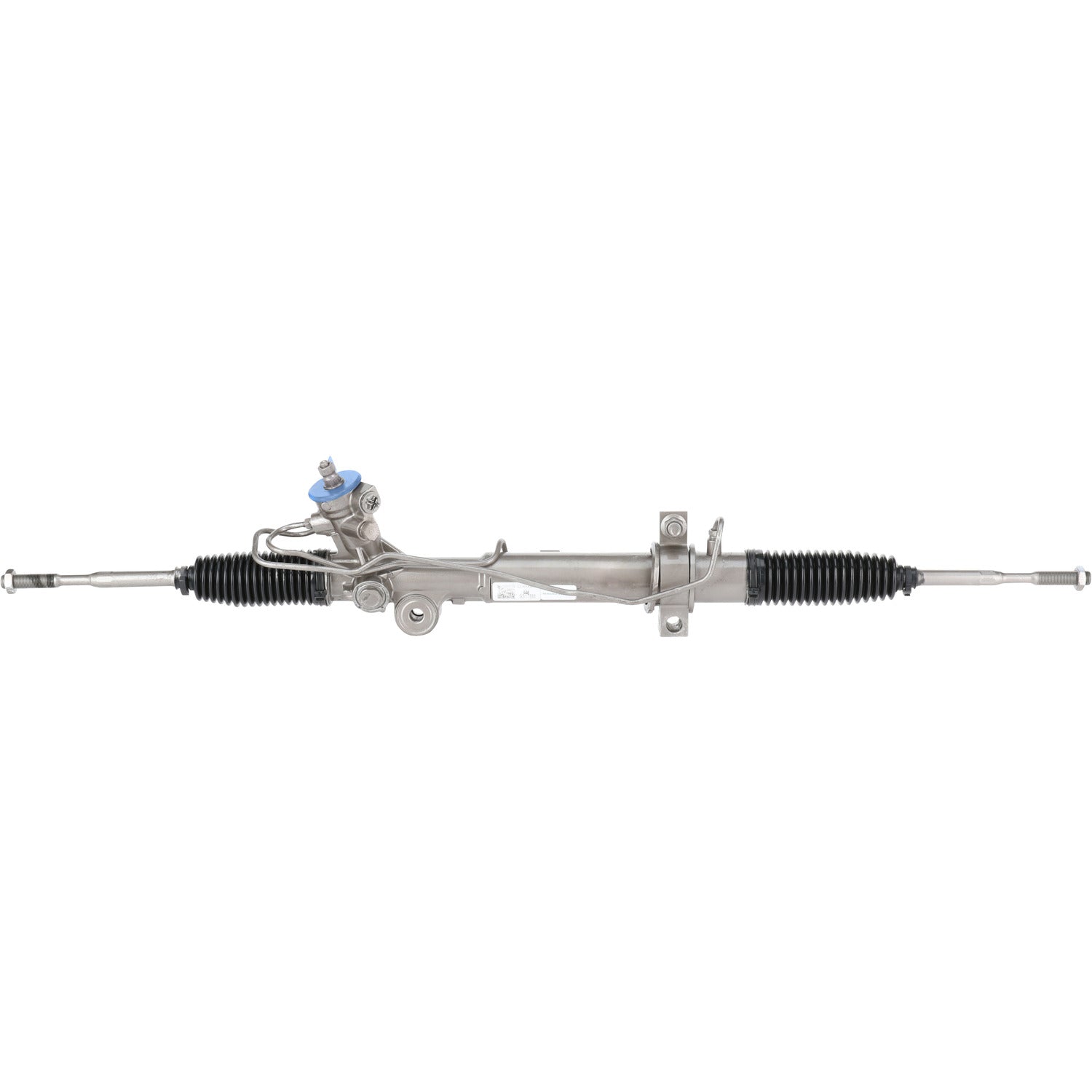

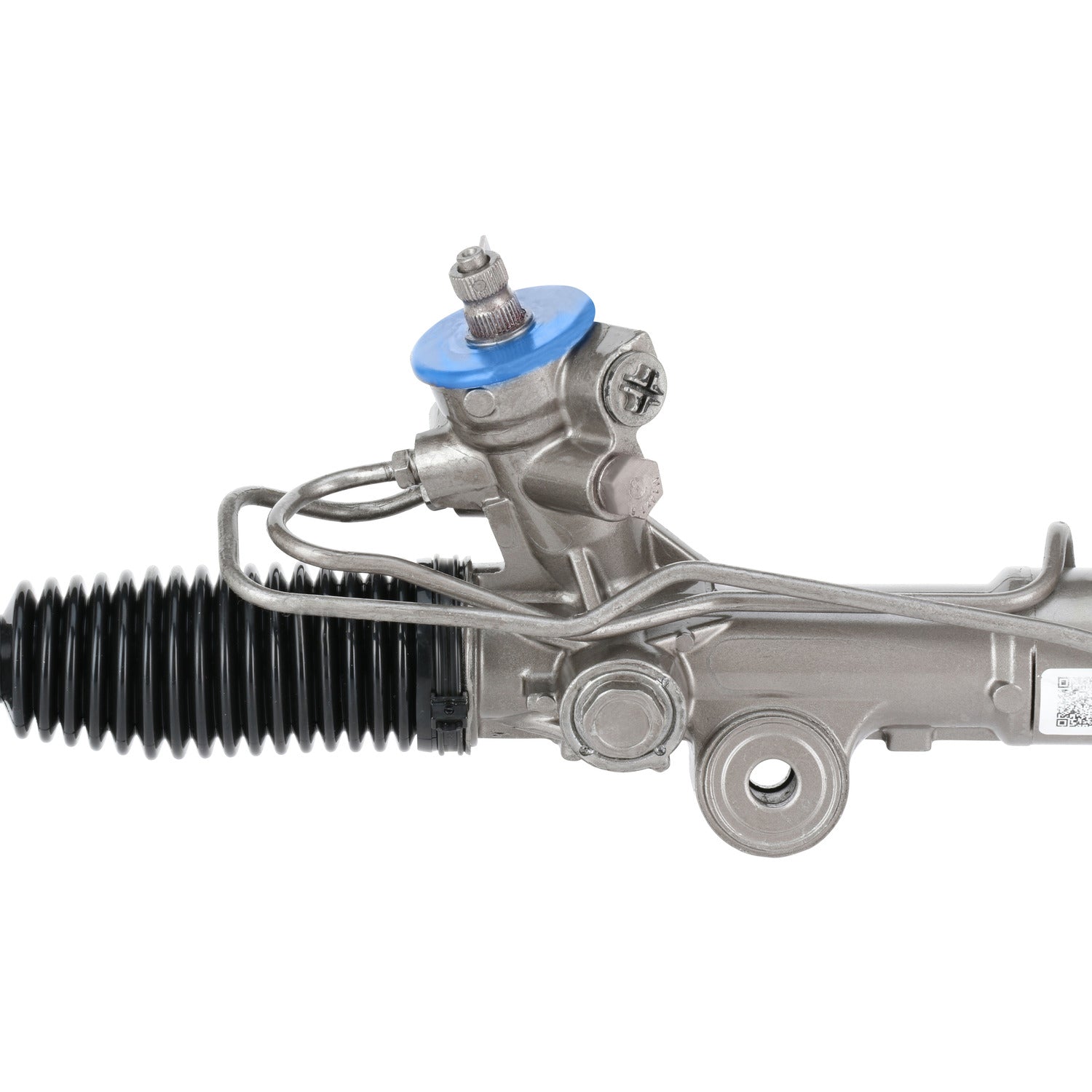

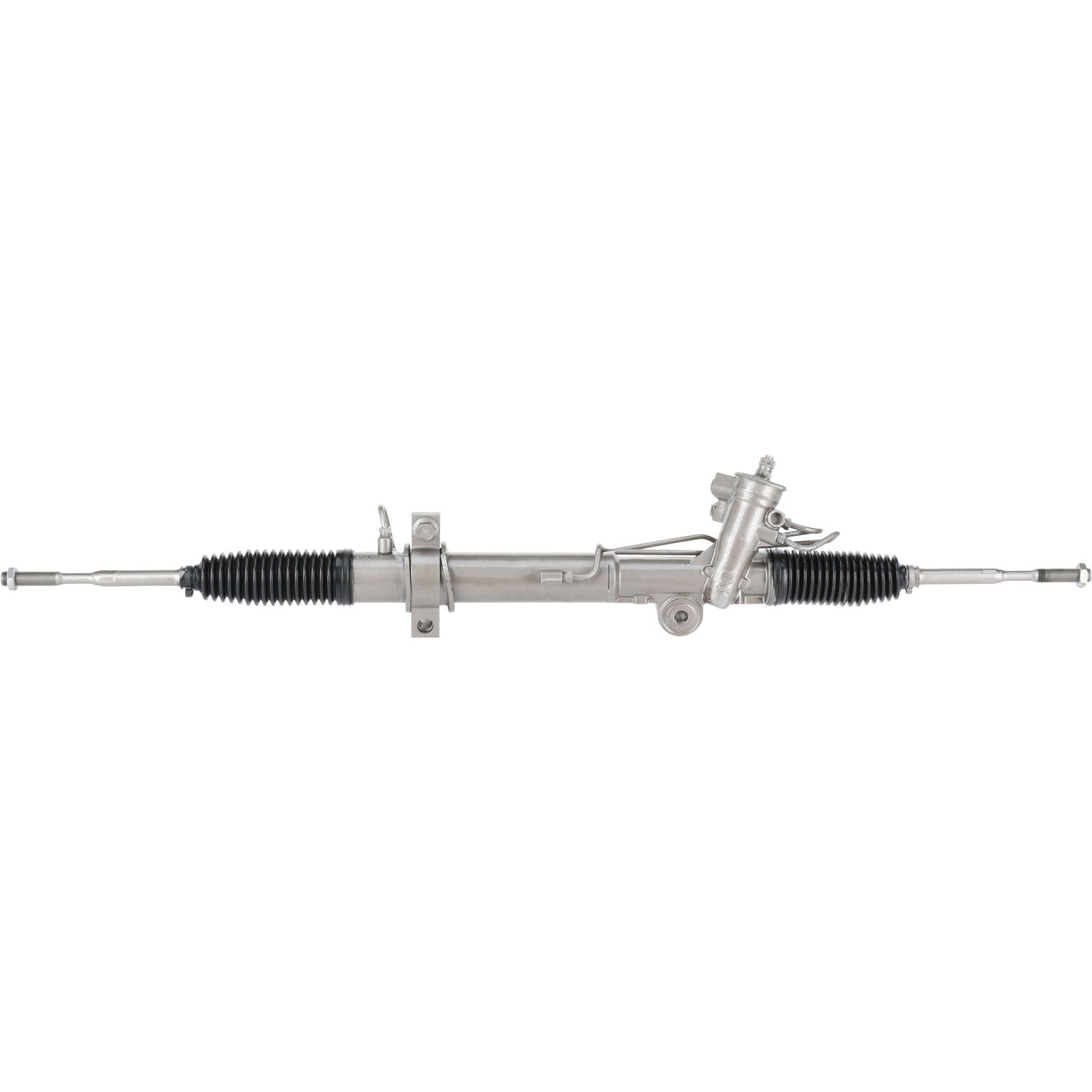

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93178M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93178M

SKU:93178M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19 MM
Input Shaft Length 1 IN
Input Shaft Length 25.4 MM
Mounting Hole Quantity 1
Pressure Port Thread Size M14 x 1.5
Rack Length 45.13 IN
Rack Length 1146.18 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.14 IN
Thread Length 54.28 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.25



Application Info: Nissan Murano (2003-04) ***W/AWD***

Interchange: 49001-CA000

BBB Cross-Reference: 310-0171

Cardone Cross-Reference: 26-3028
