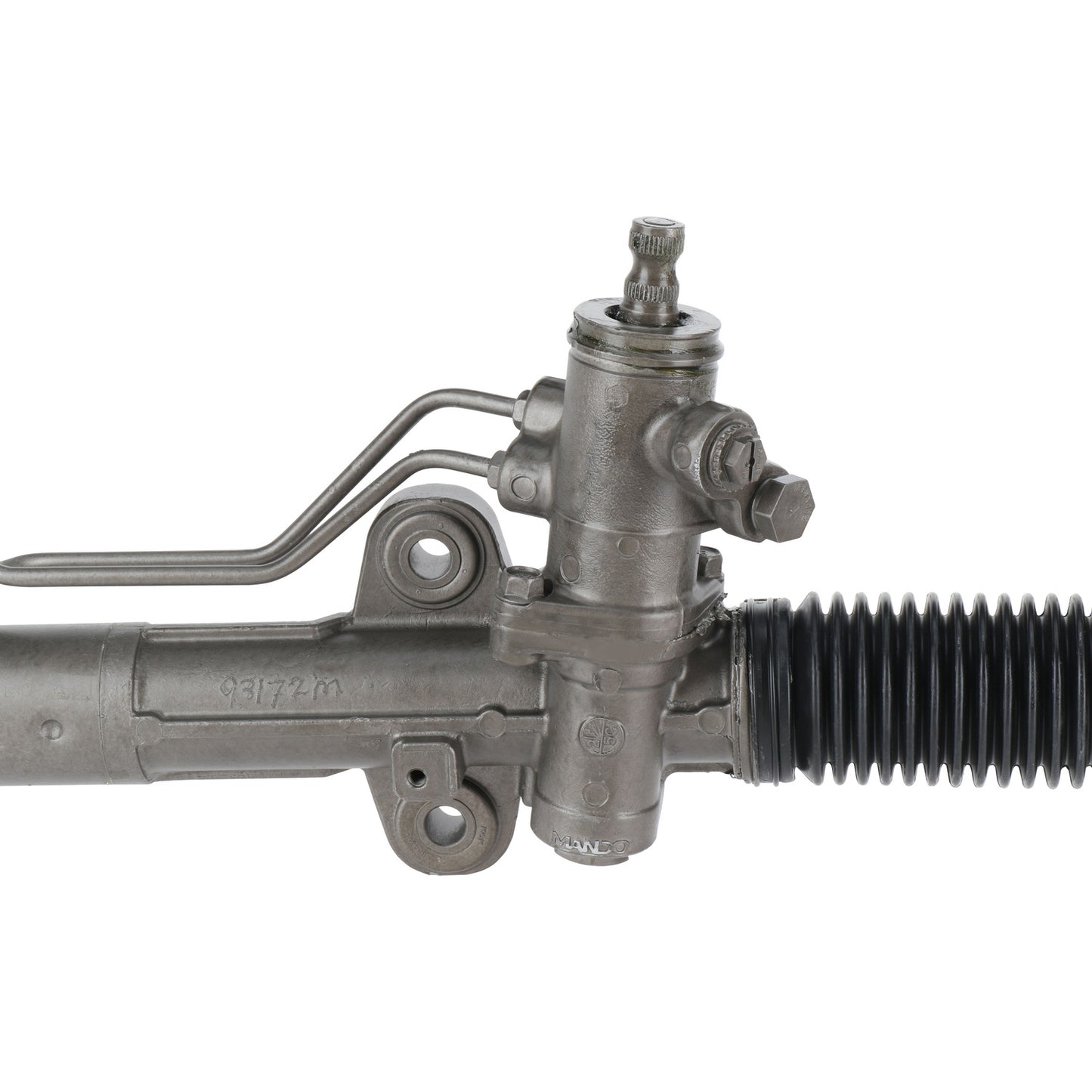

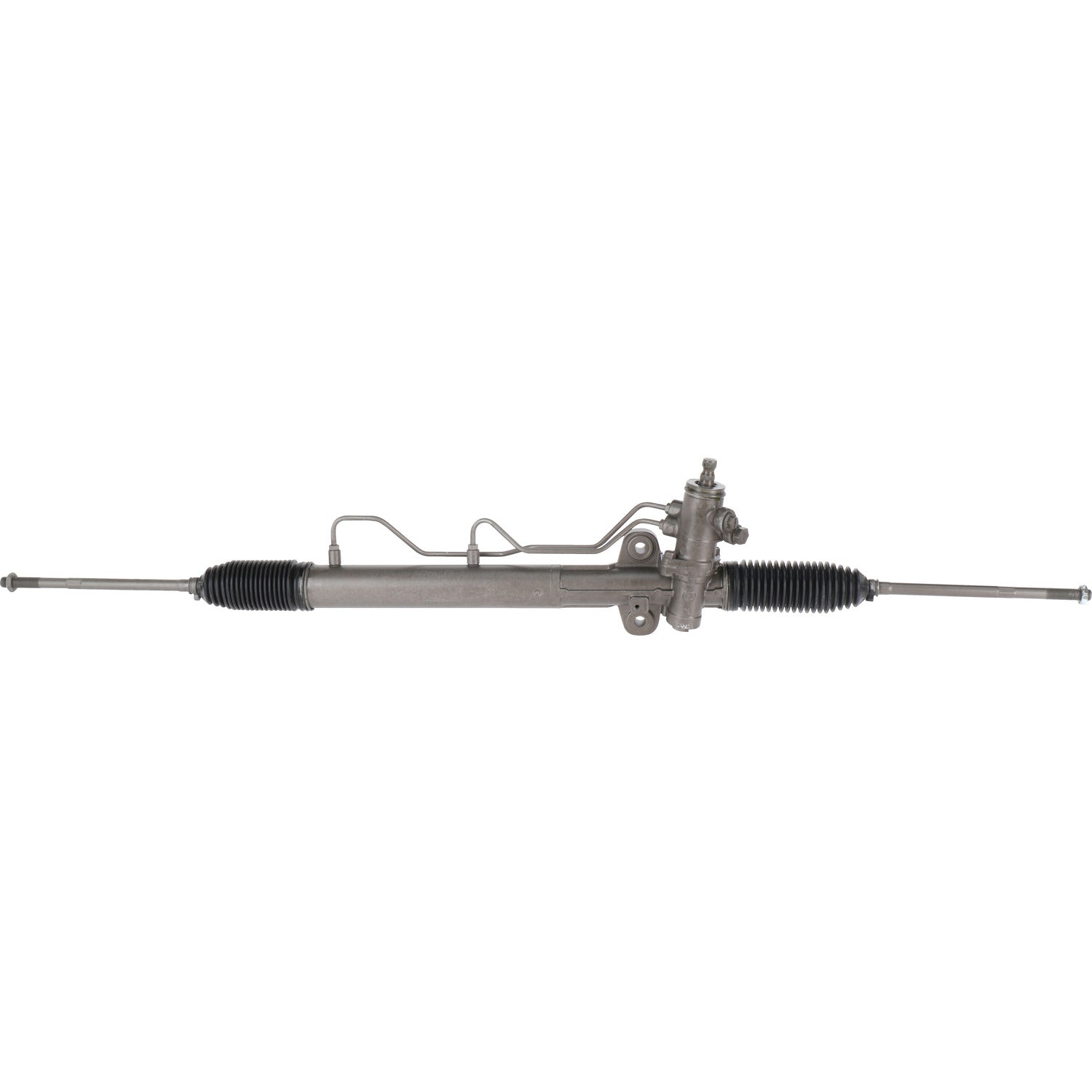

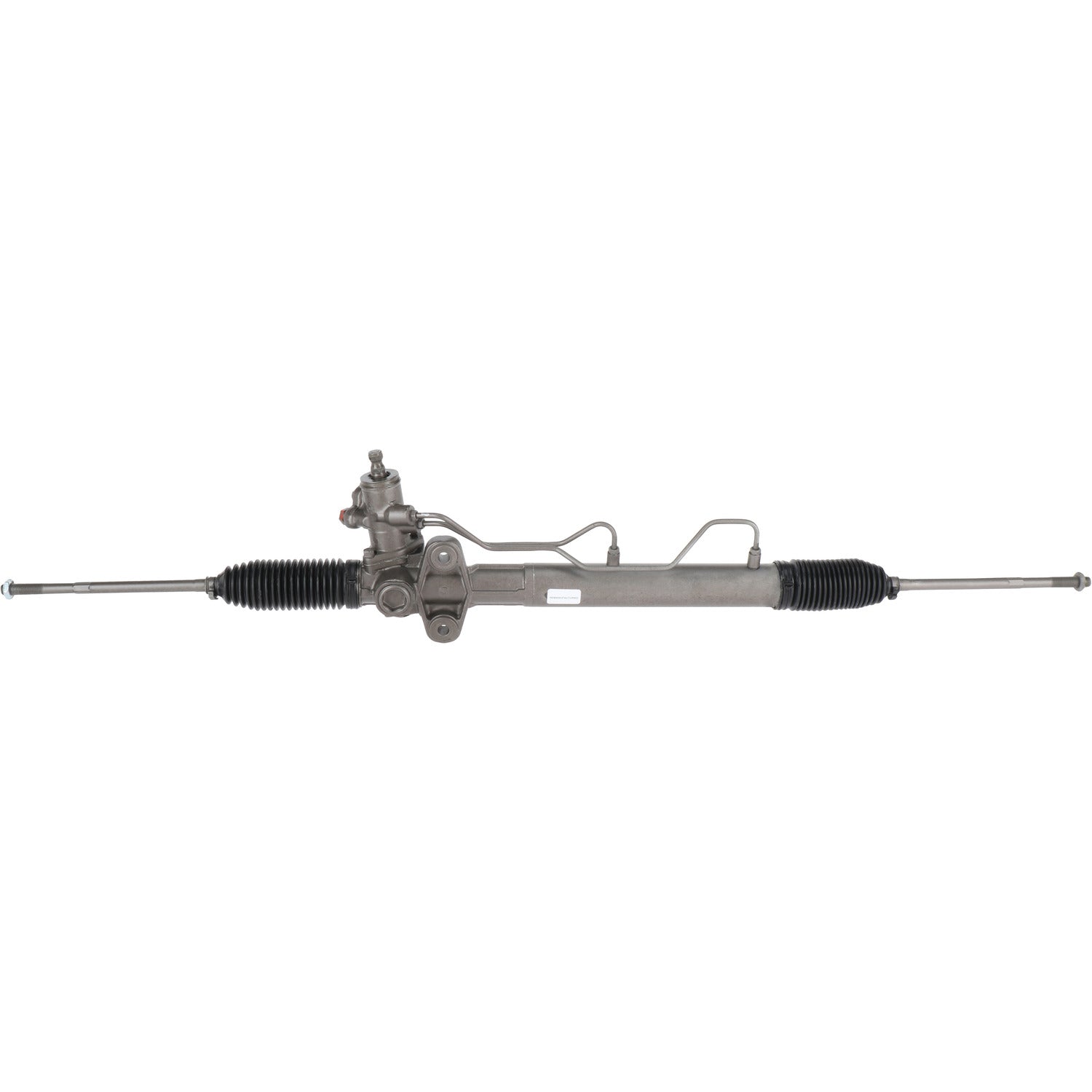

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93172M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93172M

SKU:93172M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Aluminum
Distance Between Mounting Holes 3.54 IN
Distance Between Mounting Holes 90 MM
Hose Port Type O-Ring/O-Ring
Input Shaft Diameter 0.65 IN
Input Shaft Diameter 16.6 MM
Input Shaft Length 1.11 IN
Input Shaft Length 28.2 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 25.12 IN
Rack Length 638 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.93 IN
Thread Length 49 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.89

Application Info: Hyundai Santa Fe (2003-06) ***W/3.5L V6 Engine***

Interchange: 57710-26500

BBB Cross-Reference: 313-0151

Cardone Cross-Reference: 26-2413

Instructions - 1          Instructions - 2
