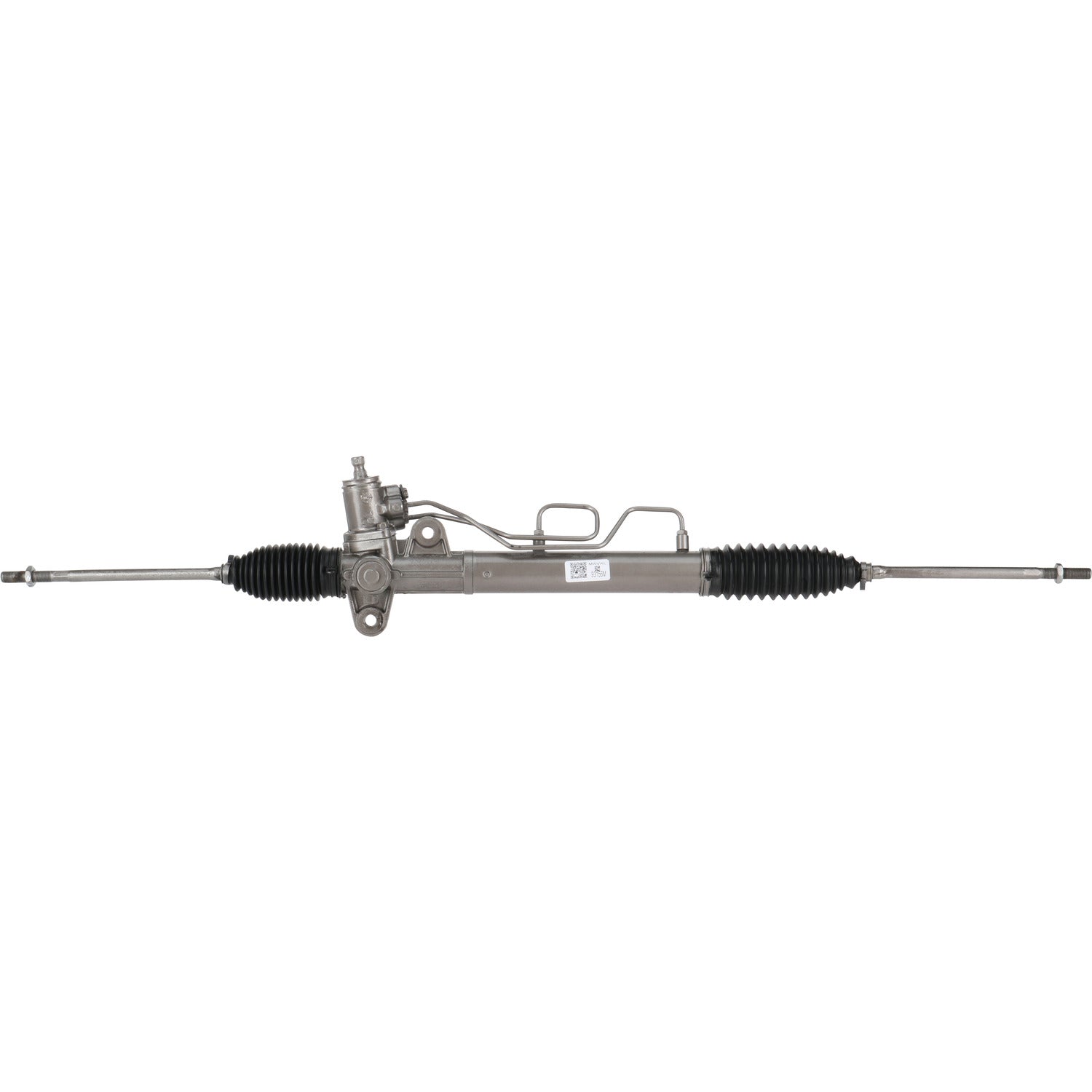

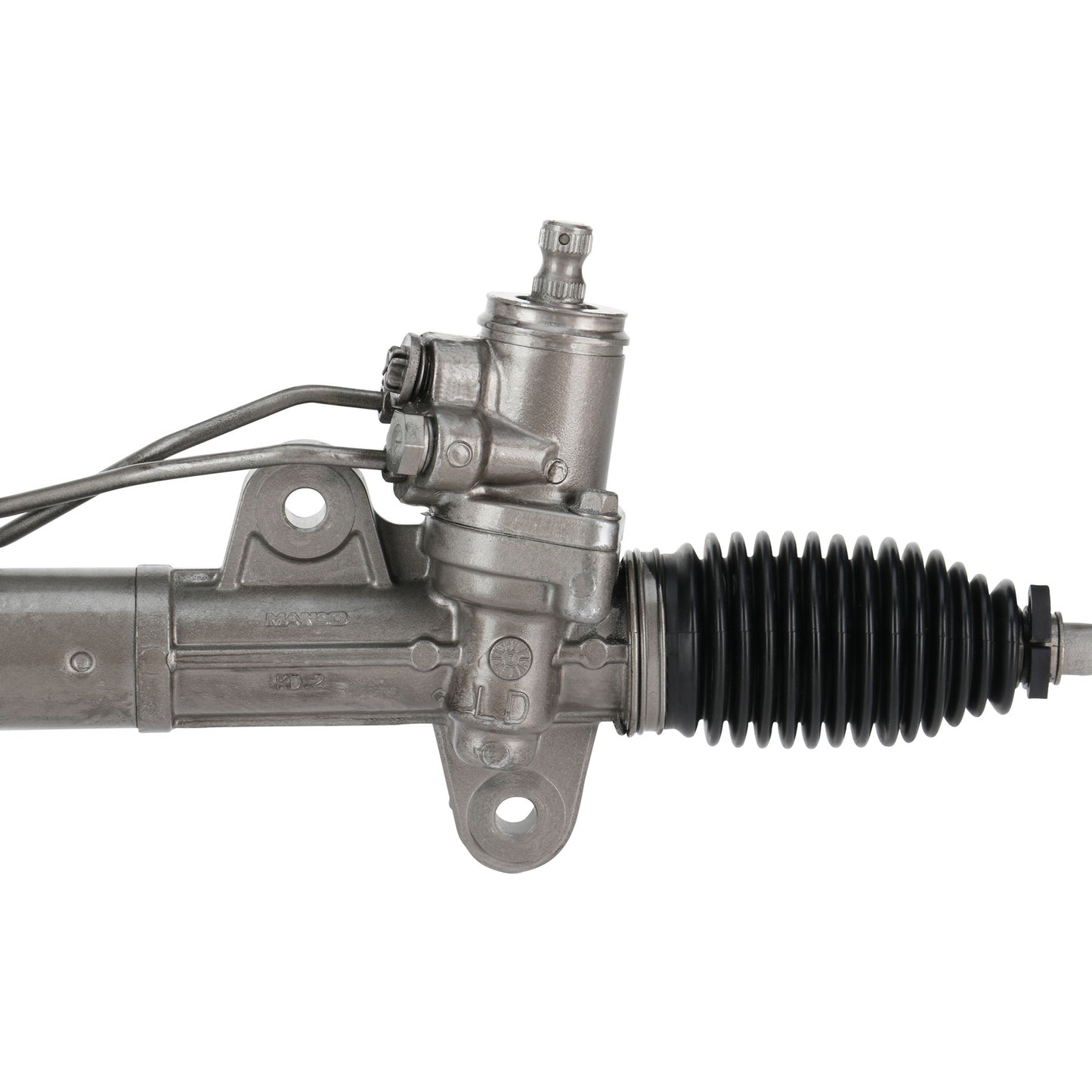

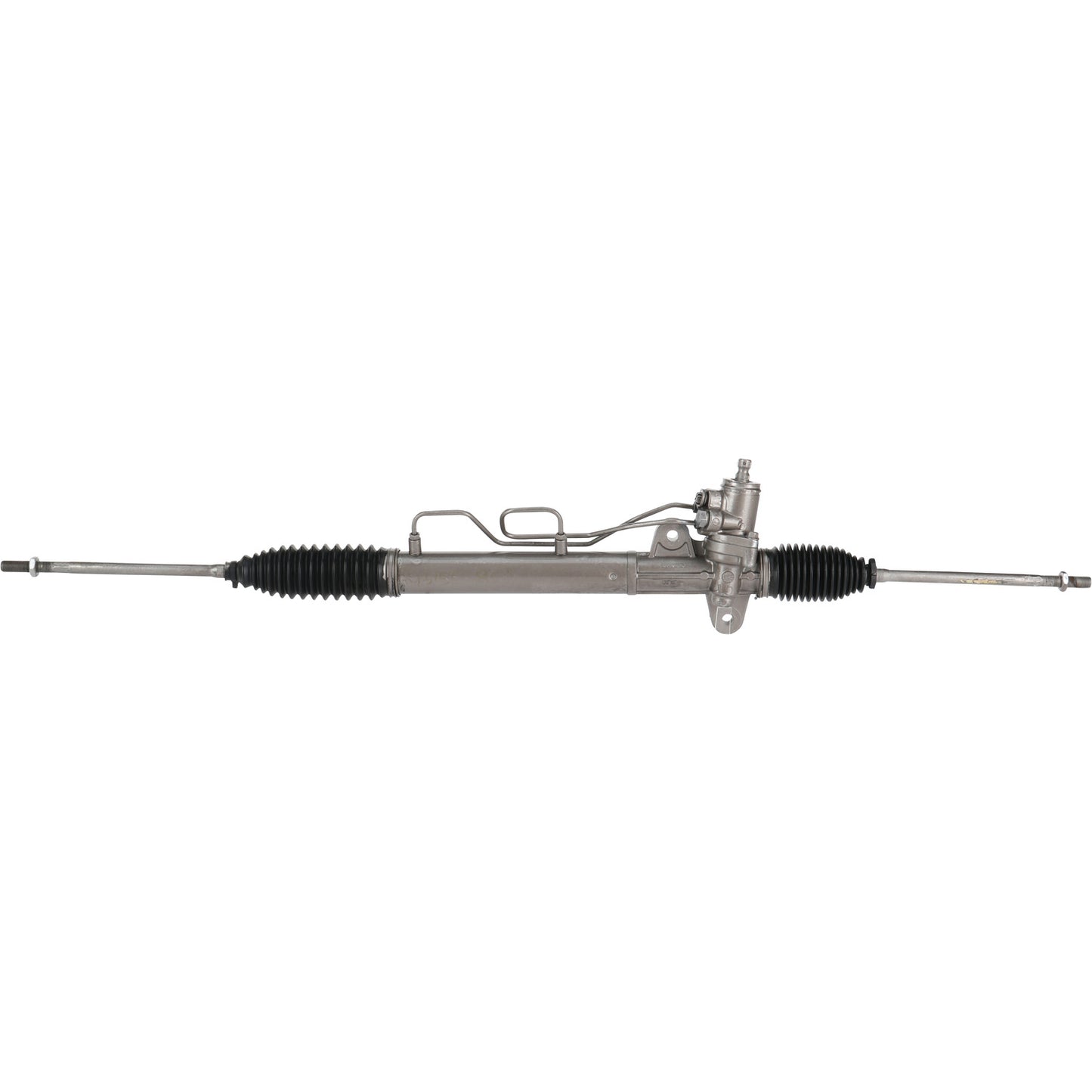

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93156M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93156M


MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 4.69 IN
Distance Between Mounting Holes 119.08 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.65 IN
Input Shaft Diameter 16.59 MM
Input Shaft Length 1 IN
Input Shaft Length 25.4 MM
Number of Mounting Holes 2
Pressure Port Thread Size M14 x 1.5
Rack Length 48.31 IN
Rack Length 1227.15 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.99 IN
Thread Length 50.55 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.81

Application Info: Kia Spectra (2004-2009), Kia Spectra5 (2005-2009)

Interchange: Kia - 57700-2F100

BBB Cross-Reference: 313-0199

Cardone Cross-Reference: 26-2308
