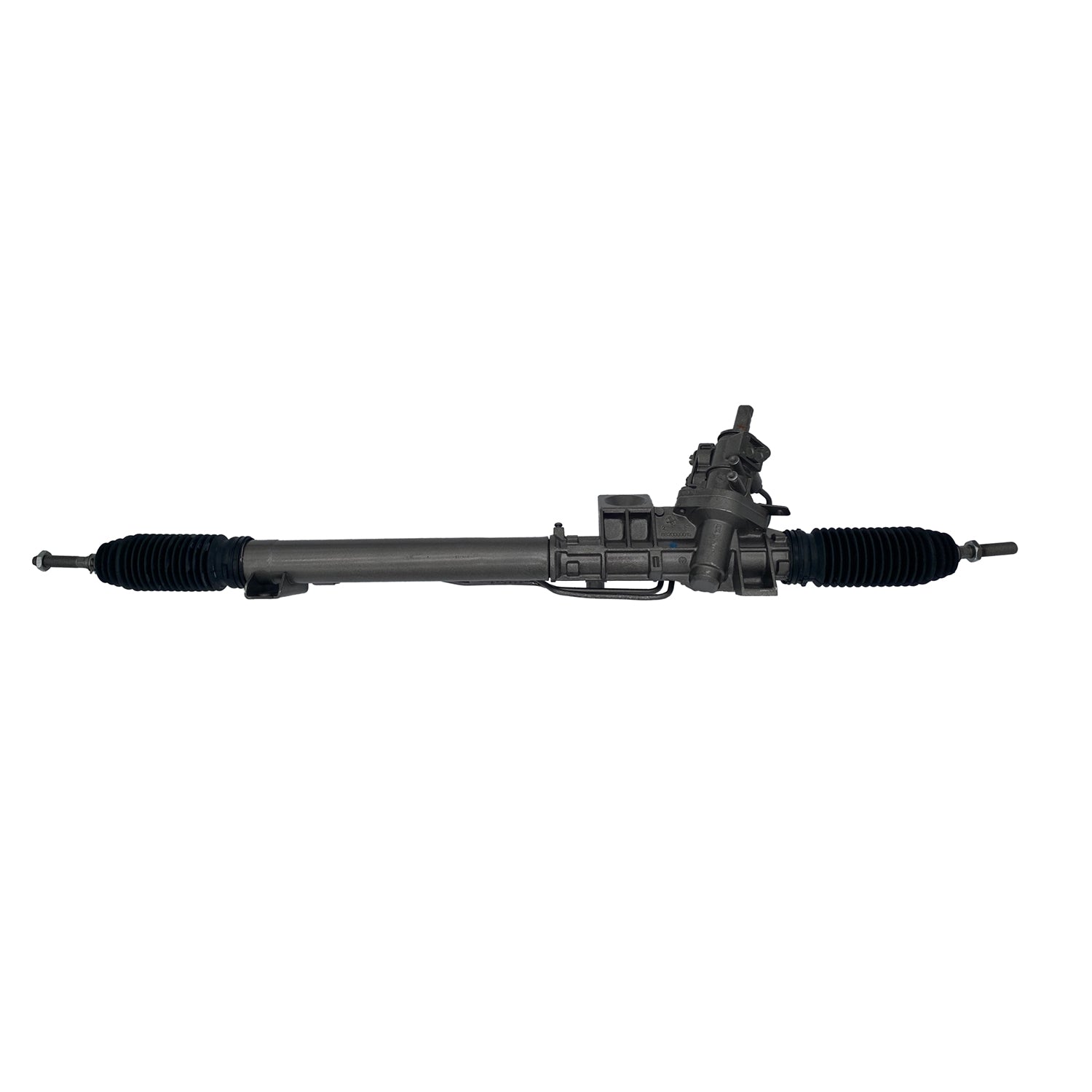

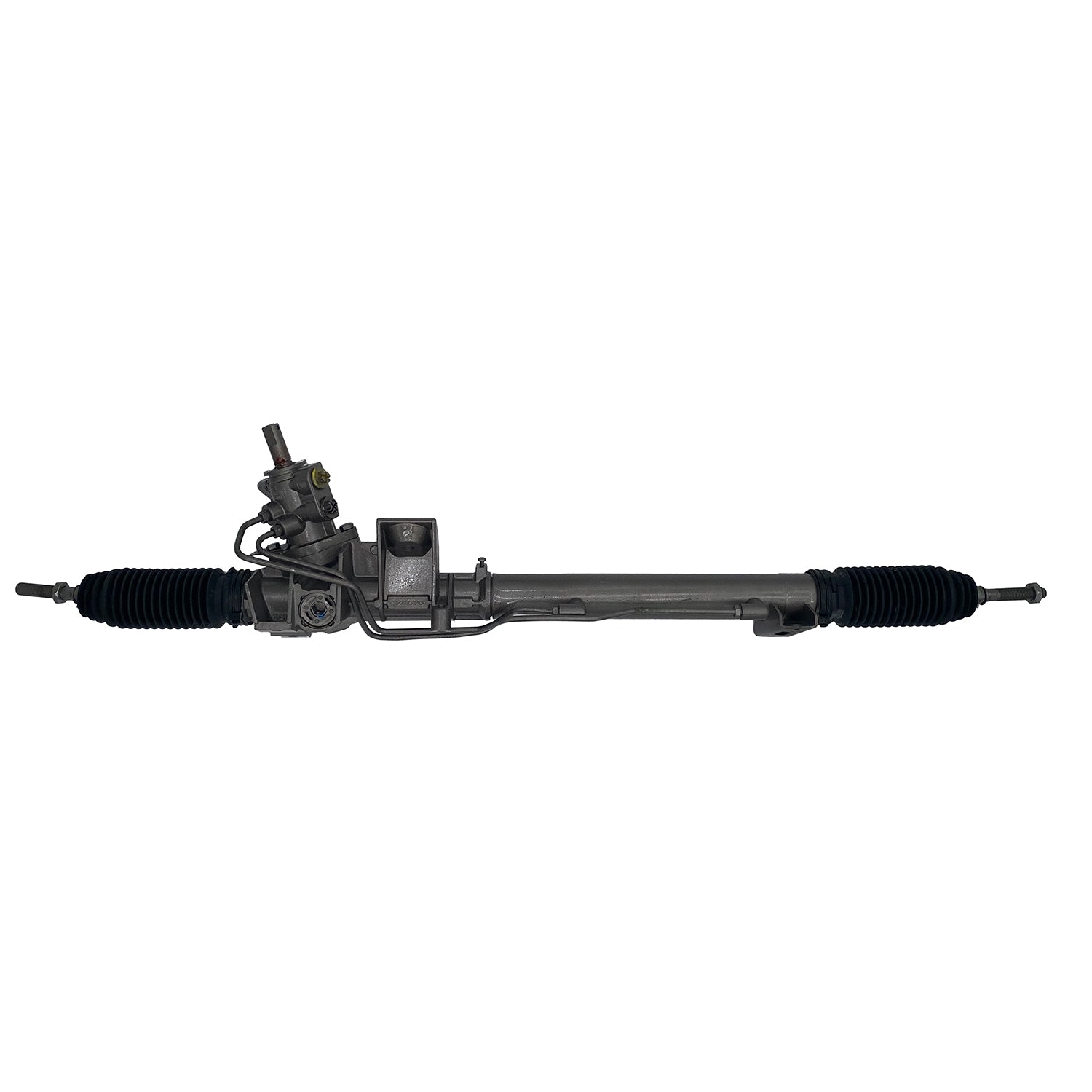

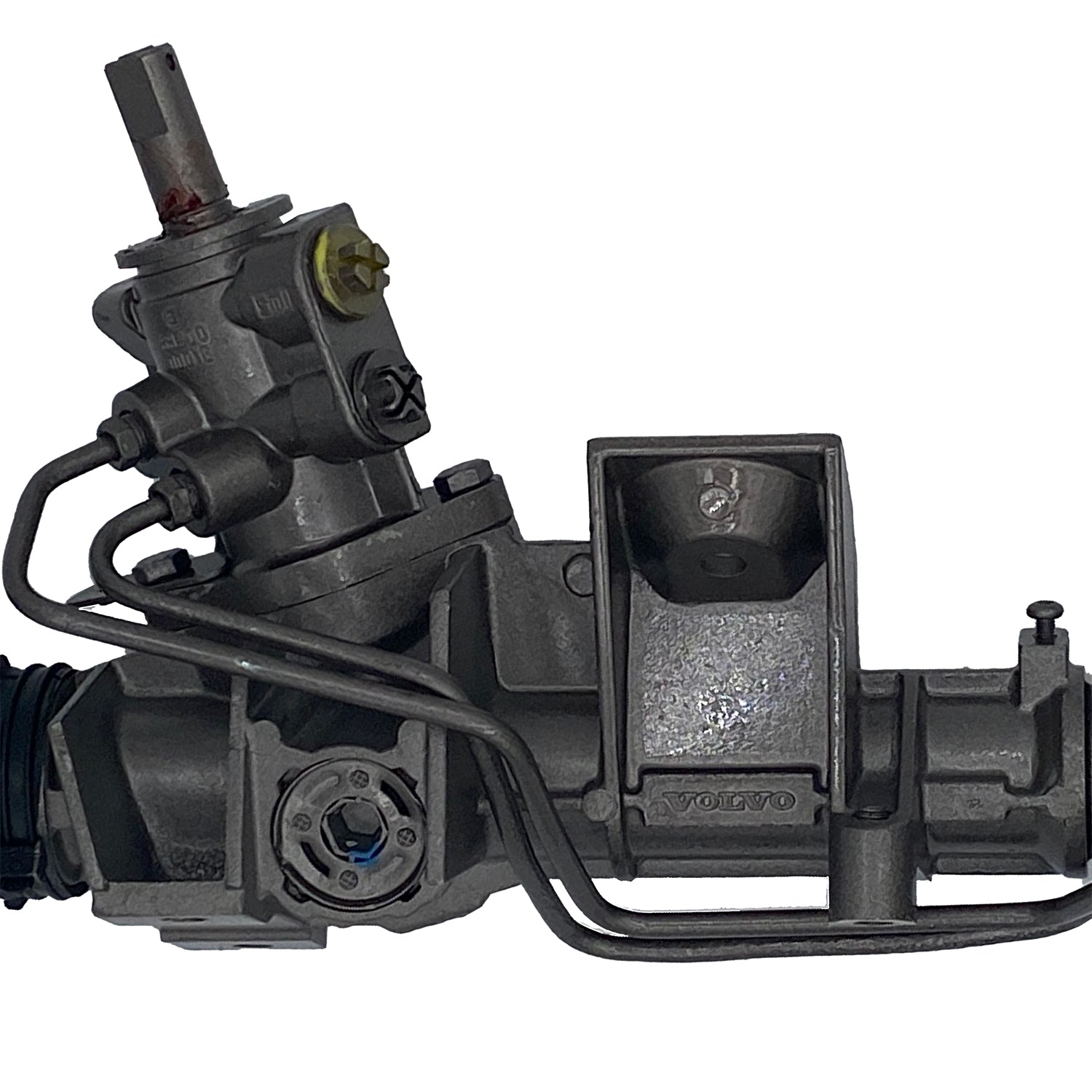

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93143M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93143M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 20.5 IN
Distance Between Mounting Holes 520.7 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.71 IN
Input Shaft Diameter 17.91 MM
Input Shaft Length 1.75 IN
Input Shaft Length 44.45 MM
Number of Mounting Holes 5
Pressure Port Thread Size M16 x 1.5
Rack Length 42.81 IN
Rack Length 1087.45 MM
Return Port Thread Size M18 x 1.5
Thread Length 2.09 IN
Thread Length 53.09 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3

Application Info: Volvo V70 (2001-2003), Volvo S60 (2001-2003), Volvo S80 (2000-2003)

Interchange: Volvo - 8601943

BBB Cross-Reference: 307-0124

Cardone Cross-Reference: 26-2515
