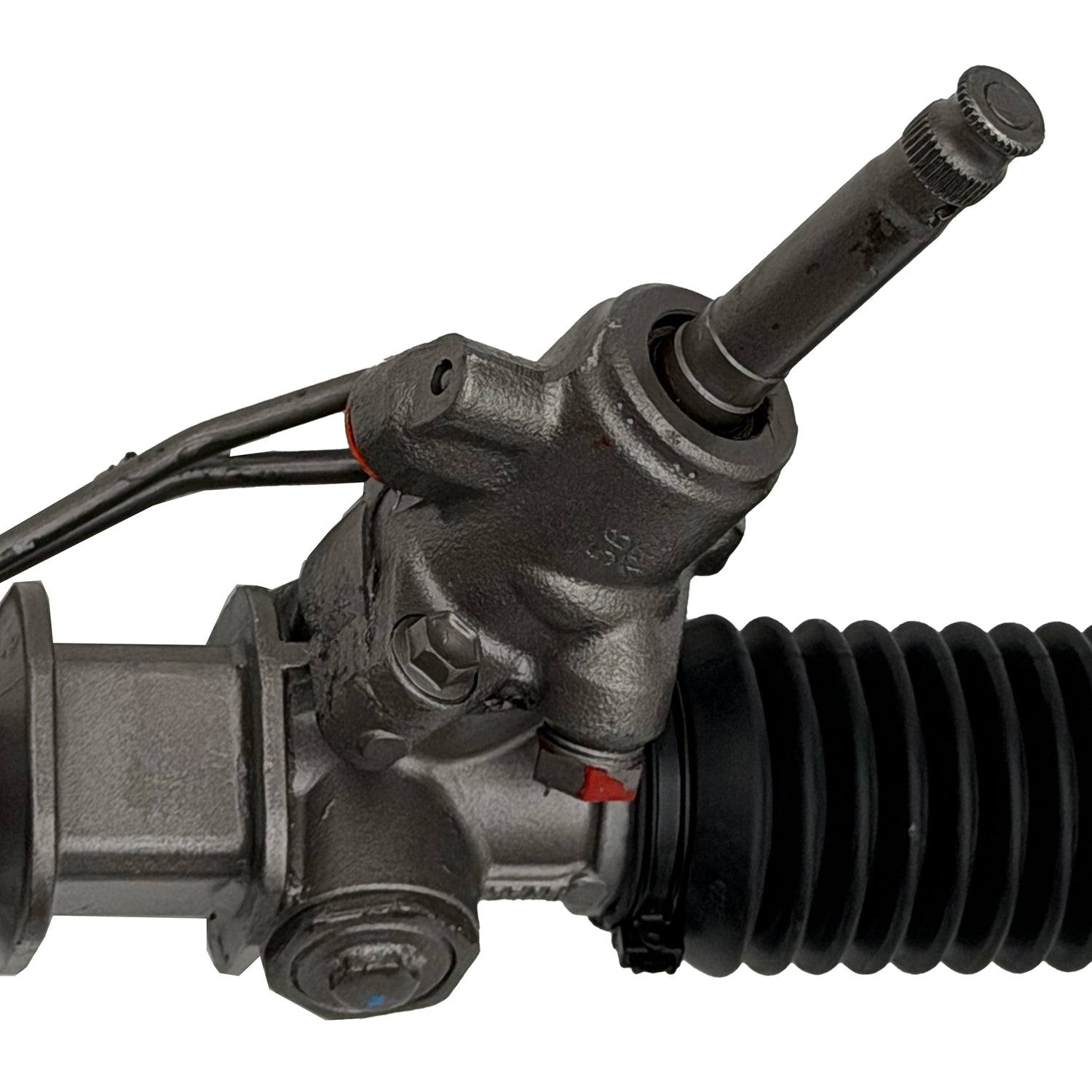

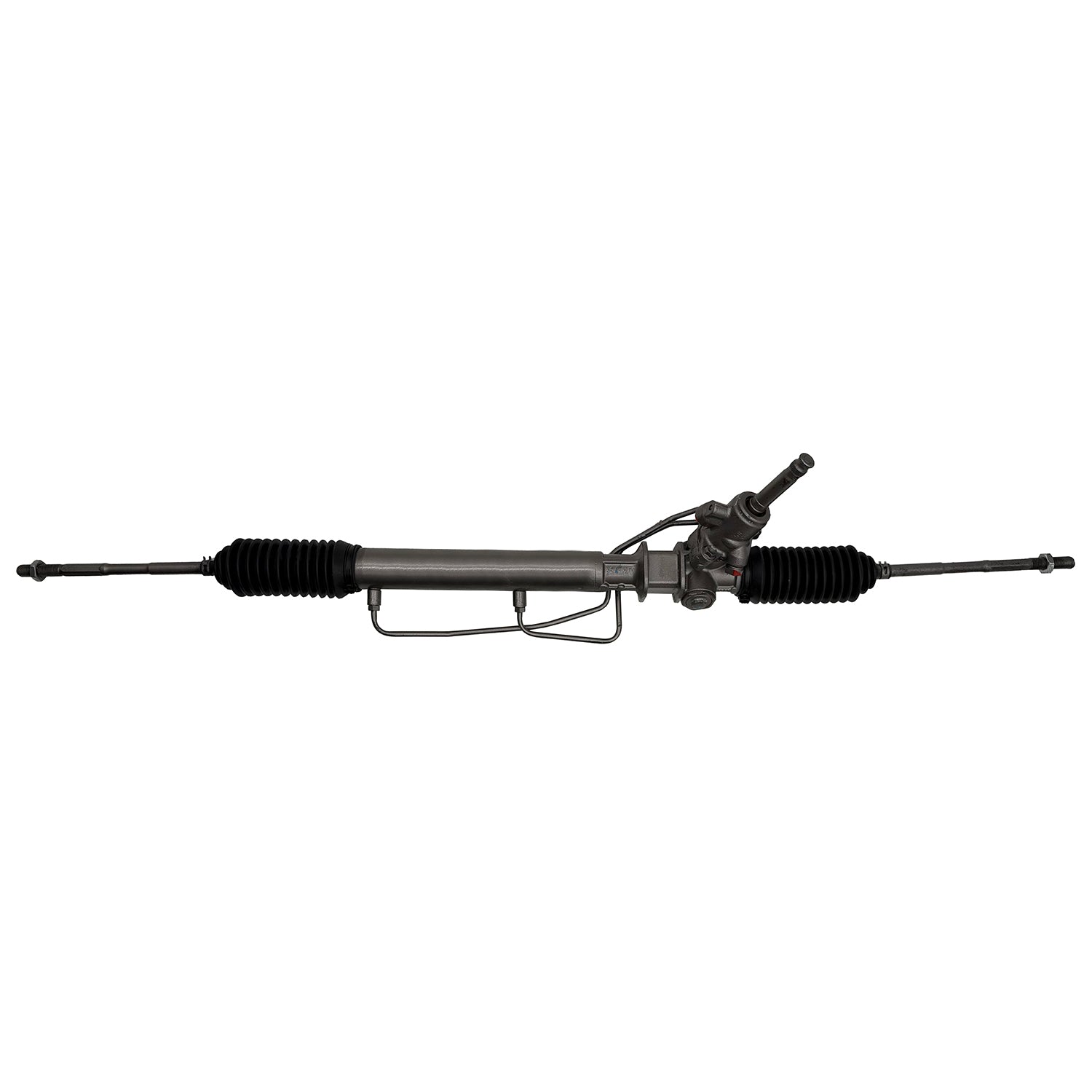

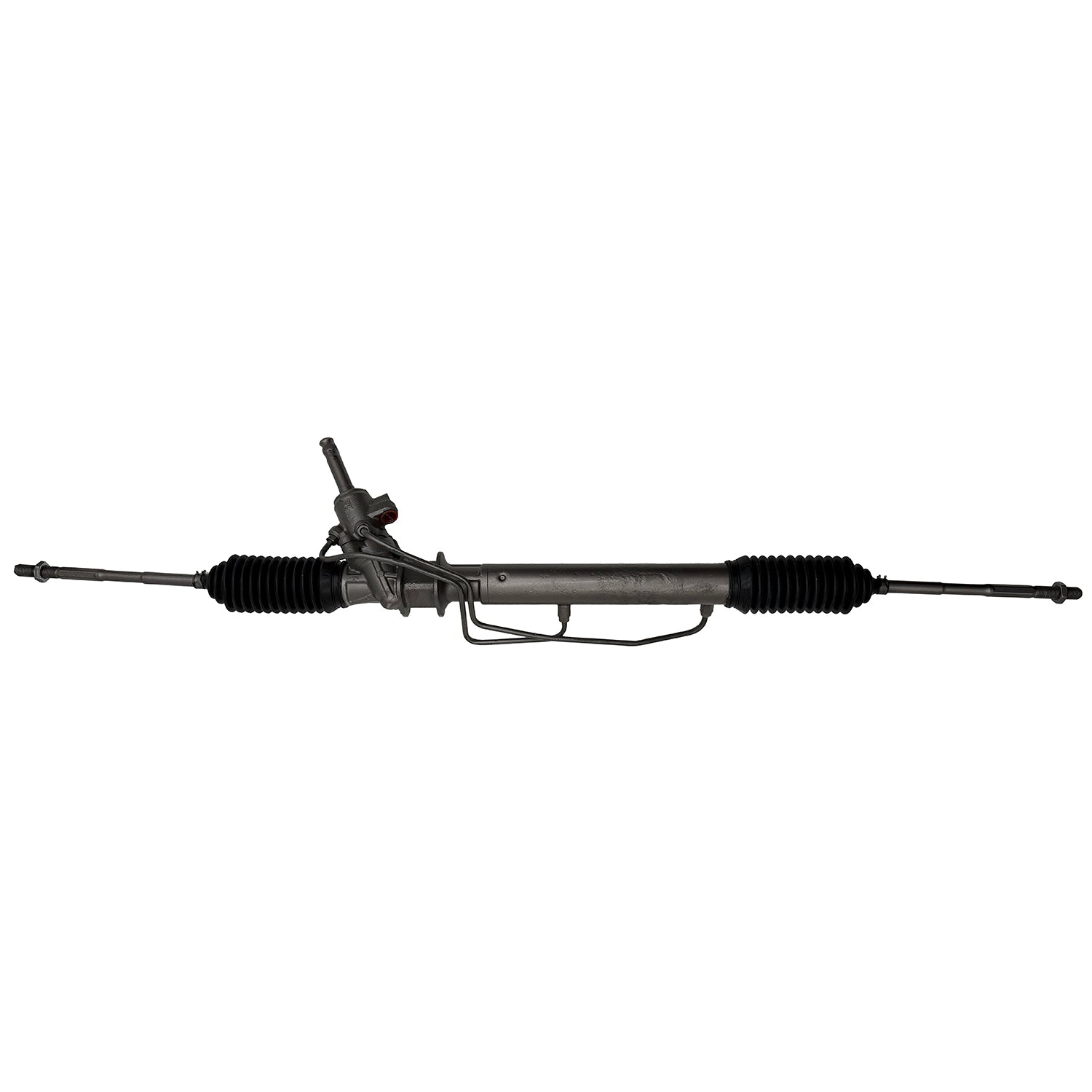

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93138M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93138M


MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.05 MM
Input Shaft Length 30.98 IN
Input Shaft Length 786.97 MM
Mounting Hole Quantity 1
Pressure Port Thread Size M14 x 1.5
Rack Length 46.63 IN
Rack Length 1184.28 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.9 IN
Thread Length 48.36 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.19


Application Info: Subaru Impreza (1998-2001)

Interchange: Subaru - 34110-FA120

BBB Cross-Reference: 313-0142

Cardone Cross-Reference: 26-1979

Instructions - 1               Instructions - 2

View full details
