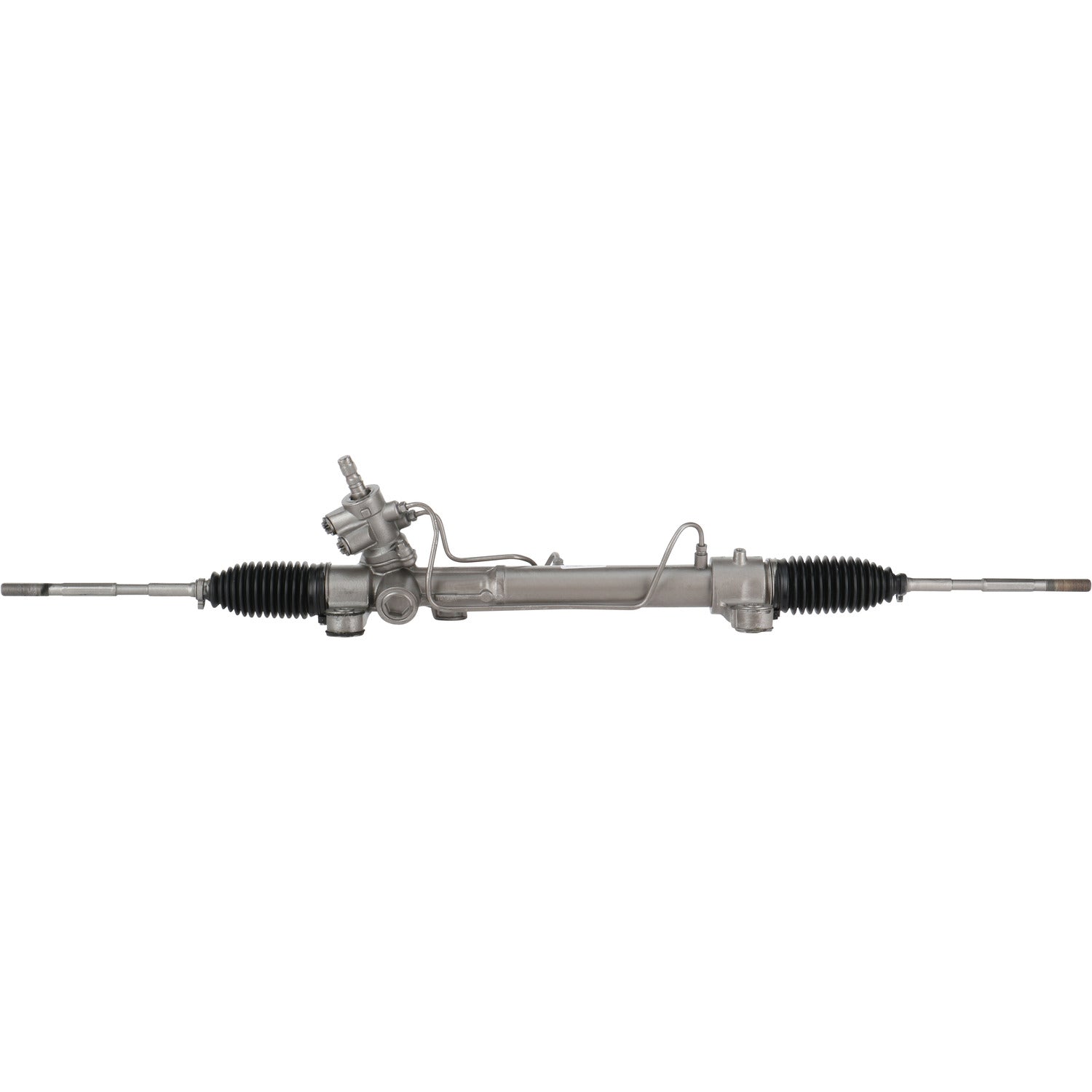

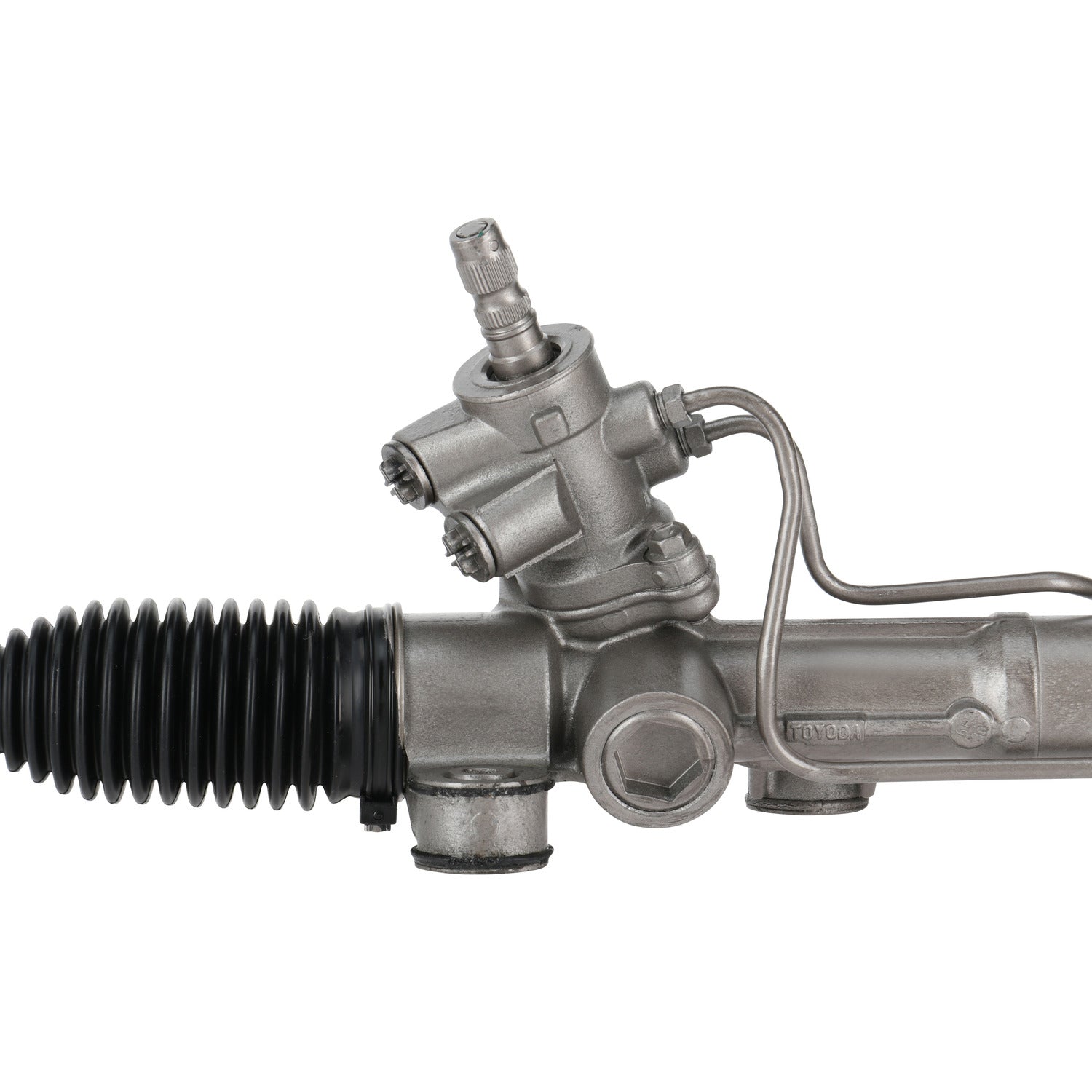

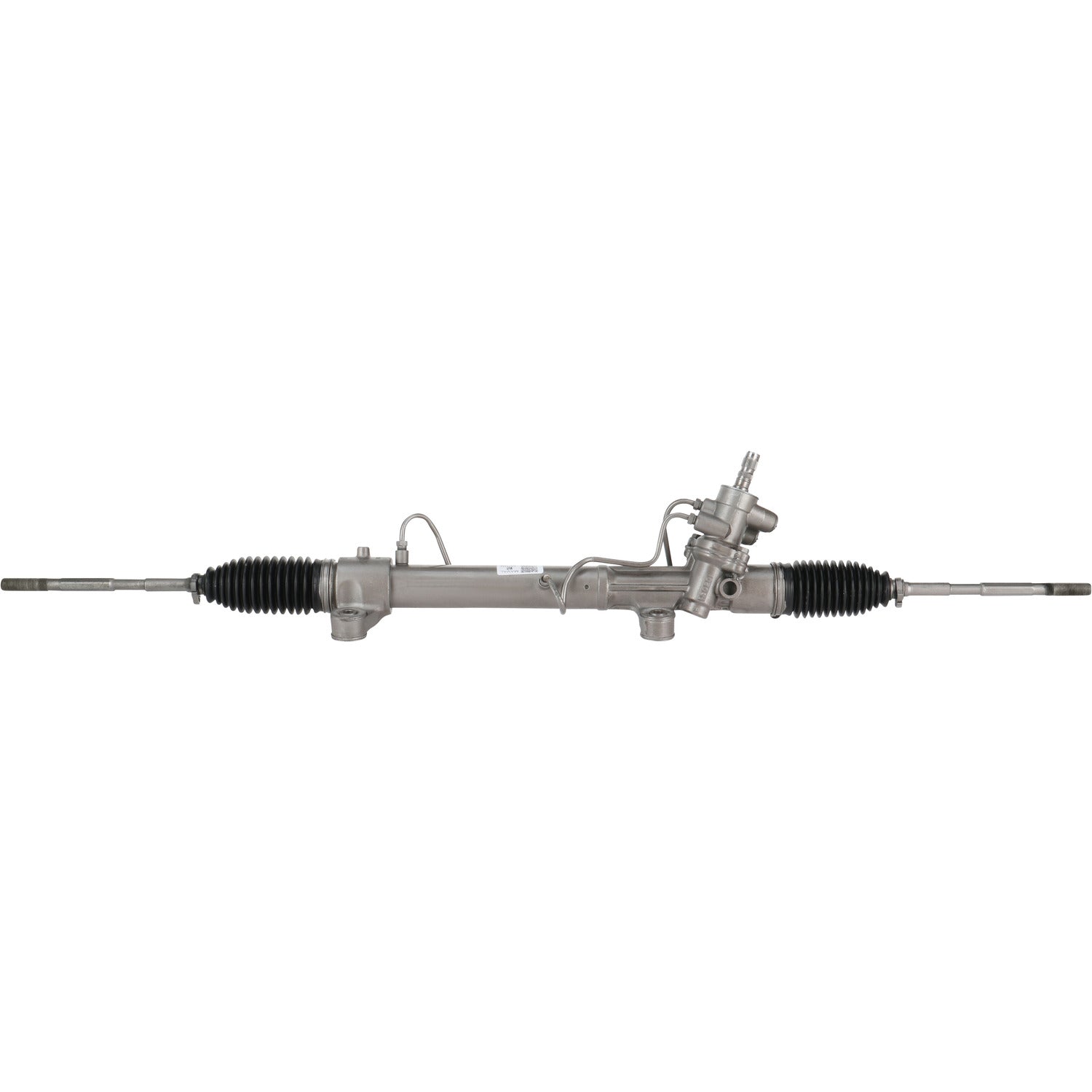

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93135M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93135M

SKU:93135M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 17.94 IN
Distance Between Mounting Holes 455.63 MM
Hose Port Type Seat
Input Shaft Diameter 0.71 IN
Input Shaft Diameter 18.01 MM
Input Shaft Length 4.13 IN
Input Shaft Length 104.78 MM
Mounting Hole Quantity 4
Pressure Port Thread Size M16 x 1.5
Rack Length 46.5 IN
Rack Length 1181.1 MM
Return Port Thread Size M17 x 1.5
Thread Length 1.88 IN
Thread Length 47.63 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.13



Application Info: Scion tC (2005-2010)

Interchange: Toyota - 44200-21121

BBB Cross-Reference: 311-0227

Cardone Cross-Reference: 26-2628
