MAVAL

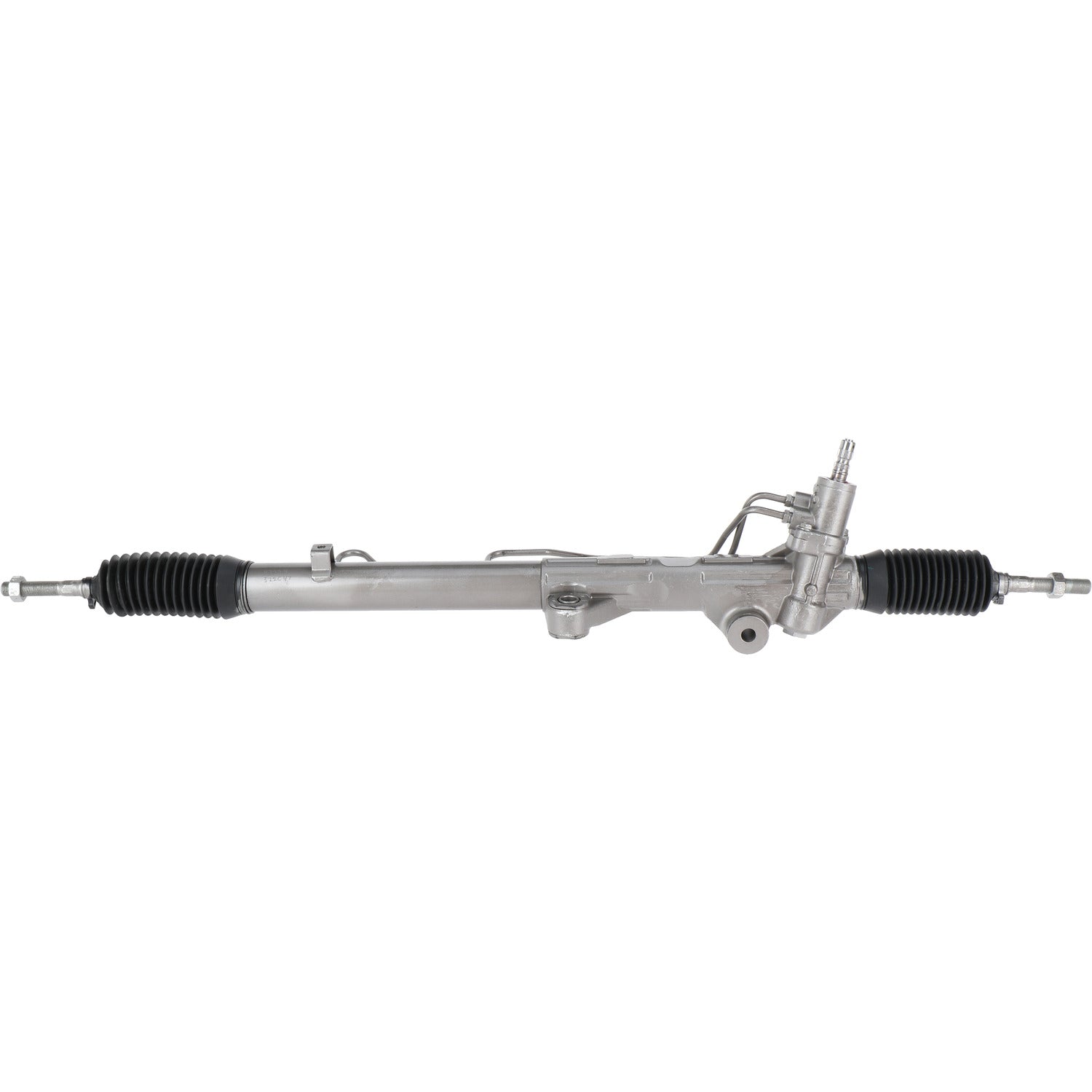

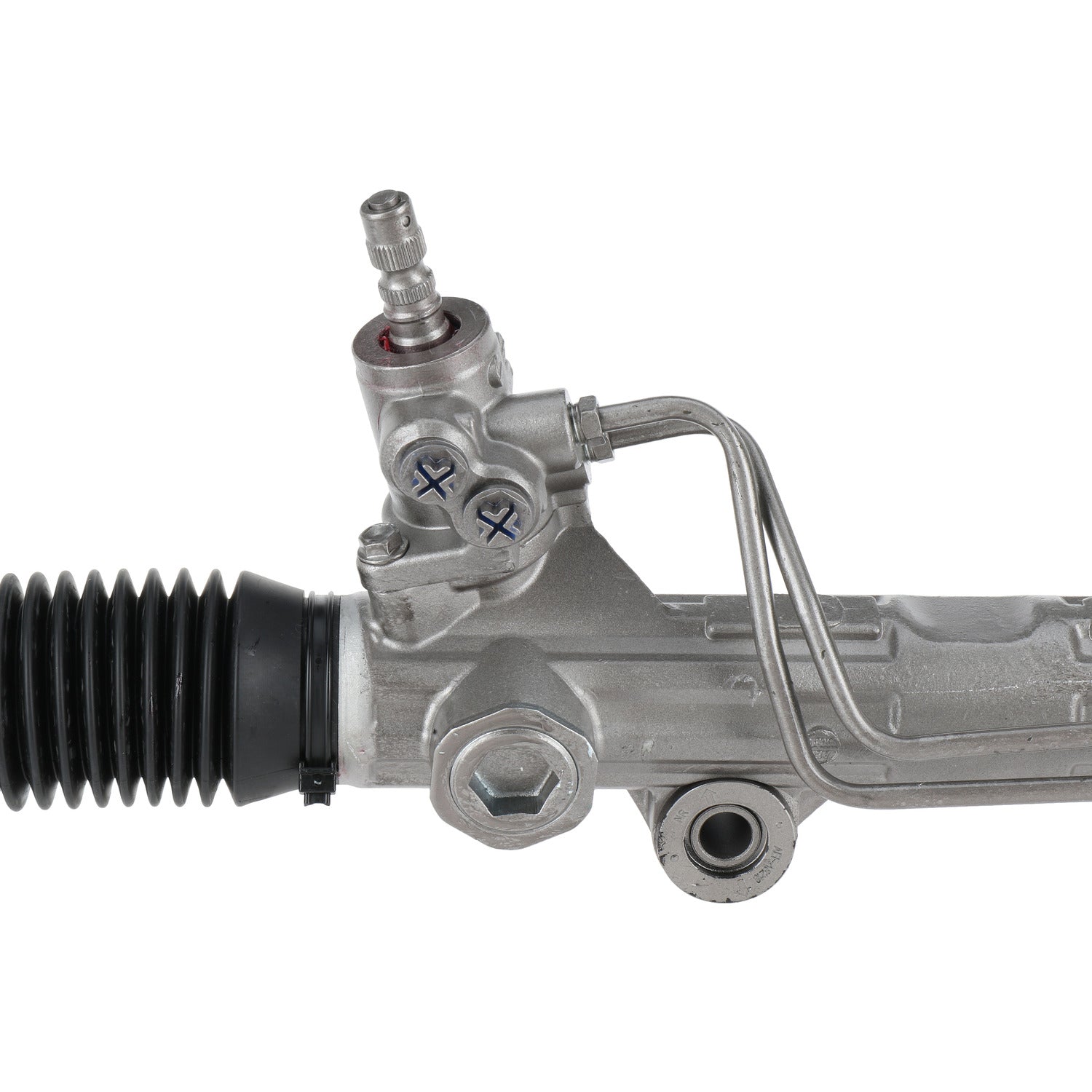

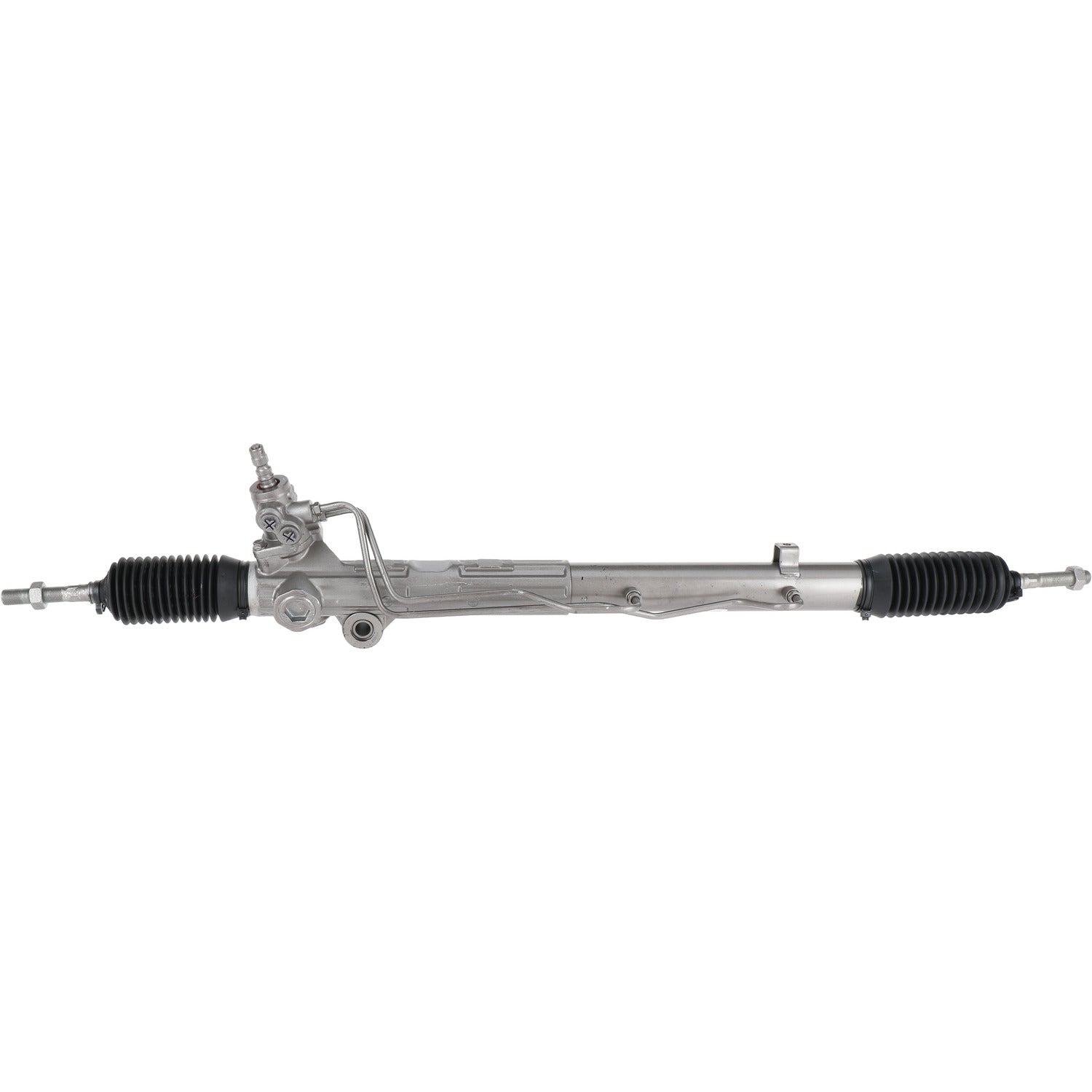

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9300M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9300M

SKU:9300M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units' electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 7.875 IN
Distance Between Mounting Holes 200.025 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19.15 MM
Input Shaft Length 2.625 IN
Input Shaft Length 66.67 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M16 x 1.5
Rack Length 49.25 IN
Rack Length 1250.95 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.288 IN
Thread Length 58.11 MM
Tie Rod Ends Included Yes
Total Turns Lock To Lock 3.38



Application Info: Toyota Sequoia (2001-97), Tundra (2000-06)

Interchange: 44250-0C010, 44250-0C020, 44250-0C030, 44250-0C041, 44250-0C050

BBB Cross-Reference: 311-0113

Cardone Cross-Reference: 26-1618
