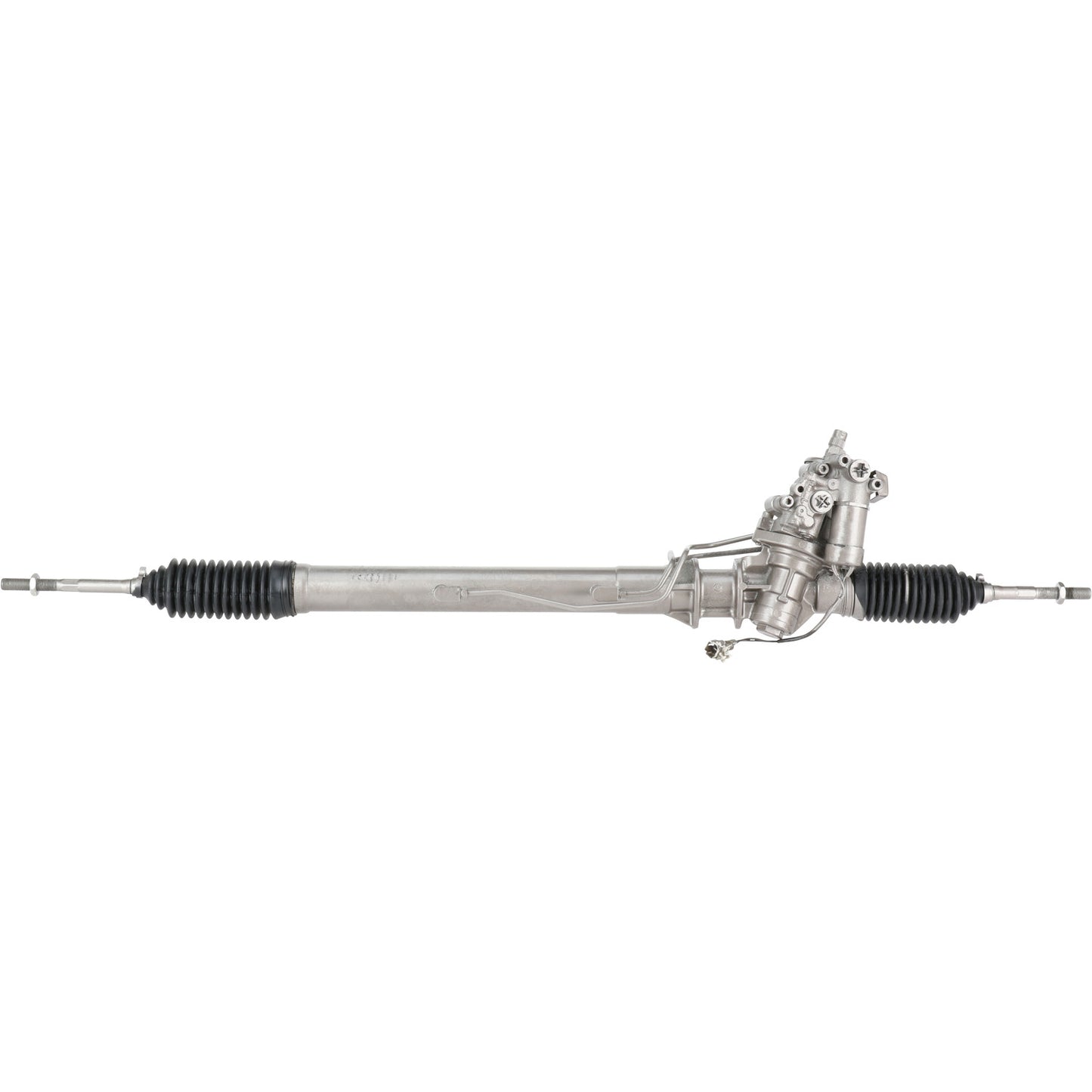

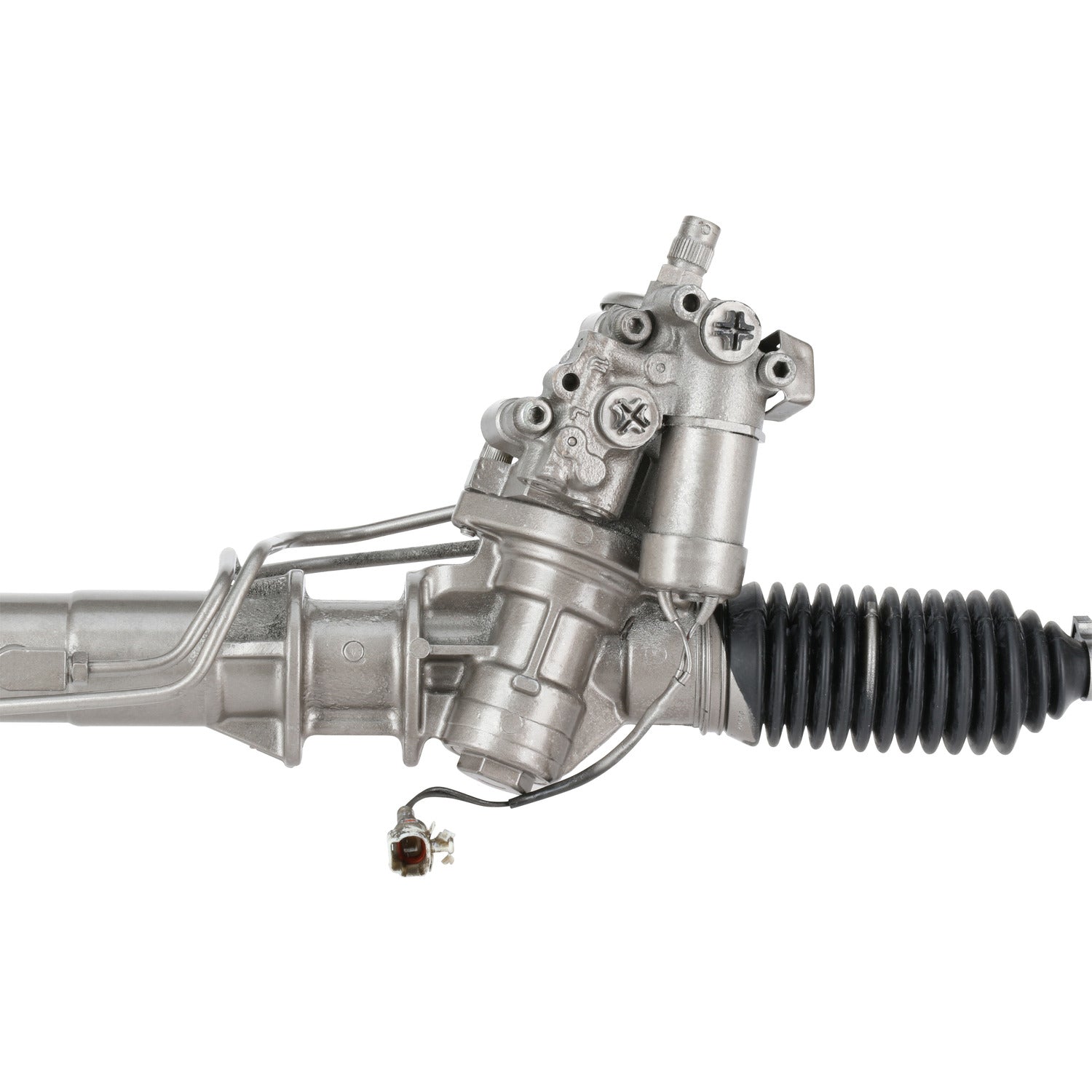

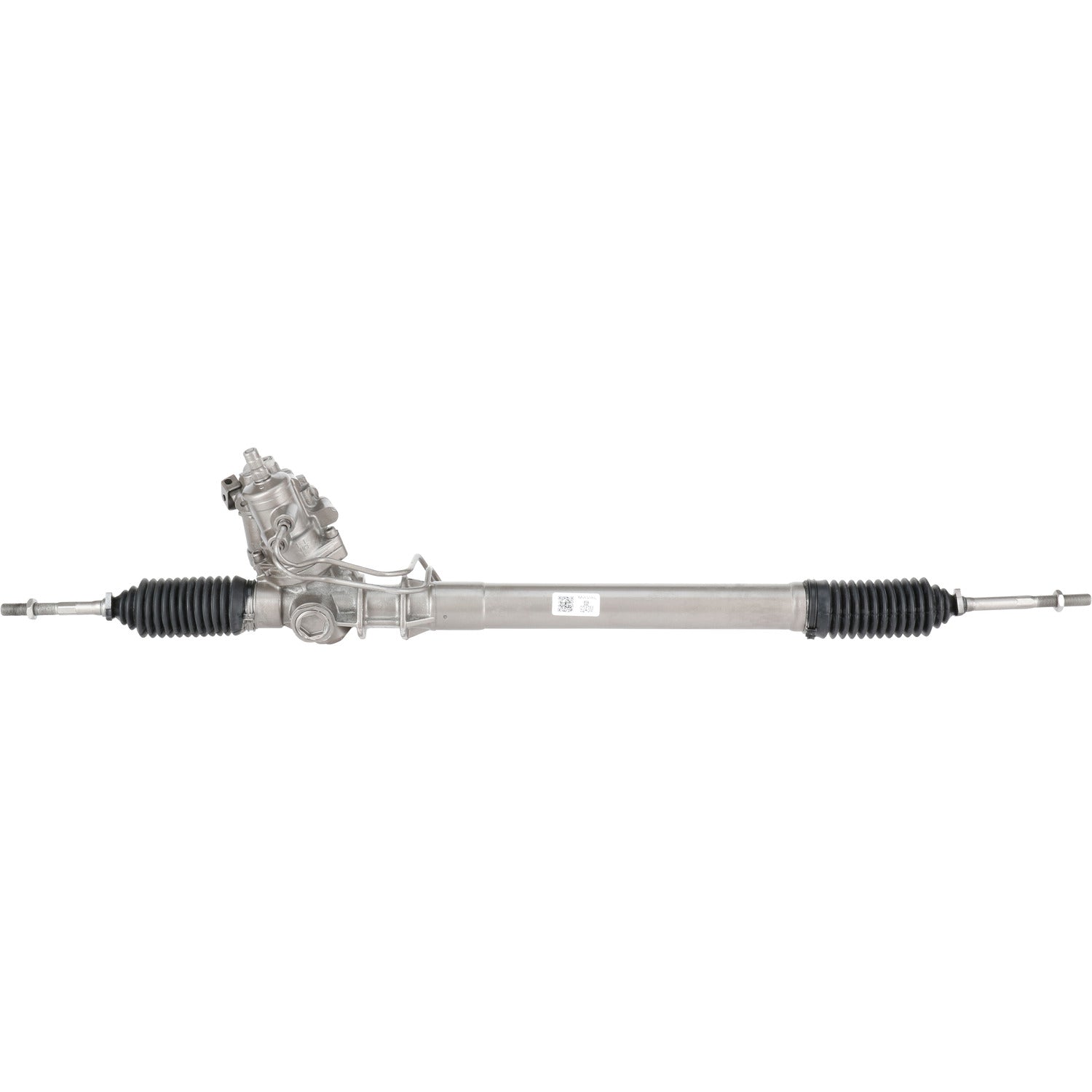

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9243M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9243M

SKU:9243M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type Banjo/Washer
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 18.97 MM
Input Shaft Length 1.63 IN
Input Shaft Length 41.28 MM
Number of Mounting Holes 1
Pressure Port Thread Size M16 x 1.5
Rack Length 45.56 IN
Rack Length 1157.3 MM
Return Port Thread Size M17 x 1.5
Thread Length 2.18 IN
Thread Length 55.25 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.44

Application Info: Lexus LS400 (1995-1997)

Interchange: Toyota - 44250-50090

BBB Cross-Reference: 311-0165

Cardone Cross-Reference: 26-1696
