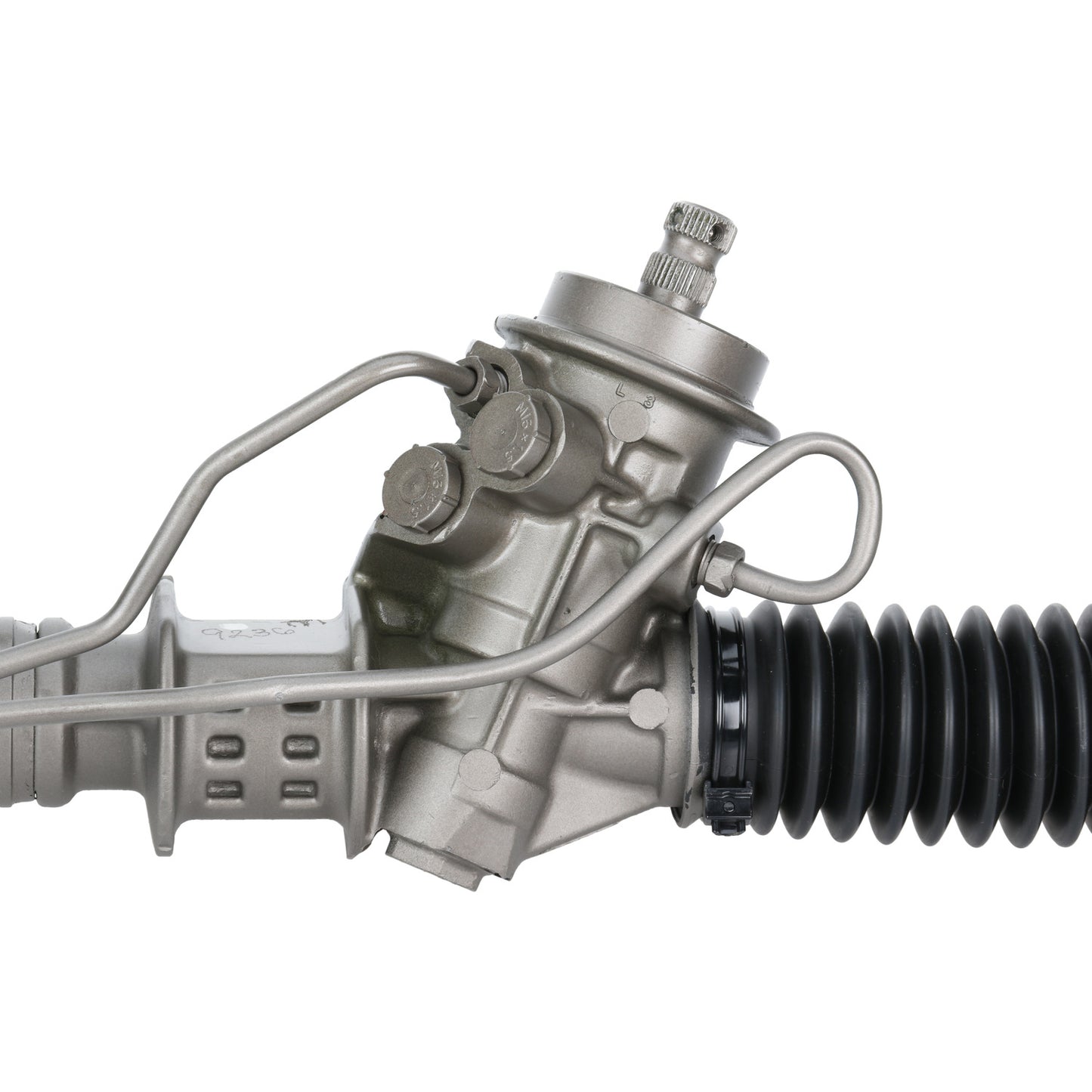

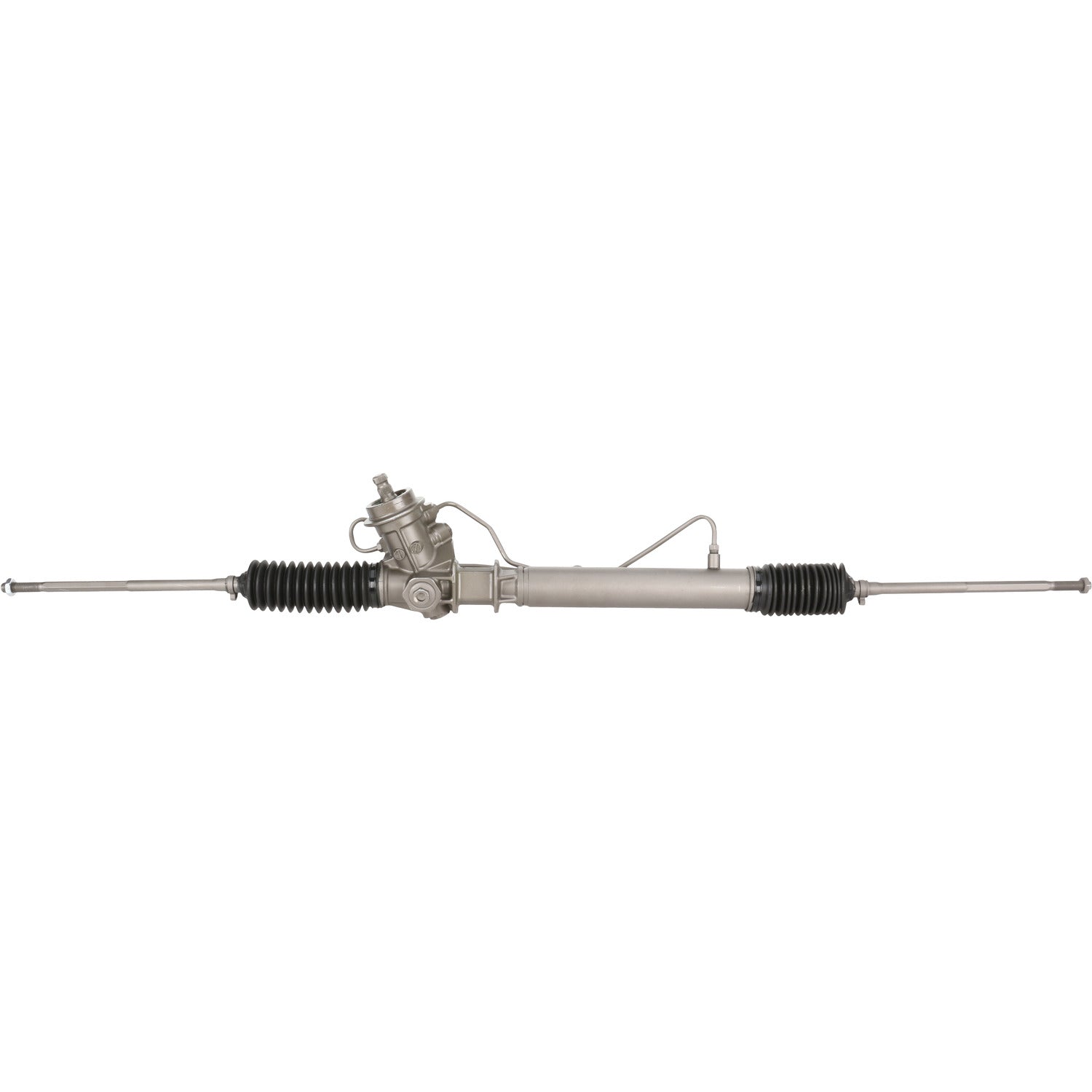

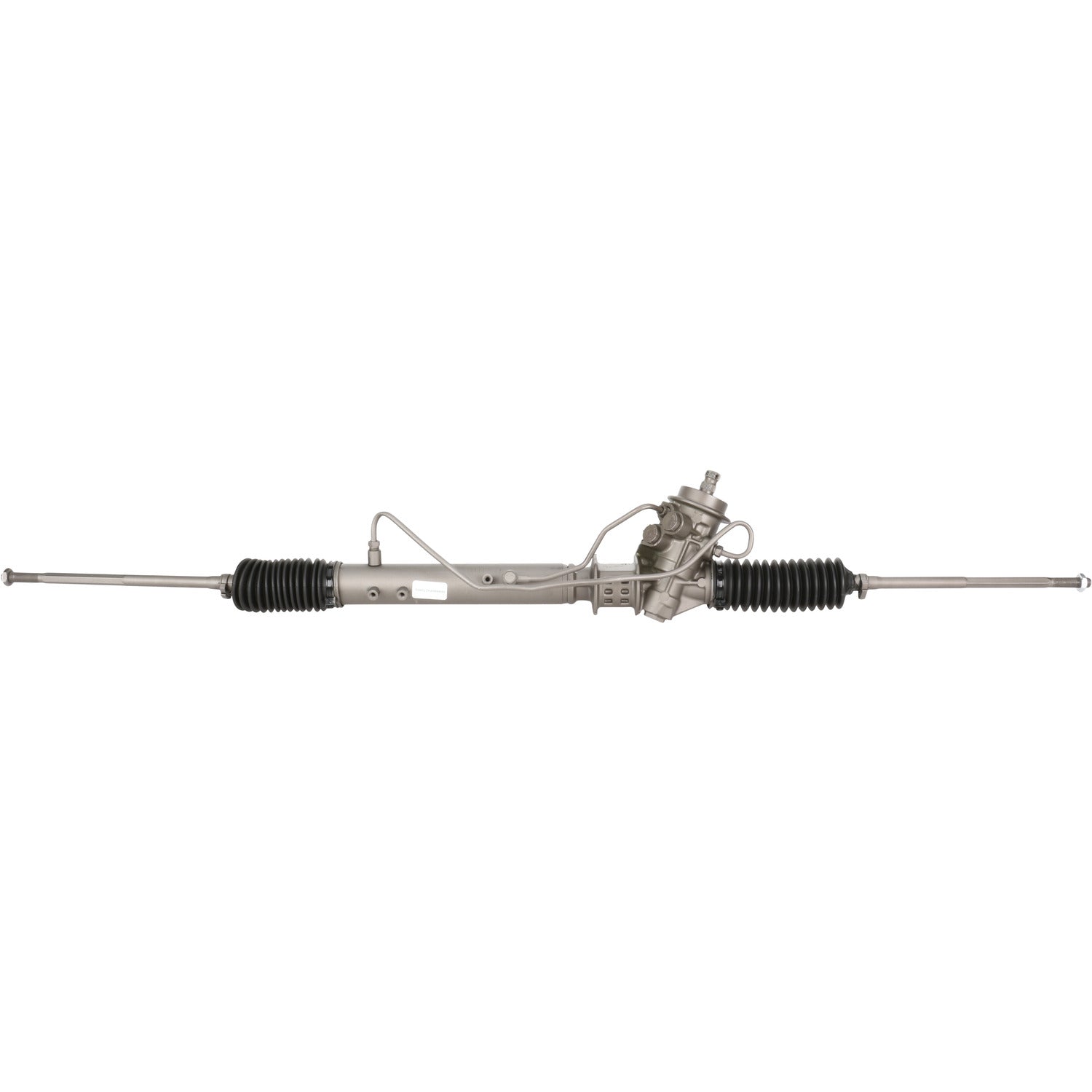

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9236M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9236M

SKU:9236M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type Seat
Input Shaft Diameter 0.74 IN
Input Shaft Diameter 18.8 MM
Input Shaft Length 1.13 IN
Input Shaft Length 28.58 MM
Number of Mounting Holes 1
Pressure Port Thread Size M16 x 1.5
Rack Length 48.31 IN
Rack Length 1227.15 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.67 IN
Thread Length 42.29 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3

Application Info: Mazda Protege (1995-1998)

Interchange: Mazda - BG1N-32-110

BBB Cross-Reference: 308-0124

Cardone Cross-Reference: 26-2012
