MAVAL

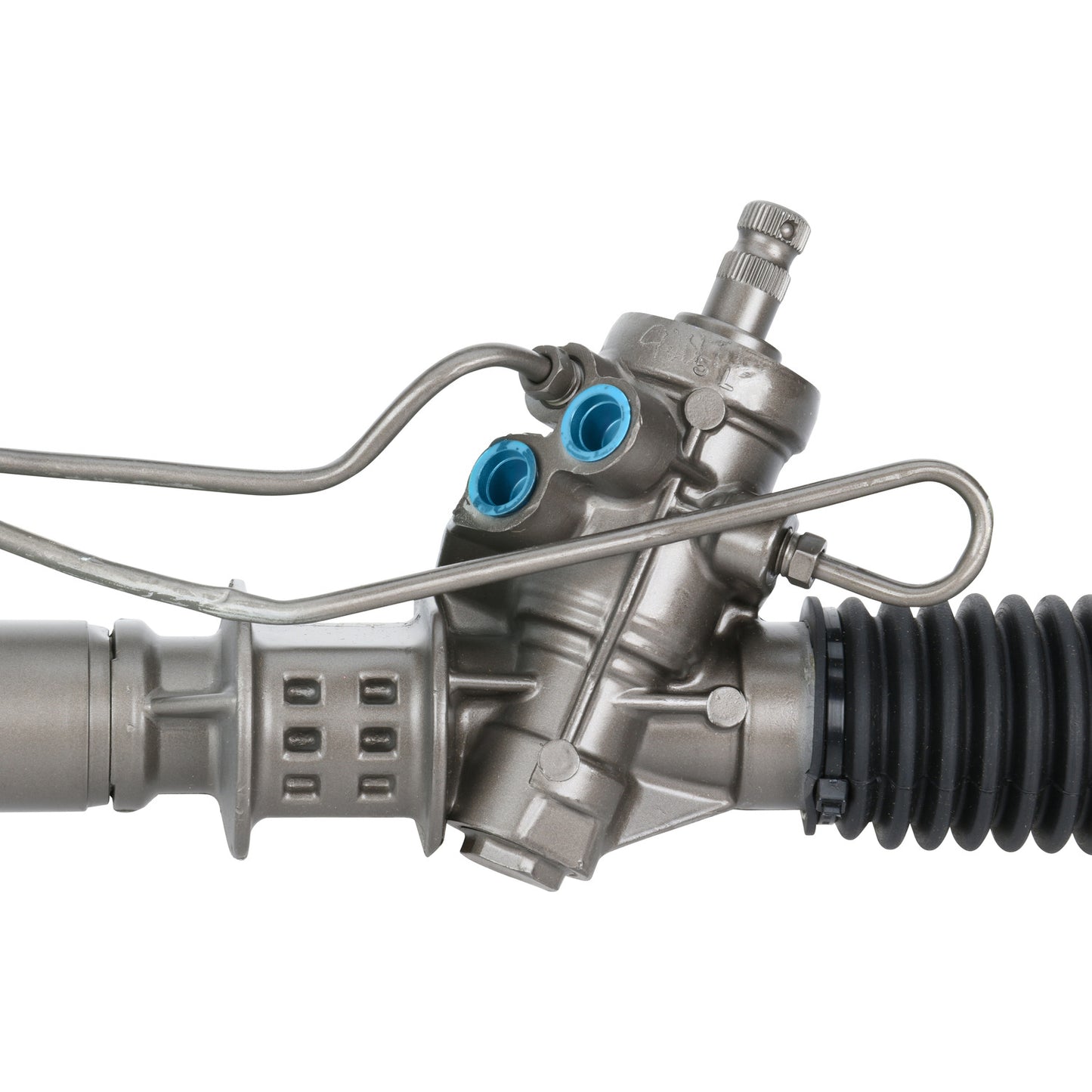

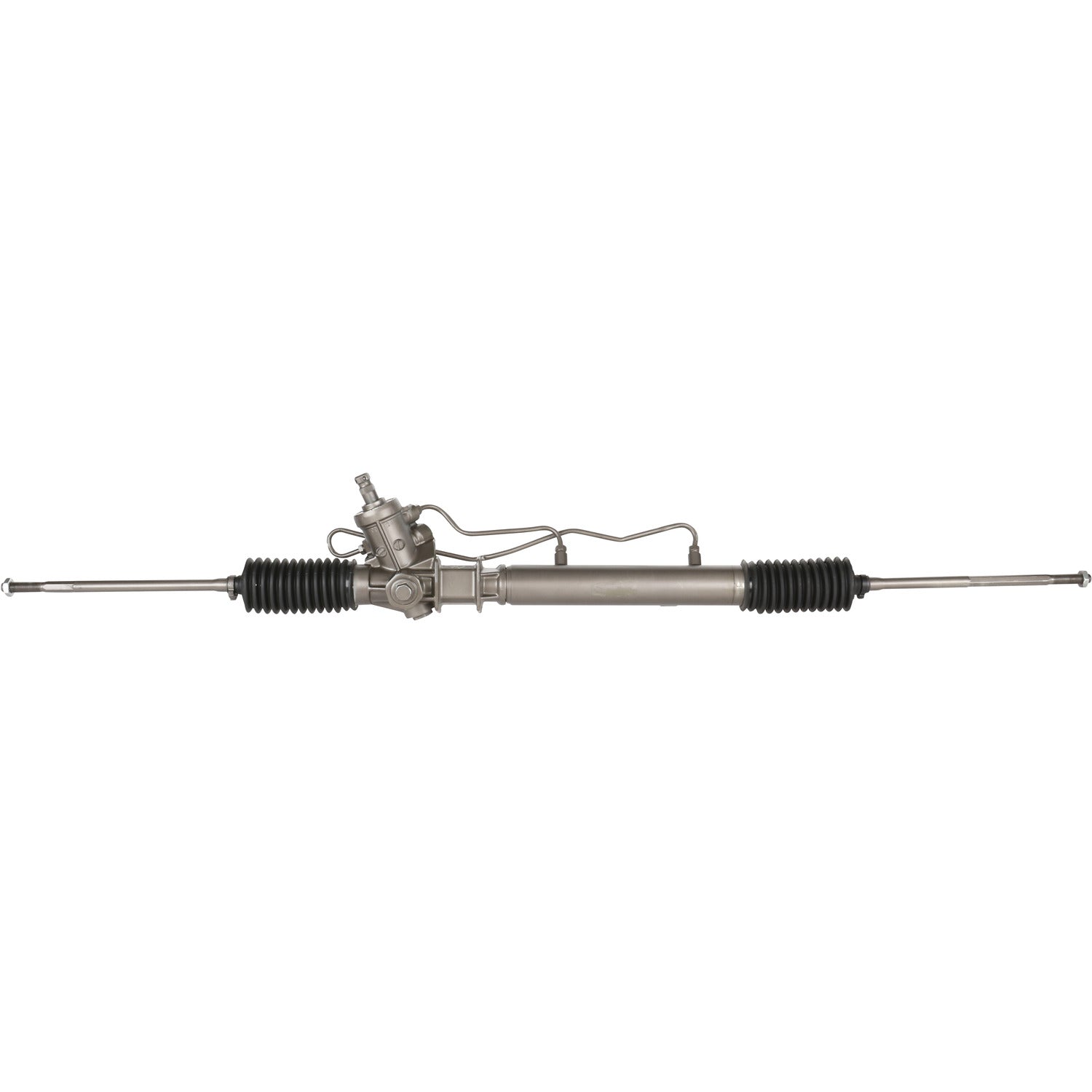

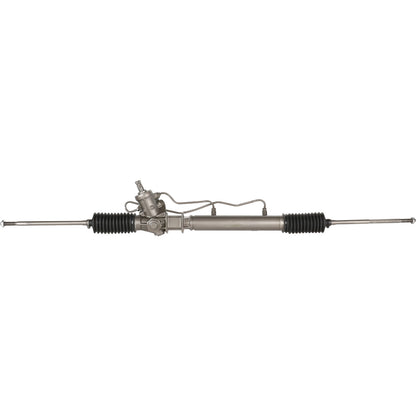

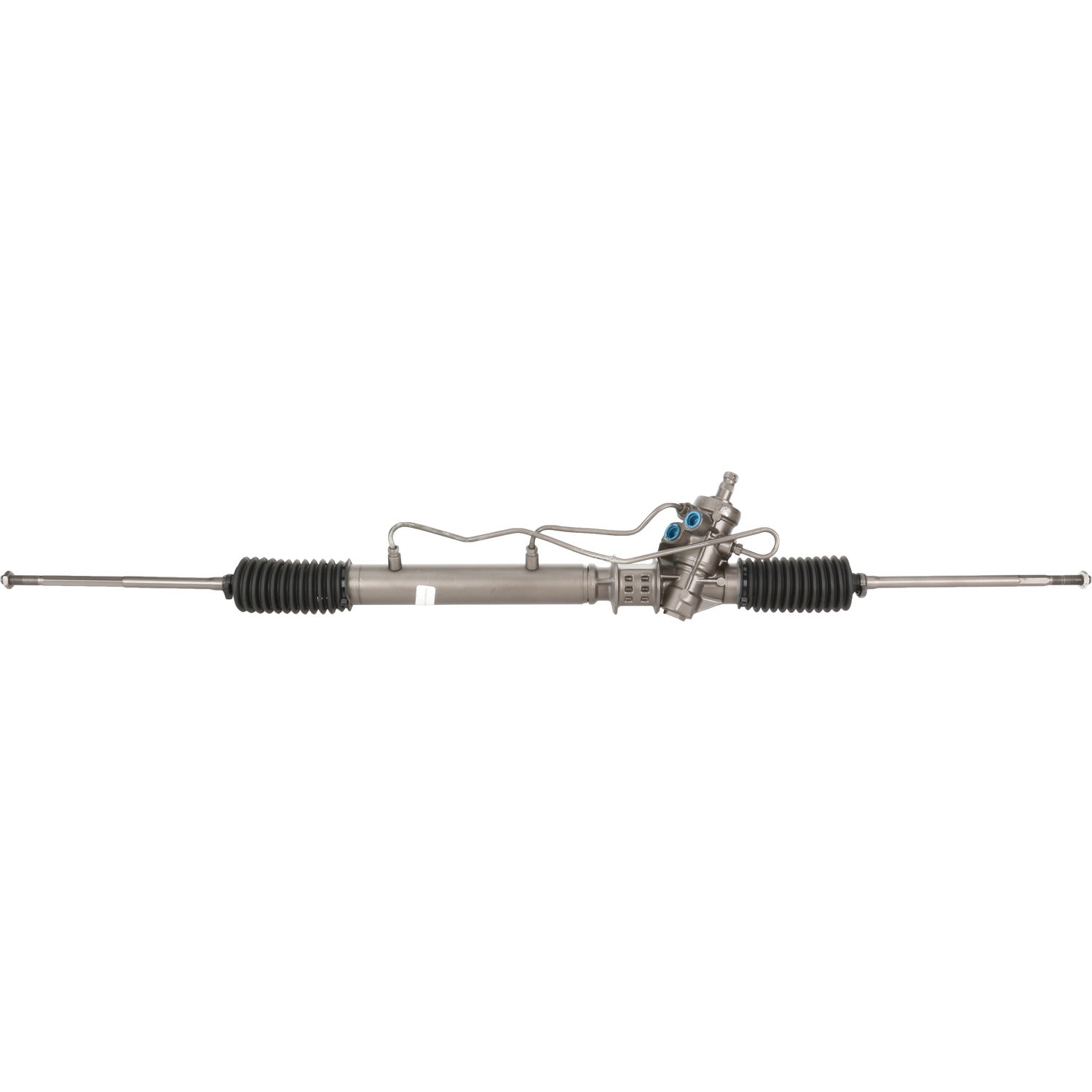

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9201M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9201M

SKU:9201M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type Seat
Input Shaft Diameter 0.74 IN
Input Shaft Diameter 18.75 MM
Input Shaft Length 1.13 IN
Input Shaft Length 28.58 MM
Mounting Hole Quantity 1
Pressure Port Thread Size M16 x 1.5
Rack Length 48.38 IN
Rack Length 1228.73 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.64 IN
Thread Length 41.71 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.06



Application Info: Mazda MX-3 (1992-1995)

Interchange: Mazda - EA01-32-110B

BBB Cross-Reference: 308-0120

Cardone Cross-Reference: 26-2007

Instructions - 1               Instructions - 2

Instructions - 3
