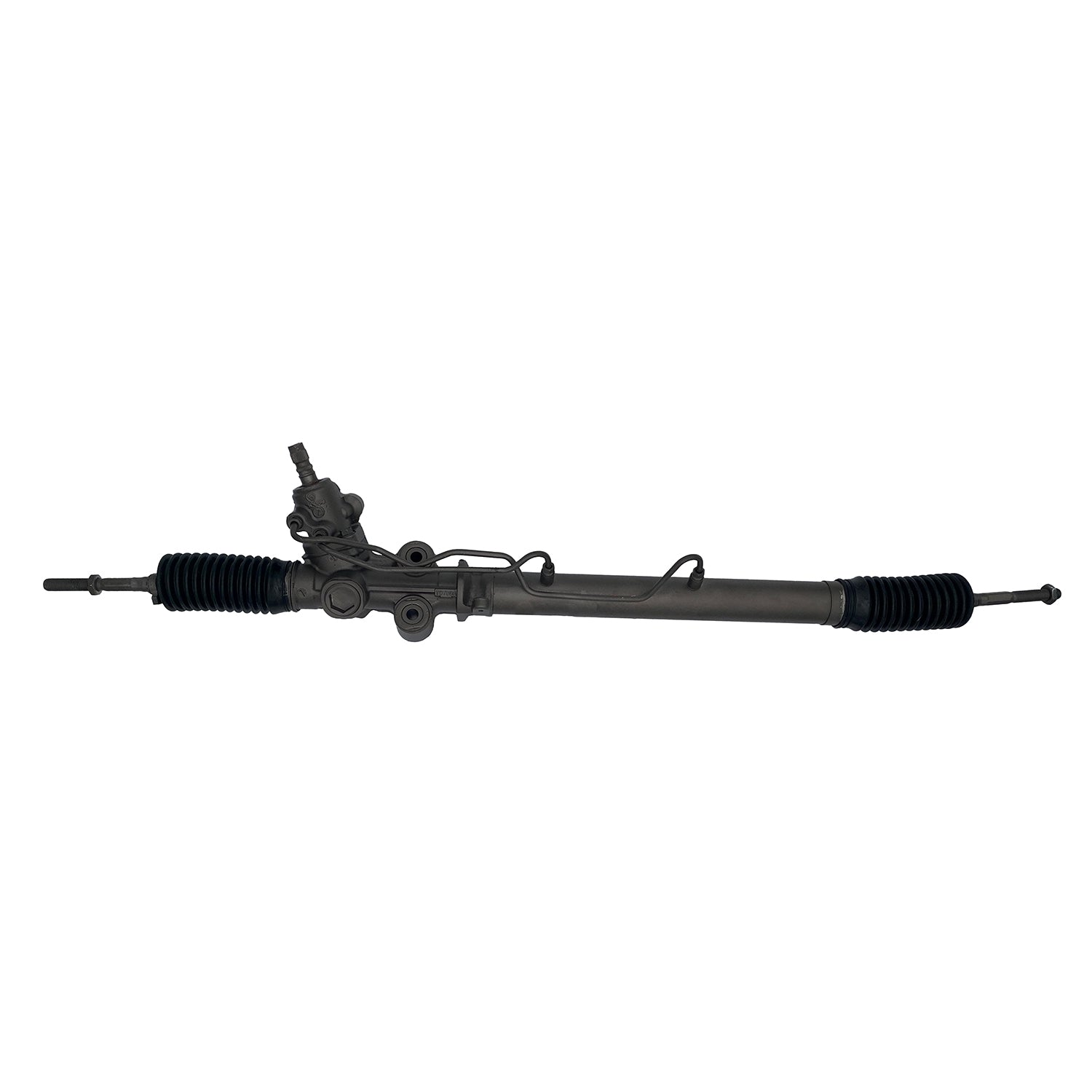

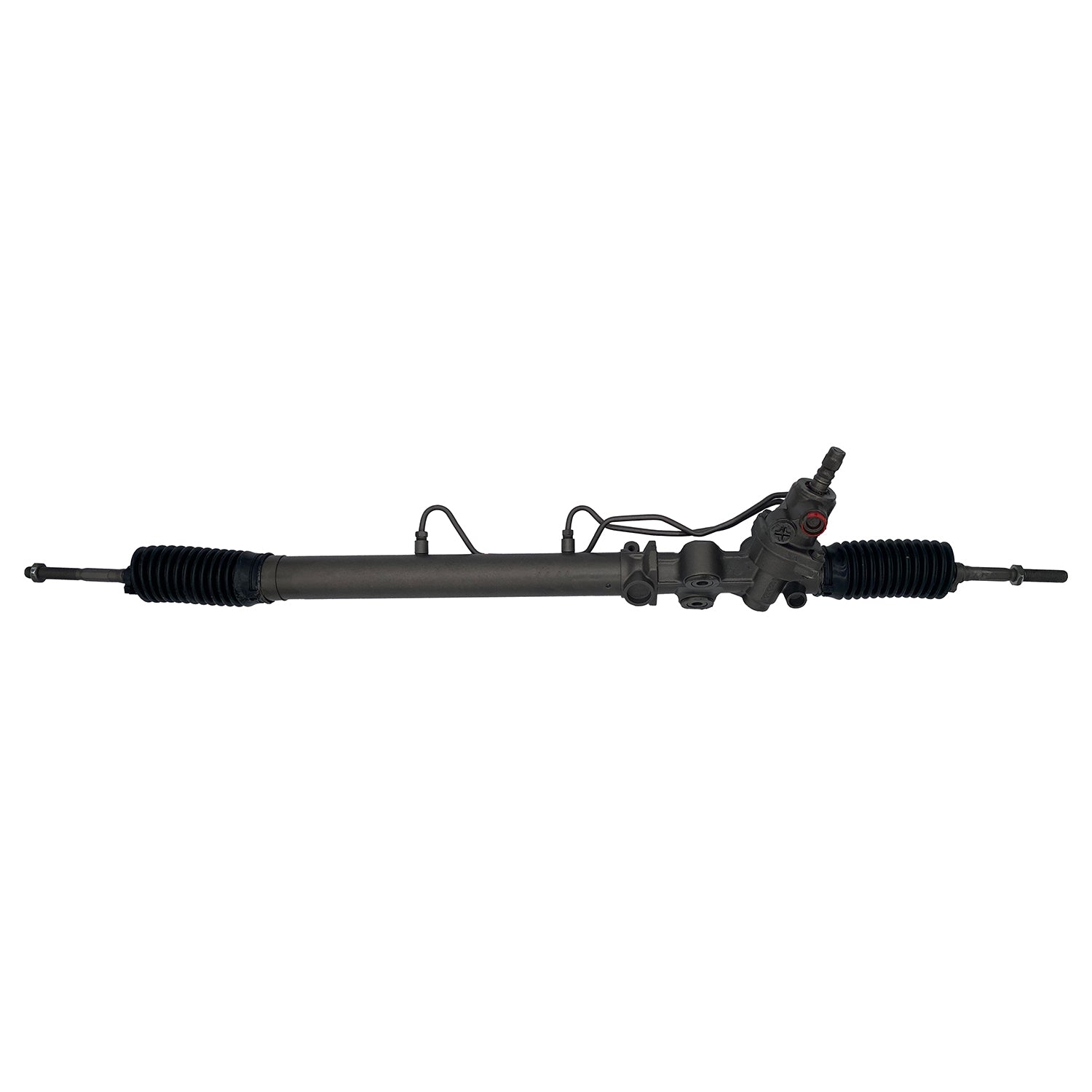

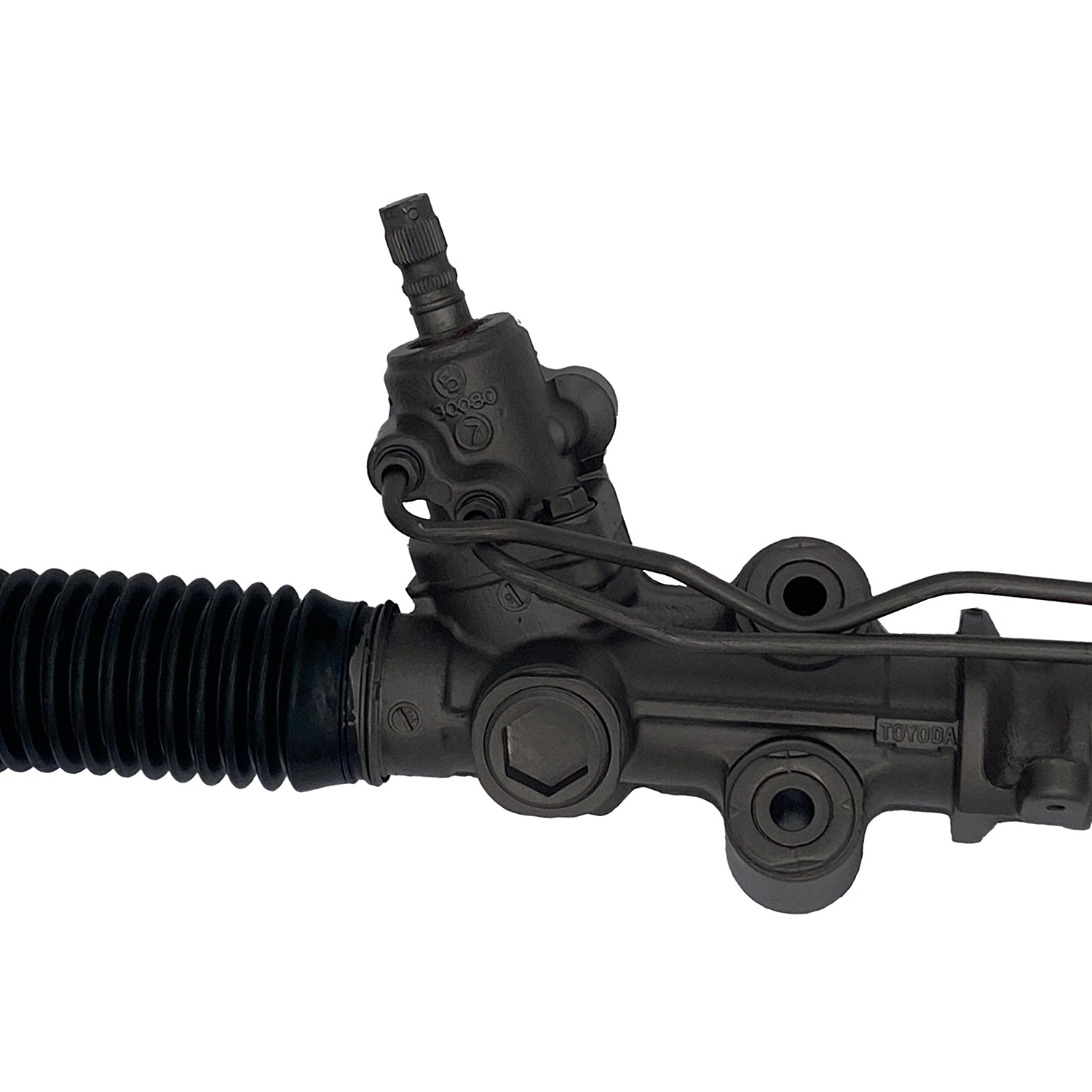

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9185M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9185M

SKU:9185M

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.68 IN
Input Shaft Diameter 17.22 MM
Input Shaft Length 1.31 IN
Input Shaft Length 33.35 MM
Mounting Hole Quantity 1
Pressure Port Thread Size M14 x 1.5
Rack Length 46.56 IN
Rack Length 1182.7 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.07 IN
Thread Length 52.48 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.81

Application Info: Infiniti J30 (1993-1997)

Interchange: Nissan - 49001-10Y00

BBB Cross-Reference: 310-0125

Cardone Cross-Reference: 26-1877

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4
