MAVAL

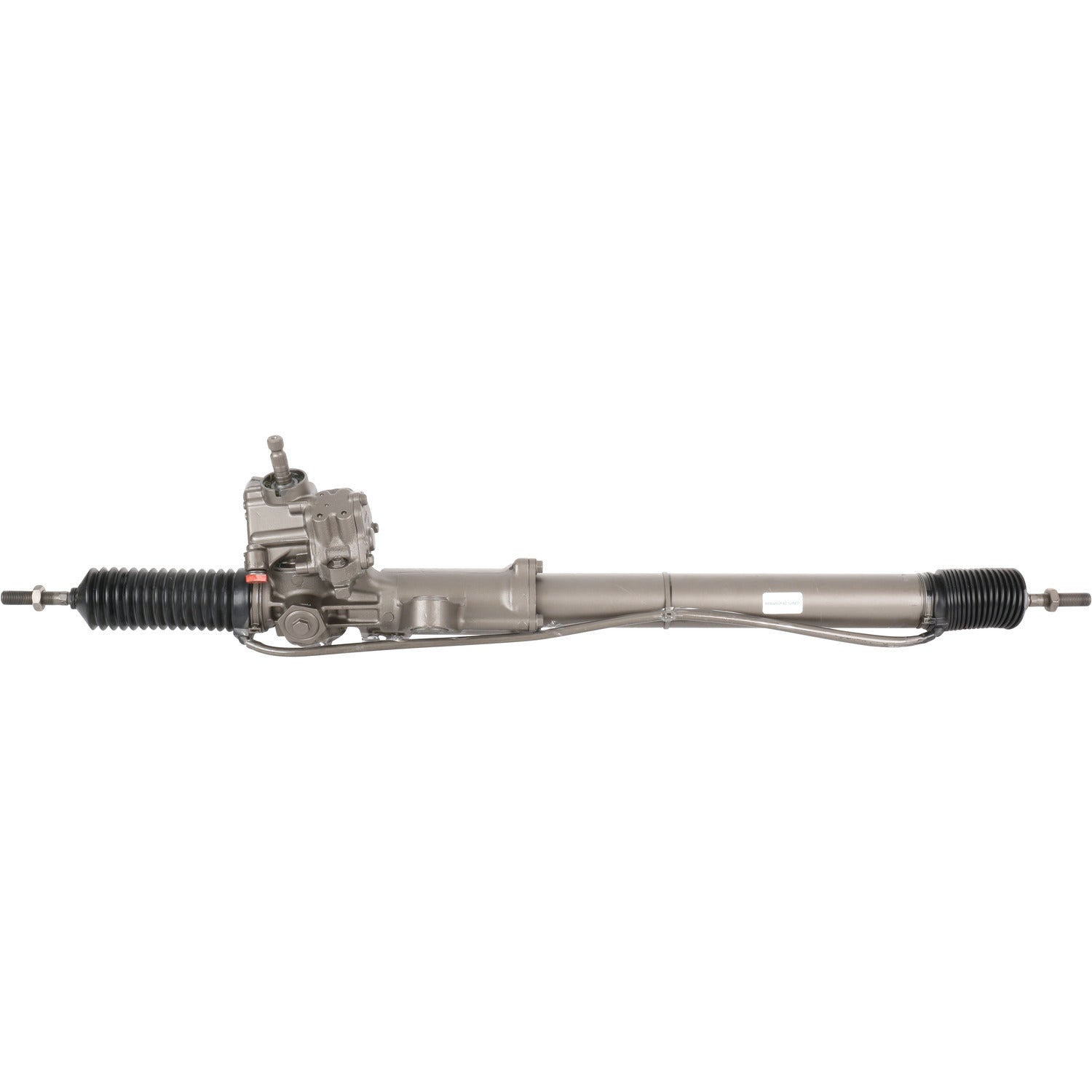

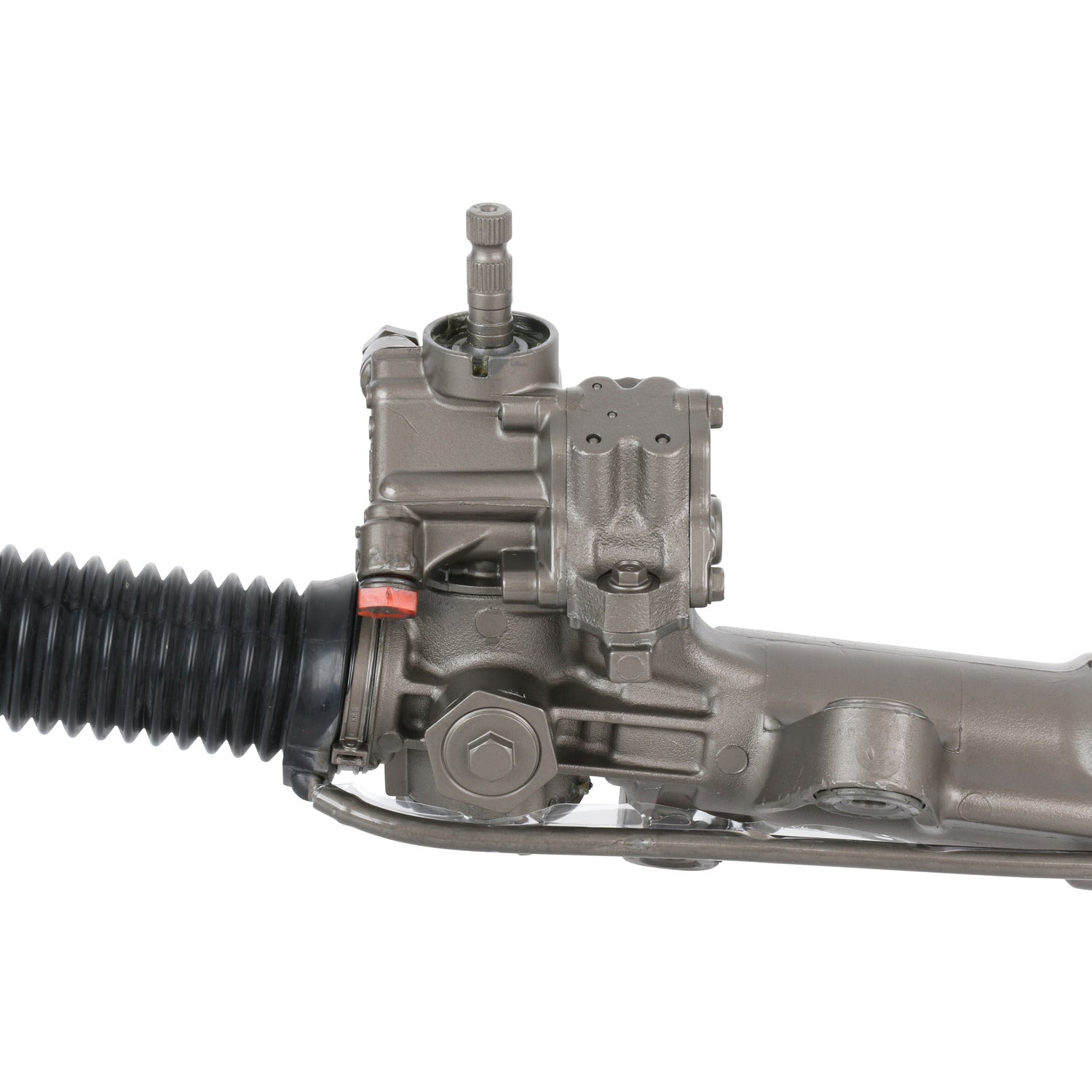

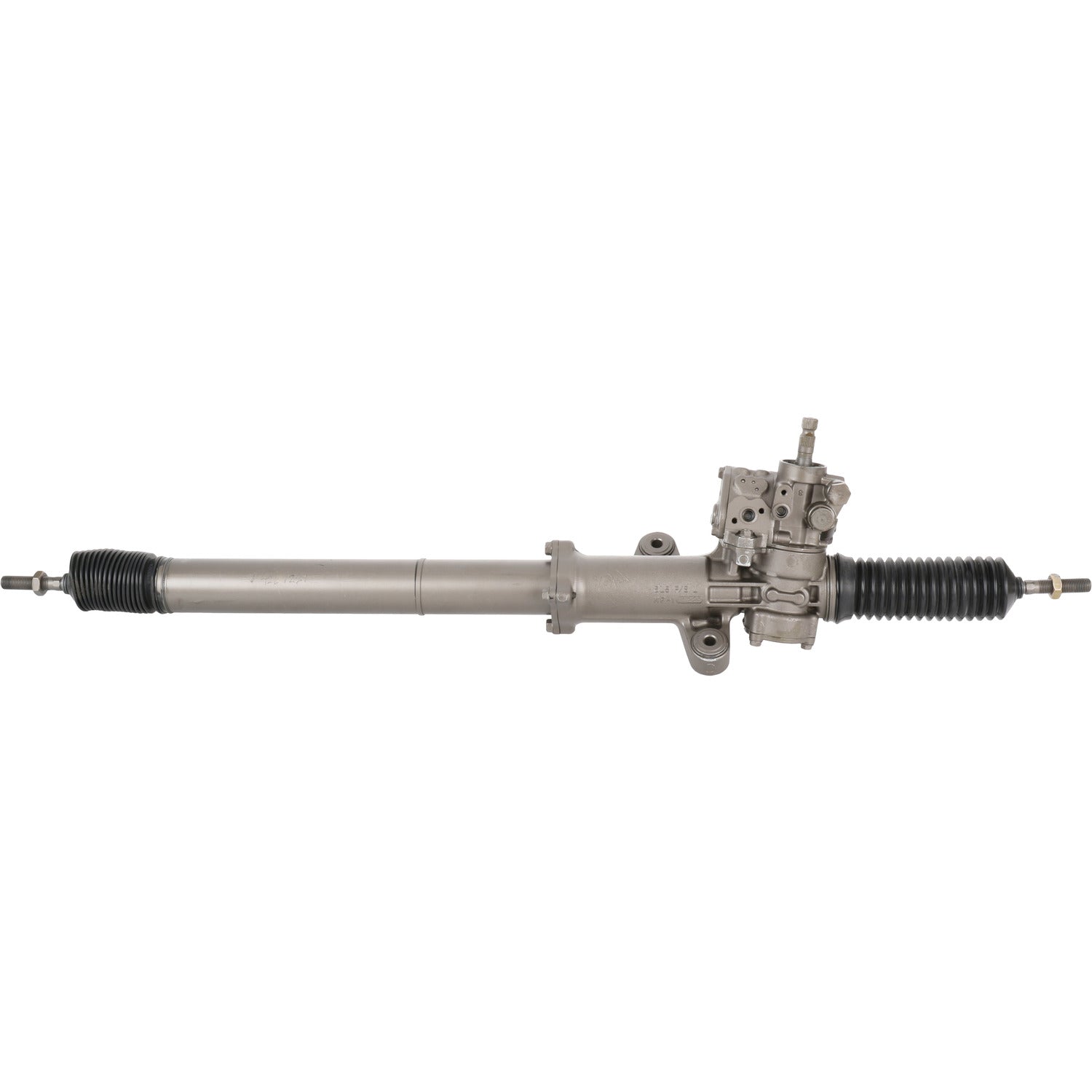

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9167M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9167M

SKU:9167M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability

Casting Material Steel; Aluminum
Distance Between Mounting Holes 5.25 IN
Distance Between Mounting Holes 133.35 MM
Hose Port Type Banjo/Washer
Input Shaft Diameter 0.6 IN
Input Shaft Diameter 15.16 MM
Input Shaft Length 1.88 IN
Input Shaft Length 47.63 MM
Number of Mounting Holes 2
Rack Length 40.5 IN
Rack Length 1028.7 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.75 IN
Thread Length 44.32 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.5

Application Info: Acura Vigor (1992-1994)

Interchange: Honda - 53601-SL5-A01

BBB Cross-Reference: 305-0117

Cardone Cross-Reference: 26-1766

Instructions - 1               Instructions - 2
