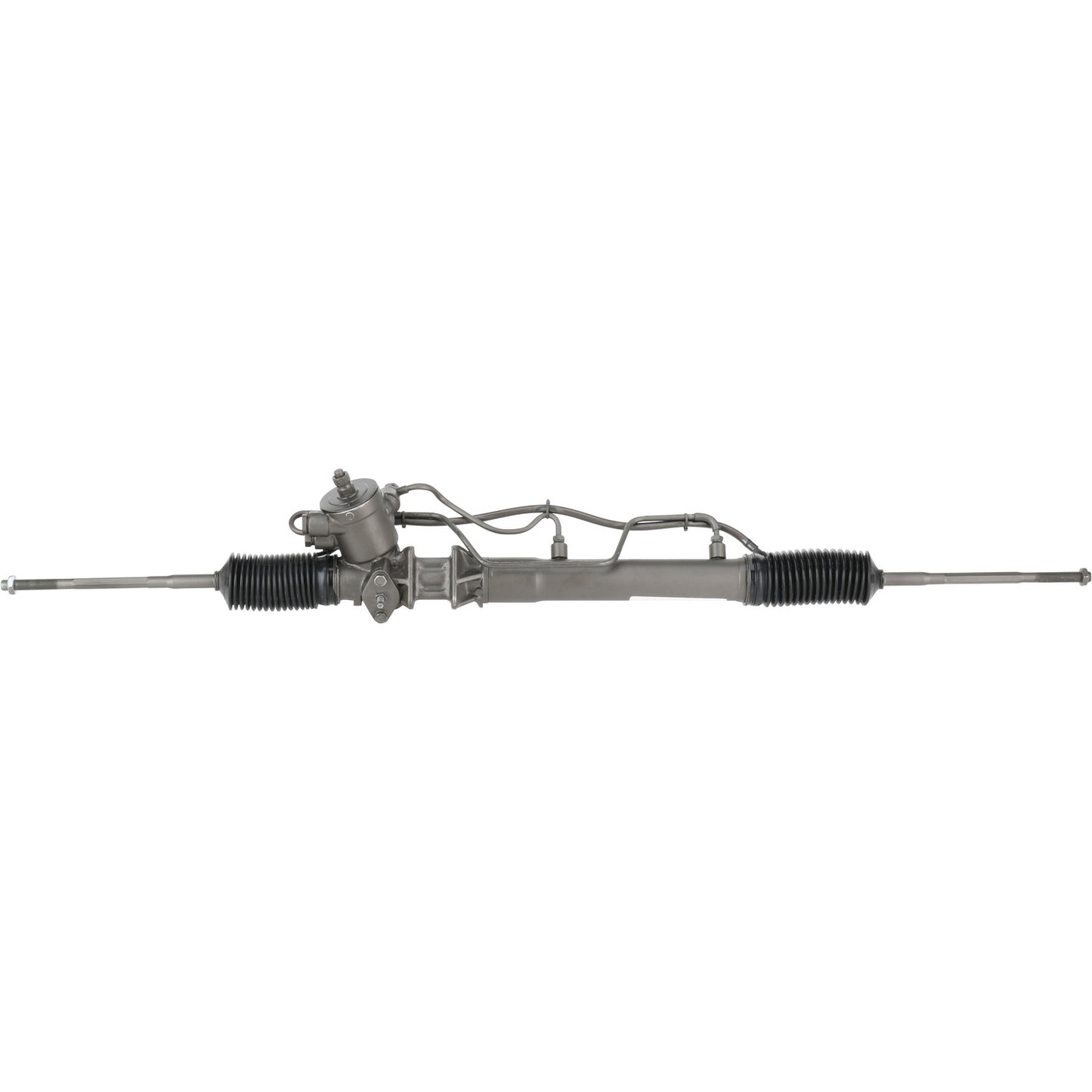

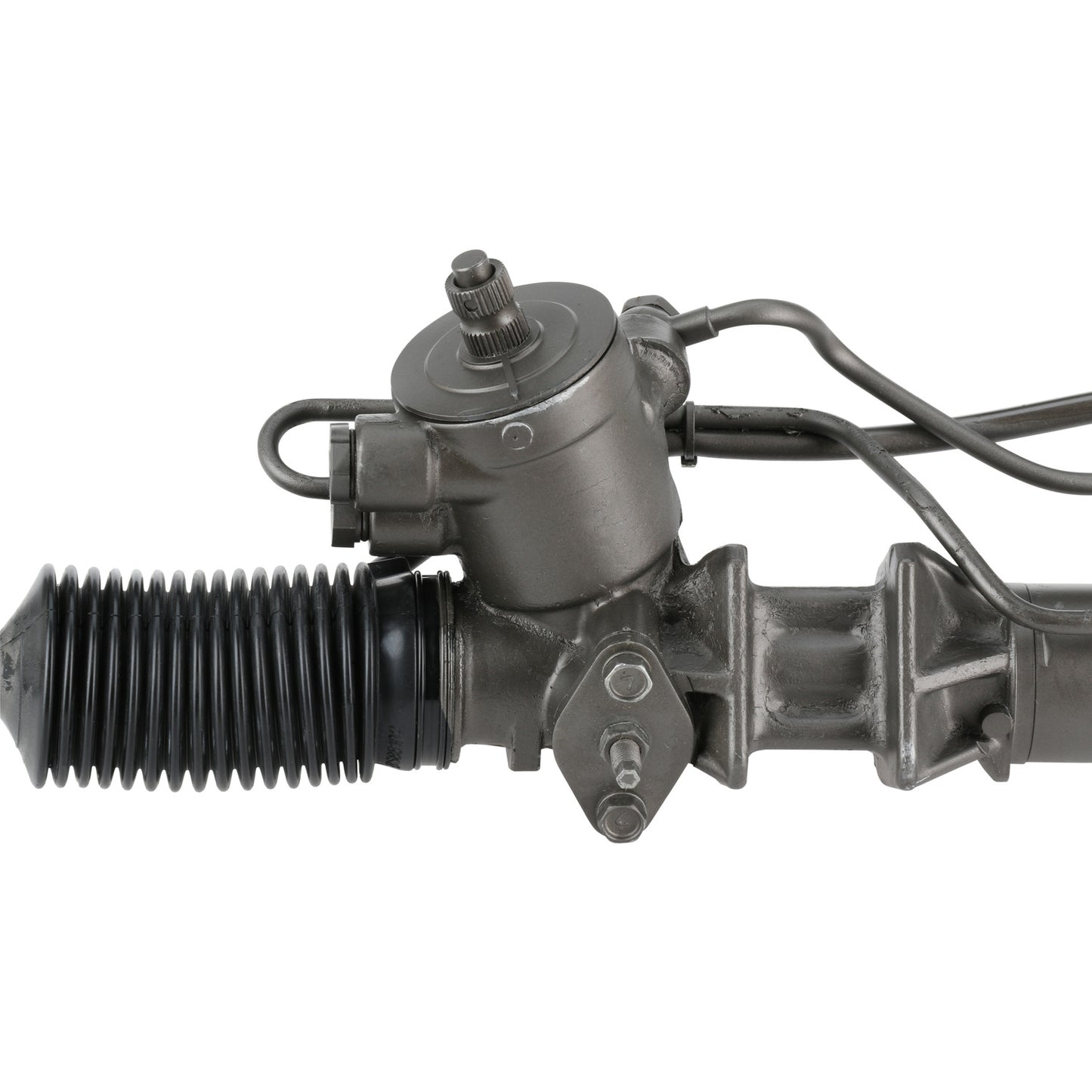

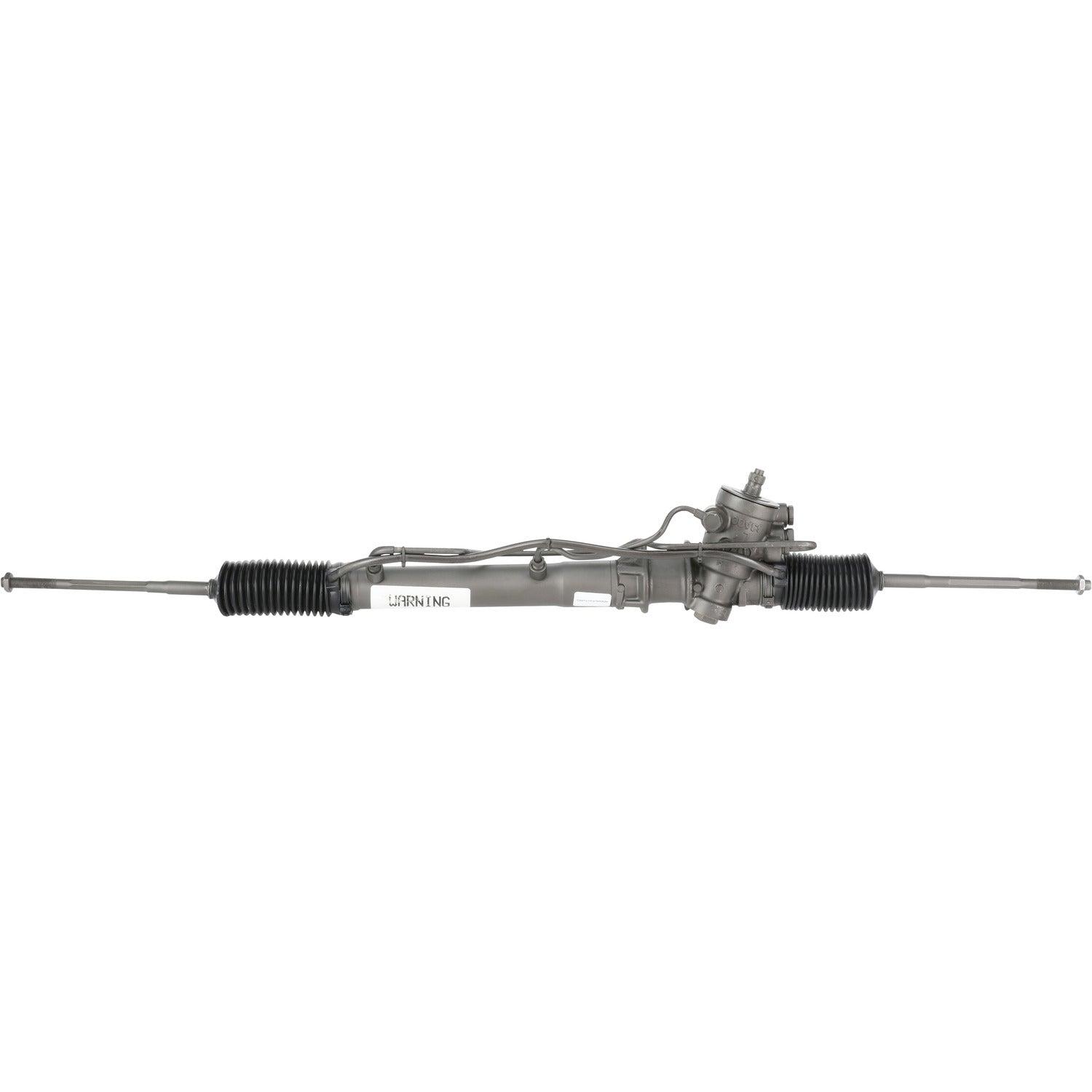

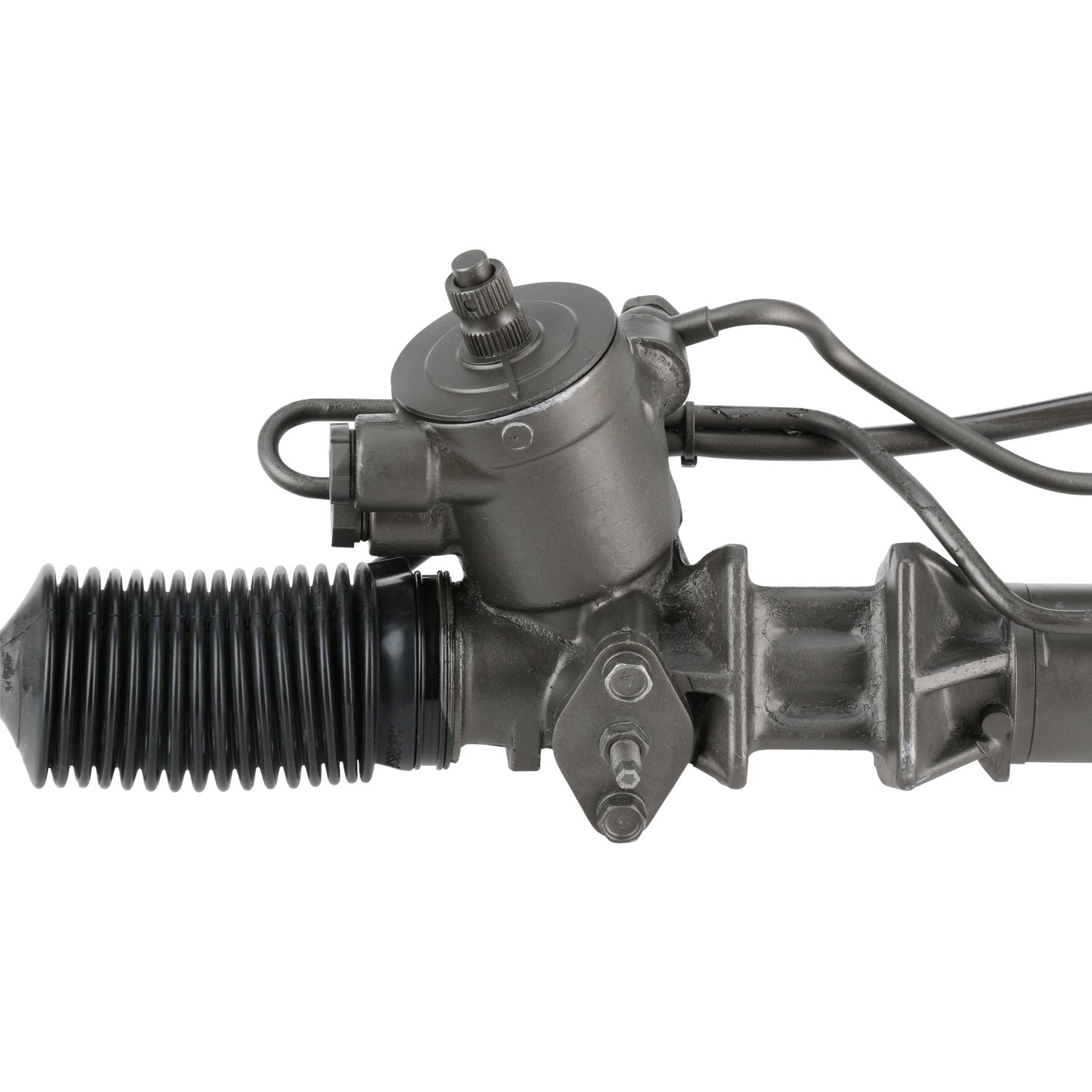

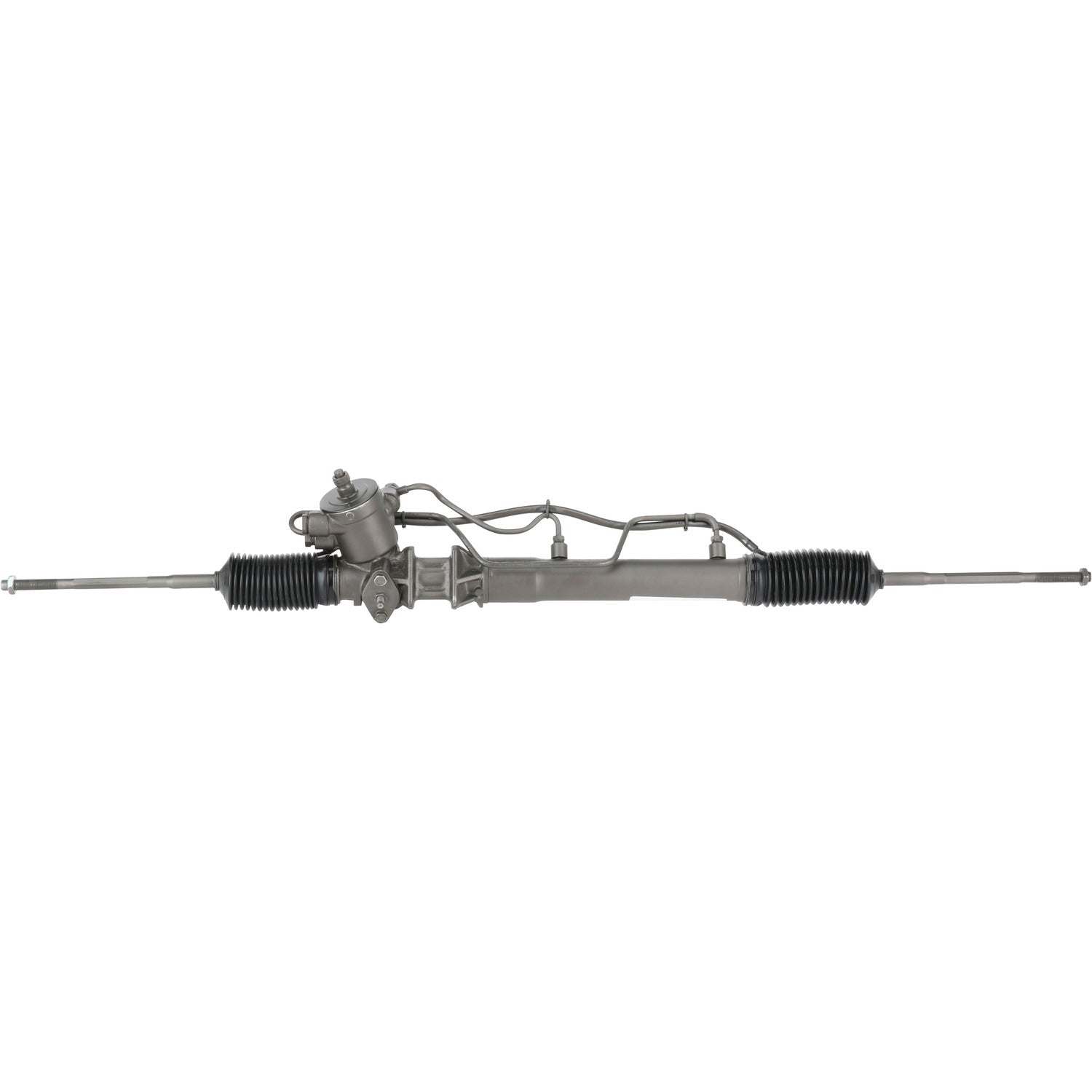

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9062M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9062M

SKU:9062M

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.71 IN
Input Shaft Diameter 17.93 MM
Input Shaft Length 1 IN
Input Shaft Length 25.4 MM
Number of Mounting Holes 1
Pressure Port Thread Size M14 x 1.5
Rack Length 43.88 IN
Rack Length 1114.43 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.06 IN
Thread Length 52.32 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.06



Application Info: Nissan Pulsar NX (1986-1990), Nissan Sentra (1986-1990)

Interchange: Nissan - 49001-63M00

BBB Cross-Reference: 310-0110

Cardone Cross-Reference: 26-1861
