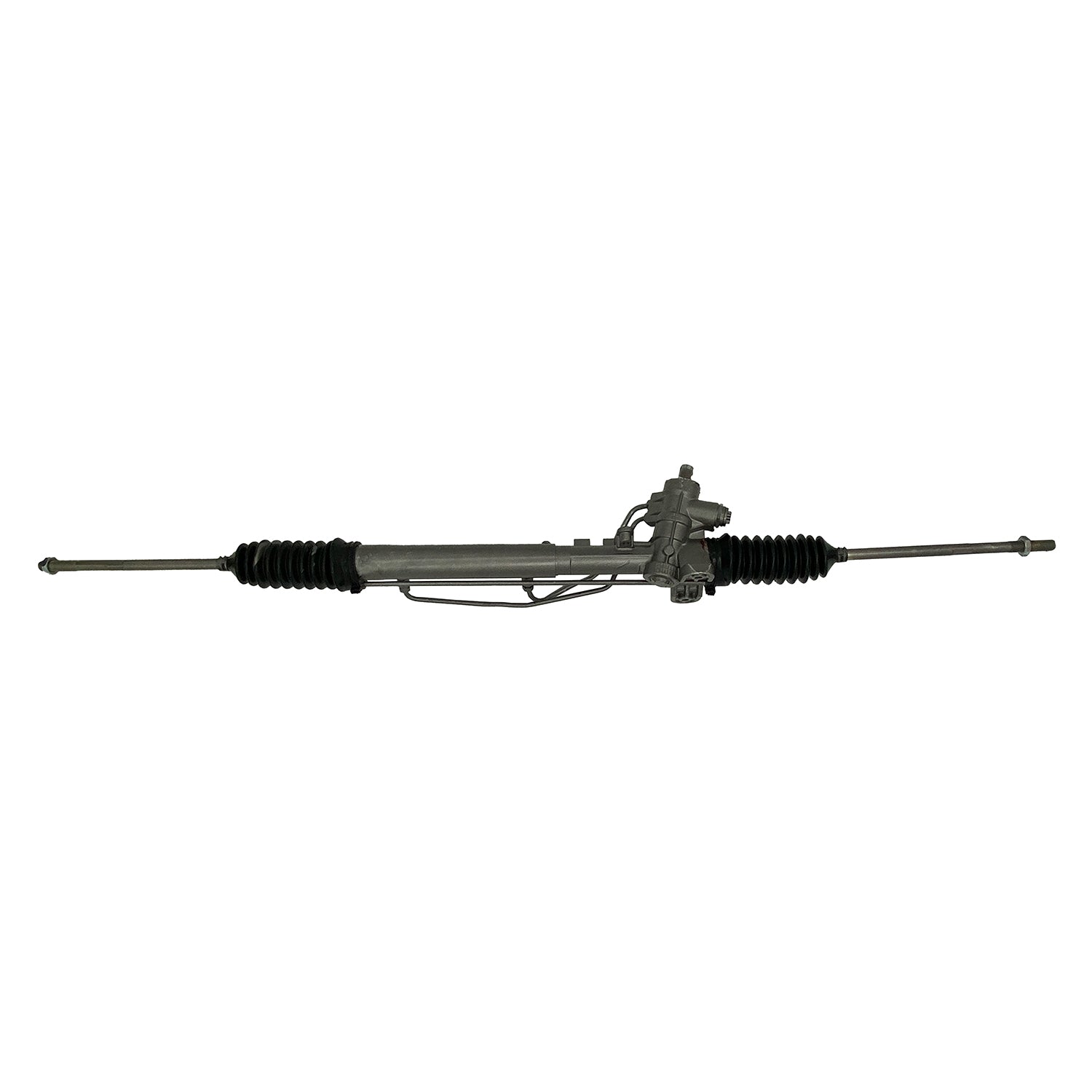

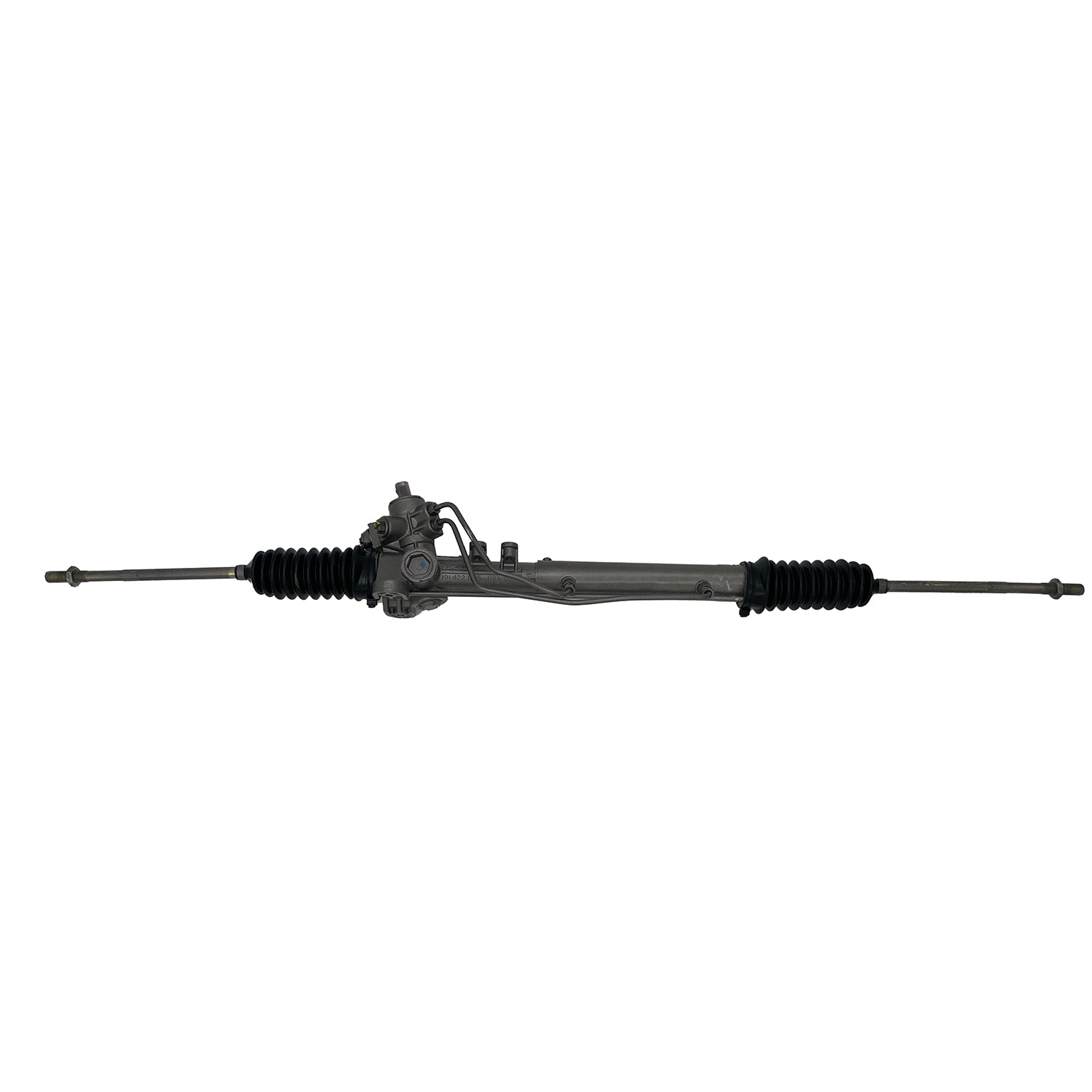

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9035M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9035M

SKU:9035M

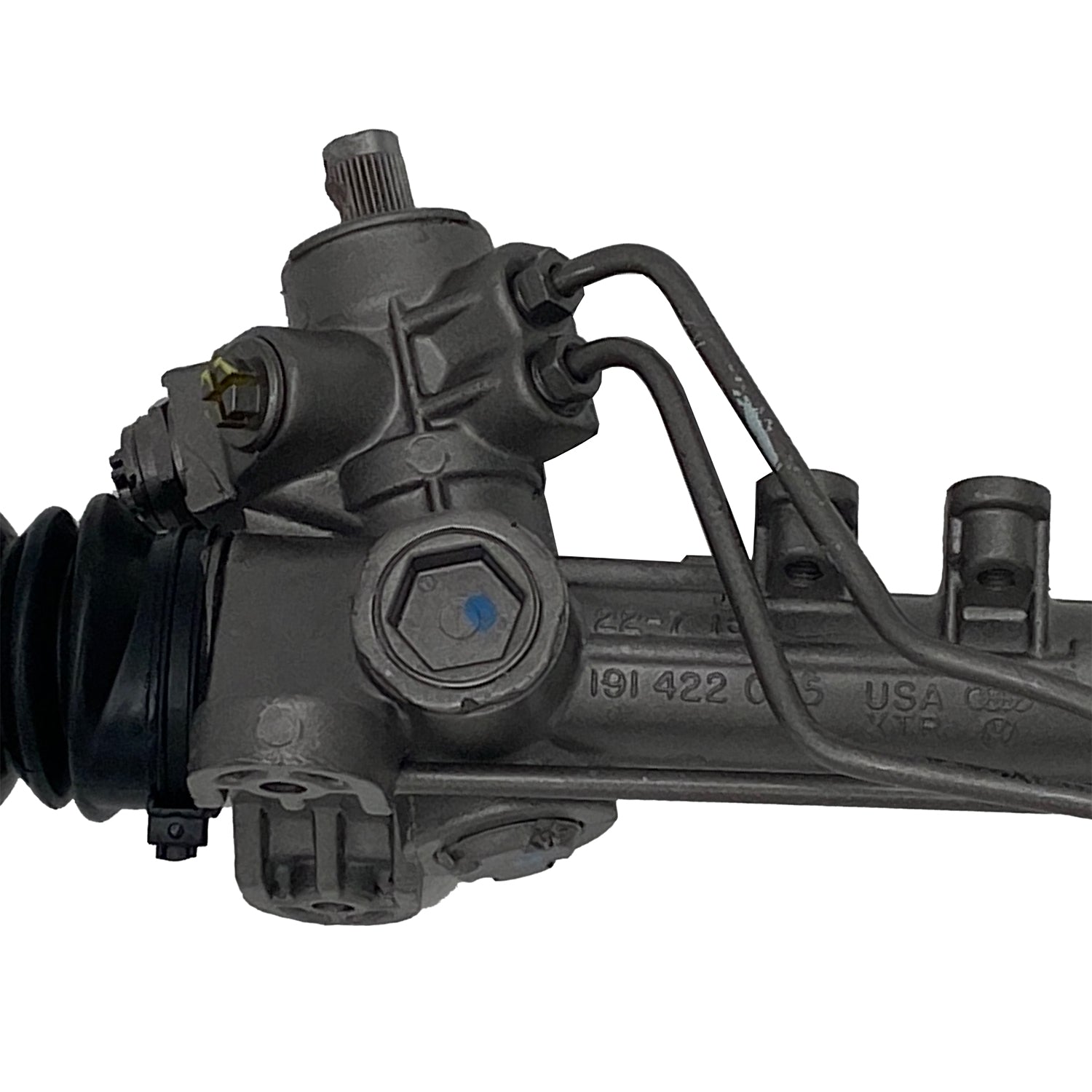

MAVAL rack and pinions come turn-key ready for installation. They include hydraulic lines with new O-rings, re-certified or new inner tie-rod ends, new pressure seals, new bellows, fasteners, and the replacement of seals and snap rings. Check valves are performance tested and the units electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 3.81 IN
Distance Between Mounting Holes 96.85 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.73 IN
Input Shaft Diameter 18.42 MM
Input Shaft Length 1.13 IN
Input Shaft Length 28.58 MM
Number of Mounting Holes 2
Pressure Port Thread Size M18 x 1.5
Rack Length 47.88 IN
Rack Length 1216.03 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.15 IN
Thread Length 54.61 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.19

Application Info: Volkswagen Jetta (1985-1992), Volkswagen Golf (1985-1992), Volkswagen Corrado (1990-1992)

Interchange: Volkswagen - 191-422-055

BBB Cross-Reference: 312-0103

Cardone Cross-Reference: 26-1811
