MAVAL

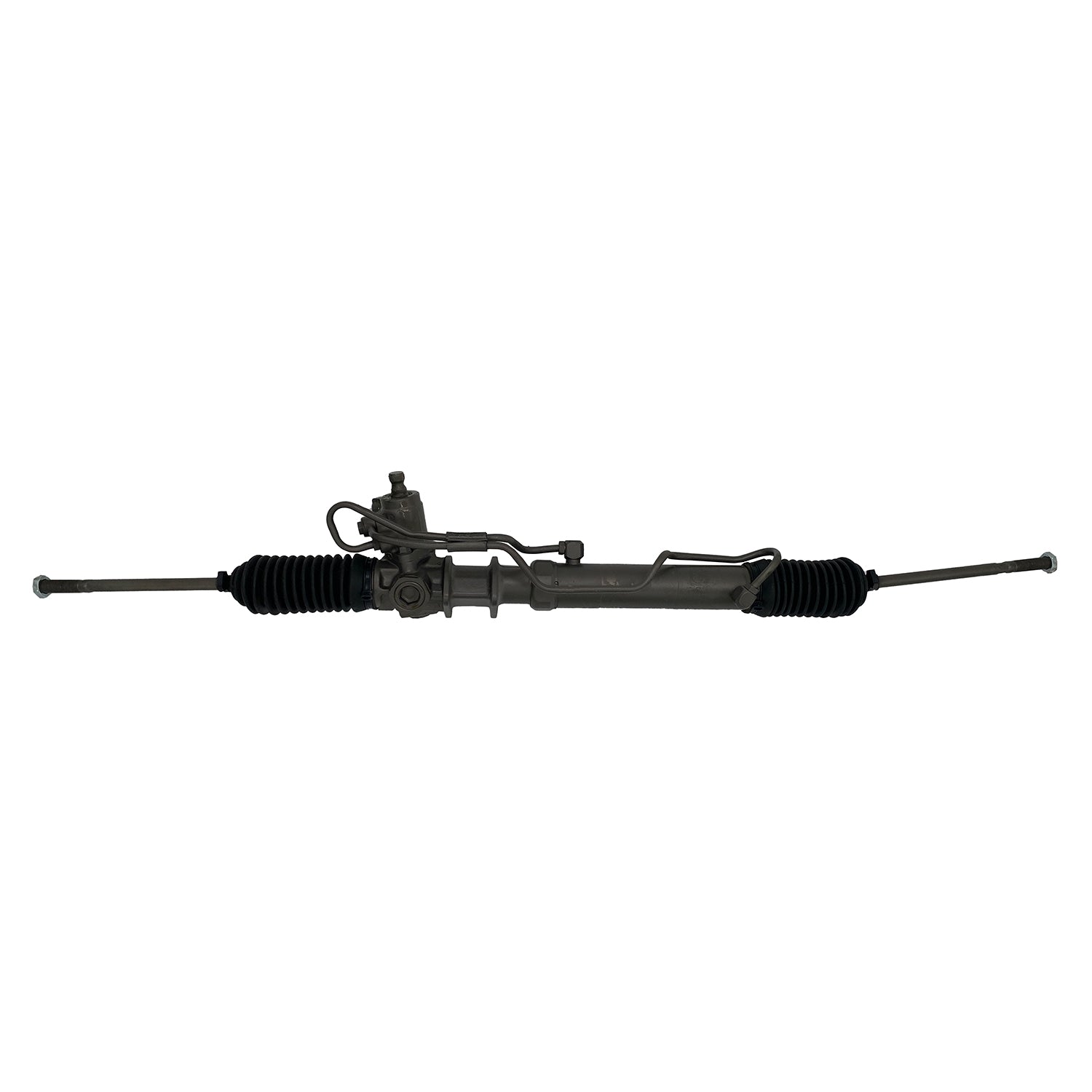

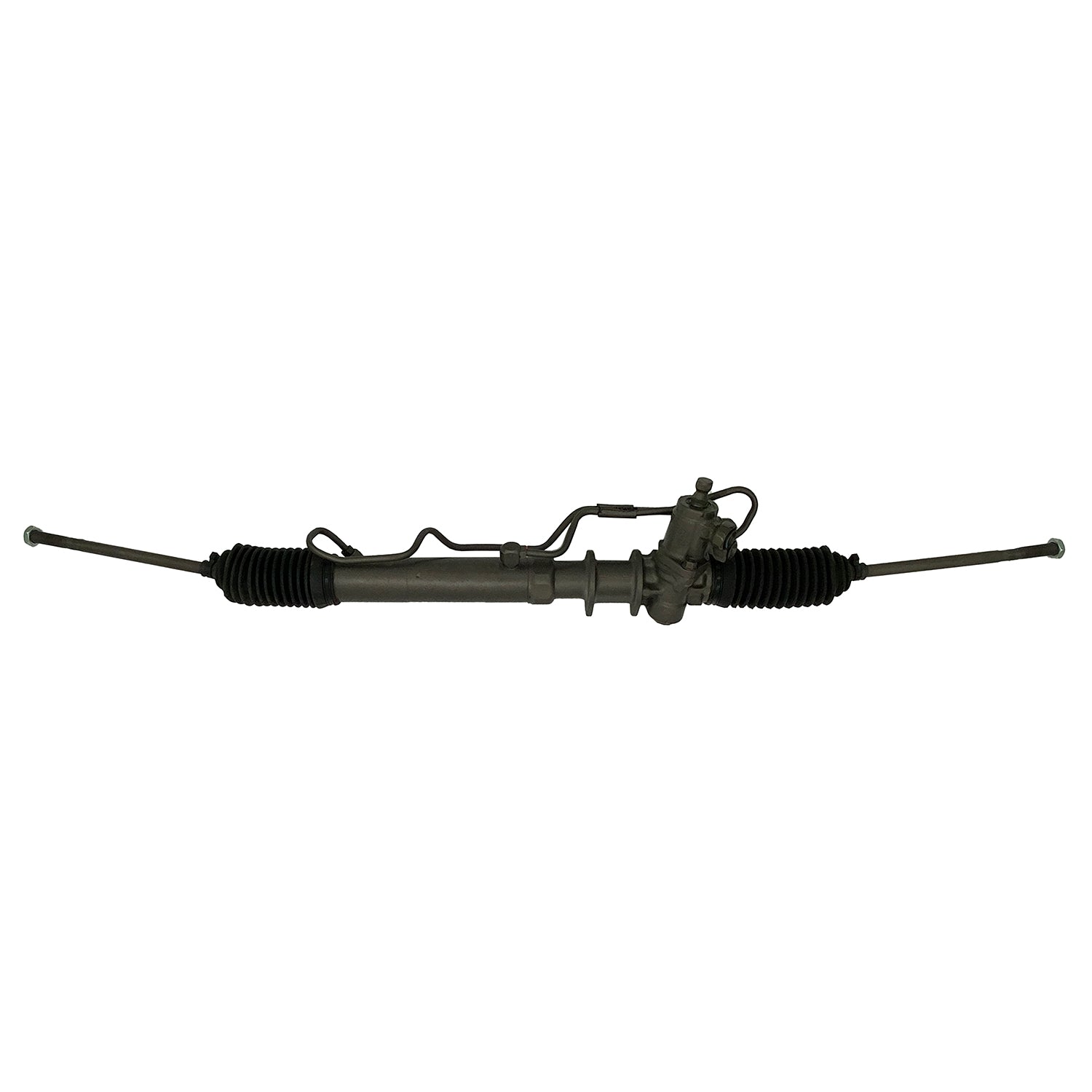

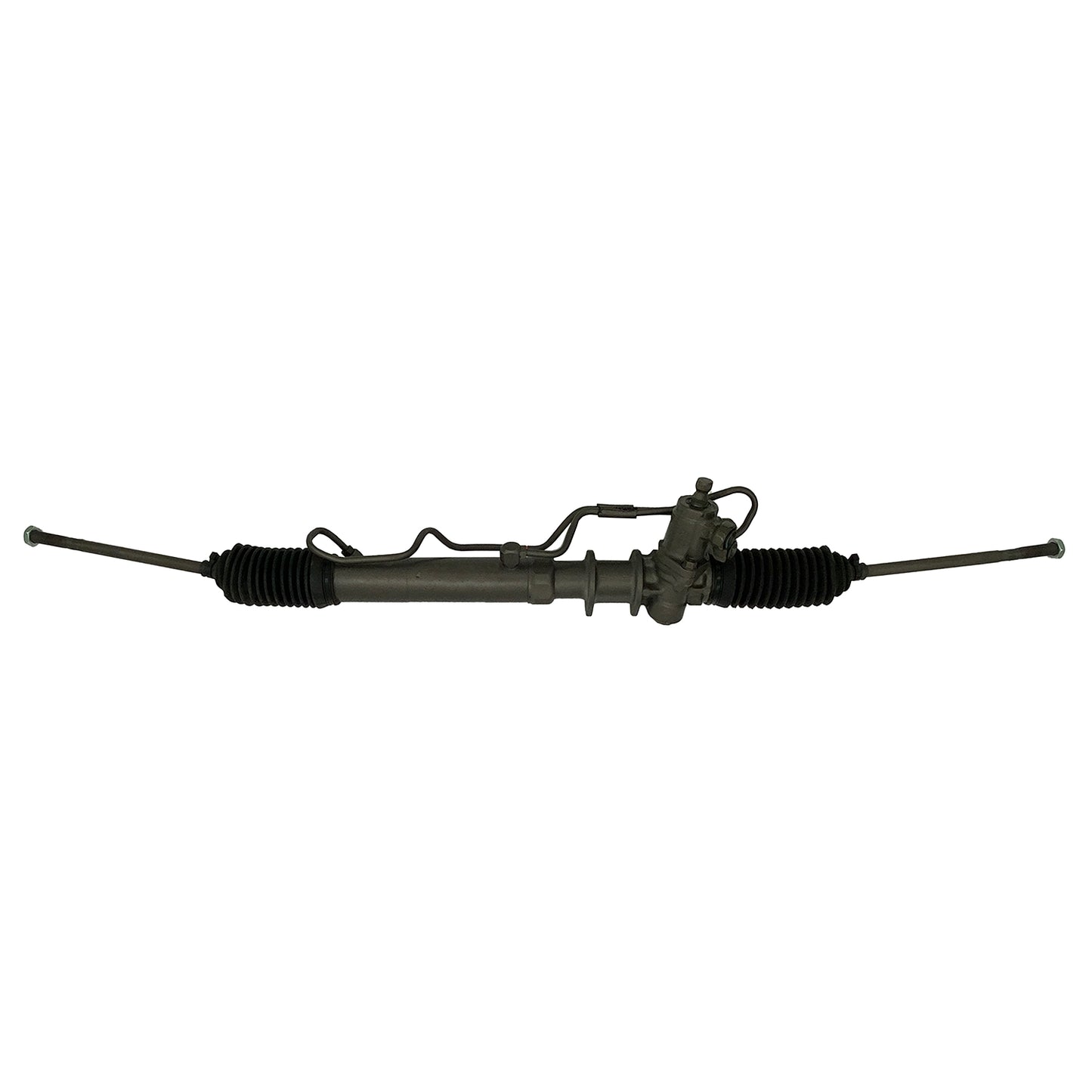

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9033M

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9033M

SKU:9033M

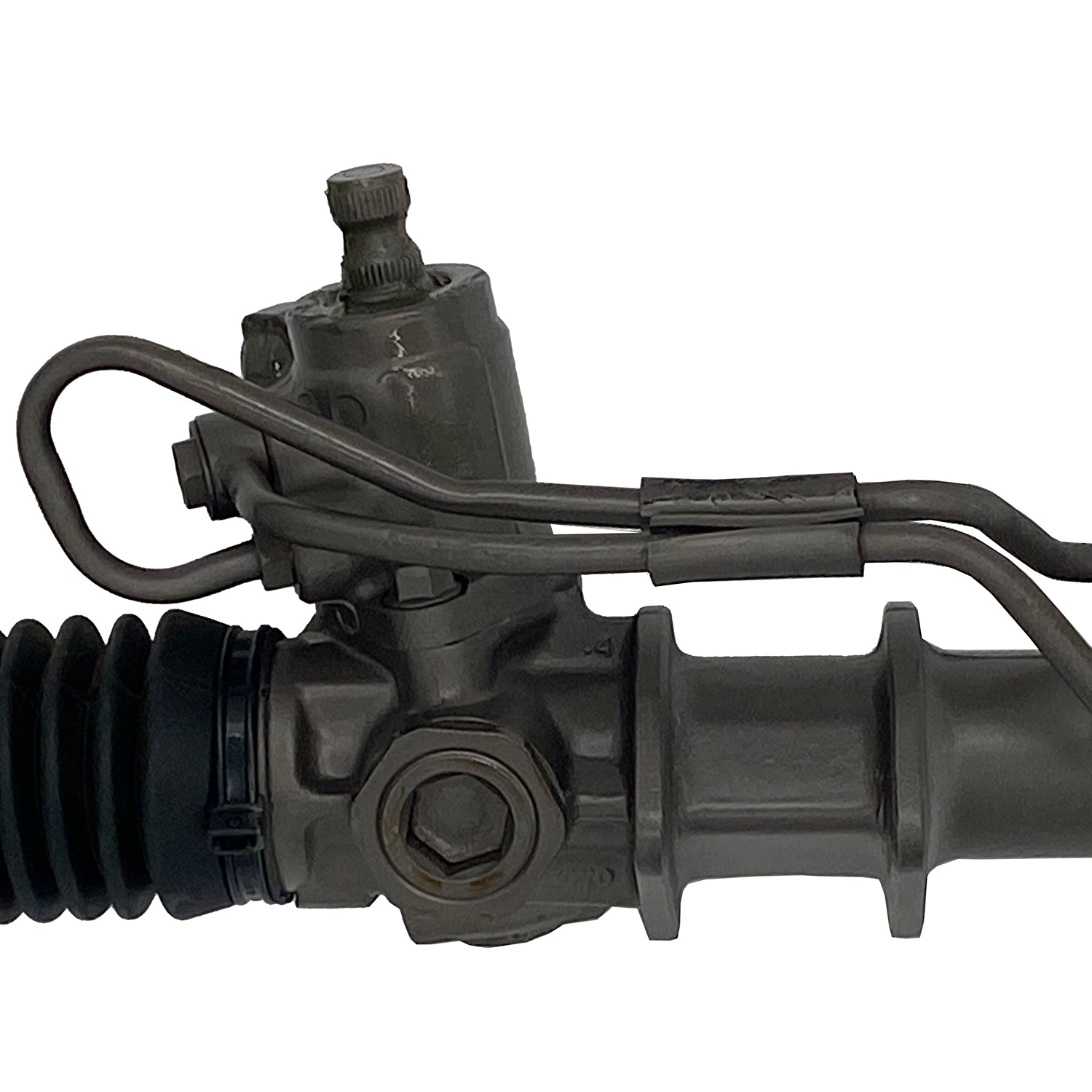

MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 0 IN
Distance Between Mounting Holes 0 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.65 IN
Input Shaft Diameter 16.51 MM
Input Shaft Length 1.03 IN
Input Shaft Length 26.04 MM
Number of Mounting Holes 1
Pressure Port Thread Size M14 x 1.5
Rack Length 45.13 IN
Rack Length 1146.18 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.86 IN
Thread Length 47.12 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.5



Application Info: Mitsubishi Cordia (1984-1987), Dodge Colt (1984-1988), Mitsubishi Tredia (1984-1987)

Interchange: Chrysler - MB350755

BBB Cross-Reference: 302-0101

Cardone Cross-Reference: 26-1930

Instructions - 1               Instructions - 2
