MAVAL

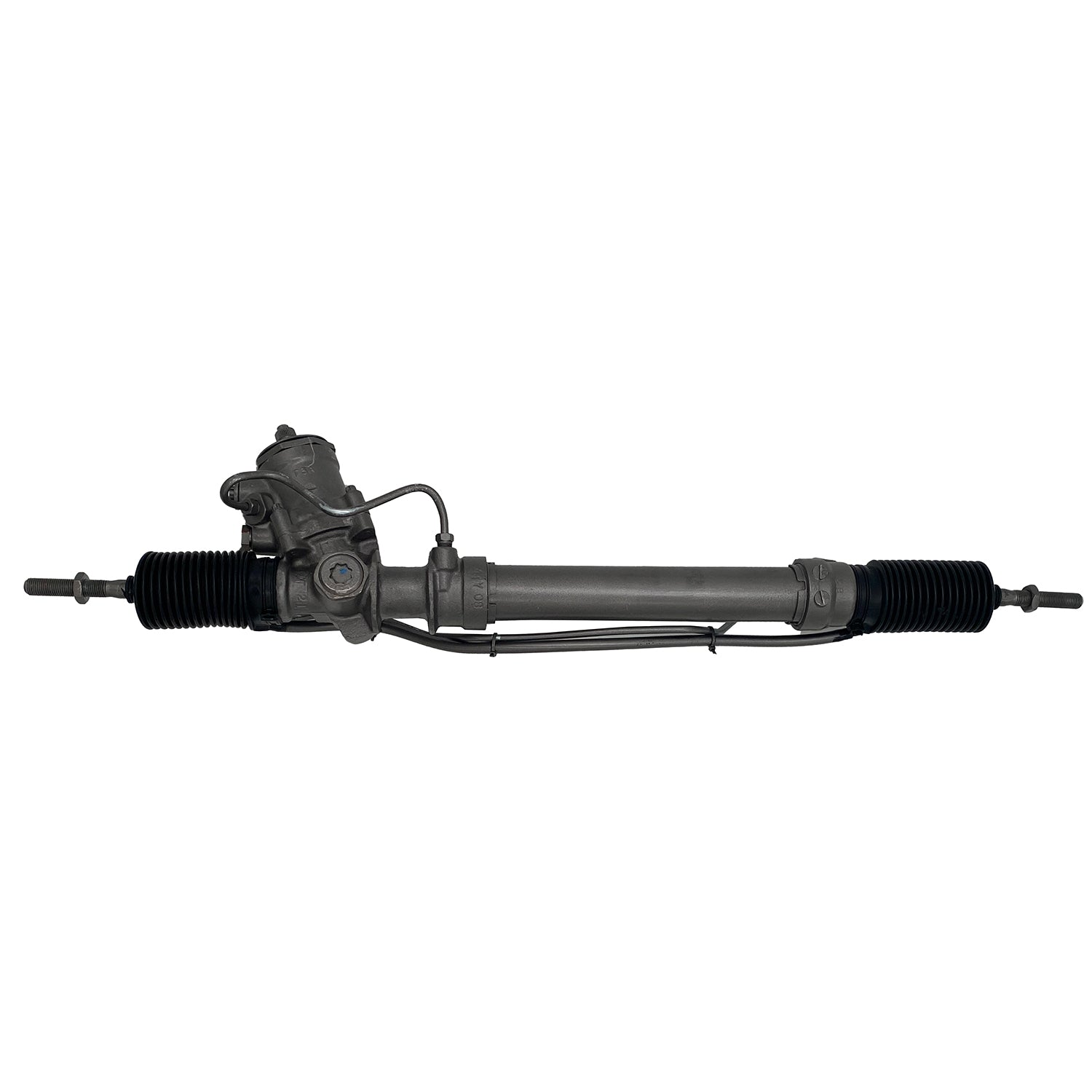

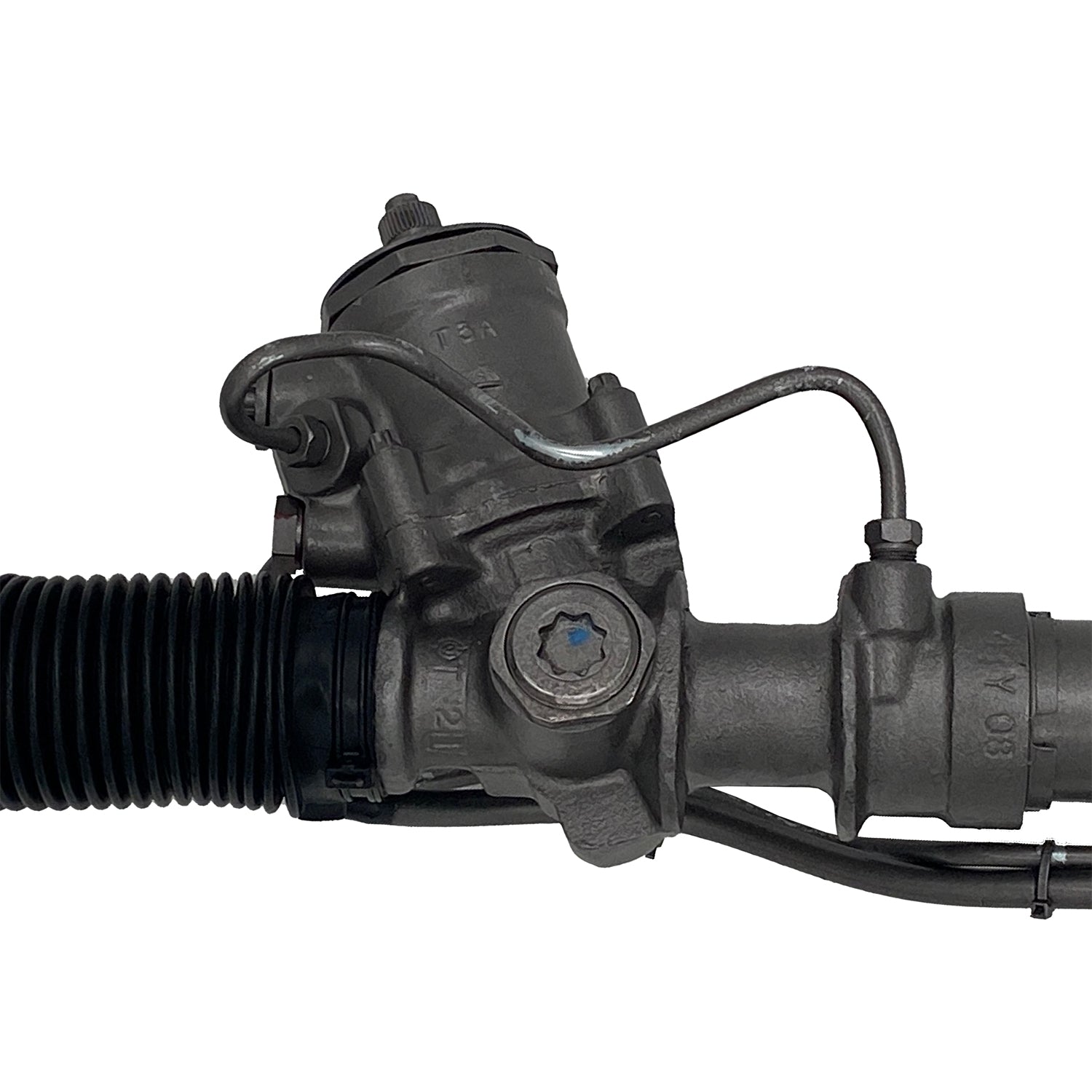

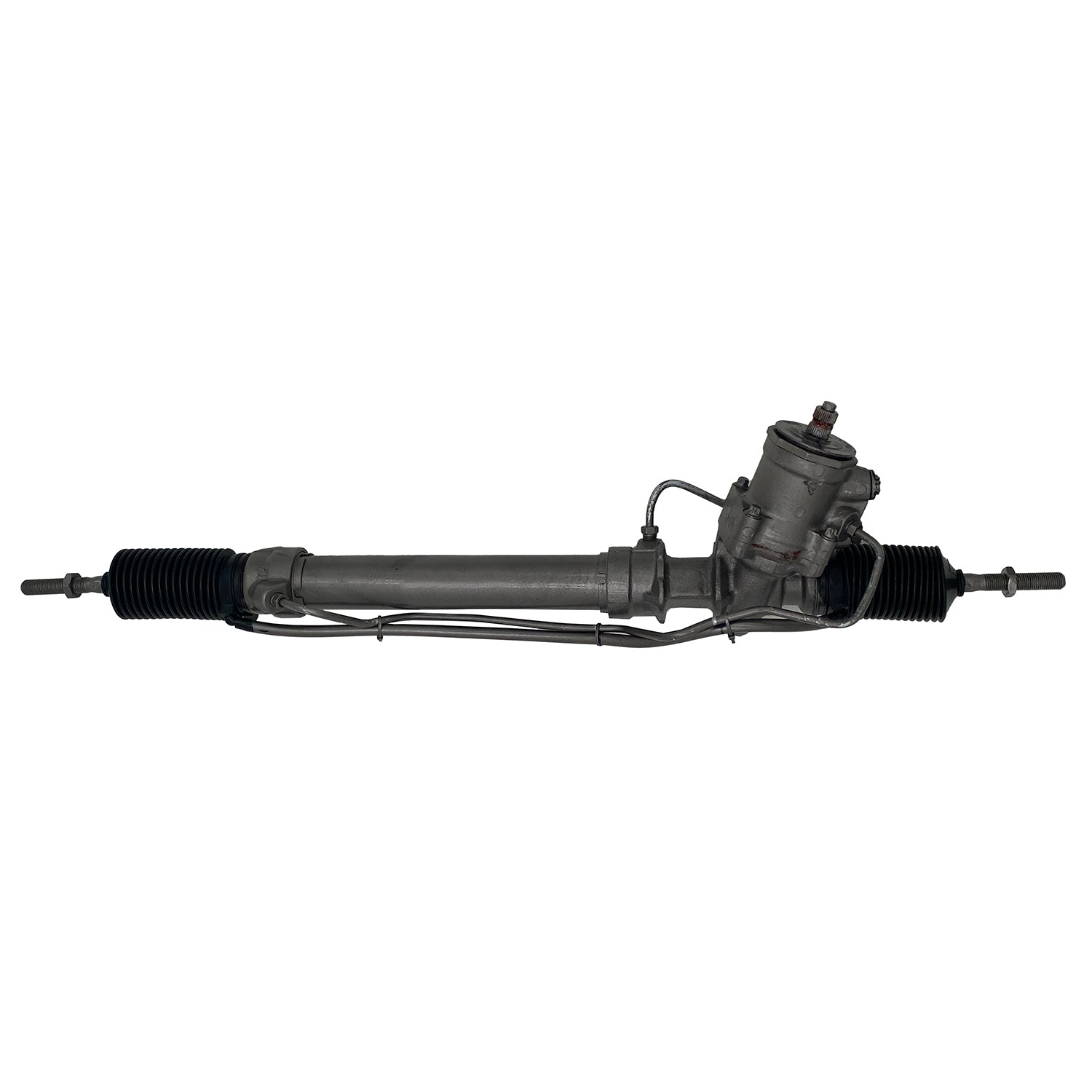

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9010M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9010M
SKU:9010M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Casting Material | Steel; Aluminum | |
| Distance Between Mounting Holes | 12 | IN |
| Distance Between Mounting Holes | 304.8 | MM |
| Hose Port Type | O-Ring | |
| Input Shaft Diameter | 0.69 | IN |
| Input Shaft Diameter | 17.58 | MM |
| Input Shaft Length | 1.25 | IN |
| Input Shaft Length | 31.75 | MM |
| Mounting Hole Quantity | 2 | |
| Pressure Port Thread Size | M14 x 1.5 | |
| Rack Length | 33.75 | IN |
| Rack Length | 857.25 | MM |
| Return Port Thread Size | M16 x 1.5 | |
| Thread Length | 2.43 | IN |
| Thread Length | 61.6 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 2.81 |
Application Info: Nissan 300ZX (1984-1988)
Interchange: Nissan - 49001-21P06
BBB Cross-Reference: 310-0106
Cardone Cross-Reference: 26-1855
