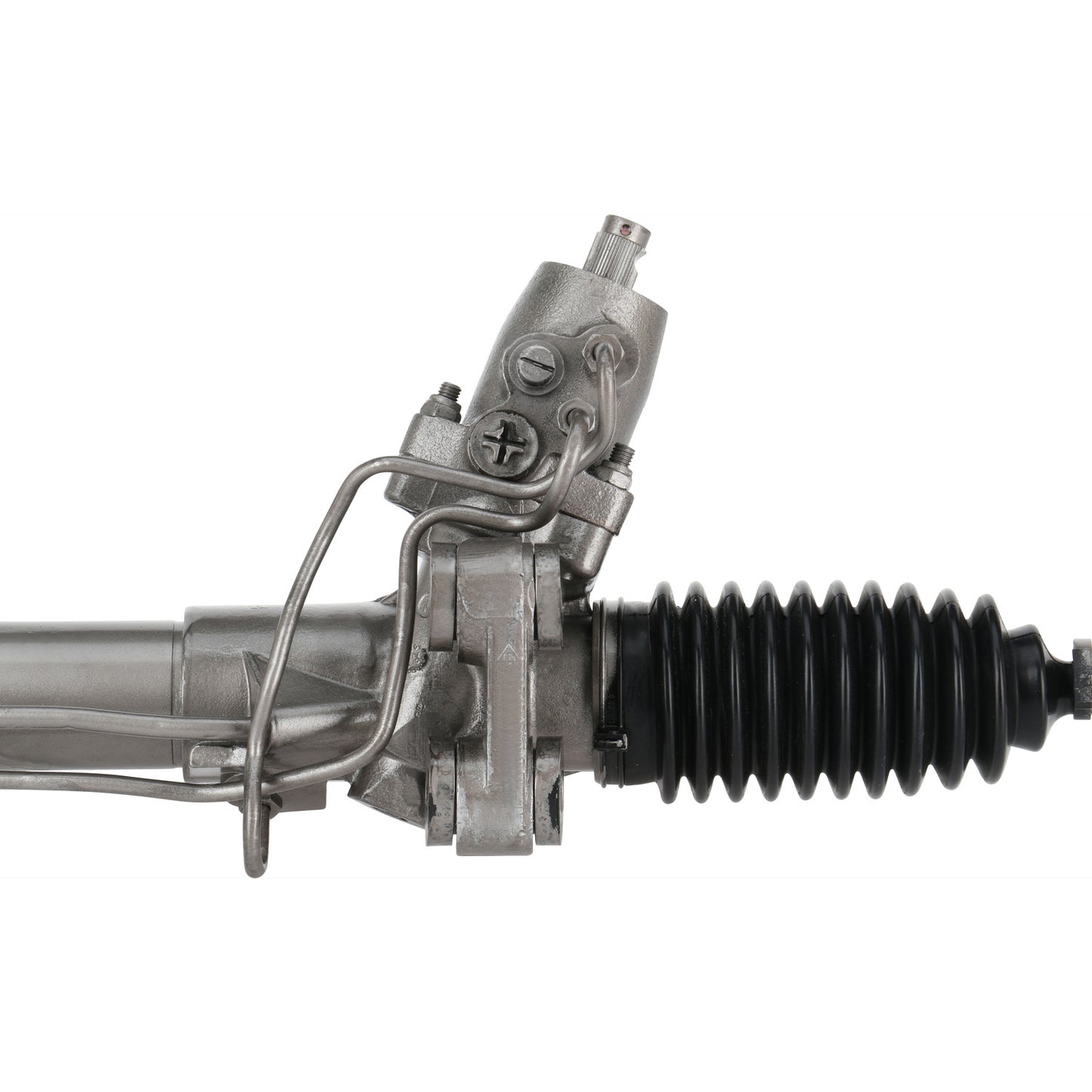

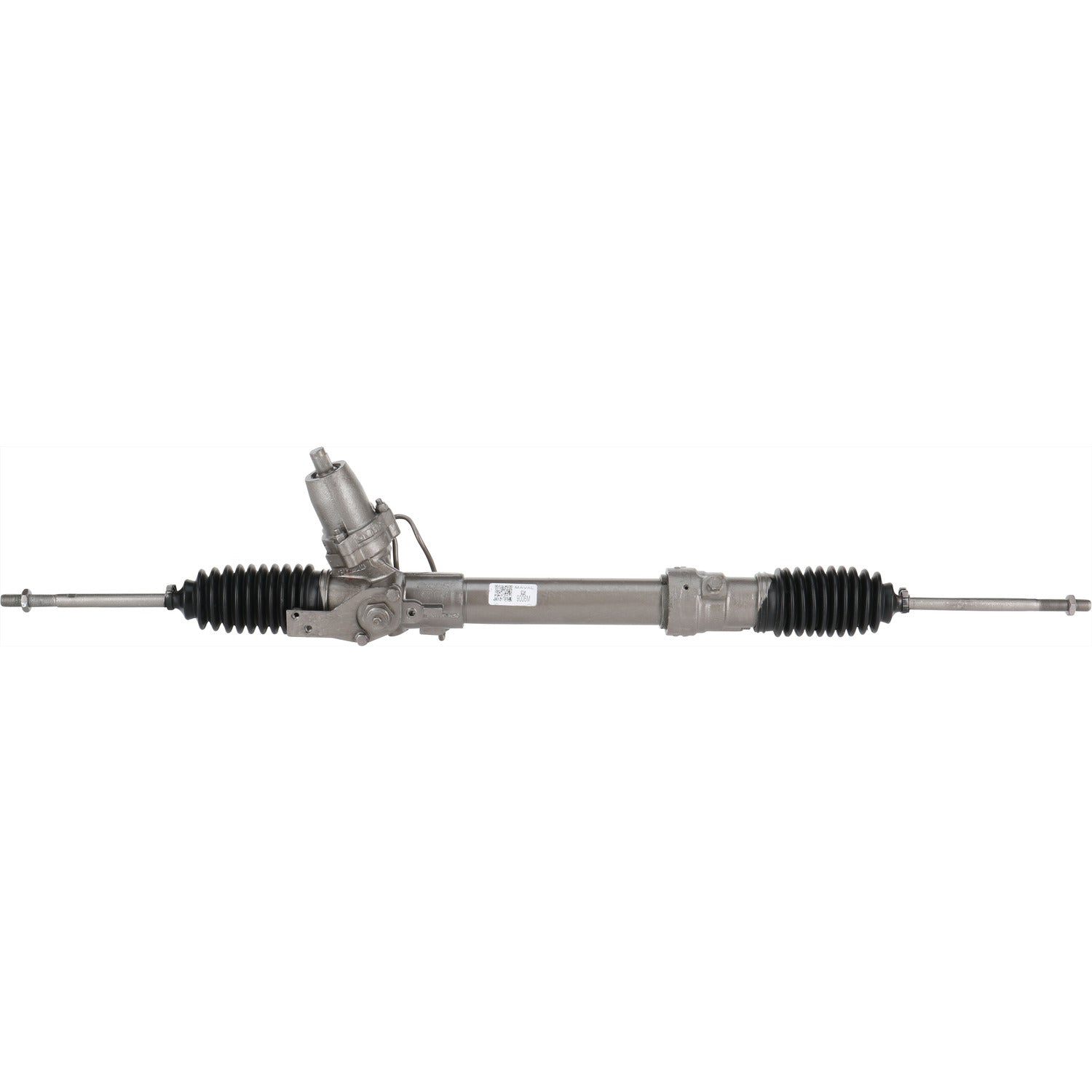

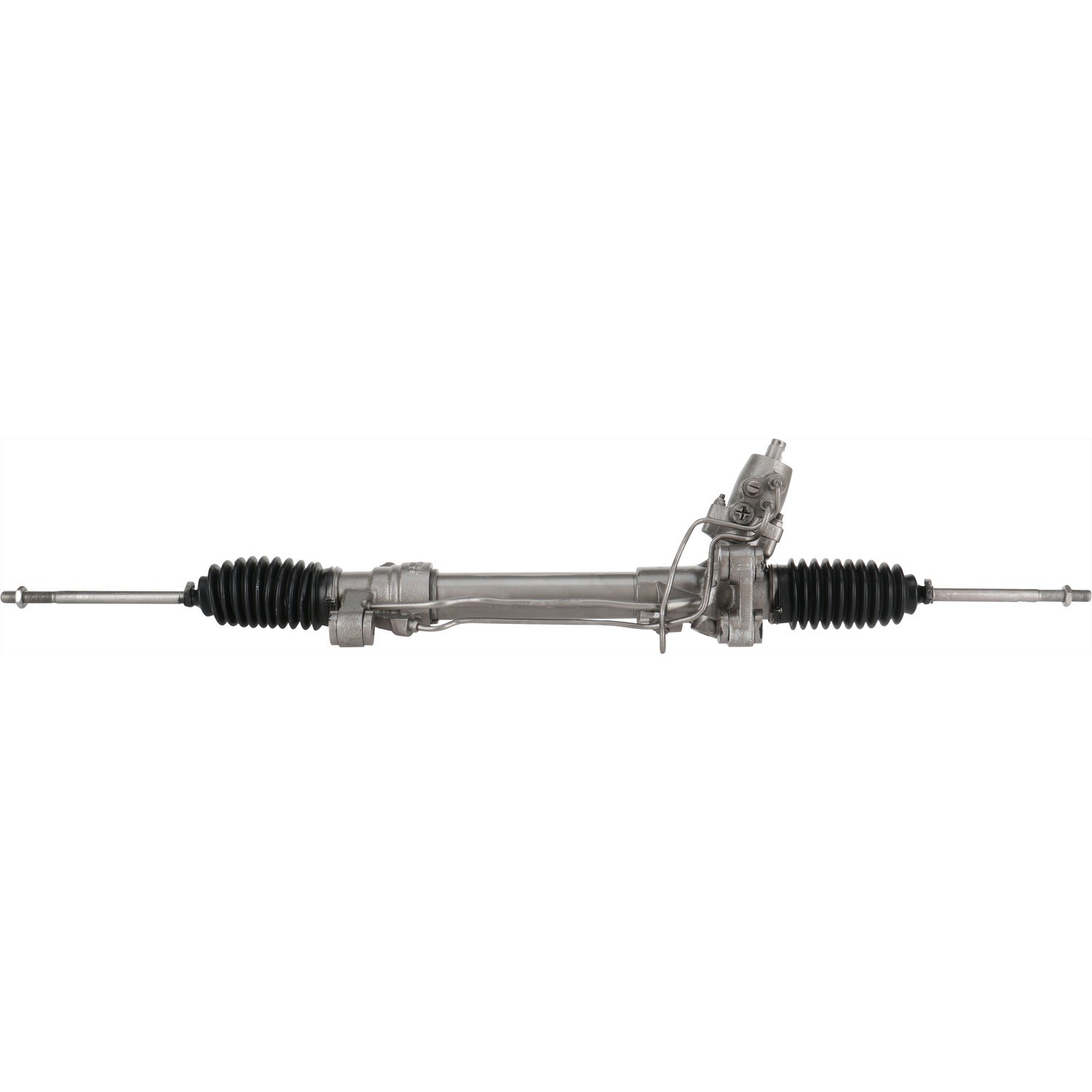

Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9006M
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 9006M
SKU:9006M
MAVAL rack and pinions come turn-key ready for installation. They include, re-certified or new inner tie-rod ends, new bellows, fasteners, and the replacement of seals and O-rings. Pinion valves are performance tested and the unit's electronic solenoids are performance verified. In addition, all MAVAL remanufactured rack and pinions are centered before leaving the test stand, reducing install time. Each rack and pinion have the MAVAL part number etched into the housing as well as a serial number for traceability.
| Distance Between Mounting Holes | 19.75 | IN |
| Distance Between Mounting Holes | 501.65 | MM |
| Input Shaft Diameter | 0.75 | IN |
| Input Shaft Diameter | 19.05 | MM |
| Input Shaft Length | 1 | IN |
| Input Shaft Length | 25.4 | MM |
| Pressure Port Thread Size | 5/8x18 | |
| Rack Length | 45.25 | IN |
| Rack Length | 1149.35 | MM |
| Return Port Thread Size | 5/8x18 | |
| Total Turns Lock To Lock | 2.75 |
Application Info: Jaguar XJ6 (1982-1987,1994), Jaguar XJS (1982-1993,1995), Jaguar XJ12 (1982-1987,1990-1992)
Interchange: Jaguar - CBC-1718N
BBB Cross-Reference: 307-0118
Cardone Cross-Reference:
Instructions - 1 Instructions - 2
