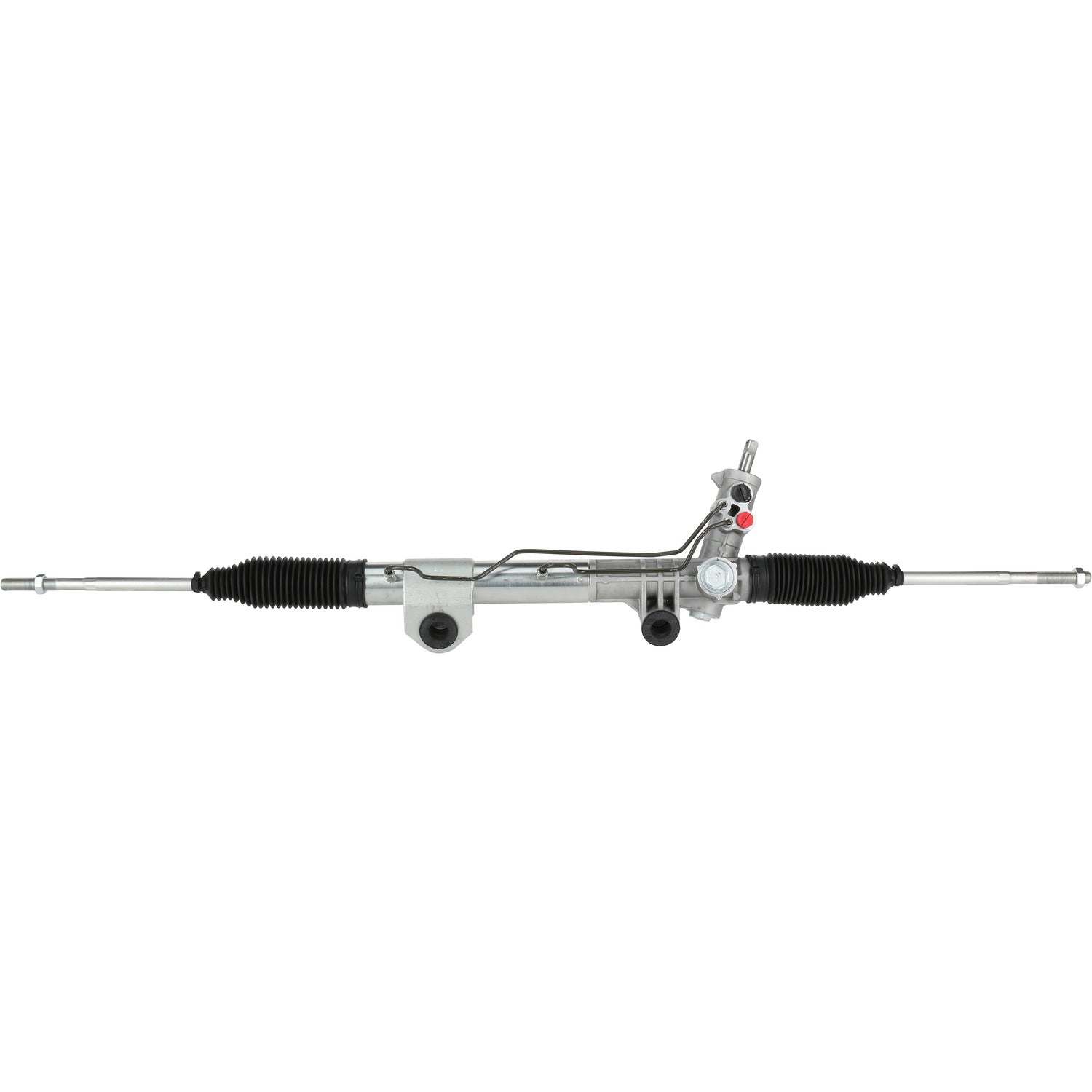

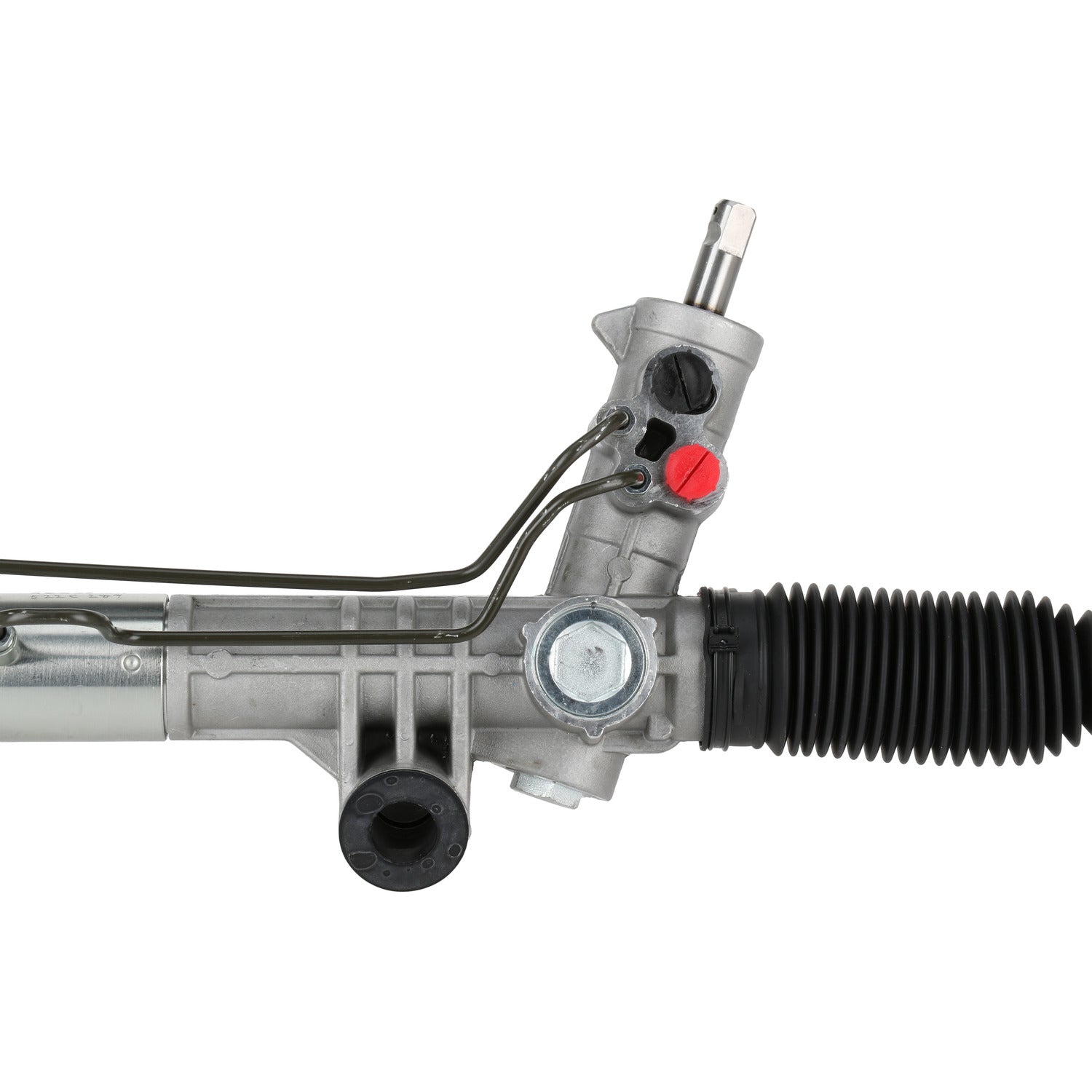

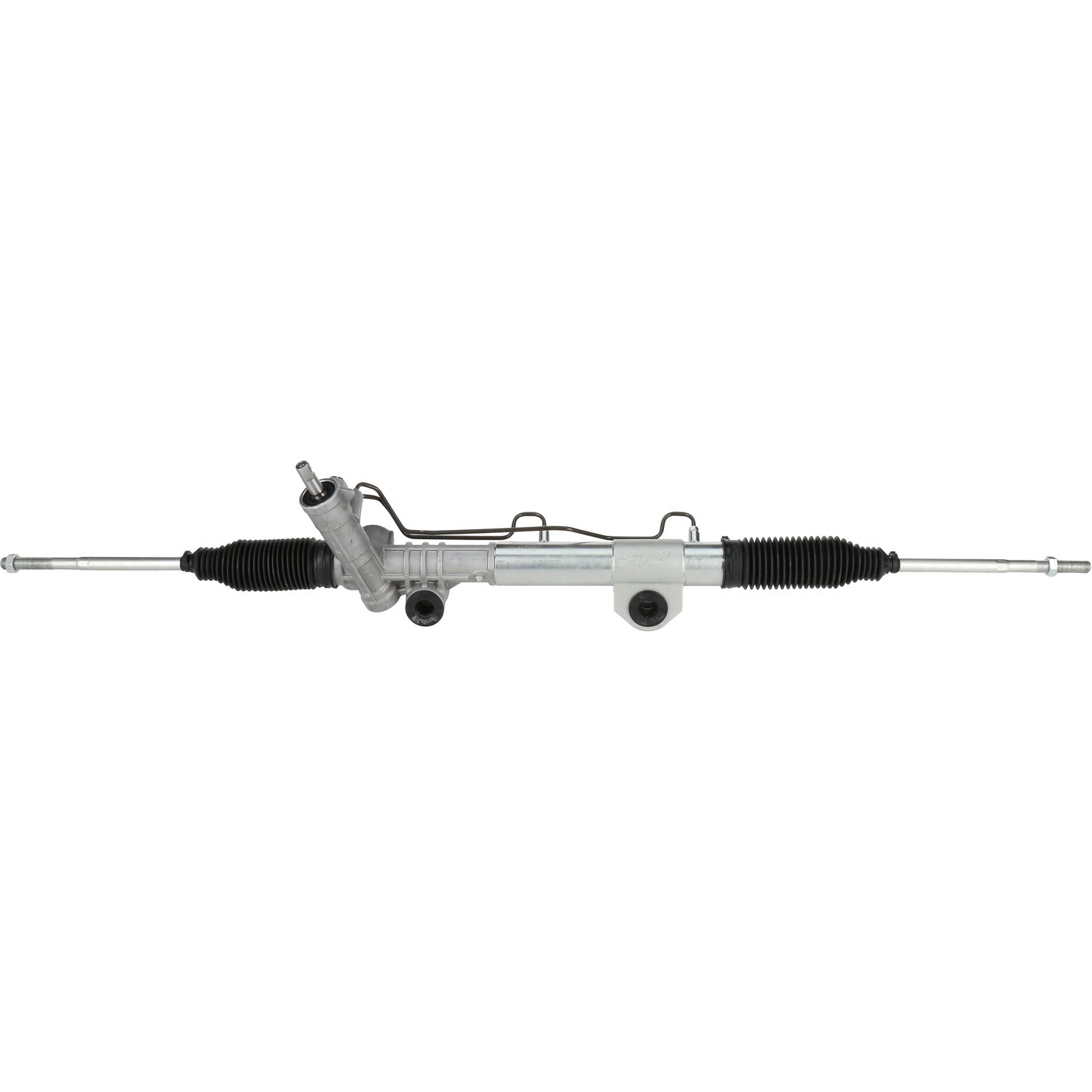

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 95470MN
Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 95470MN
SKU:95470MN
Each MAVAL Marathon HP product is designed to meet or exceed original equipment fit, form and function to ensure performance, improve durability, and provide ease of installation. Marathon HP rack and pinions are manufactured with premium parts and high-quality sealing components to ensure performance, prevent leaks, and optimize the longevity of the unit. Every MAVAL Marathon HP product is tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications. MAVAL utilizes superior-grade packaging material and processes to secure and protect its product, making certain it is received intact, undamaged and ready for install. Rack and pinions are 100 percent centered after testing to reduce installation time.
| Casting Material | Aluminum | |
| Distance Between Mounting Holes | 11.57 | IN |
| Distance Between Mounting Holes | 294 | MM |
| Hose Port Type | O-Ring/O-Ring | |
| Input Shaft Diameter | 0.71 | IN |
| Input Shaft Diameter | 18 | MM |
| Input Shaft Length | 1.89 | IN |
| Input Shaft Length | 48 | MM |
| Mounting Hole Quantity | 2 | |
| Pressure Port Thread Size | M18 x 1.5 | |
| Rack Length | 56.65 | IN |
| Rack Length | 1439 | MM |
| Return Port Thread Size | M20 x 1.5 | |
| Thread Length | 2.56 | IN |
| Thread Length | 65 | MM |
| Inner Tie Rods Included | Yes | |
| Total Turns Lock To Lock | 3.33 |
Application Info: Dodge Ram 1500 (2006-10); Ram 1500 (2011-12)
Interchange: 55366385AD, 55366385AE, 55366385AF, 55398506AC, 55398506AD, 55398506AE, 55398506AF, 55398506AG, 55398506AH
BBB Cross-Reference: N102-0209
Cardone Cross-Reference: 97-382
