Marathon HP

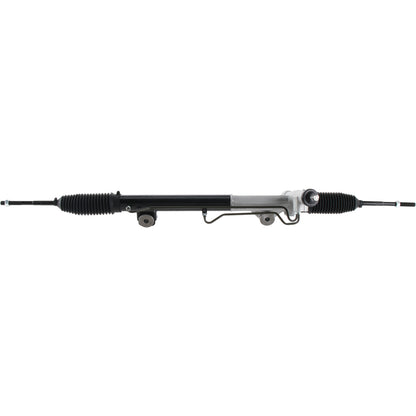

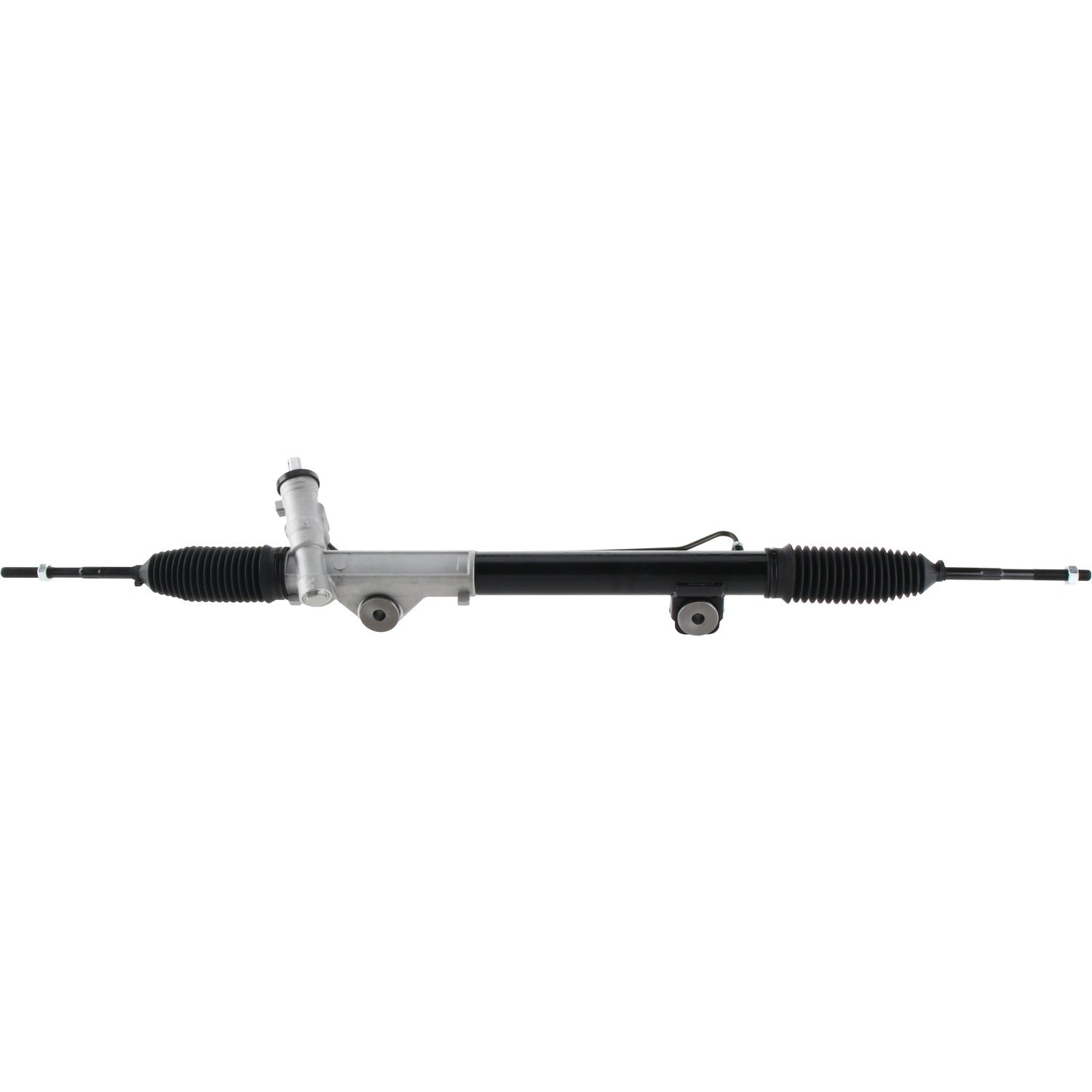

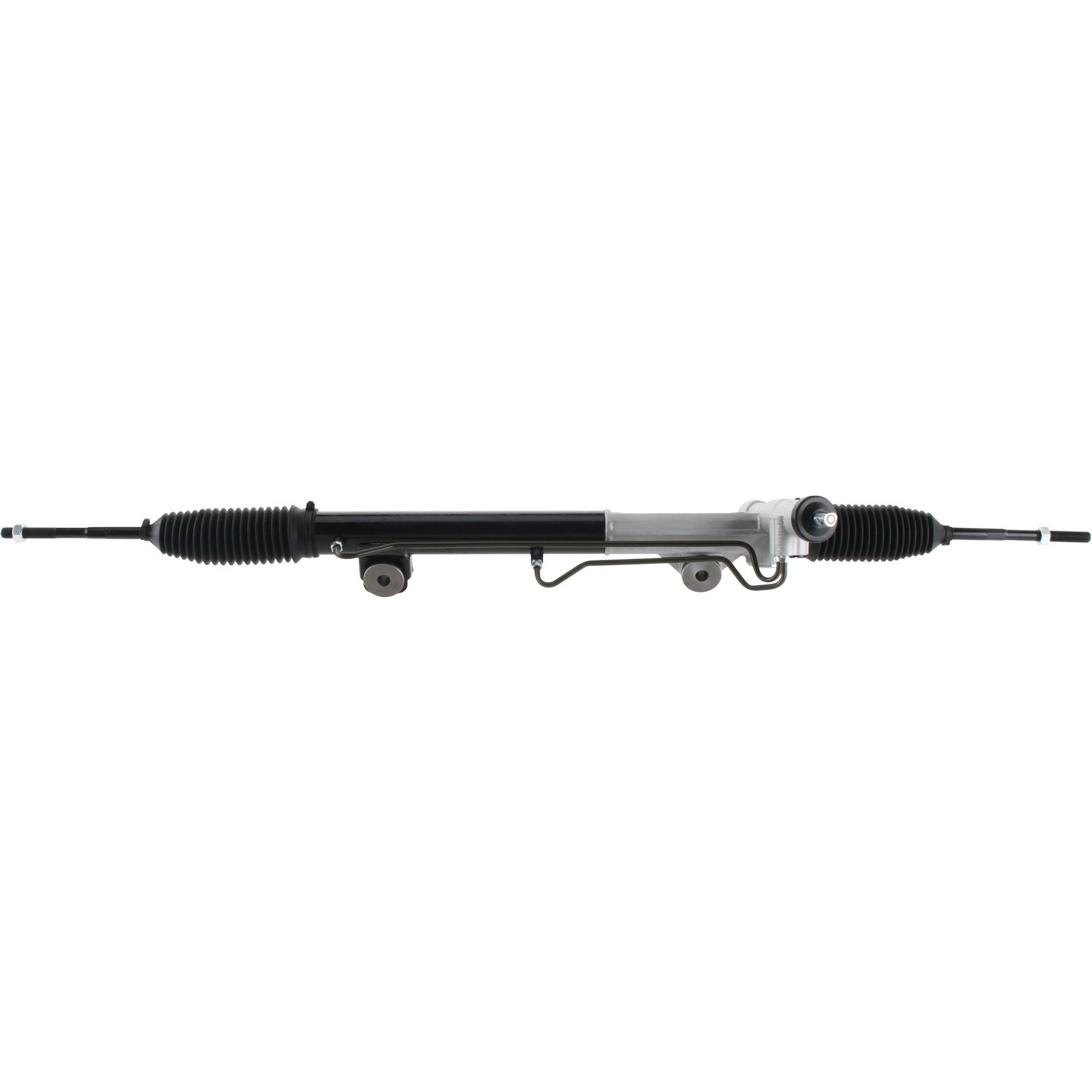

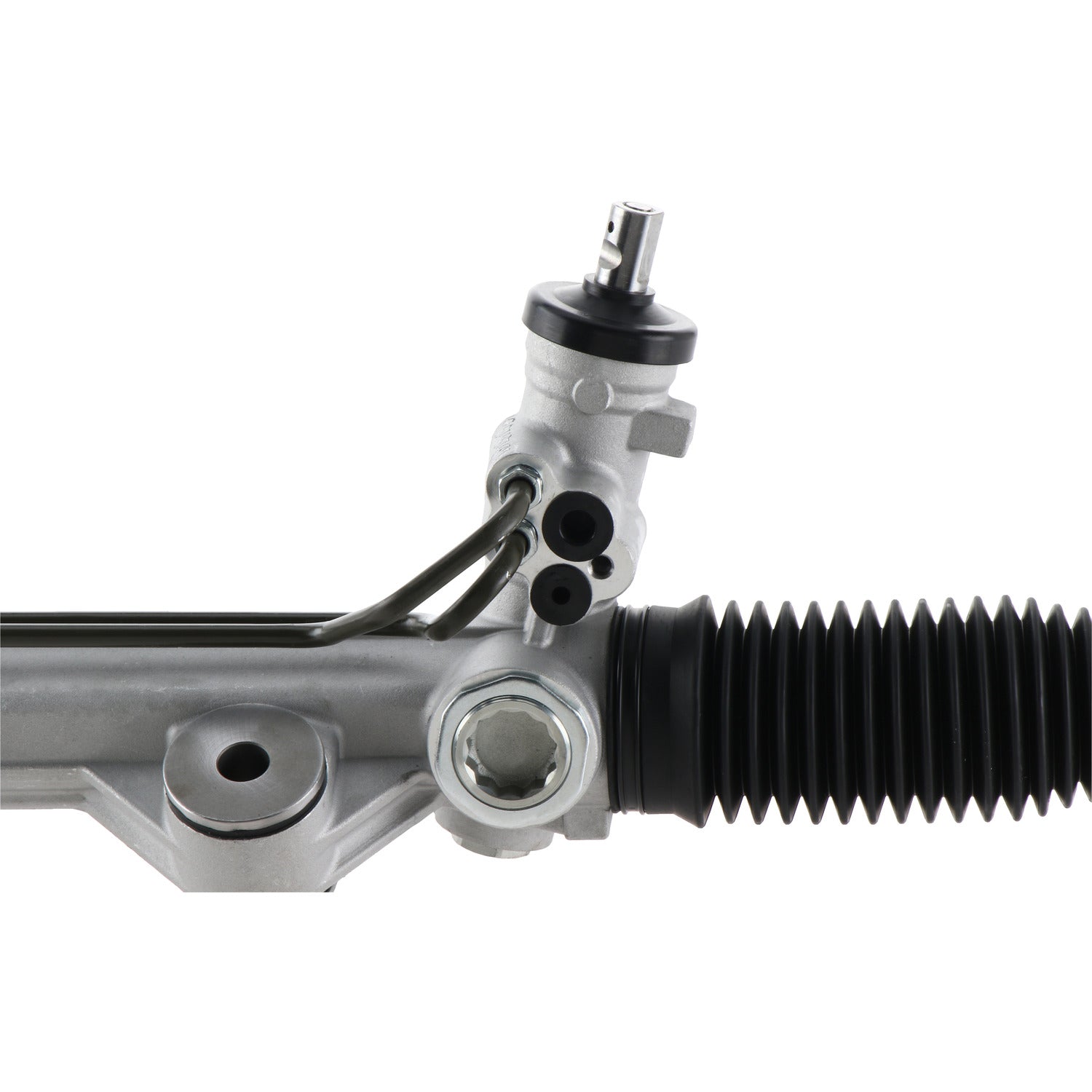

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 95454MN

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 95454MN

SKU:95454MN

Each MAVAL Marathon HP product is designed to meet or exceed original equipment fit, form and function to ensure performance, improve durability, and provide ease of installation. Marathon HP rack and pinions are manufactured with premium parts and high-quality sealing components to ensure performance, prevent leaks, and optimize the longevity of the unit. Every MAVAL Marathon HP product is tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications. MAVAL utilizes superior-grade packaging material and processes to secure and protect its product, making certain it is received intact, undamaged and ready for install. Rack and pinions are 100 percent centered after testing to reduce installation time.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 16.63 IN
Distance Between Mounting Holes 422.28 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.81 IN
Input Shaft Diameter 20.62 MM
Input Shaft Length 1.5 IN
Input Shaft Length 38.1 MM
Mounting Hole Quantity 2
Port ID Size 0.24
Rack Length 57.75 IN
Rack Length 1466.85 MM
Return Port ID Size 0.24
Thread Length 3.63 IN
Thread Length 92.08 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.31



Application Info: Ford F-150 (2004-08); Lincoln Mark LT (2006-08) ***W/RWD***

Interchange: 4L3Z3504AB, 4L3Z3504CB, 6L3Z3504AA, 6L3Z3504CA, 8L3Z3504A, 8L3Z3504ARM, 8L3Z3504C

BBB Cross-Reference: N101-0213

Cardone Cross-Reference:

Instructions - 1          Instructions - 2
