Marathon HP

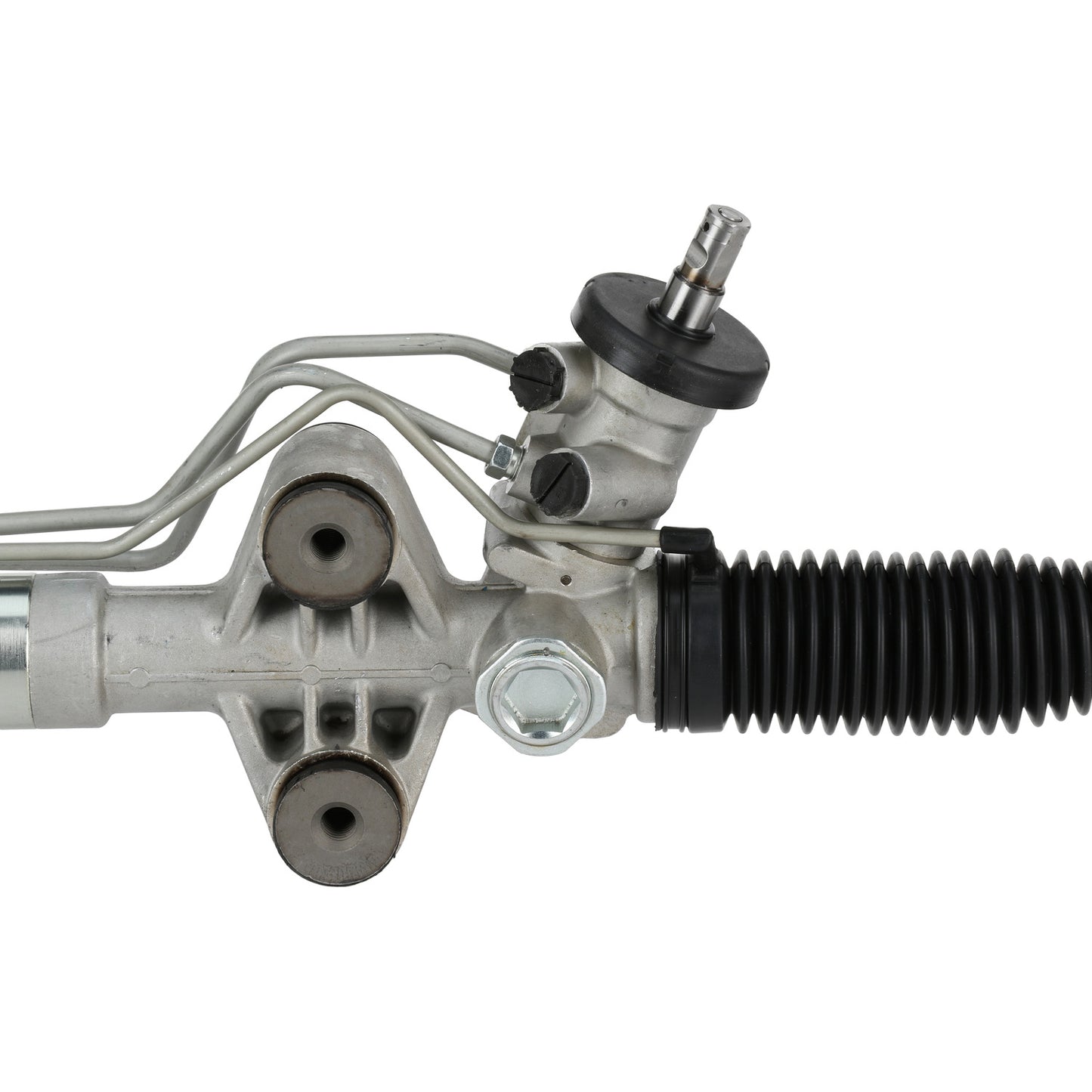

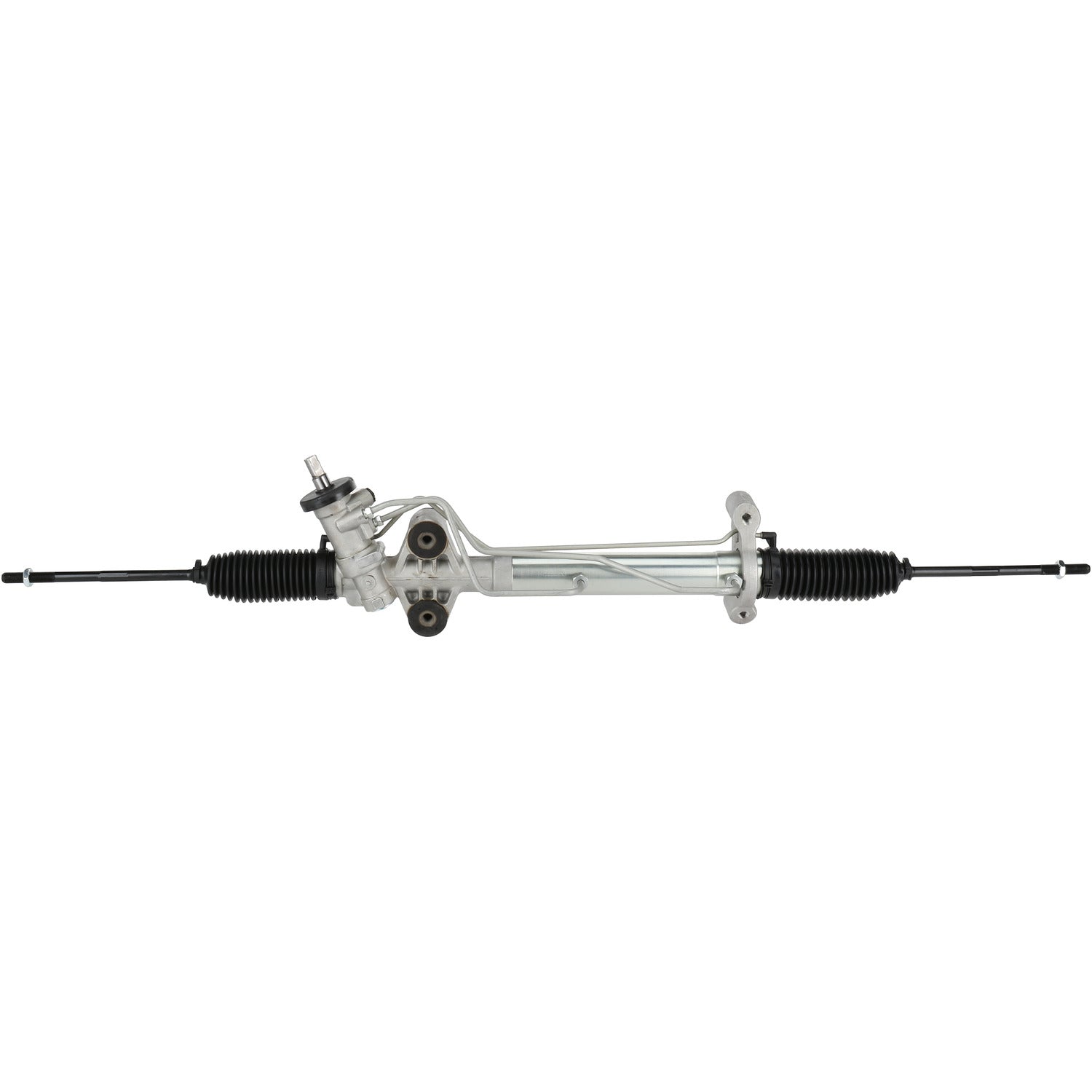

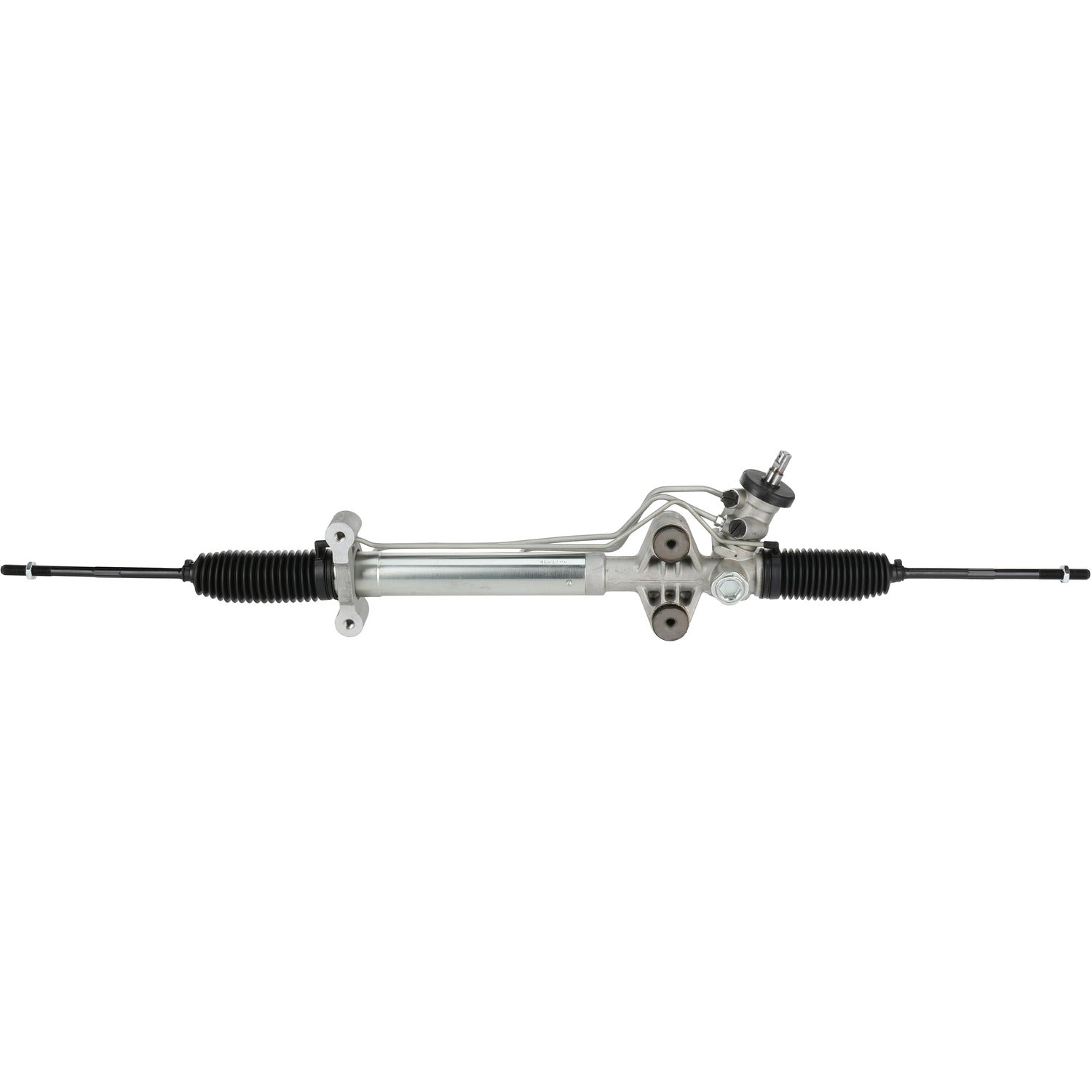

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 95437MN

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 95437MN

SKU:95437MN

Each MAVAL Marathon HP product is designed to meet or exceed original equipment fit, form and function to ensure performance, improve durability, and provide ease of installation. Marathon HP rack and pinions are manufactured with premium parts and high-quality sealing components to ensure performance, prevent leaks, and optimize the longevity of the unit. Every MAVAL Marathon HP product is tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications. MAVAL utilizes superior-grade packaging material and processes to secure and protect its product, making certain it is received intact, undamaged and ready for install. Rack and pinions are 100 percent centered after testing to reduce installation time.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 4 IN
Distance Between Mounting Holes 101.6 MM
Hose Port Type O-Ring
Input Shaft Diameter 0.79 IN
Input Shaft Diameter 19.96 MM
Input Shaft Length 1.75 IN
Input Shaft Length 44.45 MM
Mounting Hole Quantity 4
Pressure Port Thread Size M18 x 1.5
Rack Length 53.5 IN
Rack Length 1358.9 MM
Return Port Thread Size M16 x 1.5
Thread Length 2.41 IN
Thread Length 61.09 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.25



Application Info: Chevrolet Express 1500 (2003-14), Express 2500 (2003-06); GMC Savana 1500 (2003-14), Savana 2500 (2003-06)

Interchange: 19207099, 19330573, 26095478

BBB Cross-Reference: N103-0193

Cardone Cross-Reference: 97-1018
