Marathon HP

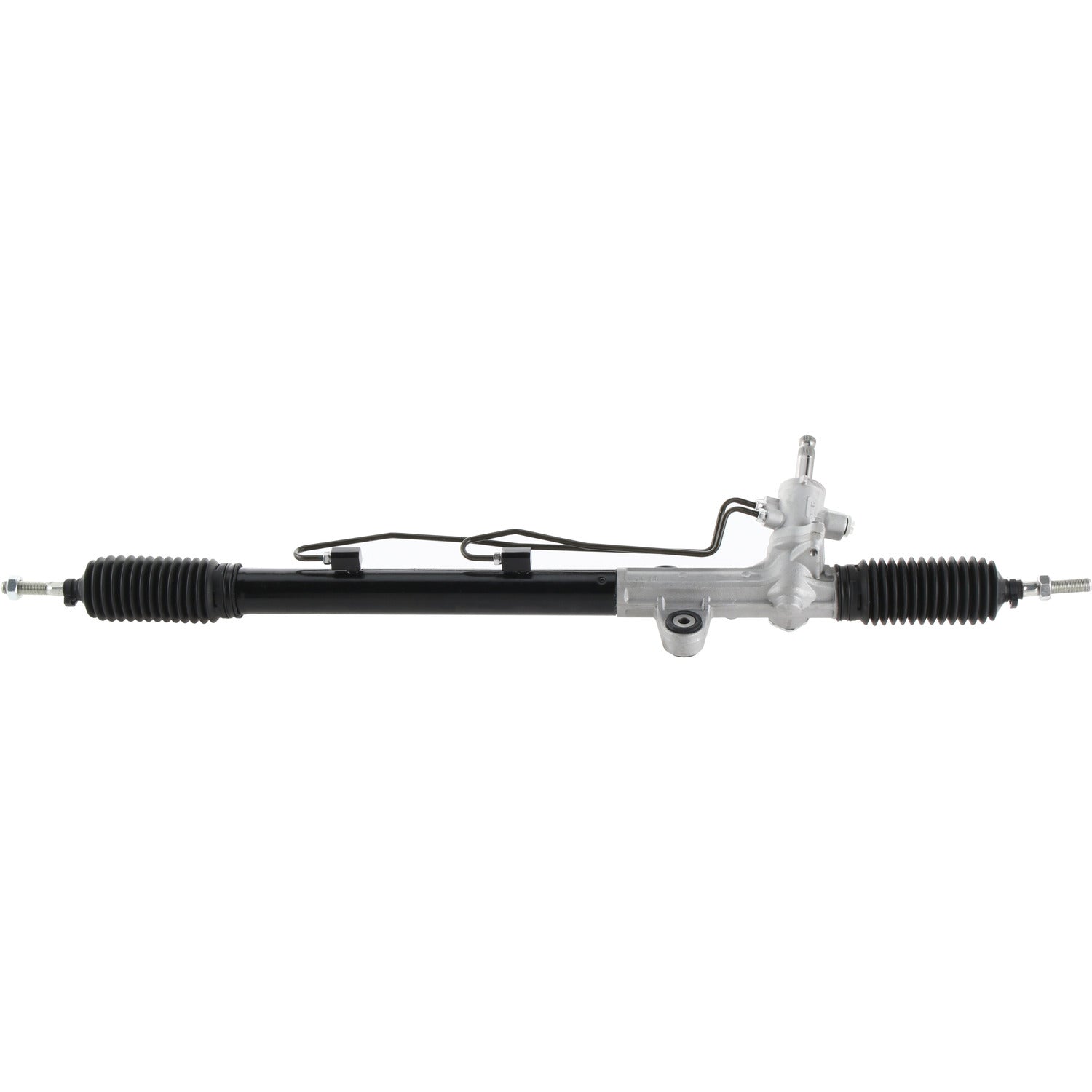

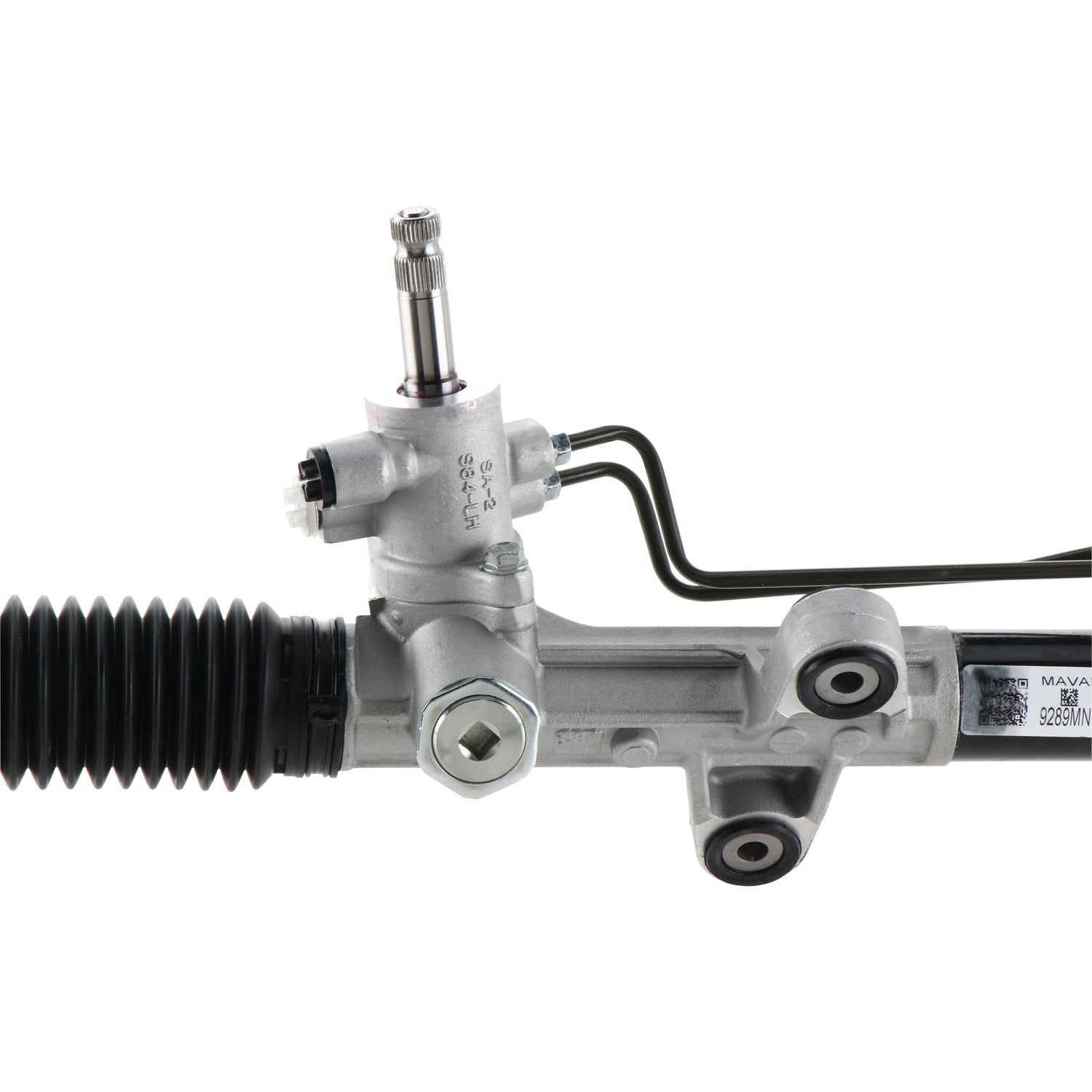

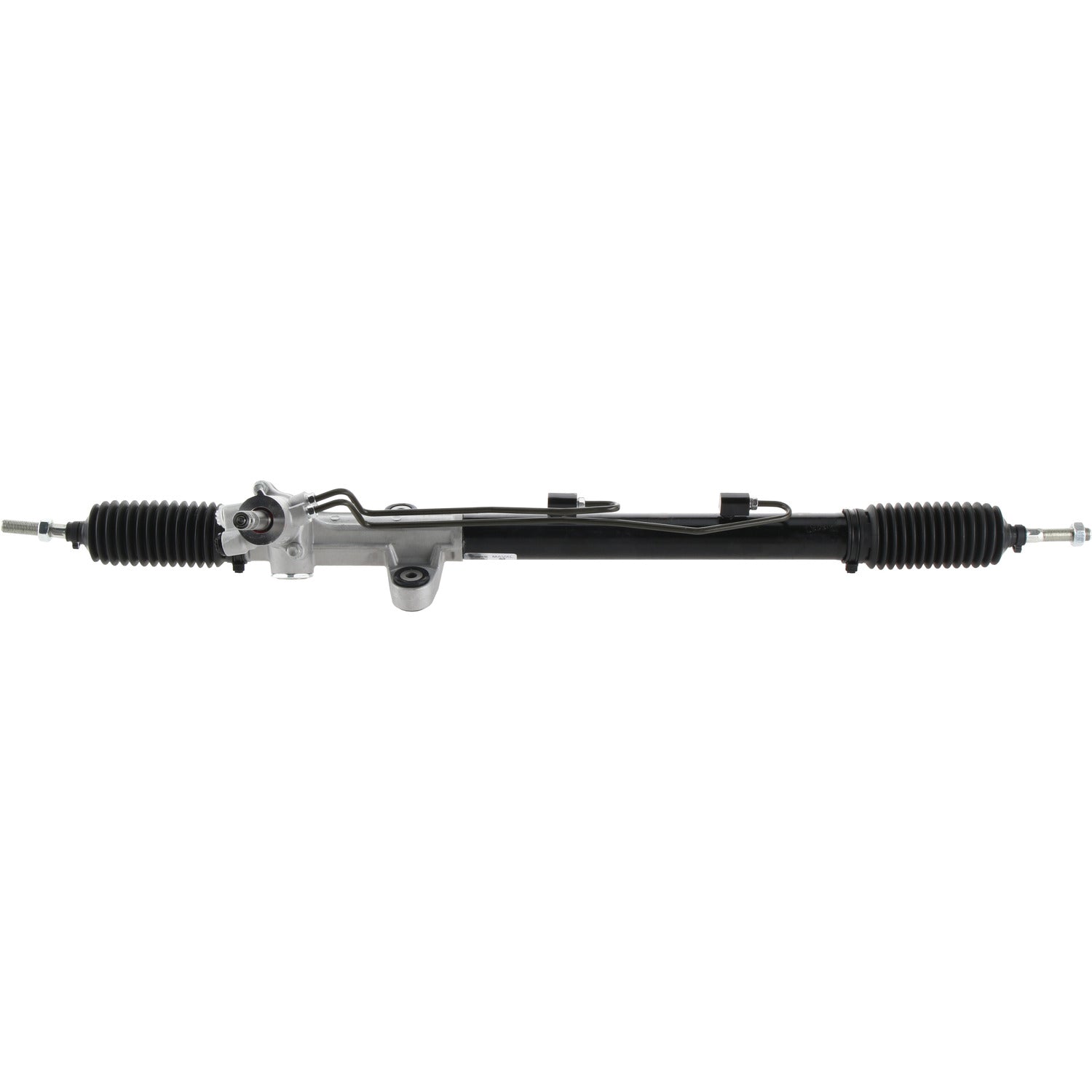

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 9289MN

Rack and Pinion Assembly - Marathon HP - Hydraulic Power - New - 9289MN


Each MAVAL Marathon HP product is designed to meet or exceed original equipment fit, form and function to ensure performance, improve durability, and provide ease of installation. Marathon HP rack and pinions are manufactured with premium parts and high-quality sealing components to ensure performance, prevent leaks, and optimize the longevity of the unit. Every MAVAL Marathon HP product is tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications. MAVAL utilizes superior-grade packaging material and processes to secure and protect its product, making certain it is received intact, undamaged and ready for install. Rack and pinions are 100 percent centered after testing to reduce installation time.

Casting Material Steel; Aluminum
Distance Between Mounting Holes 4.25 IN
Distance Between Mounting Holes 107.95 MM
Hose Port Type Seat
Input Shaft Diameter 0.75 IN
Input Shaft Diameter 19 MM
Input Shaft Length 2.44 IN
Input Shaft Length 61.9 MM
Number of Mounting Holes 2
Pressure Port Thread Size M14 x 1.5
Rack Length 41.75 IN
Rack Length 1060.45 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.77 IN
Thread Length 45.01 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 3.13

Application Info: Acura CL Base (2002-03); Honda Accord Coupe (2000-02), Accord Sedan (1998-02) ***Honda W/2.3L L4 Engine***

Interchange: 53601-S3M-A01, 53601-S3M-A02, 53601-S82-A50, 53601-S82-A51, 53601-S84-A02, 53601-S84-A03

BBB Cross-Reference: N305-0133

Cardone Cross-Reference:

To avoid warranty and potential failure issues, we highly recommend flushing the system and to refill using the Honda/ Acura OE Fluid to ensure proper longevity and performance. Click For Tech Bulletin.

Instructions - 1
