MAVAL

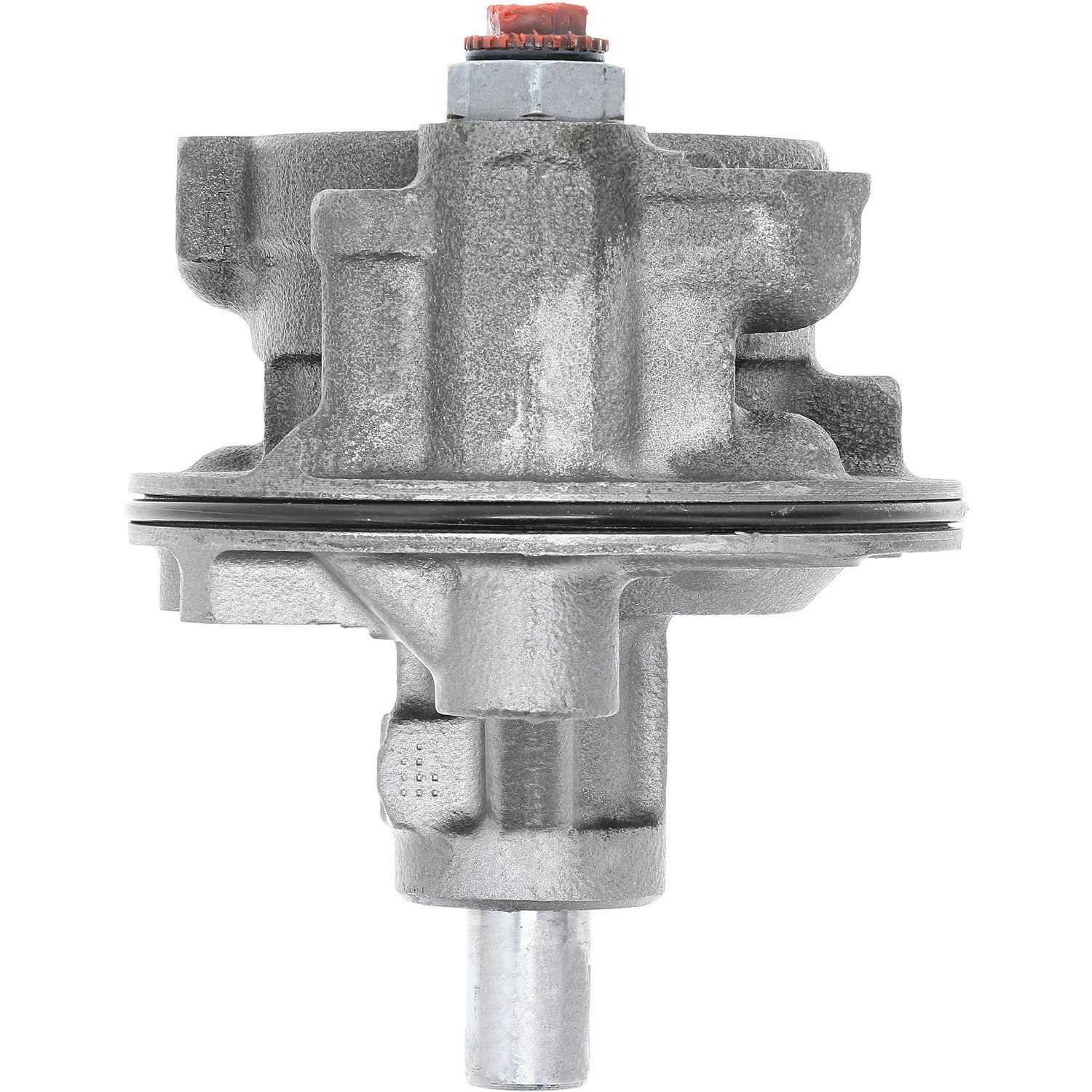

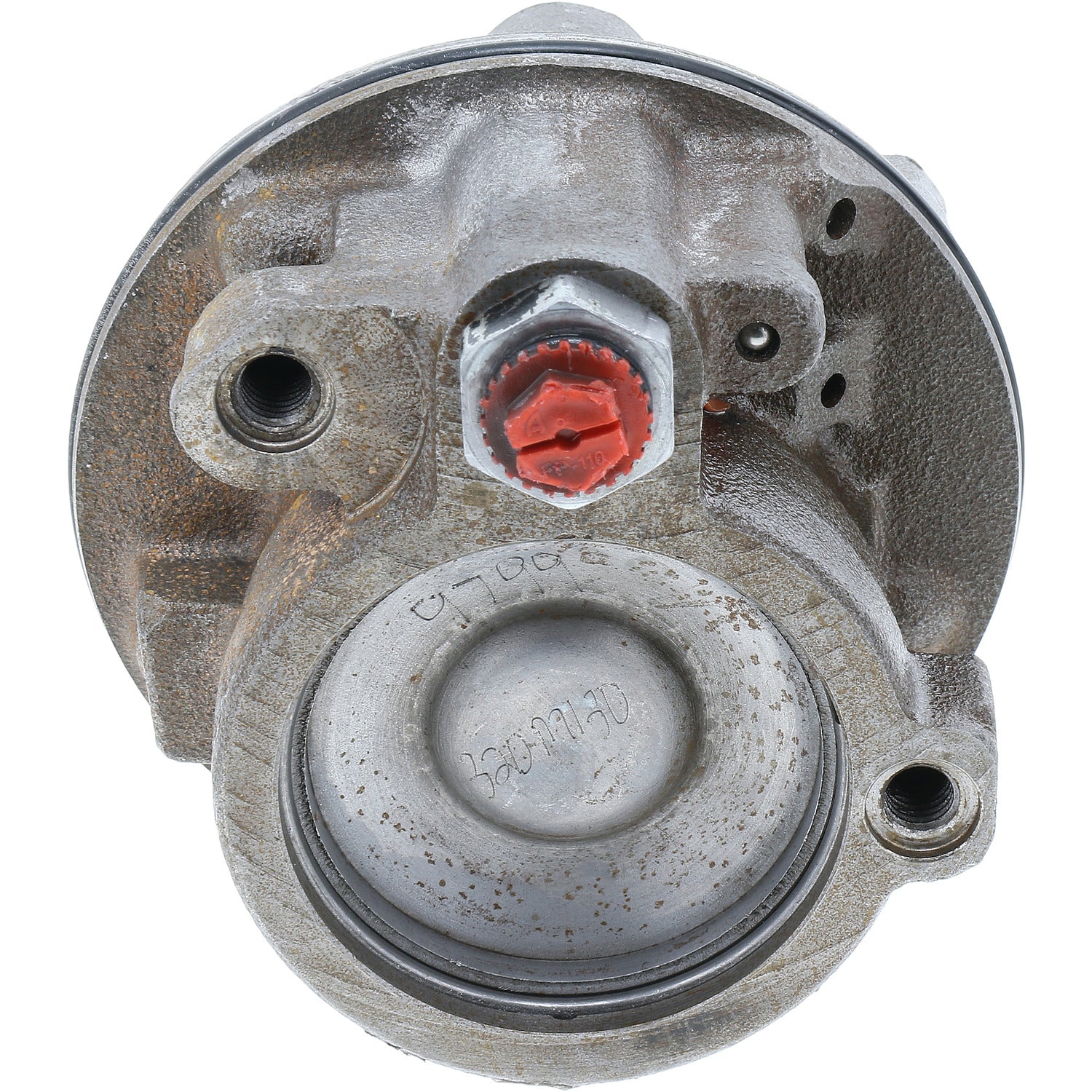

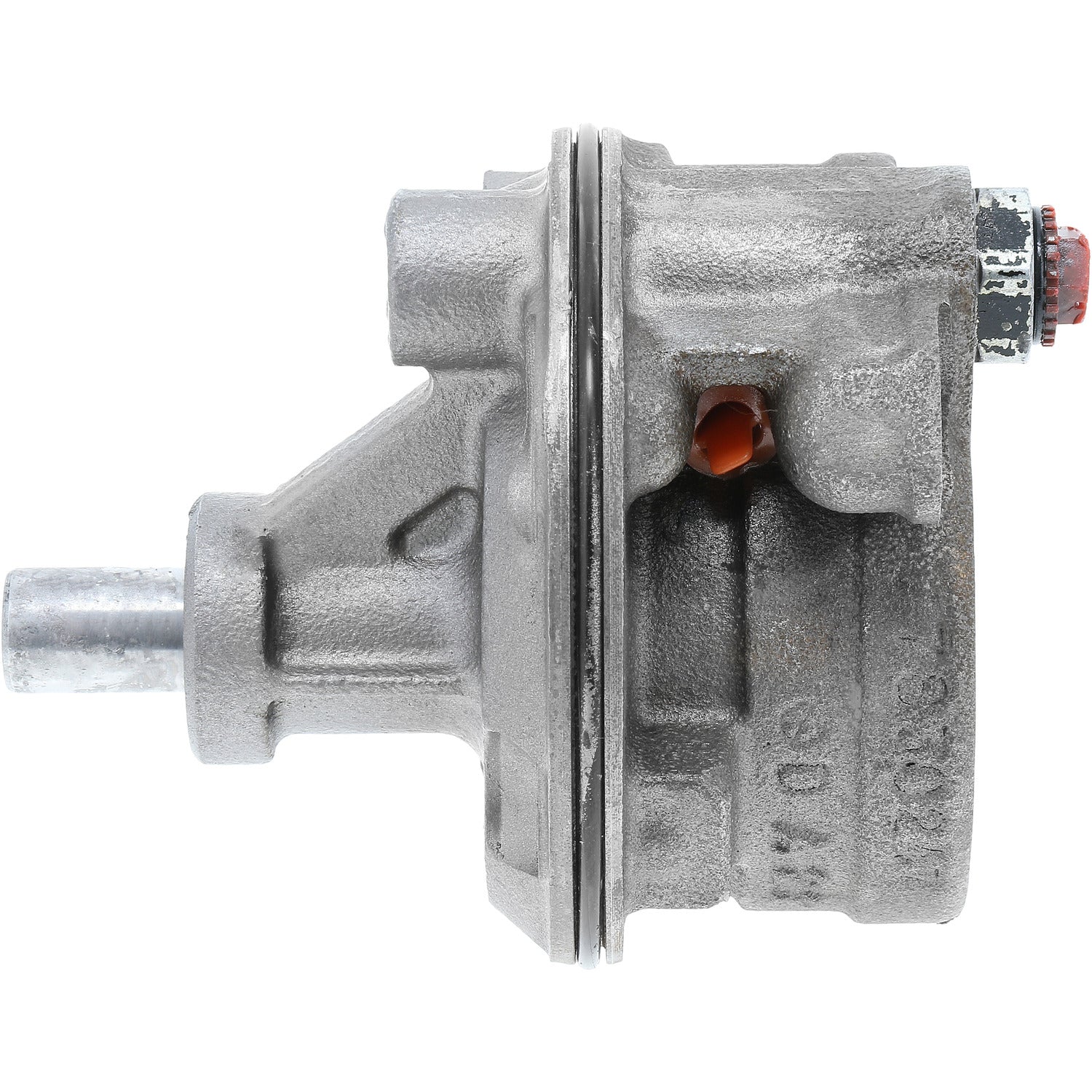

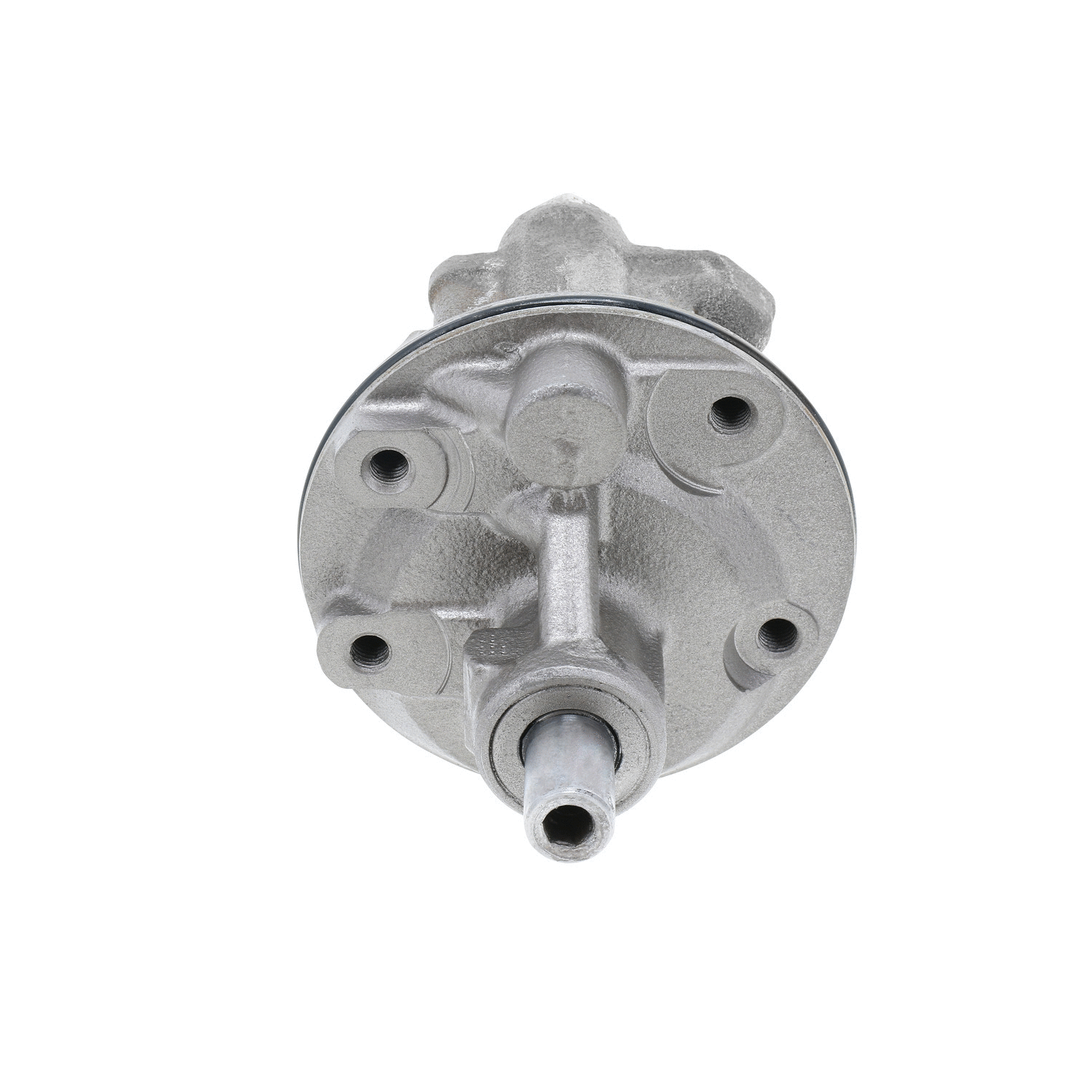

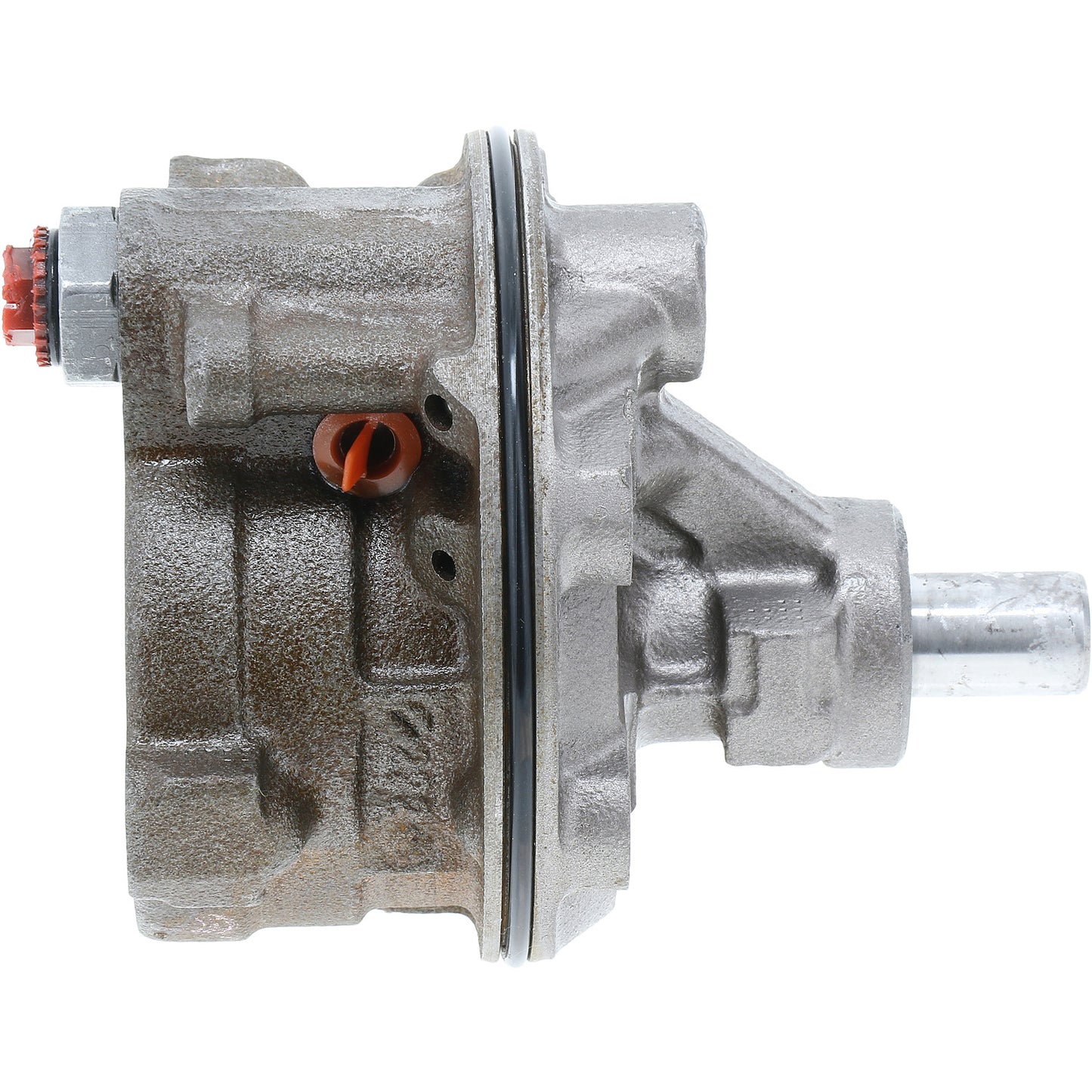

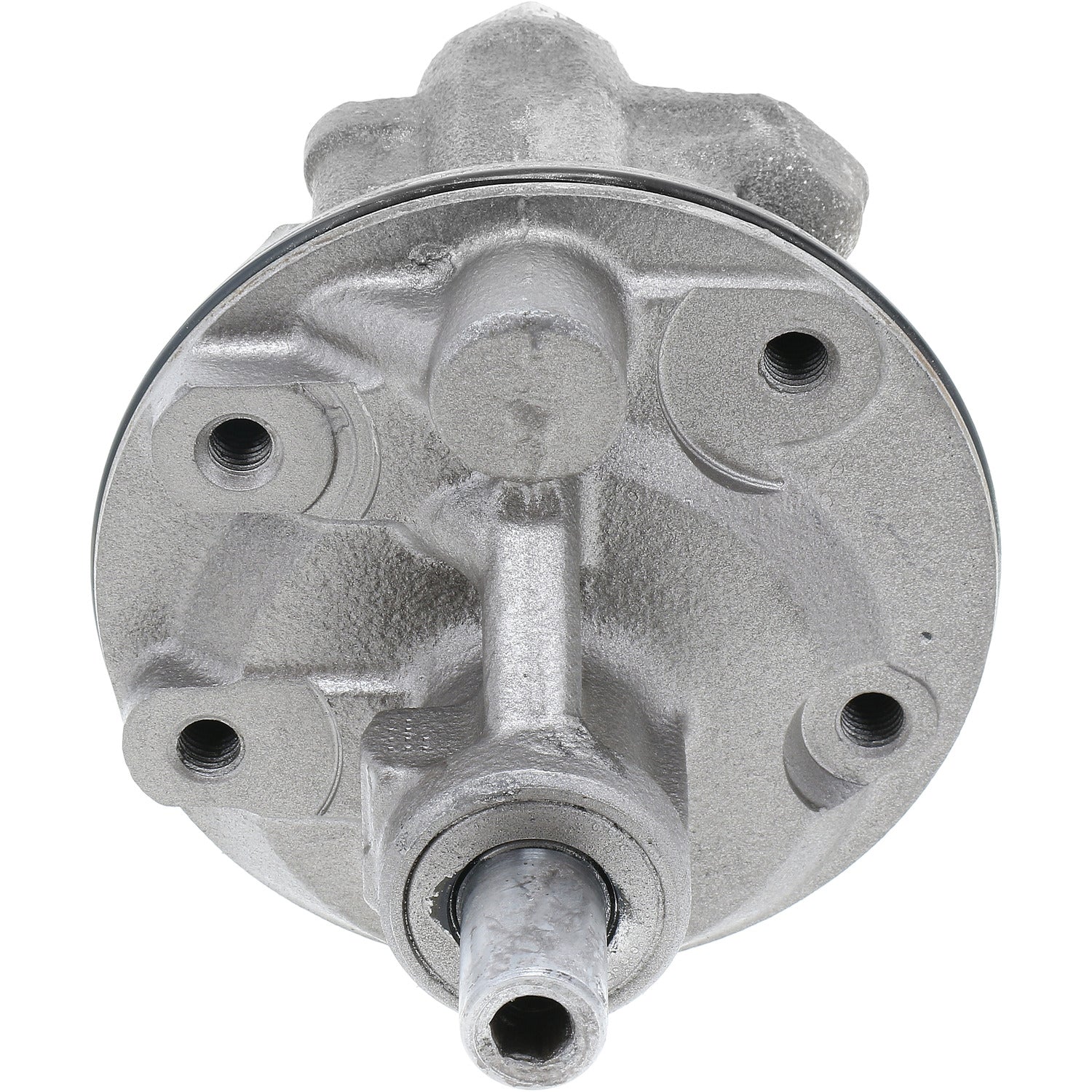

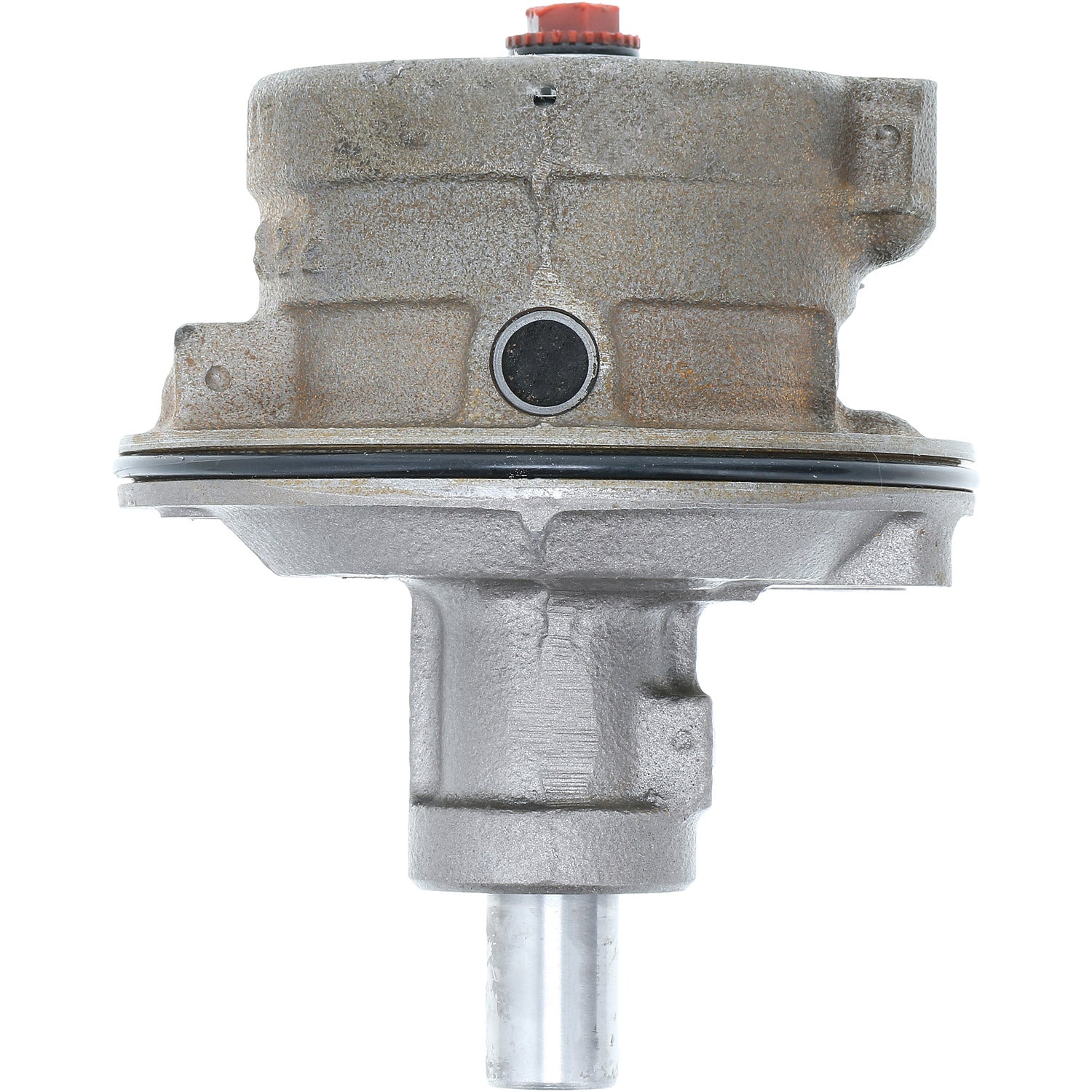

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 9799M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 9799M

SKU:9799M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Cast Iron
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Press-on
Pulley Included No
Remote Reservoir No
Reservoir Included No

Application Info: Various AM General, FCA, Ford, & GM Applications ***W/O Pulley, W/O Reservoir***

Interchange: 15054906, 15076612, 15078157, 15095941, 15234826, 15267675, 15754215, 15909822, 15909824, 20756712, 20756714, 26001536, 26001944, 26002570, 26003870, 26003872, 26003926, 26003927, 26006945, 26008896, 26010182, 26010183, 26014075, 26015763, 26015765, 26015768, 26015769, 26019736, 26019737, 26019738, 26019739, 26019740, 26019741, 26019742, 26019743, 26019744, 26019745, 26019746, 26020021, 26020022, 26020024, 26020025, 26020026, 26020027, 26020028, 26020779, 26020780, 26021138, 26021139, 26022229, 26022616, 26022617, 26025305, 26025310, 26025313, 26026916, 26027974, 26028090, 26028091, 26028558, 26035202, 26037444, 26037446, 26037447, 26037448, 26037450, 26037453, 26037454, 26038104, 26039901, 26039903, 26040781, 26041538, 26042247, 26042592, 26042593, 26043562, 26045343, 26048826, 26048827, 26056604, 26057289, 26057293, 26061018, 26065829, 26065848, 26066455, 26068204, 26069031, 26069033, 26069035, 26069038, 26069070, 26069075, 26074333, 26081015, 52037568, 52039042, 52039042AB, 52039145, 52039145AB, 52039173, 53002714, 53003903, 6003042, 7837232, 7838863, 7838888, 7838933, 7838934, 7838935, 7838936, 7839797, 7839798, 7839799, 7839800, 7839801, 7839802, 7839804, 7839805, 7839806, 7839807, 7839808, 7839809, 7839810, 7839813, 7839814, 7839816, 7839818, 7840512, 7840996, 7841430, 7841731, 7842032, 7842033, 7842049, 7842489, 7842491, 88963603, 88963604, E2UZ-3A674-A, E3UZ-3A674-A, FCA: 52037606, FOUZ-3A674-A, J3237193

BBB Cross-Reference: 731-0125

Cardone Cross-Reference: 20-860

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
