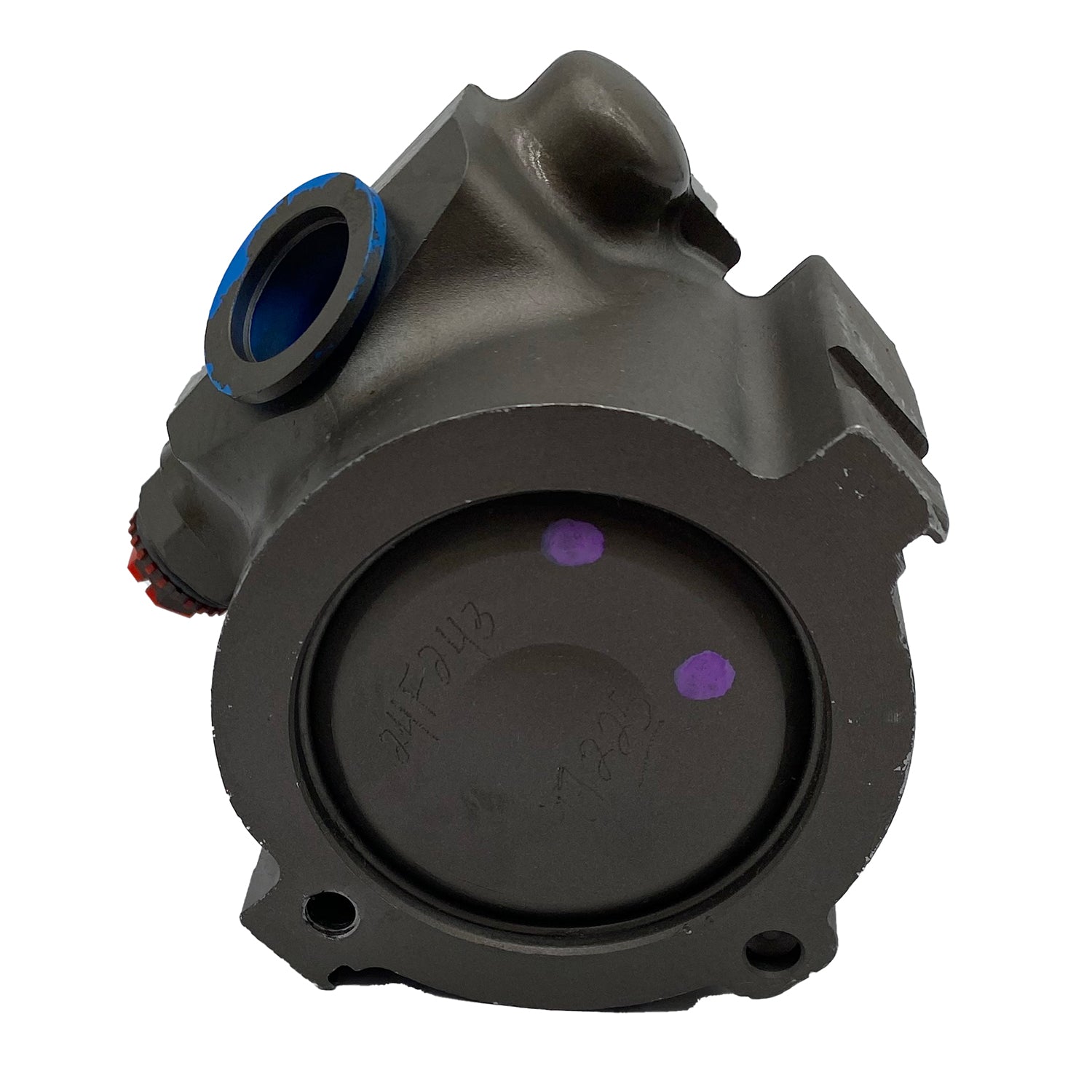

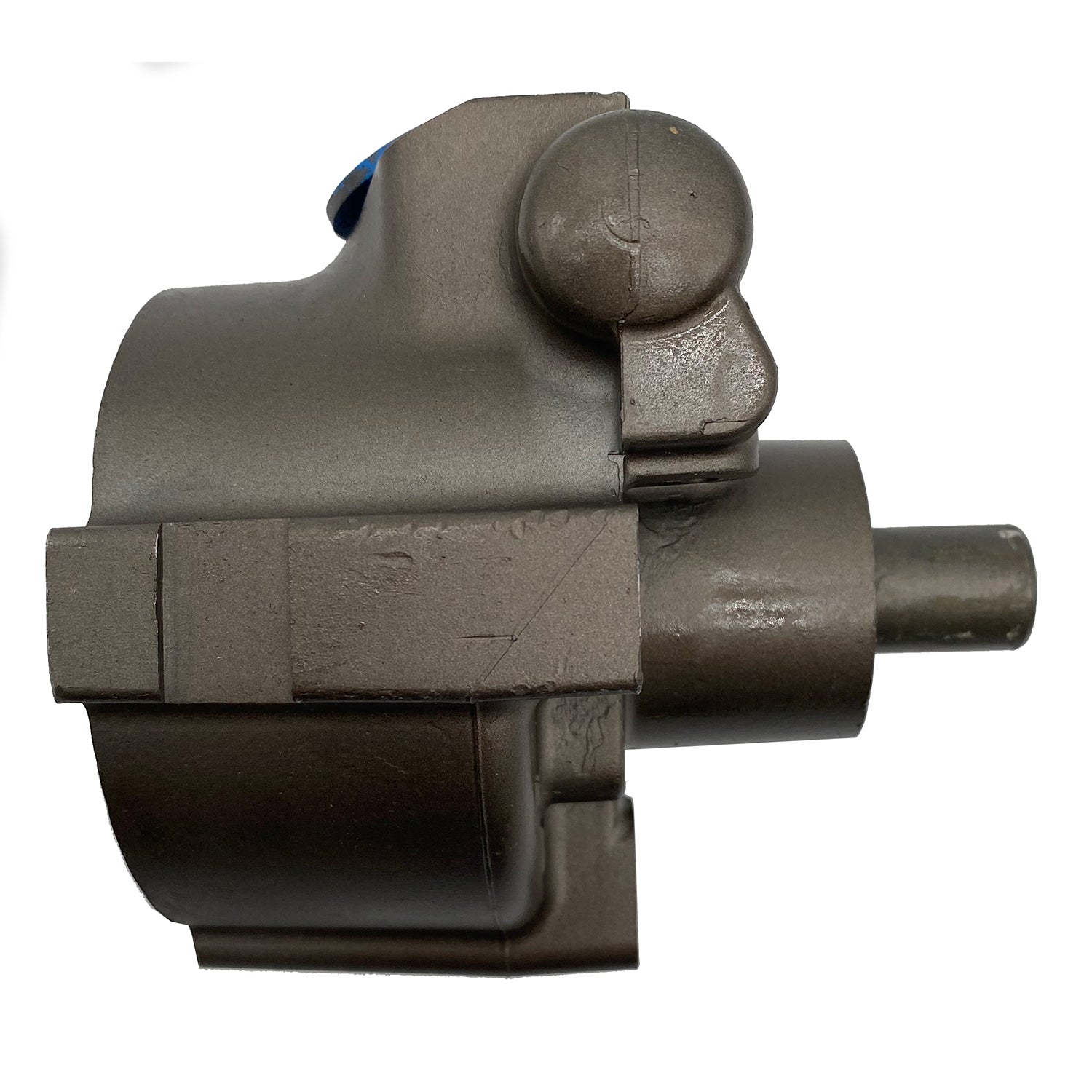

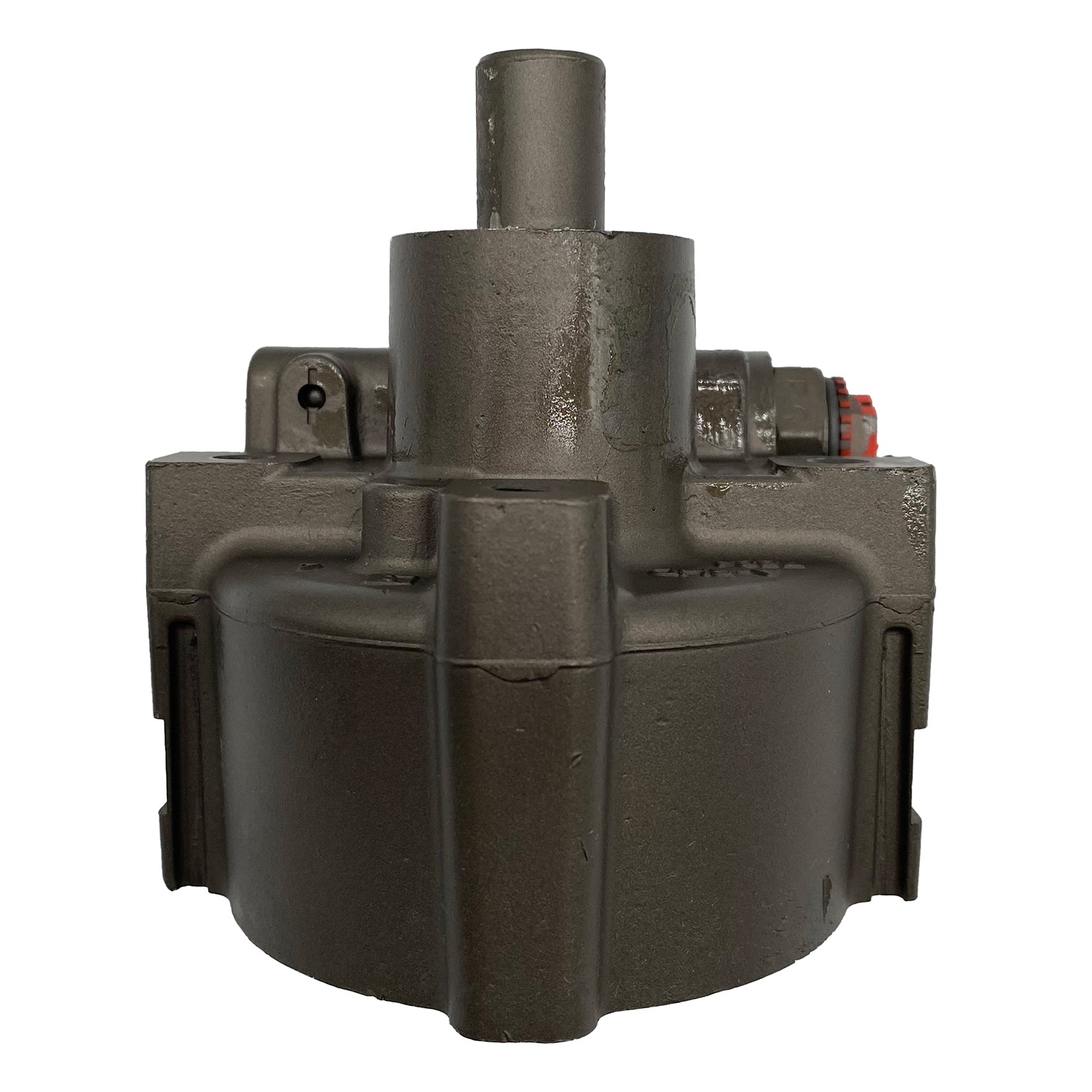

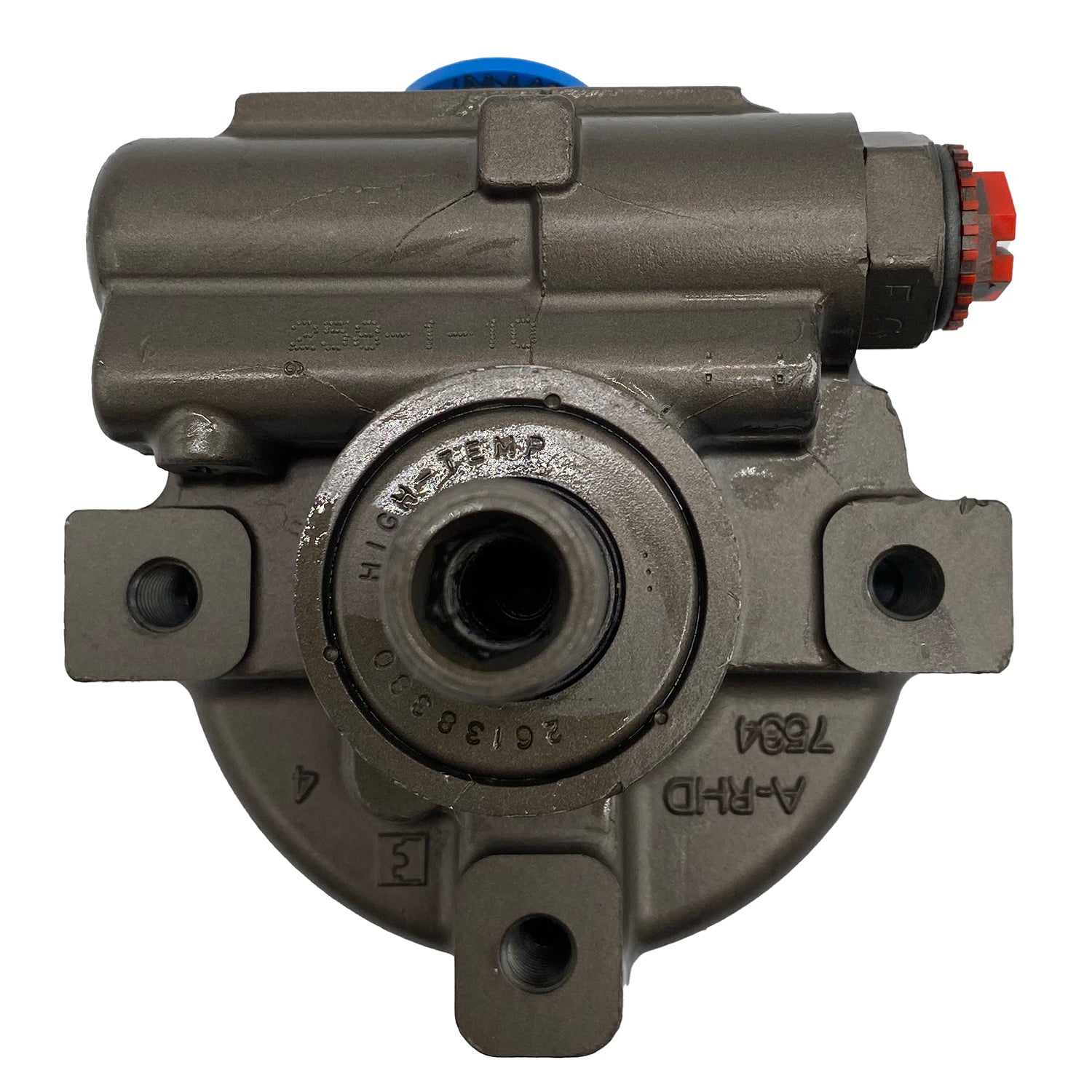

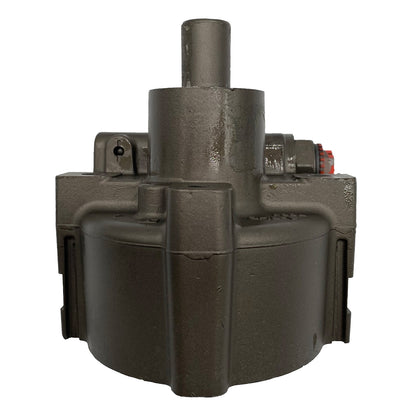

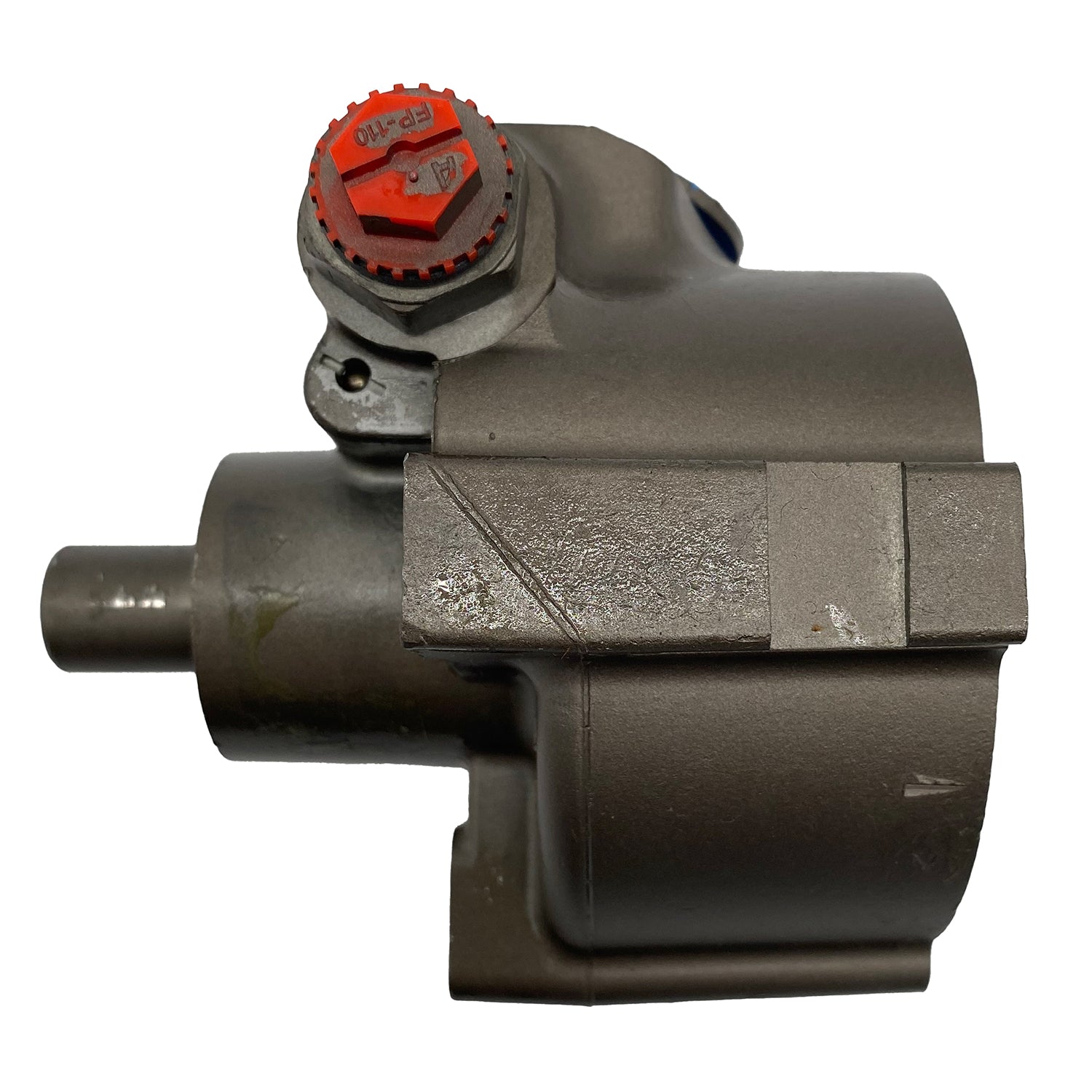

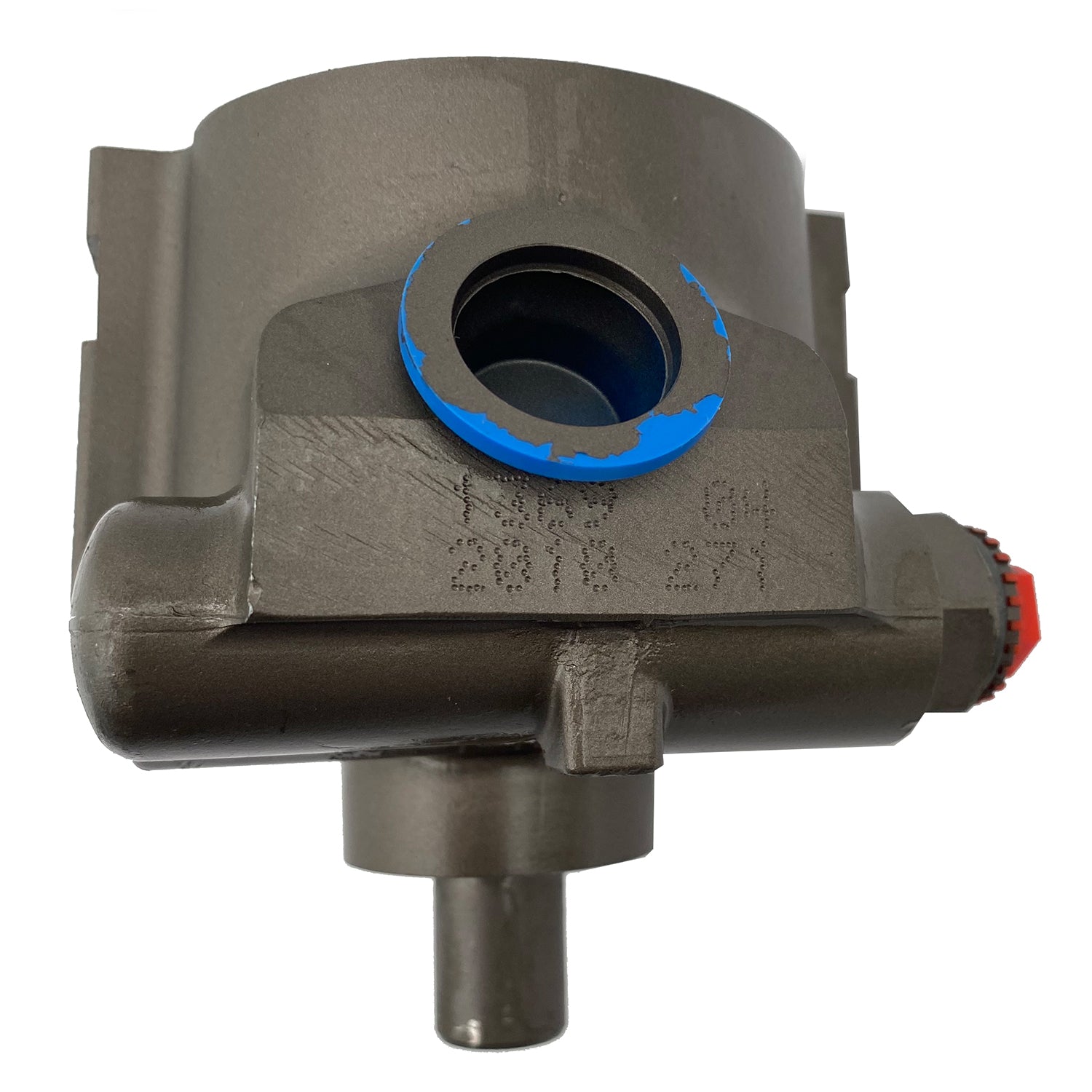

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 97225M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 97225M


MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Aluminum
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Pulley Attachment Type Press-on
Pulley Included No
Remote Reservoir No
Reservoir Included Yes

Application Info: Chevrolet Express 2500 (2010-15), Express 3500 (2010-15), Express 4500 (2010-15); GMC Savana 2500 (2010-2015), Chevrolet Express 3500 (2010-2015), Savana 4500 (2010-15) ***6.6L V8 Diesel Engine W/VIN Code L, W/O Pulley, W/Reservoir***

Interchange: 25865476

BBB Cross-Reference: 734-29131

Cardone Cross-Reference: 20-0880034

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
