MAVAL

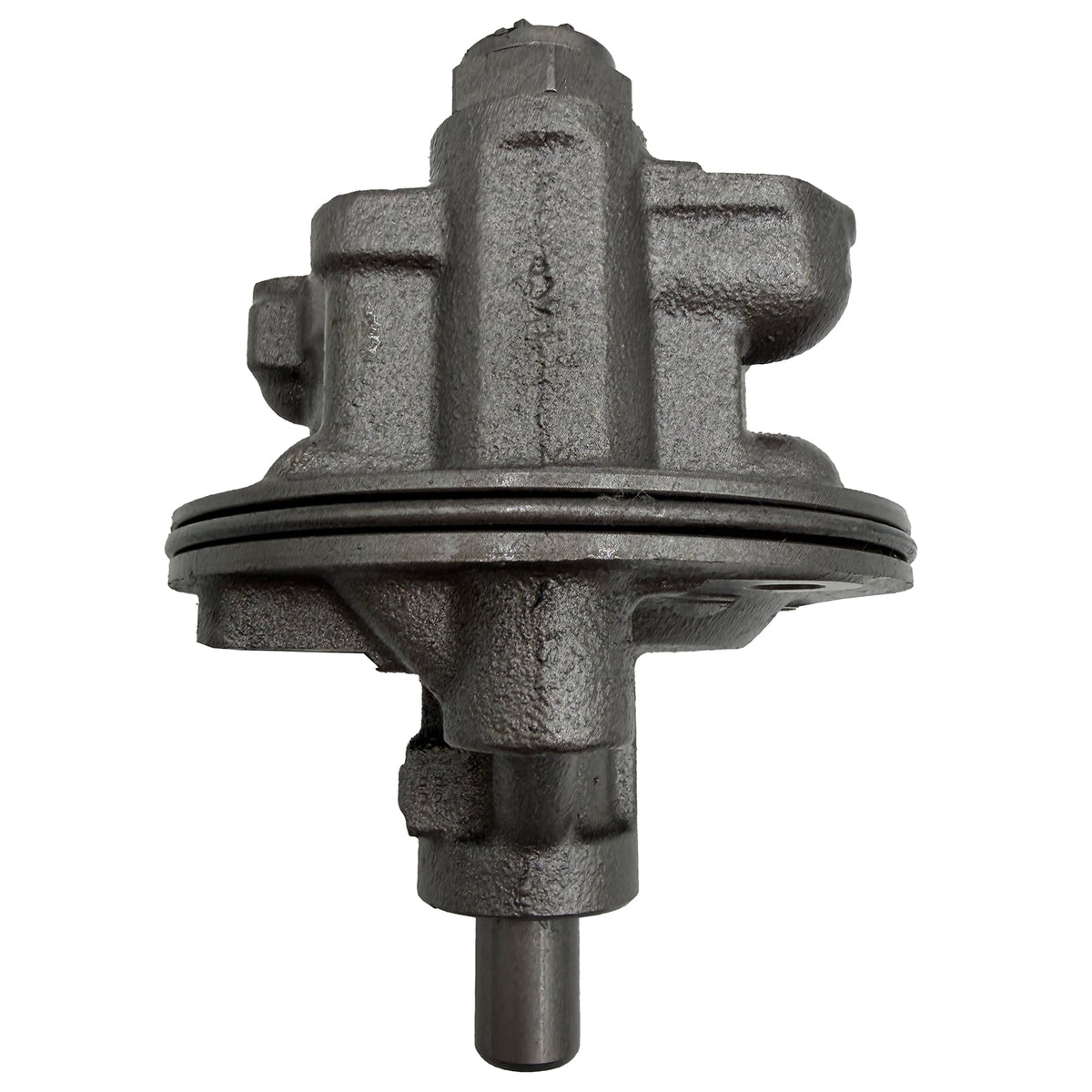

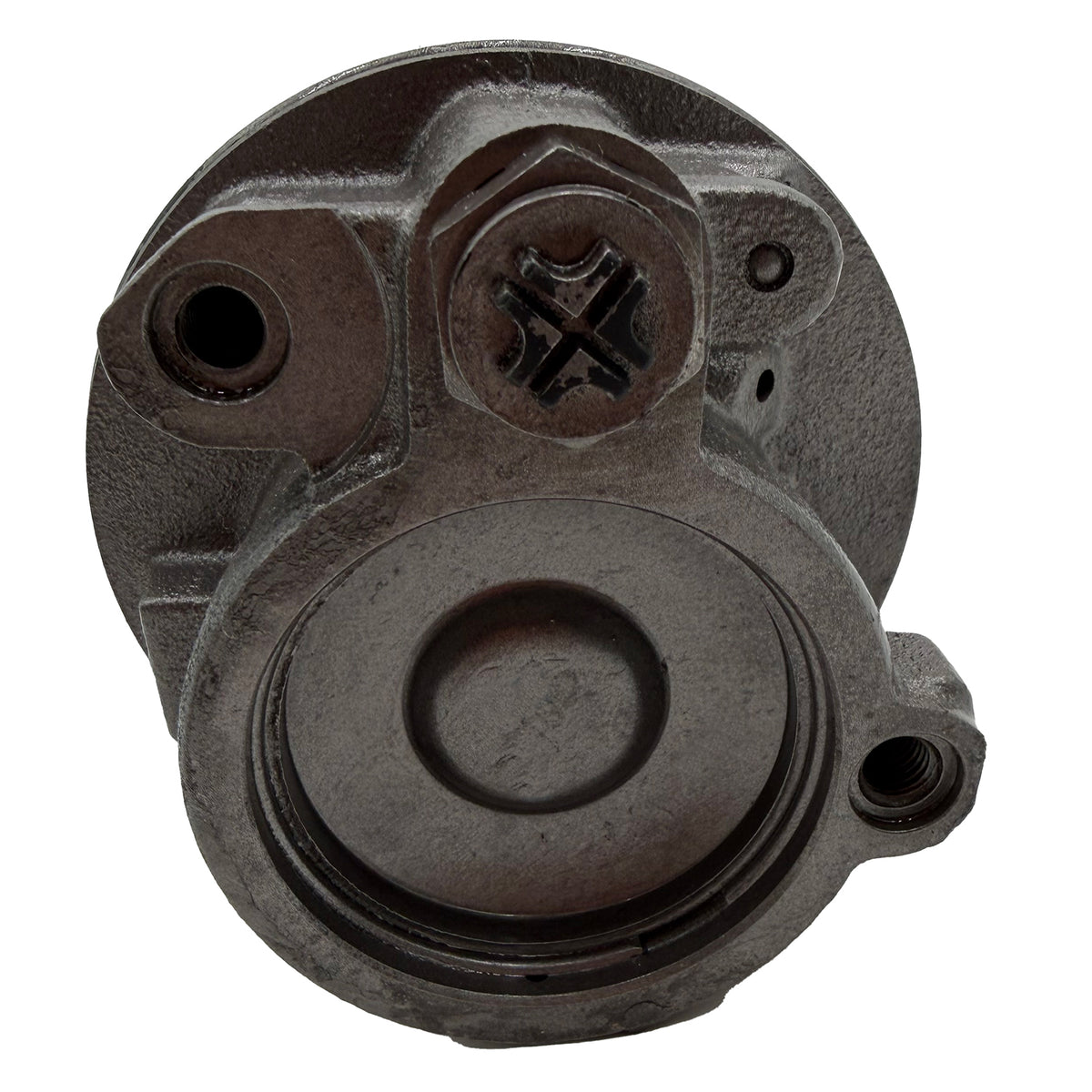

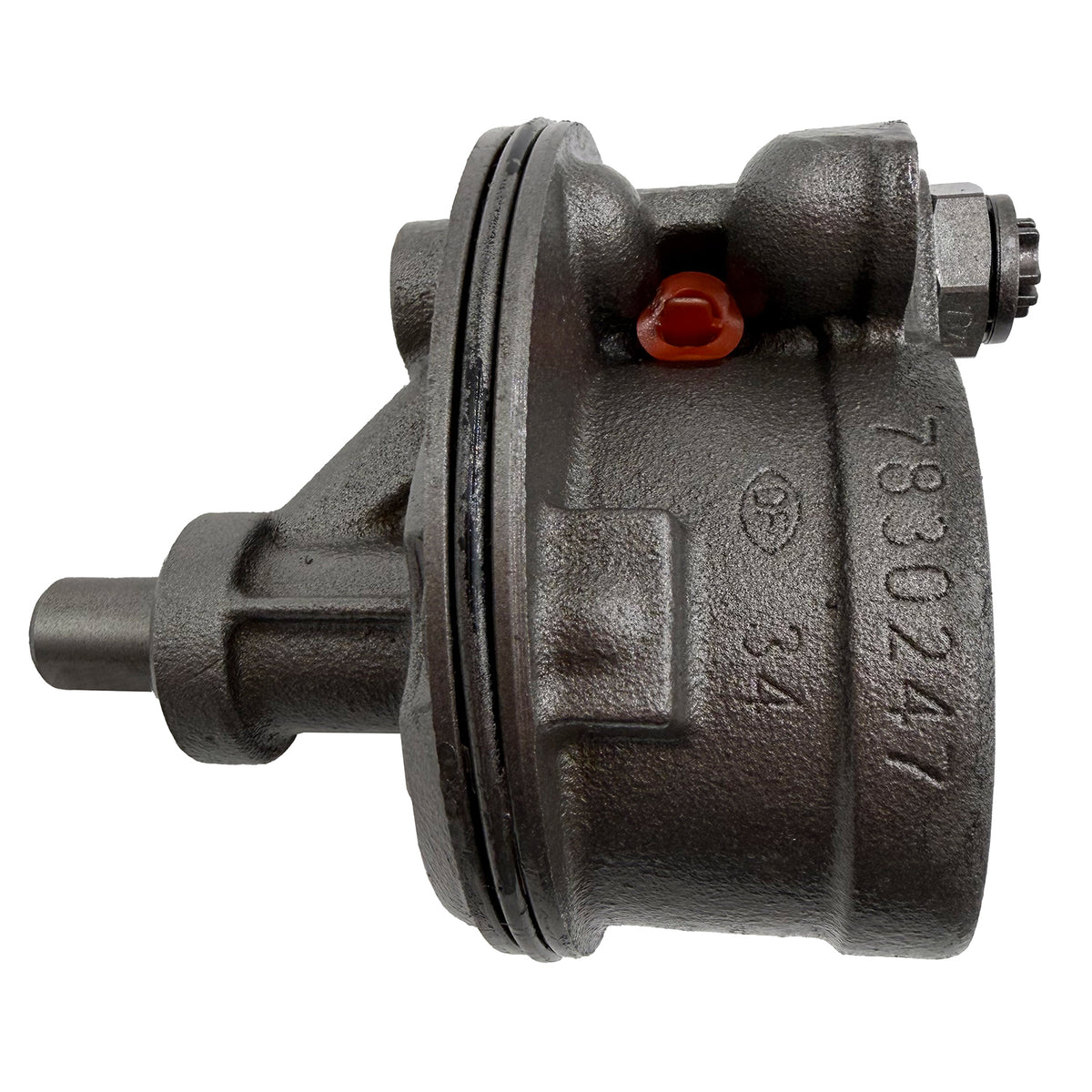

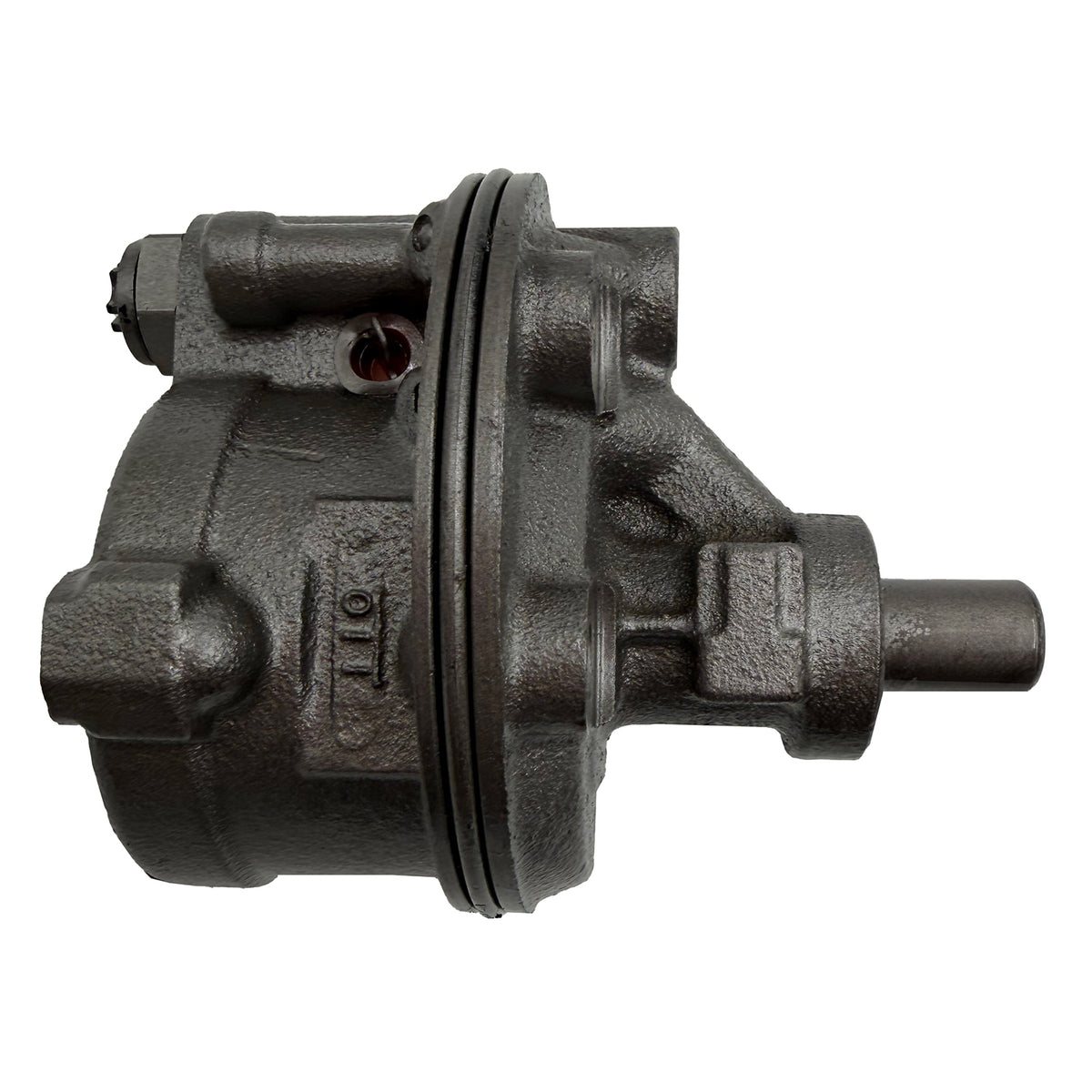

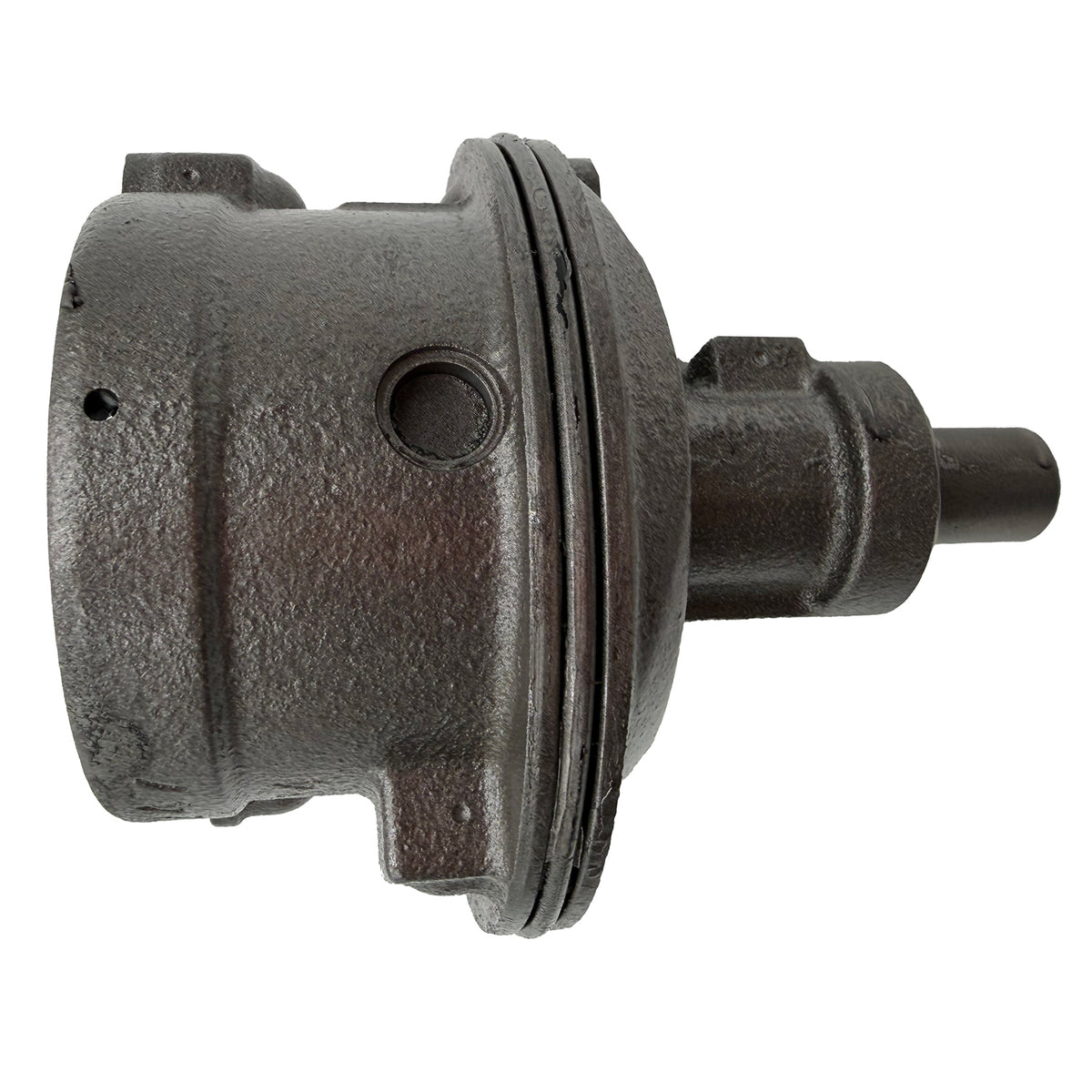

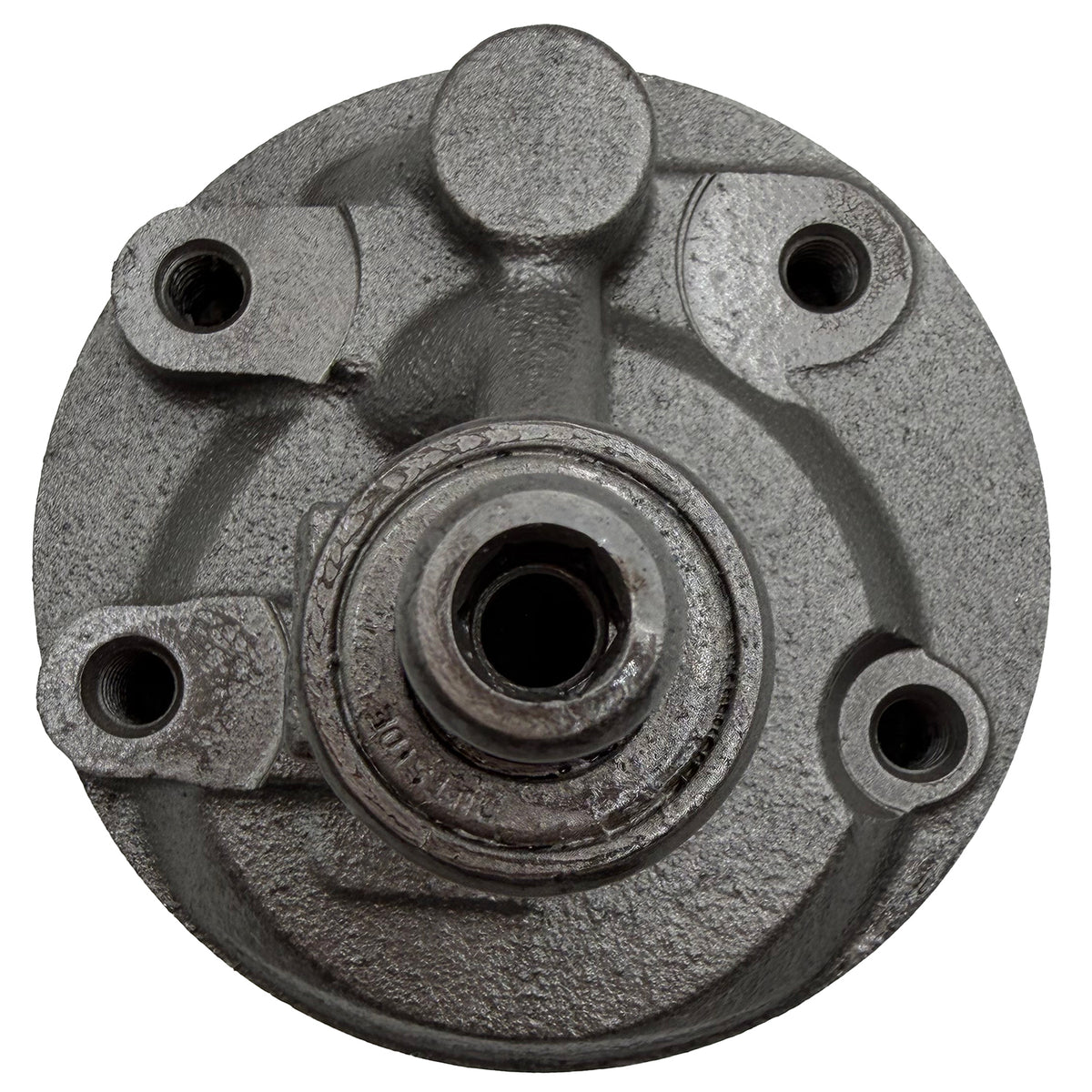

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 9706M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 9706M

SKU:9706M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Cast Iron
Mounting Hardware Included No
Outlet Thread Size 16X1.5
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Reservoir Cap Included No
Pulley Attachment Type Press-on
Pulley Included No
Remote Reservoir No
Reservoir Included No

Application Info: 1994 Chevrolet Blazer; 1988-1994 Chevrolet C1500; 1988-1994 Chevrolet C2500; 1992-1994 Chevrolet C2500 Suburban; 1988-1994 Chevrolet C3500; 1988-1994 Chevrolet K1500; 1988-1994 Chevrolet K2500; 1992-1994 Chevrolet K2500 Suburban; 1988-1994 Chevrolet K3500; 1989 Chevrolet R2500; 1989-1991 Chevrolet R2500 Suburban; 1988 Chevrolet R30; 1989-1991 Chevrolet R3500; 1989-1991 Chevrolet V1500 Suburban; 1989-1991 Chevrolet V2500 Suburban; 1988 Chevrolet V30; 1989-1991 Chevrolet V3500; 1988-1994 GMC C1500; 1988-1994 GMC C2500; 1992-1994 GMC C2500 Suburban; 1988-1994 GMC C3500; 1988-1994 GMC K1500; 1988-1994 GMC K2500; 1992 GMC K2500 Suburban; 1988-1994 GMC K3500; 1989-1991 GMC R1500 Suburban; 1988-1989 GMC R2500; 1989-1991 GMC R2500 Suburban; 1988-1991 GMC R3500; 1989-1991 GMC V1500 Suburban; 1989-1991 GMC V2500 Suburban; 1988-1991 GMC V3500; 1989 GMC Jimmy; 1994 GMC Yukon

Interchange: General Motors - 26028575

BBB Cross-Reference: 731-0125

Cardone Cross-Reference: 20-860

Instructions - 1               Instructions - 2

Instructions - 3               Instructions - 4

Instructions - 5               Instructions - 6
