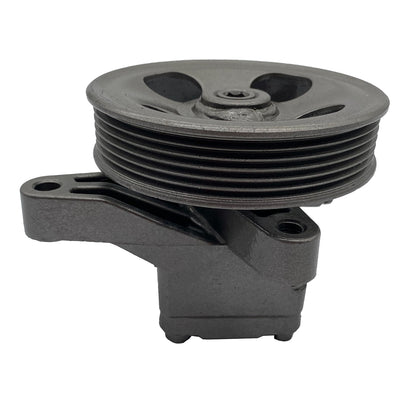

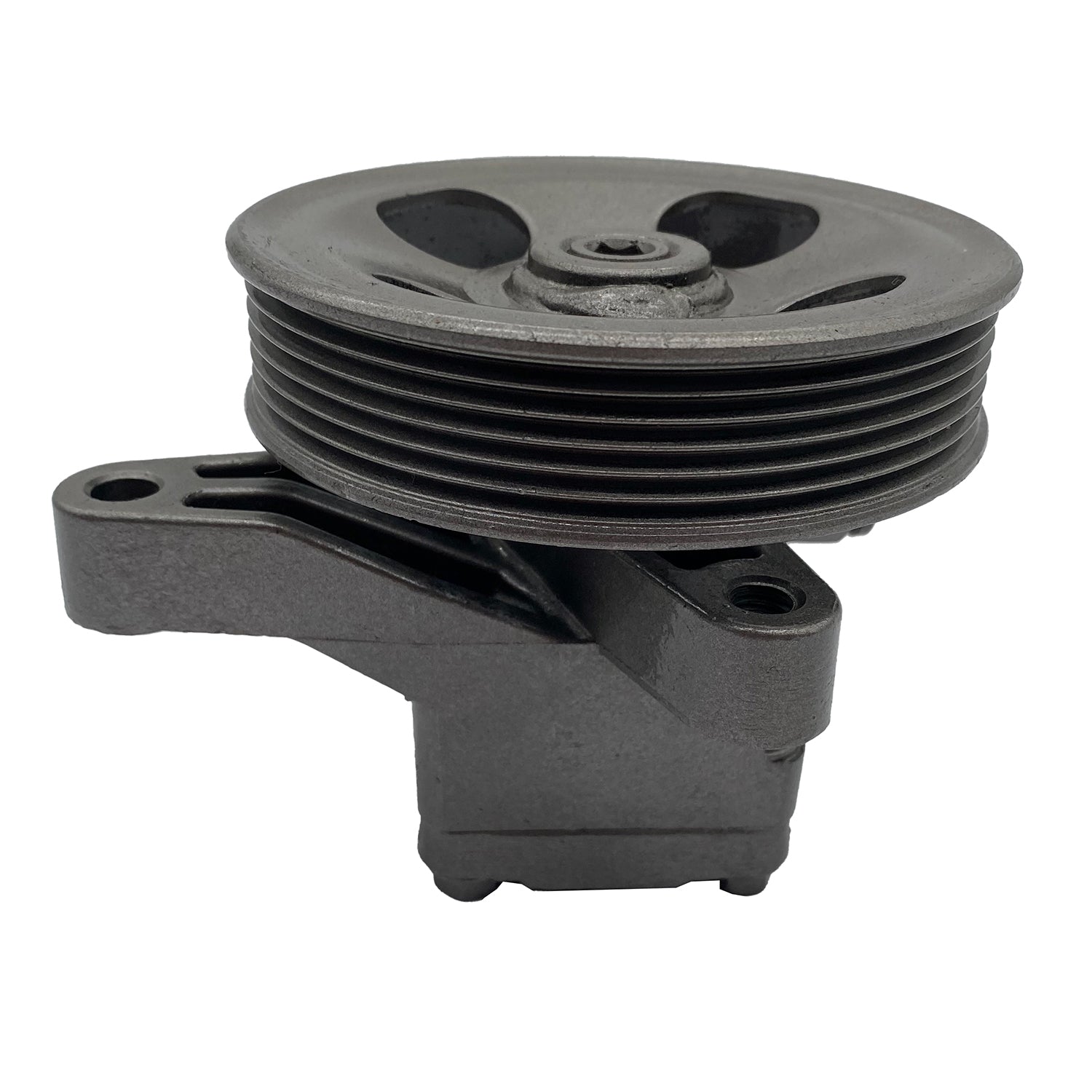

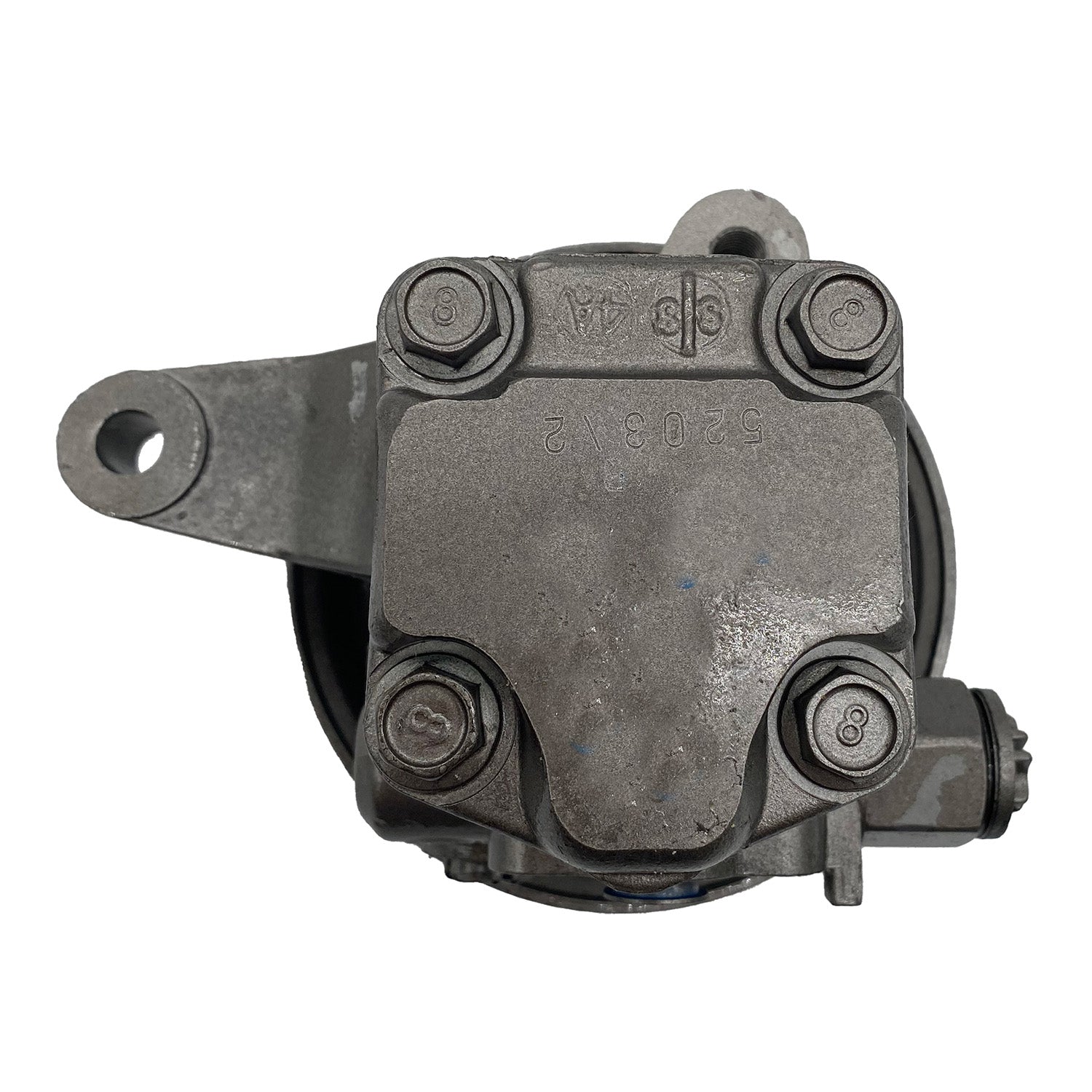

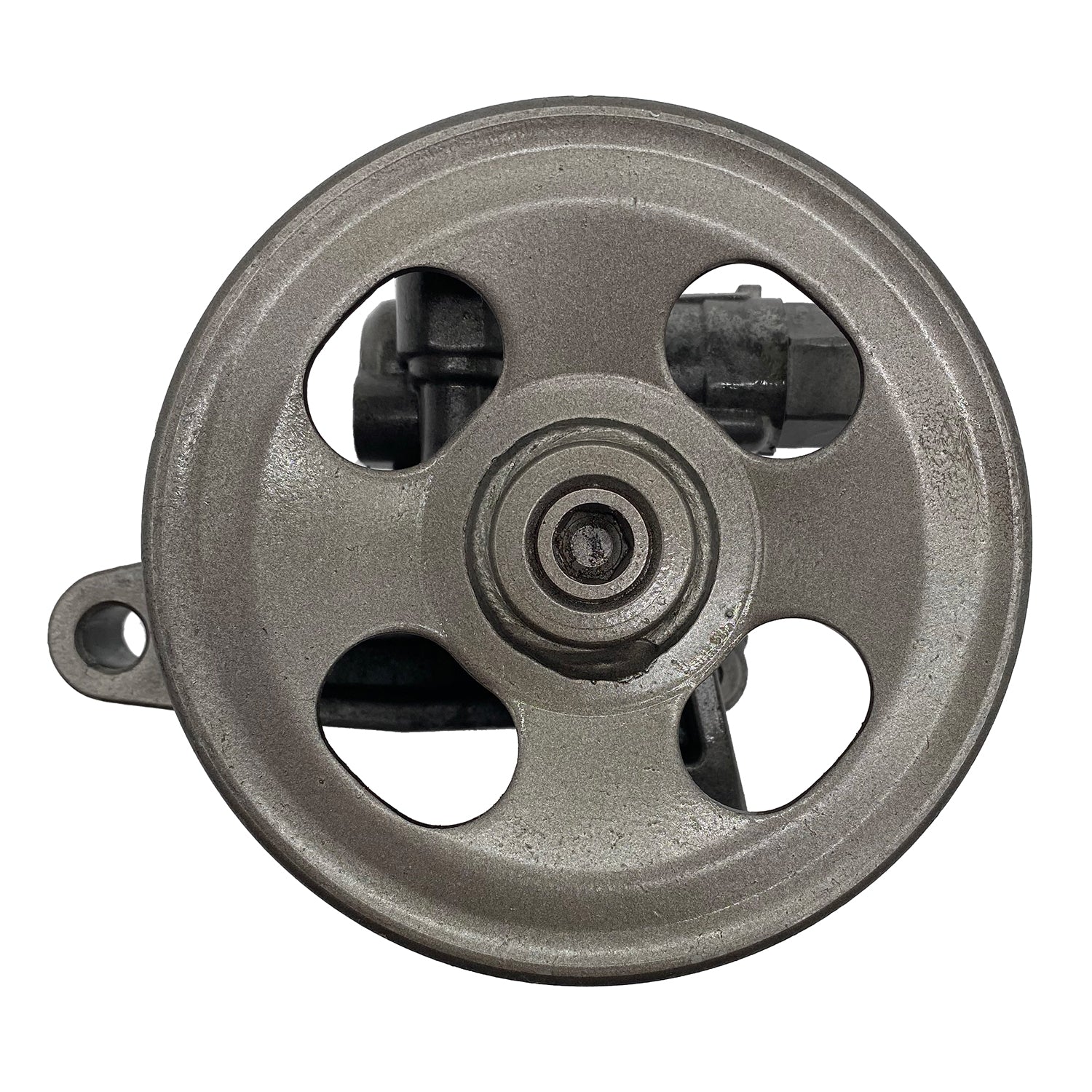

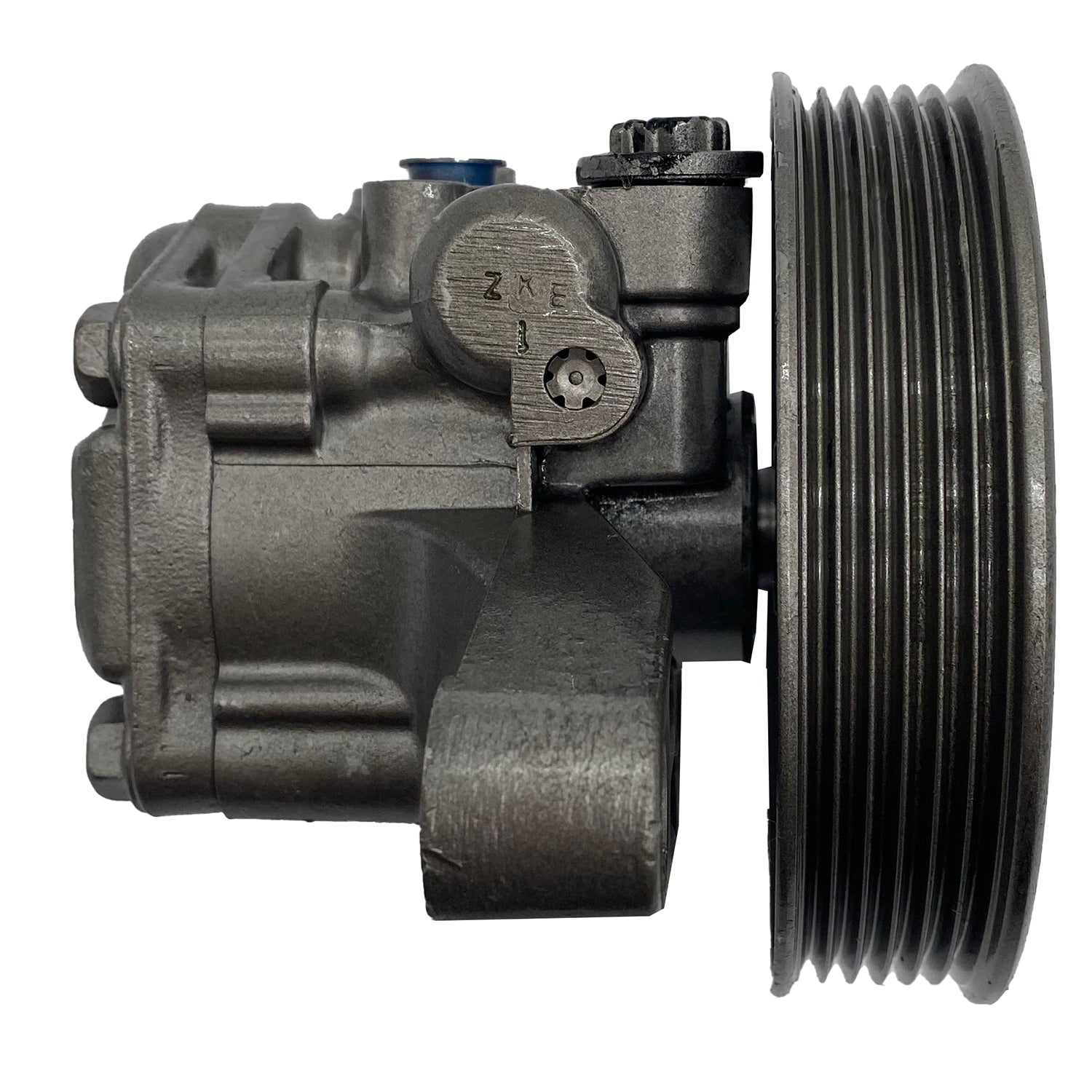

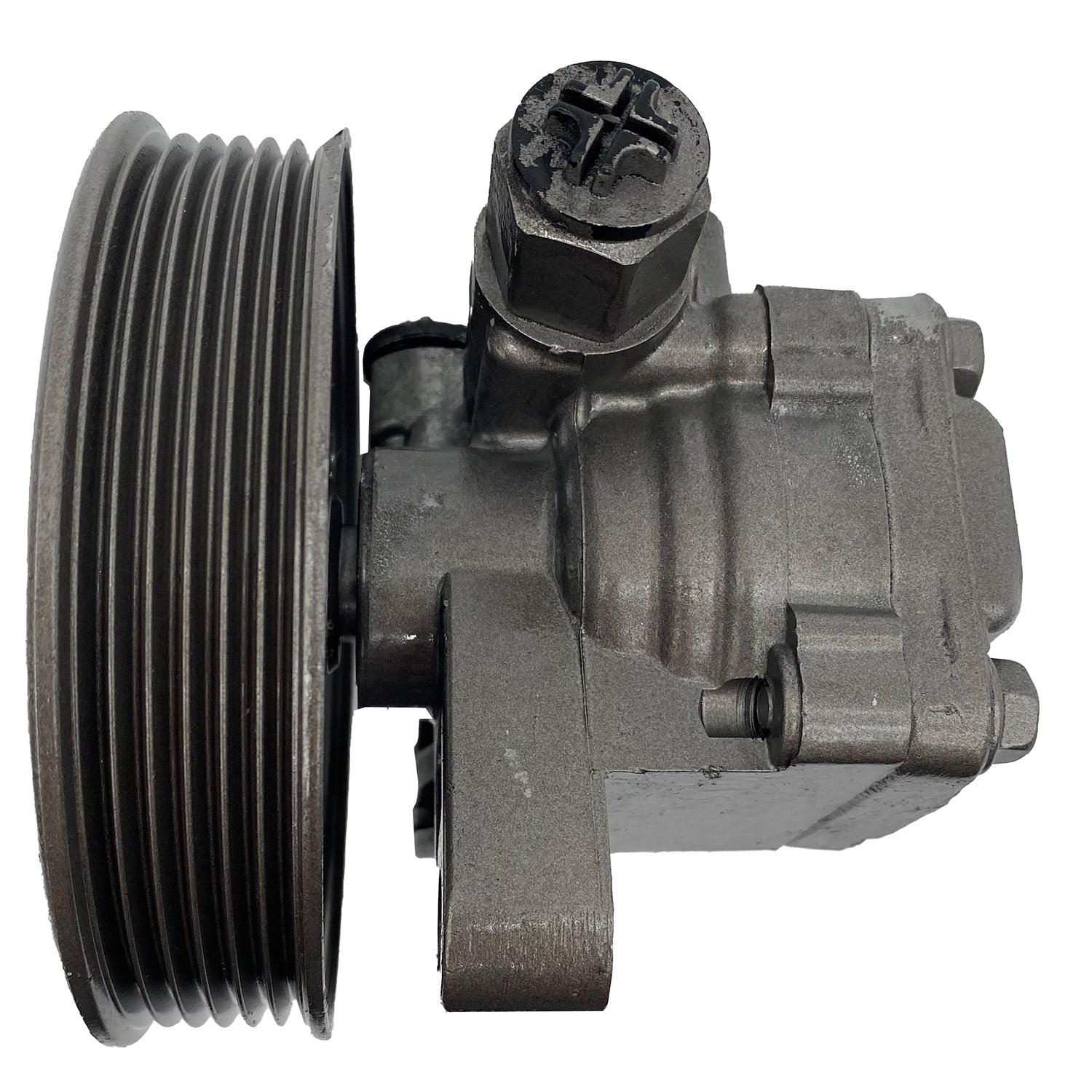

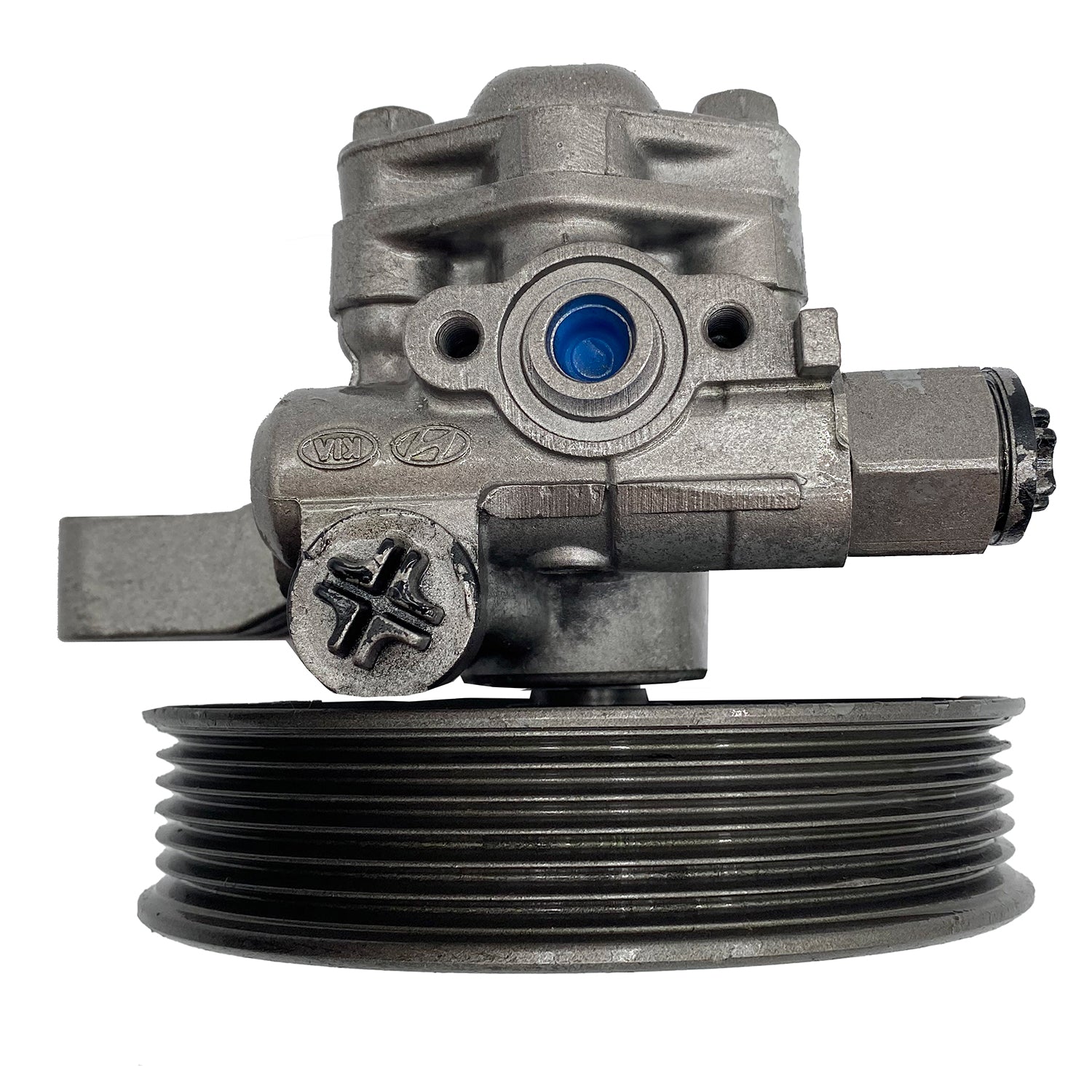

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96924M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96924M


MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Casting Material Aluminum
Distance Between Mounting Holes 15 IN
Distance Between Mounting Holes 381 MM
Hose Port Type Seat
Input Shaft Diameter 0.58 IN
Input Shaft Diameter 14.78 MM
Input Shaft Length 2.69 IN
Input Shaft Length 68.28 MM
Mounting Hole Quantity 2
Pressure Port Thread Size M14 x 1.5
Rack Length 47 IN
Rack Length 1193.8 MM
Return Port Thread Size M16 x 1.5
Thread Length 1.91 IN
Thread Length 48.59 MM
Inner Tie Rods Included Yes
Total Turns Lock To Lock 2.75

Application Info: Hyundai Genesis Coupe (2013-16) ***W/3.8L V6 Engine, W/Pulley, W/O Reservoir***

Interchange: 57100-2M400

BBB Cross-Reference: 990-1318

Cardone Cross-Reference: 21-671

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4
