MAVAL

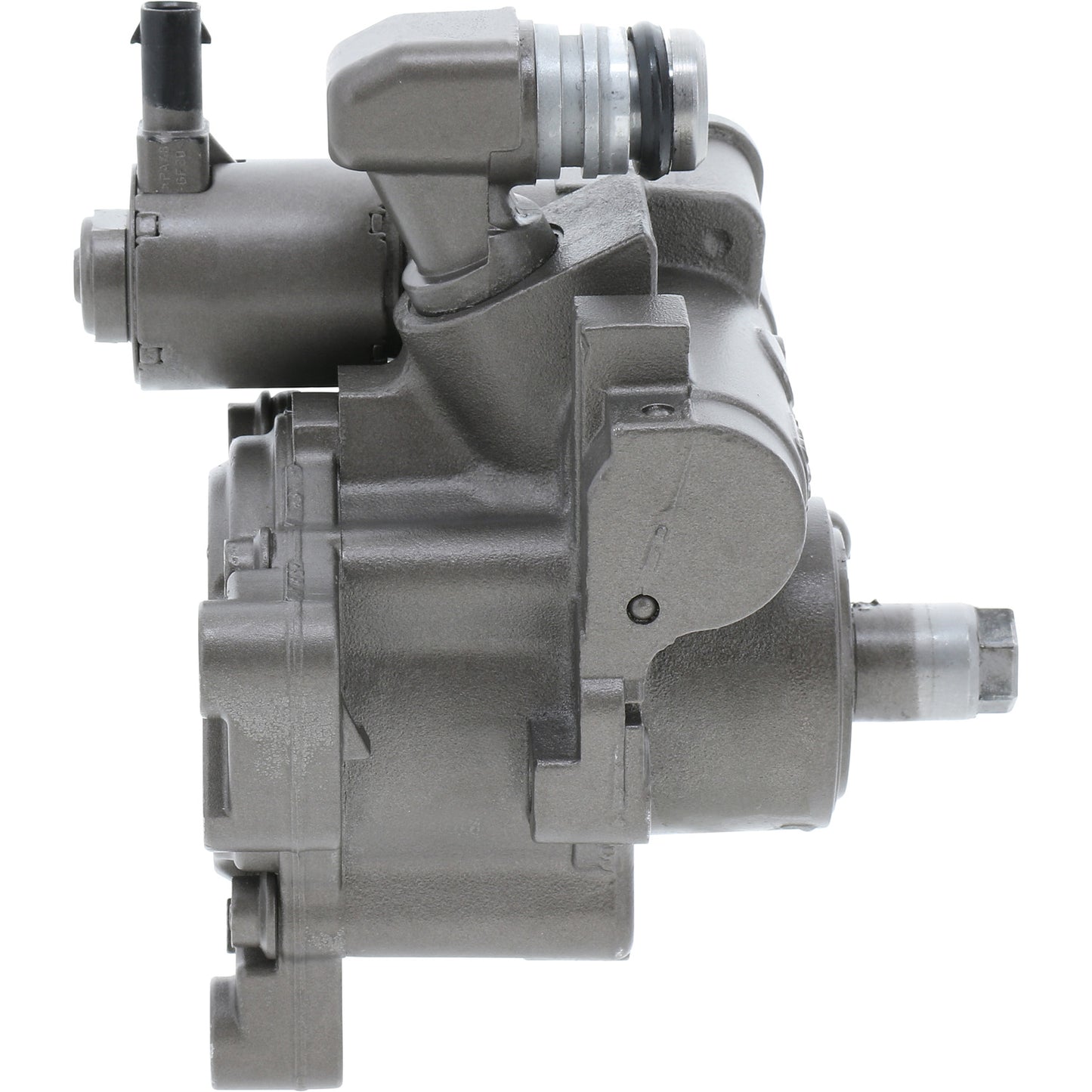

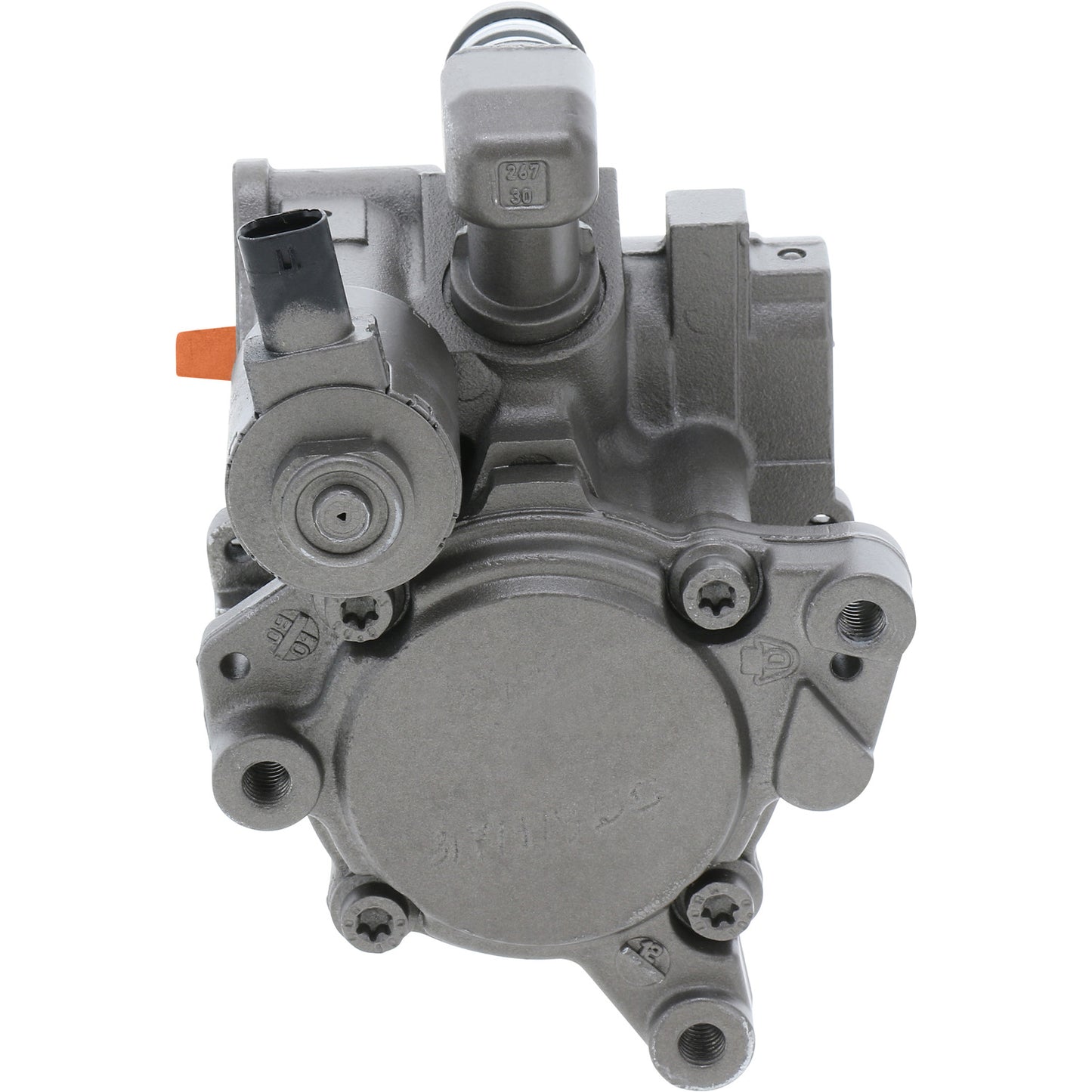

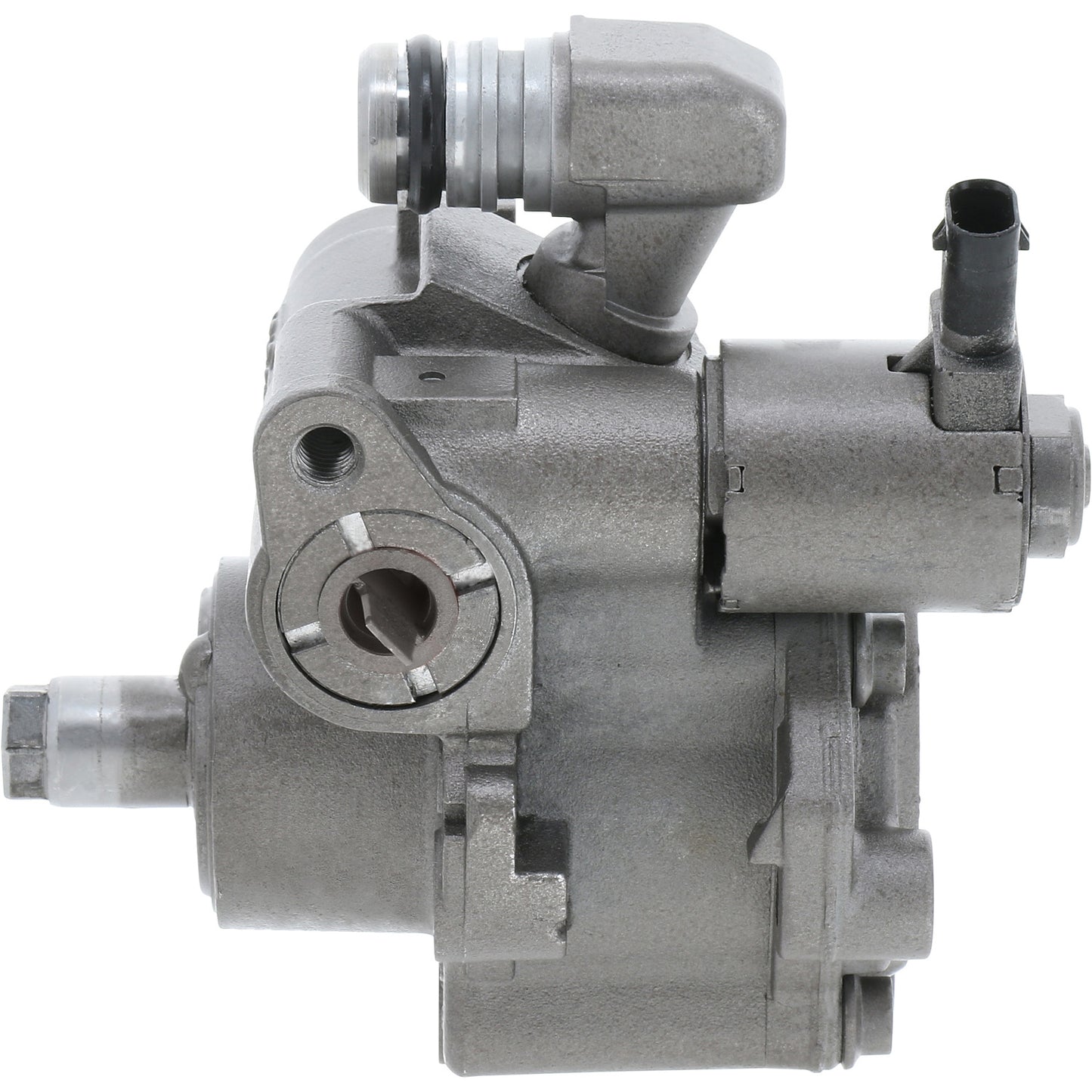

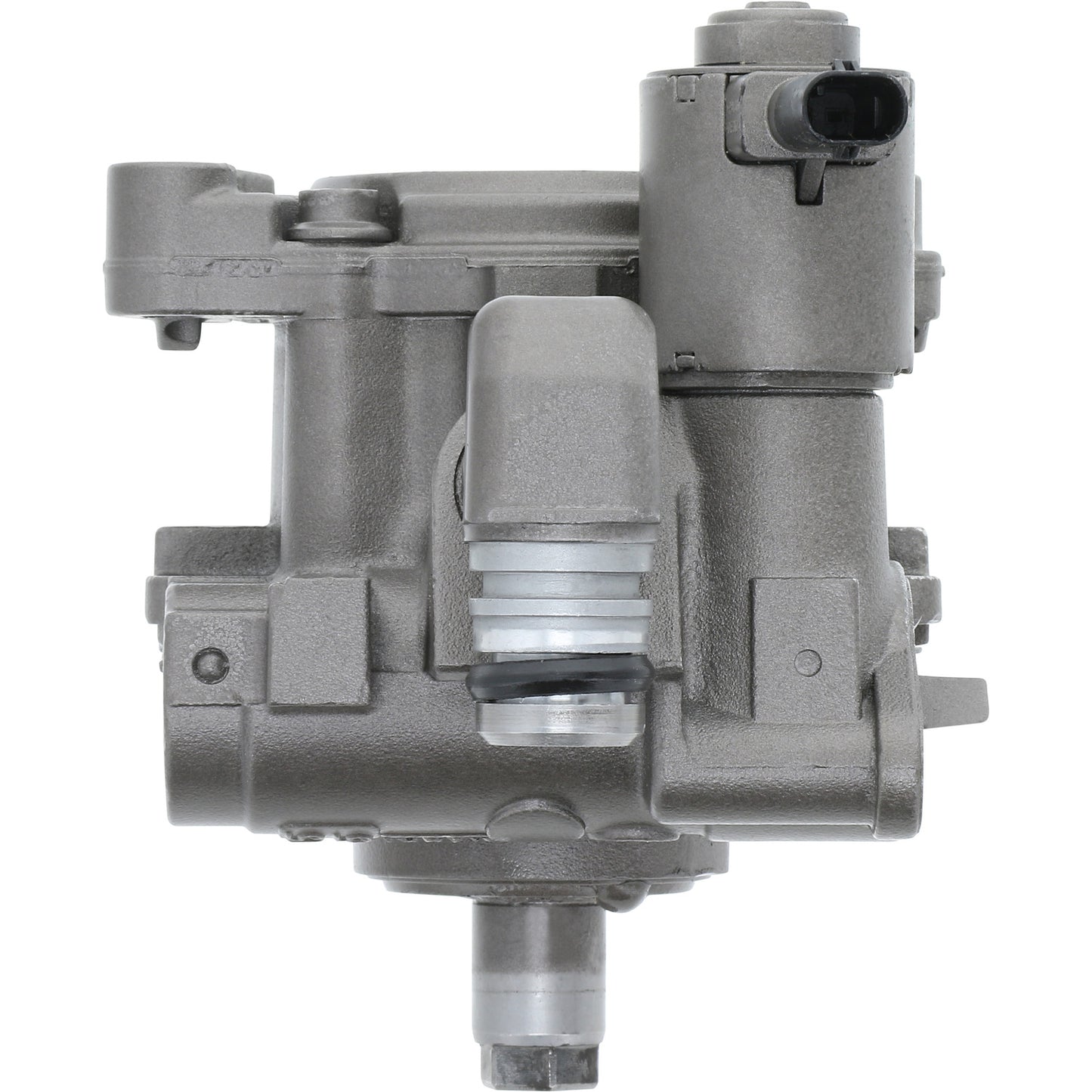

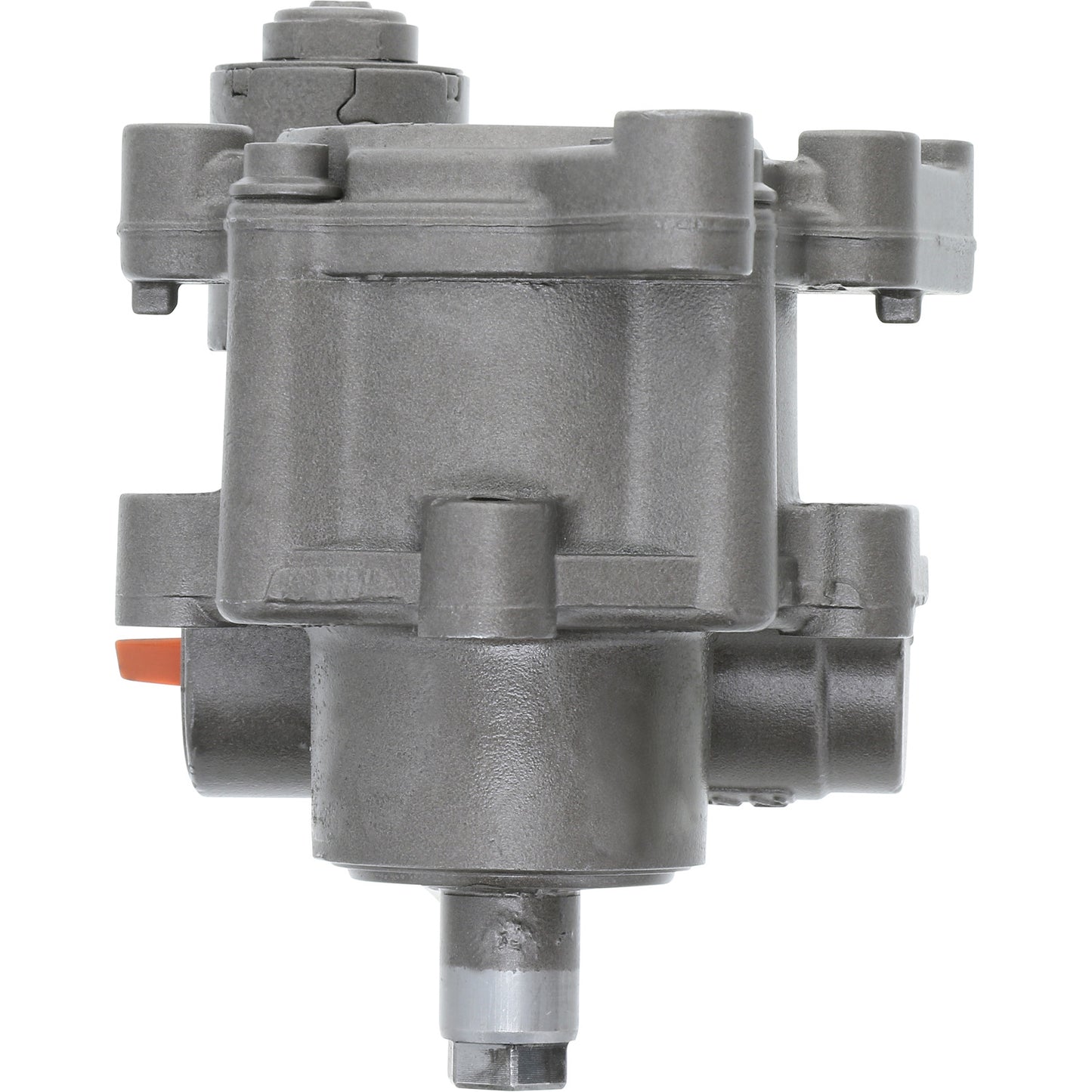

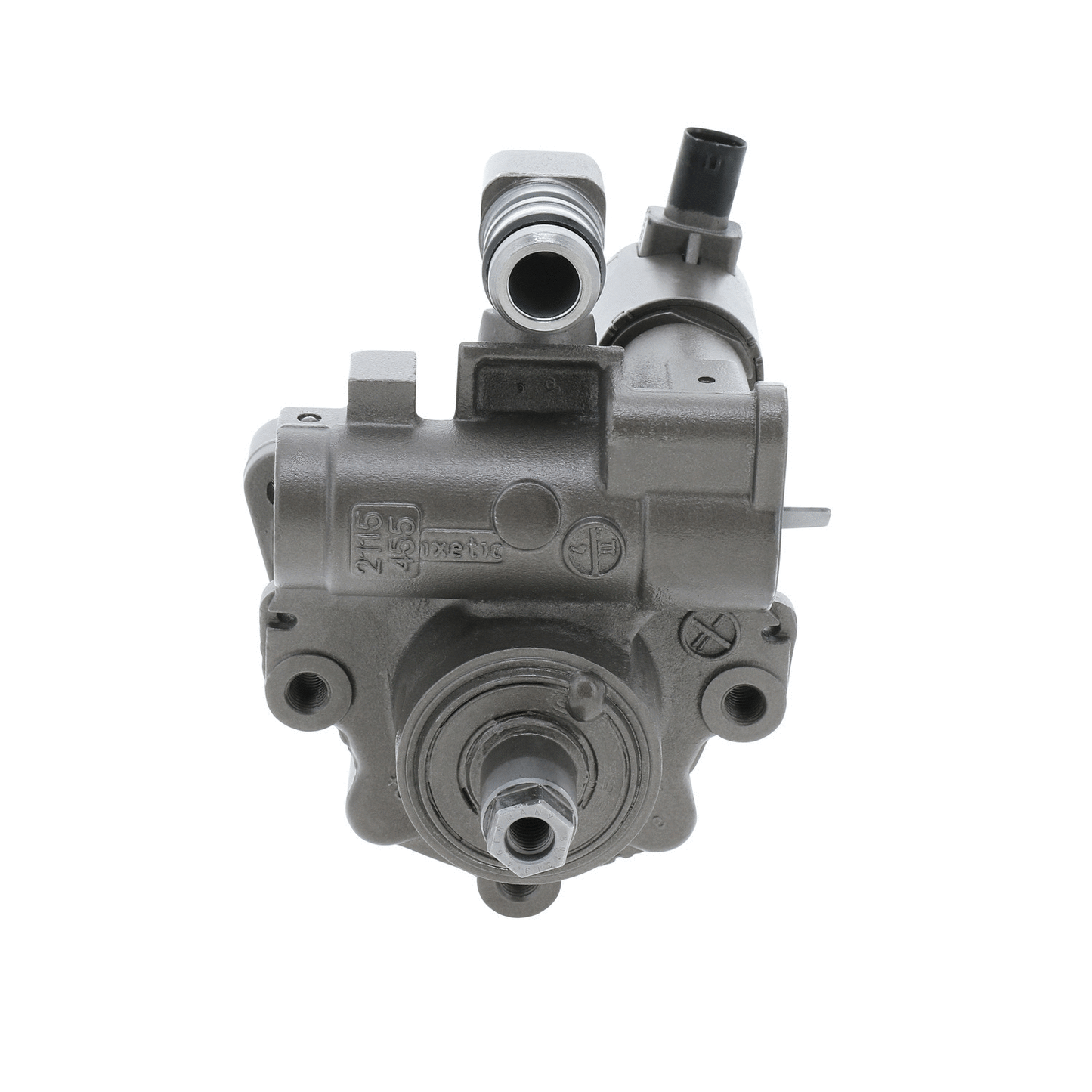

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96843M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96843M

SKU:96843M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Housing Material Aluminum
Inlet Quantity 1
Inlet Thread Size M6-1.0
New Or Remanufactured Remanufactured
Mounting Hole Quantity 3
Outlet Attachment Type Threaded
Outlet Thread Size M16x1.50
Pulley Attachement Type Spline
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: Mercedes-Benz E350 (2010-11), E550 (2010-11) ***W/LUK Pump, W/O Pulley, W/O Reservoir***

Interchange: 006 466 44 01

BBB Cross-Reference: 990-0126

Cardone Cross-Reference: 21-543

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
