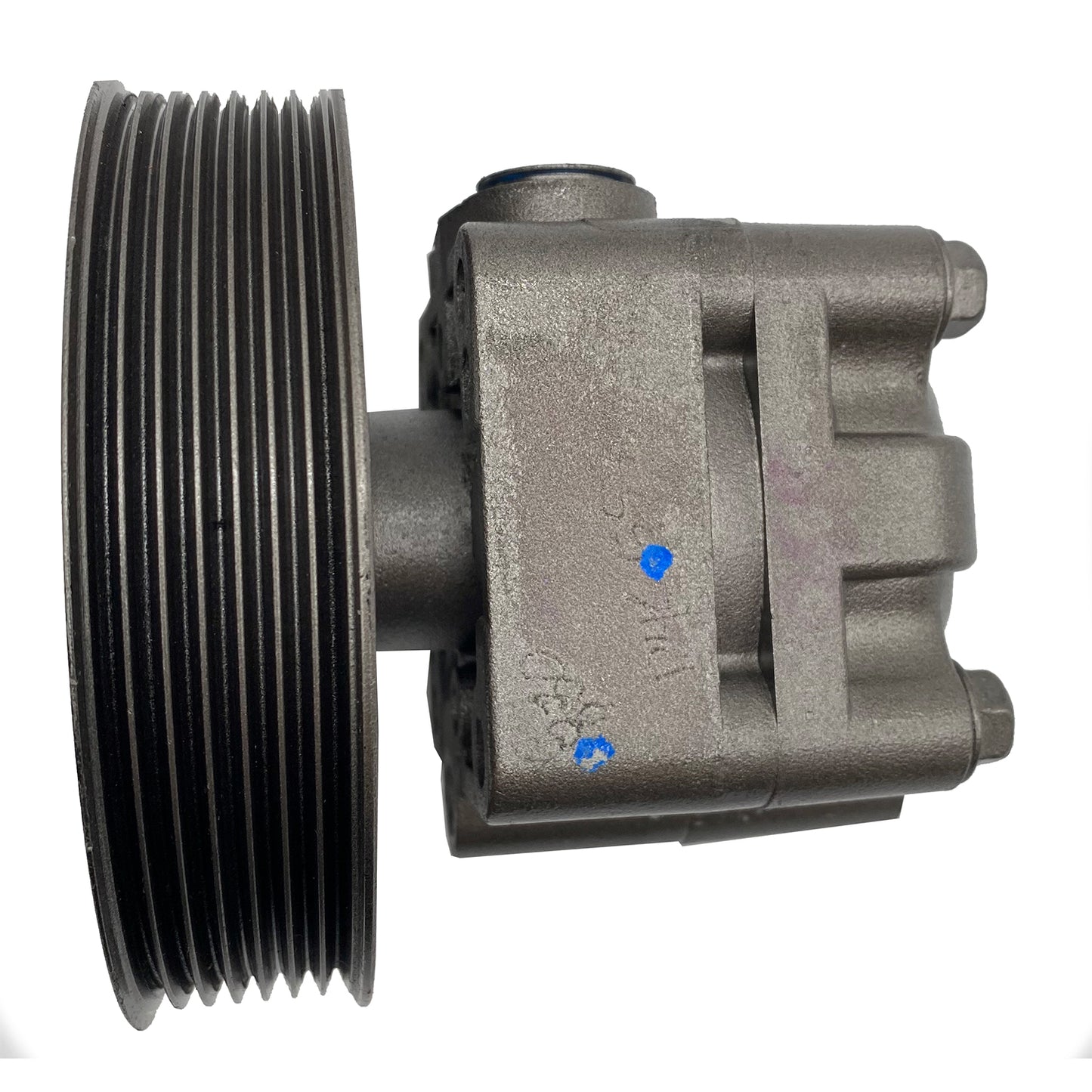

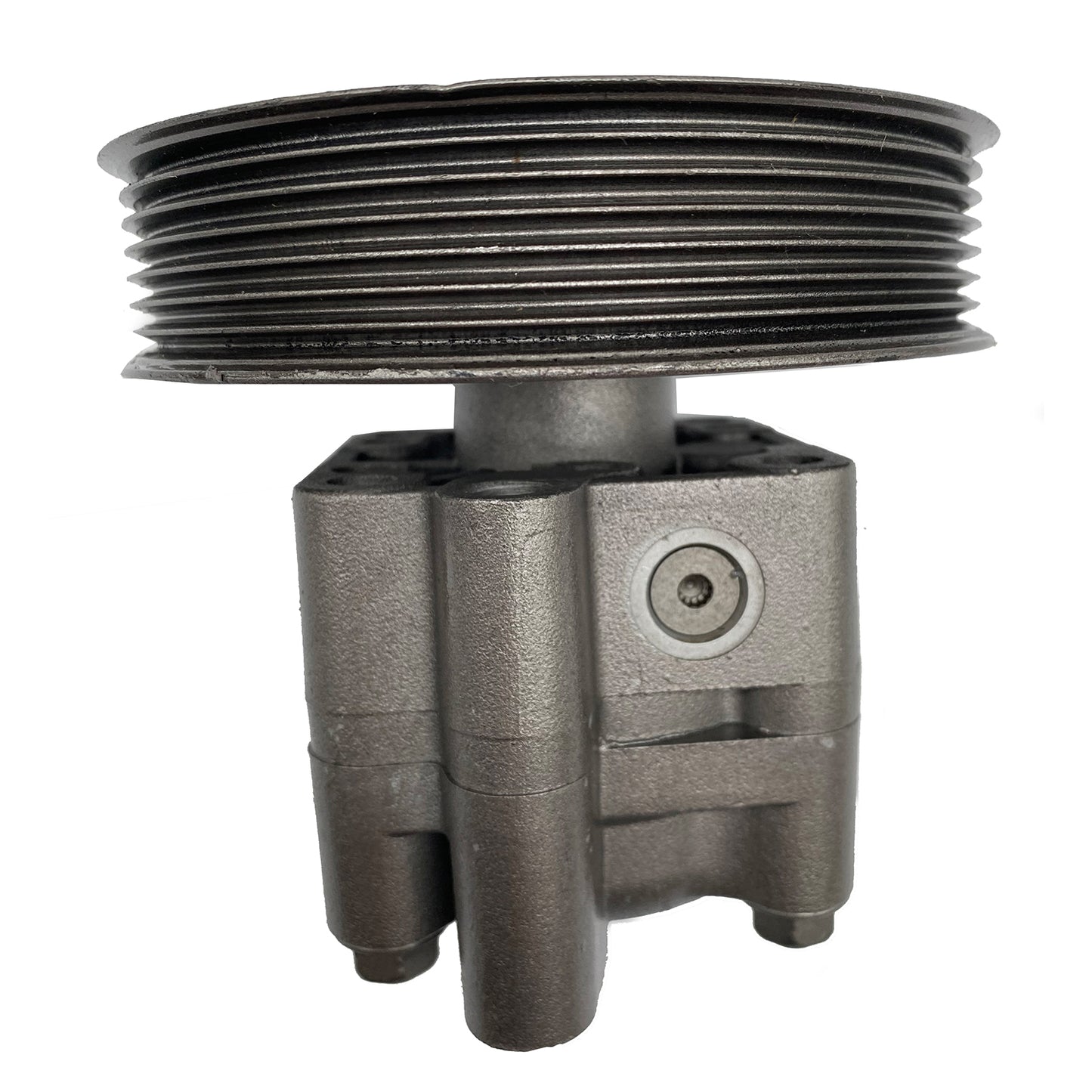

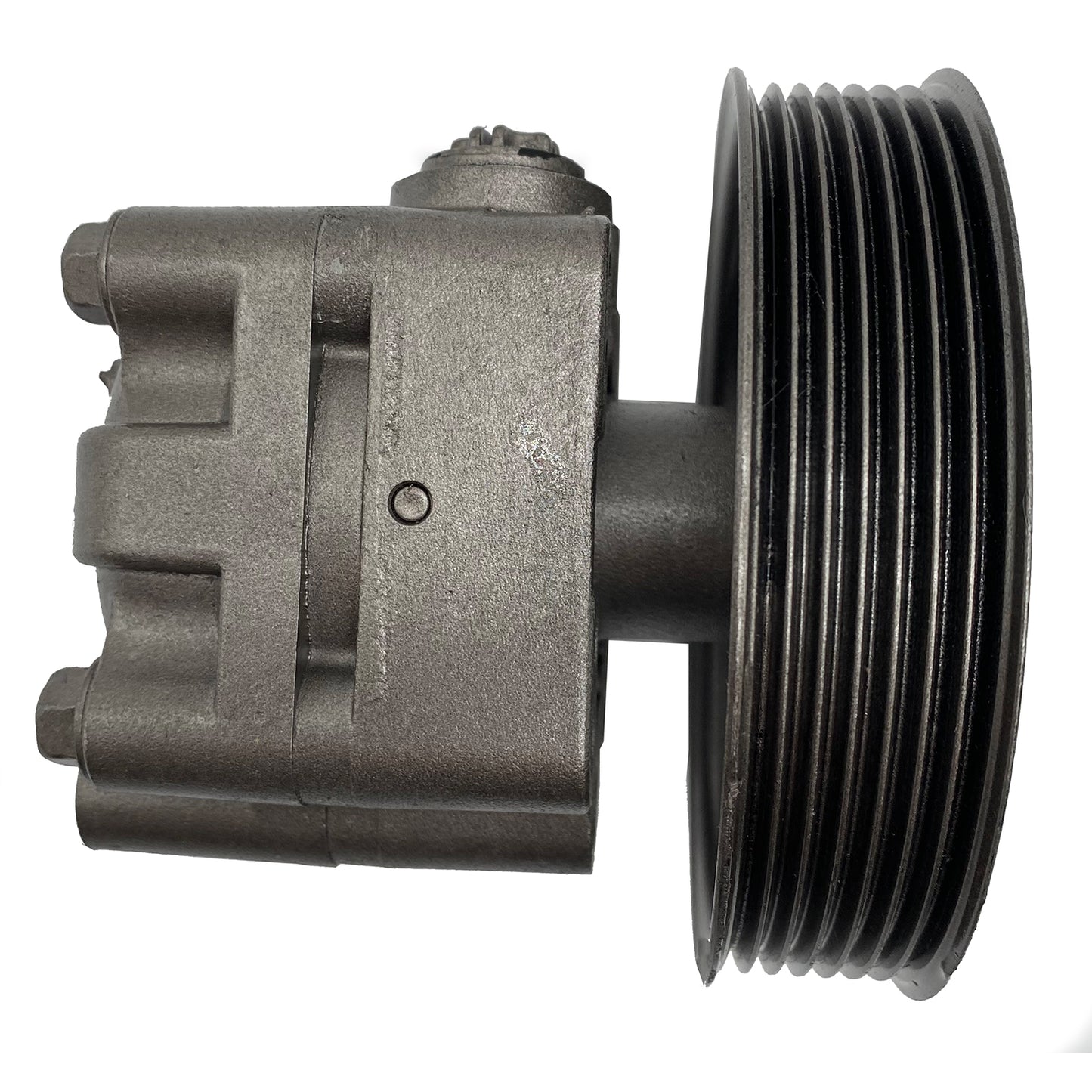

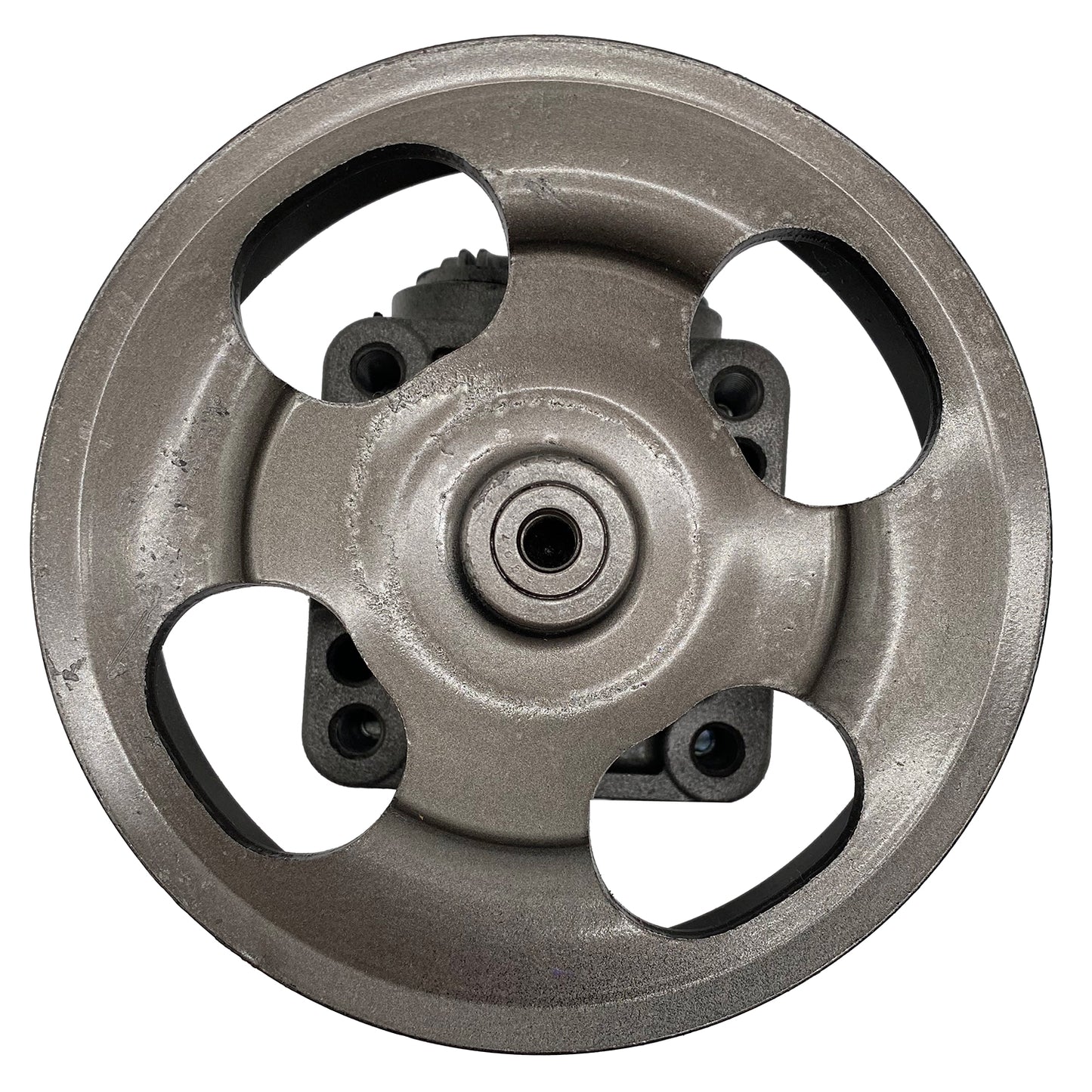

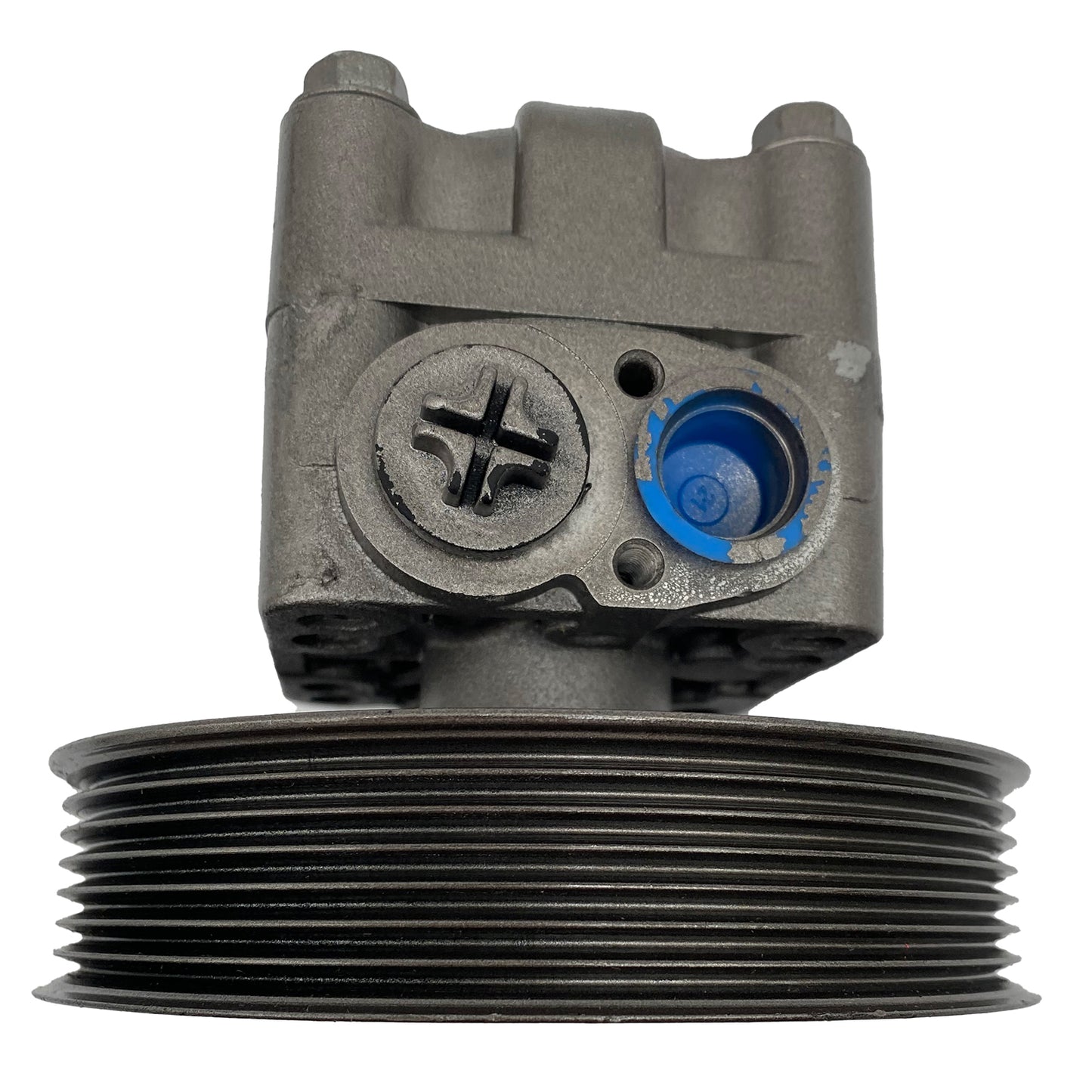

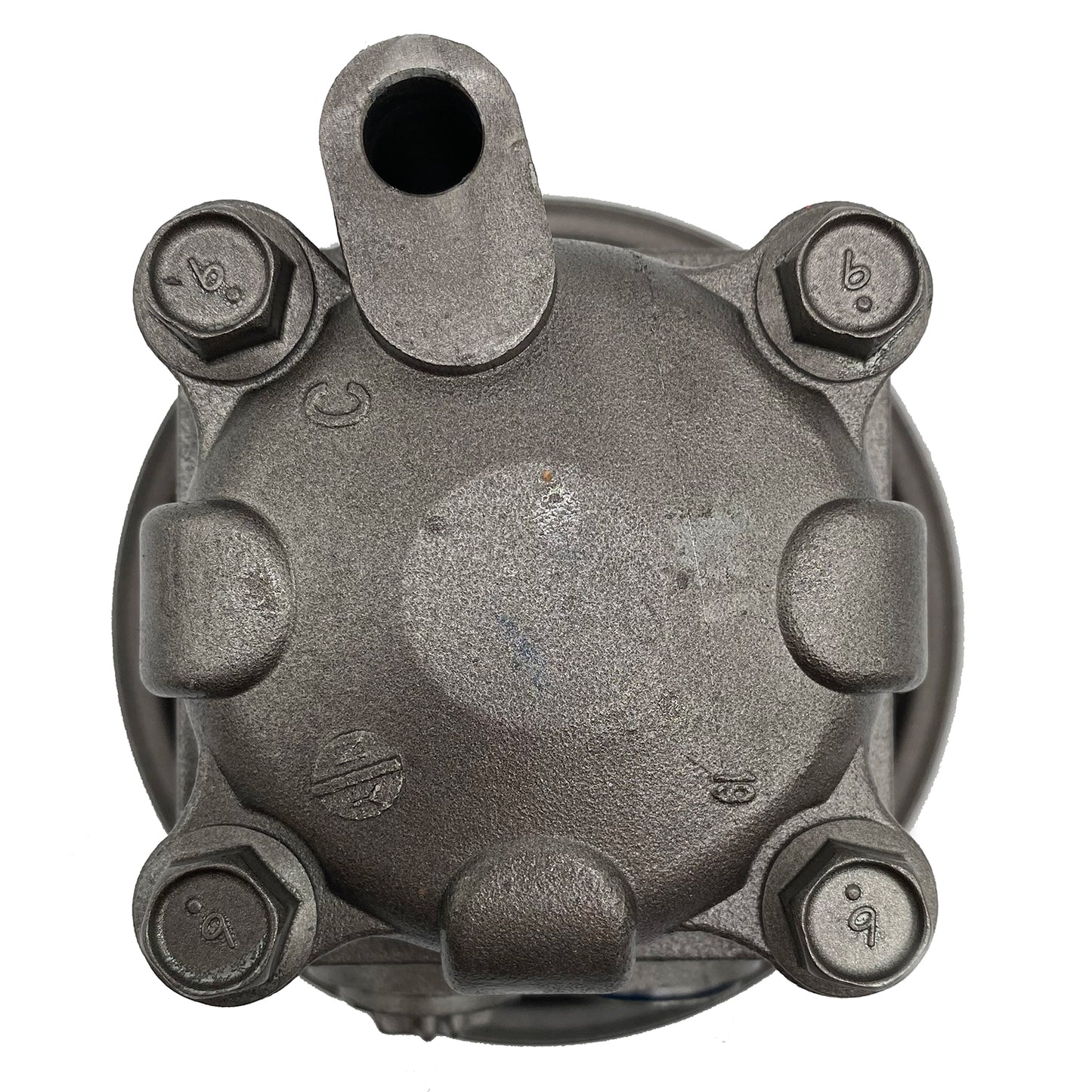

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96830M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96830M


MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Housing Material Aluminum
Inlet Attachment Type Pipe
Inlet Quantity 1
Inlet Thread Size M6-1.0
New Or Remanufactured Remanufactured
Mounting Hole Quantity 8
Outlet Attachment Type Threaded
Outlet Thread Size M16x1.50
Outlet Size M16x1.50
Outlet Thread Size M16x1.50
Pulley Attachment Type Press-on
Pulley Included Yes
Remote Reservoir Yes
Reservoir Included No

Application Info: Infiniti M37 (2011-13) ***W/AWD, W/O 4 Wheel Steering, W/Pulley, W/O Reservoir***

Interchange: 49110-1MD1A

BBB Cross-Reference: 990-1229

Cardone Cross-Reference:

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
