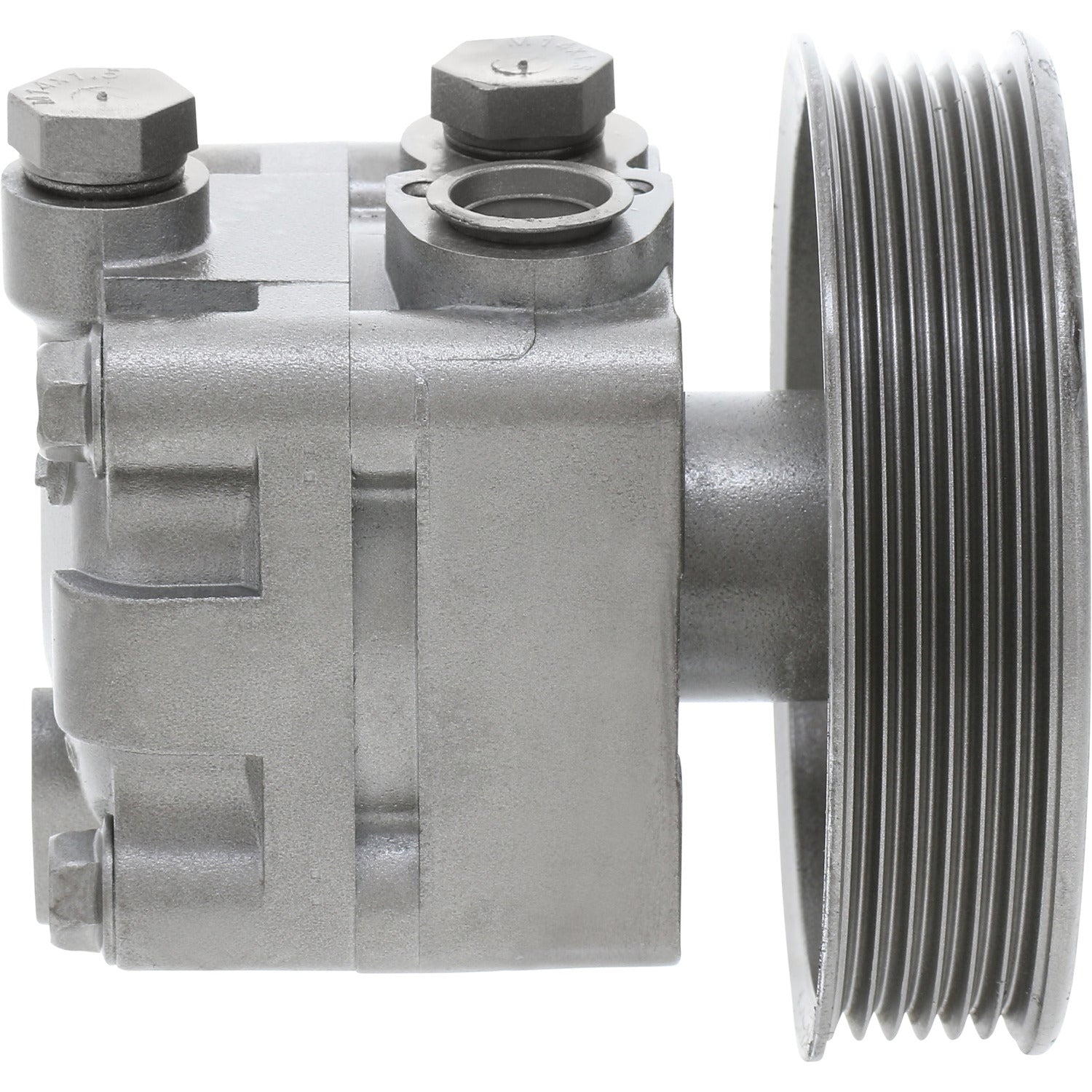

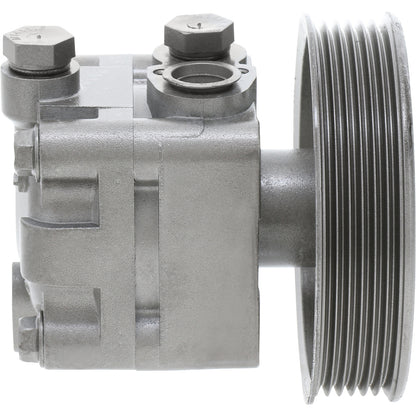

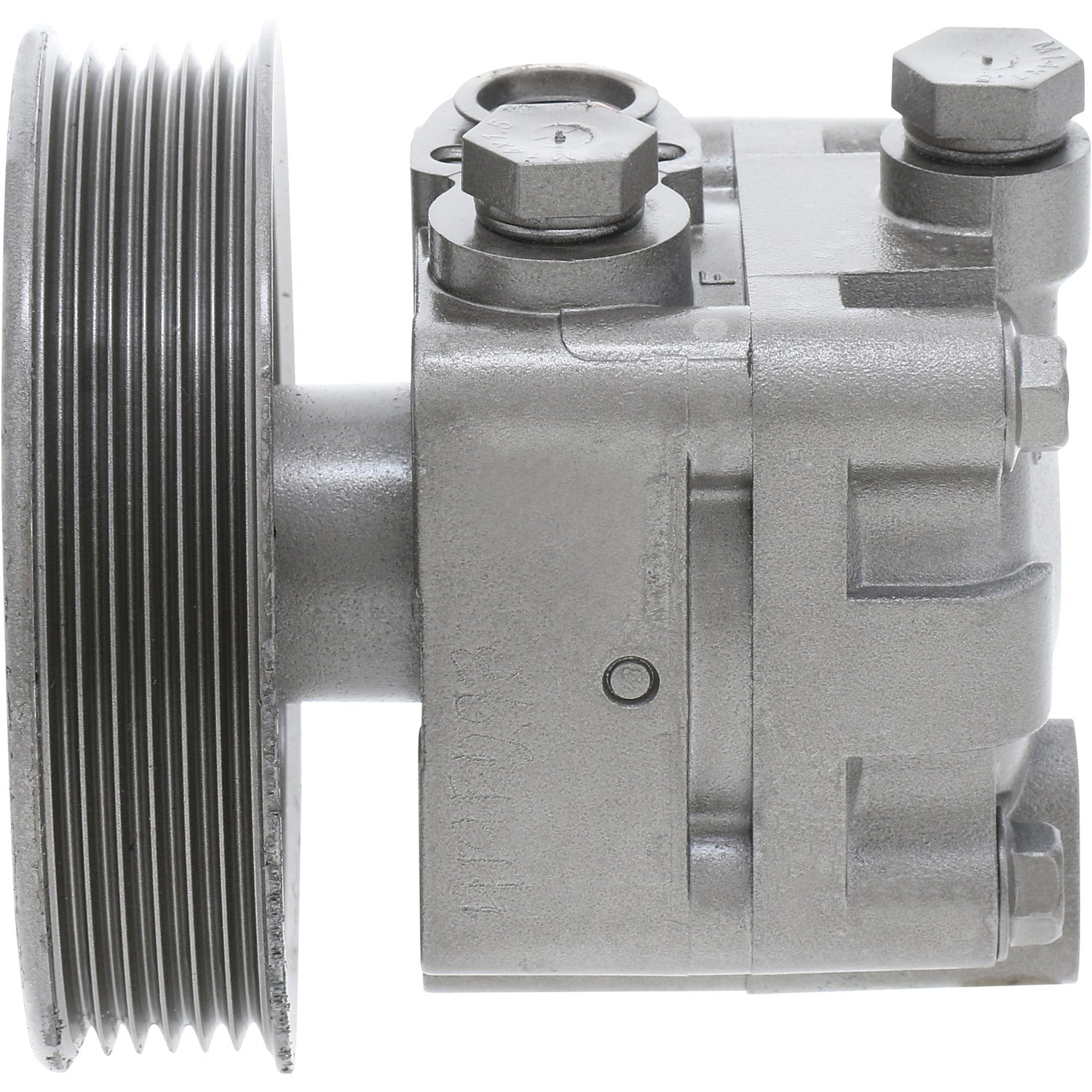

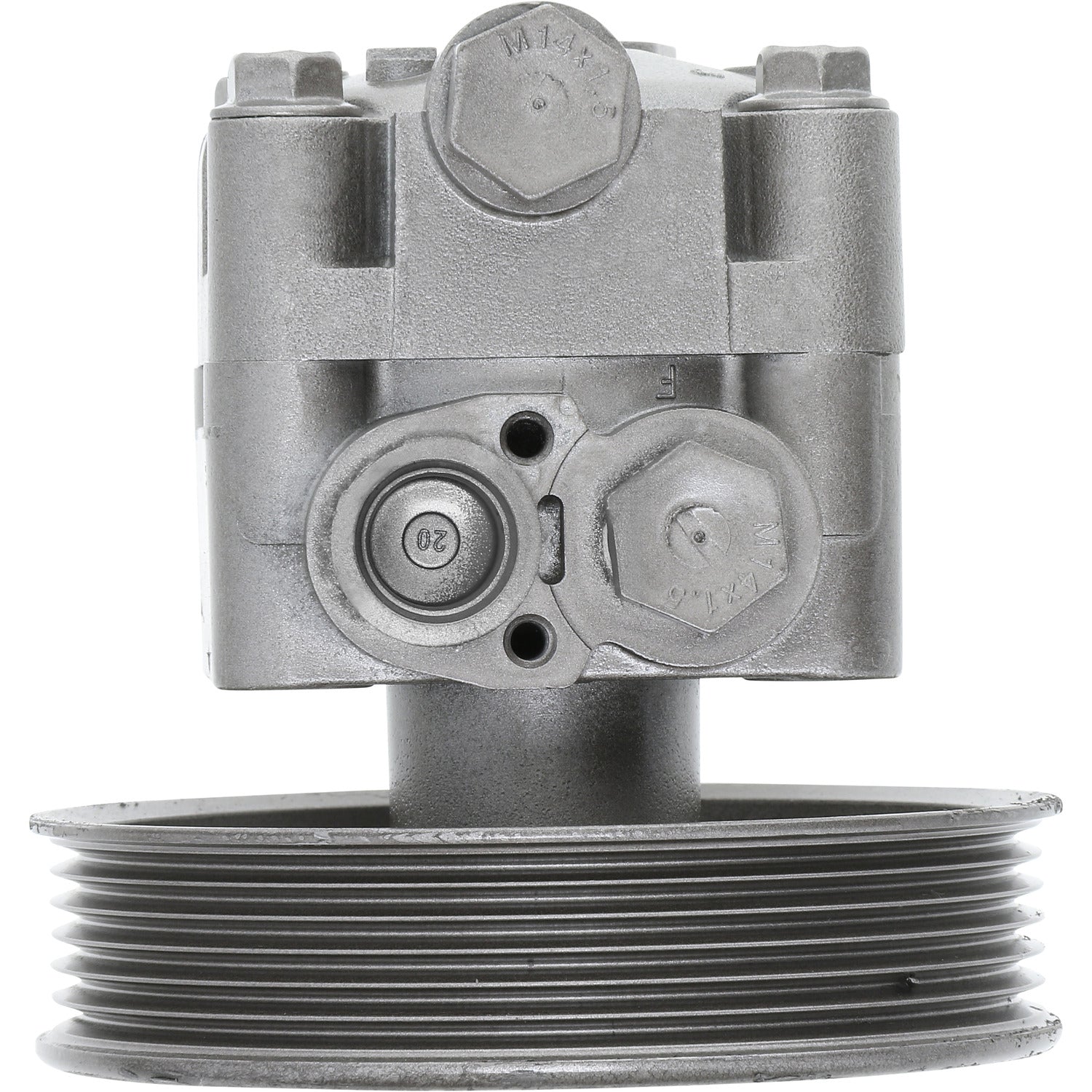

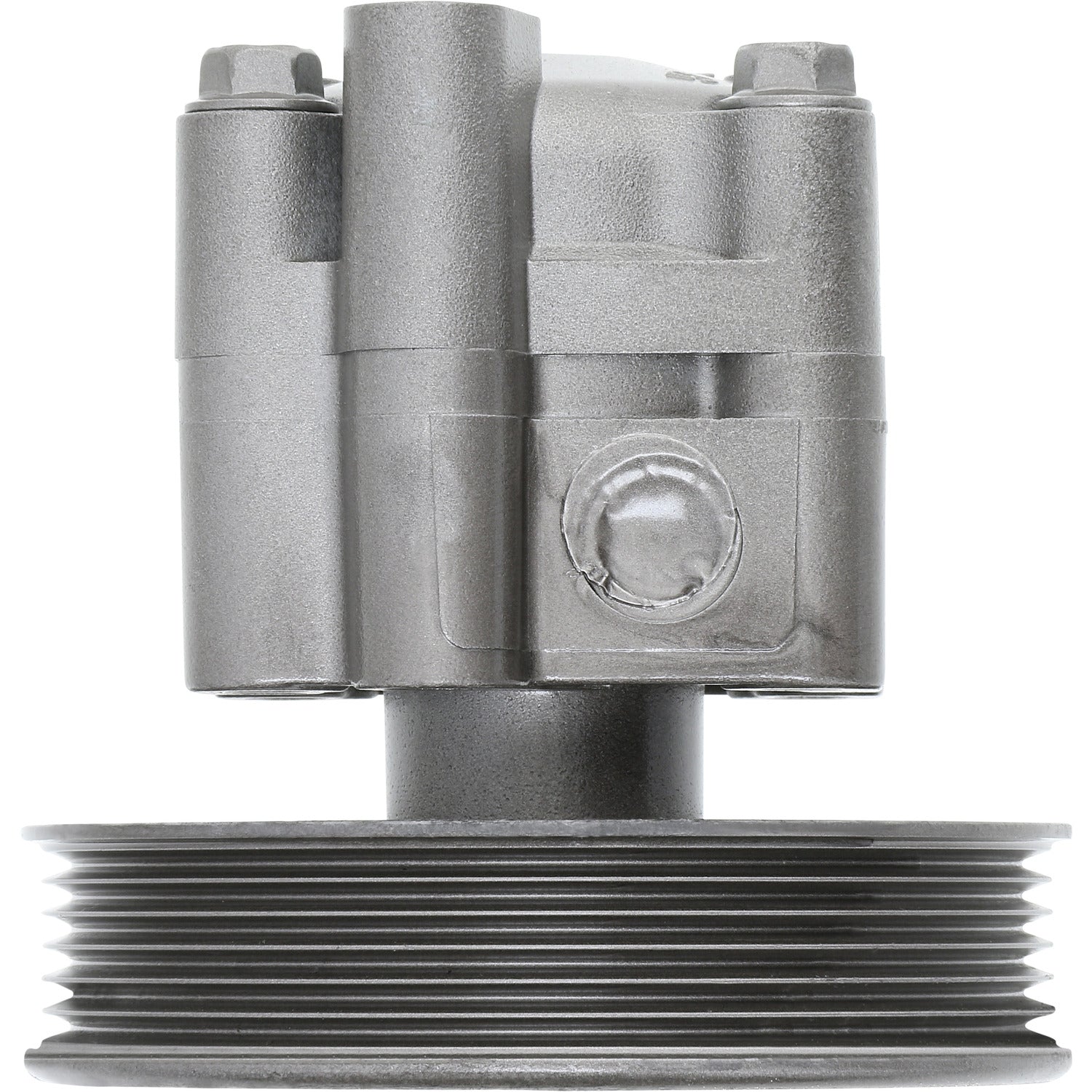

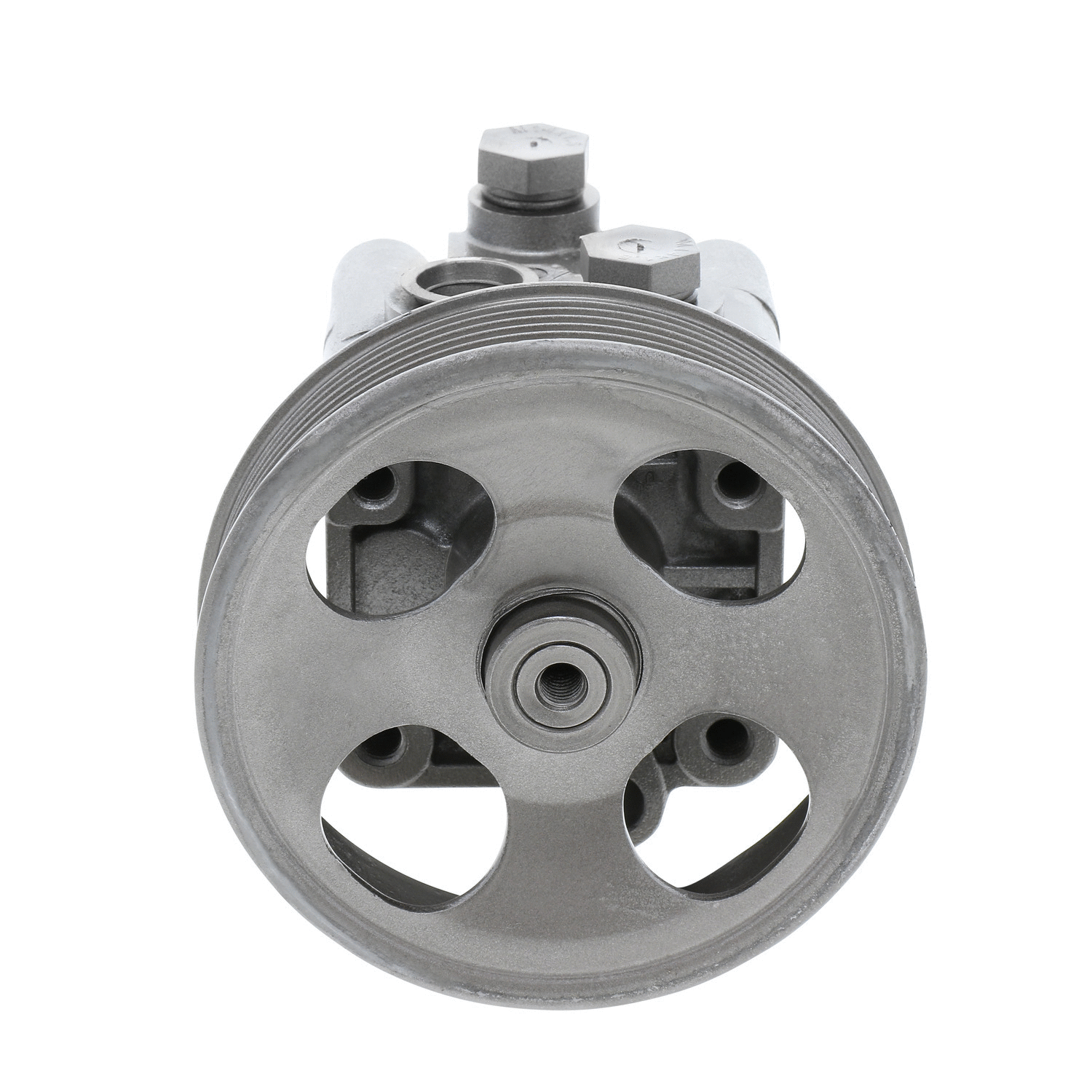

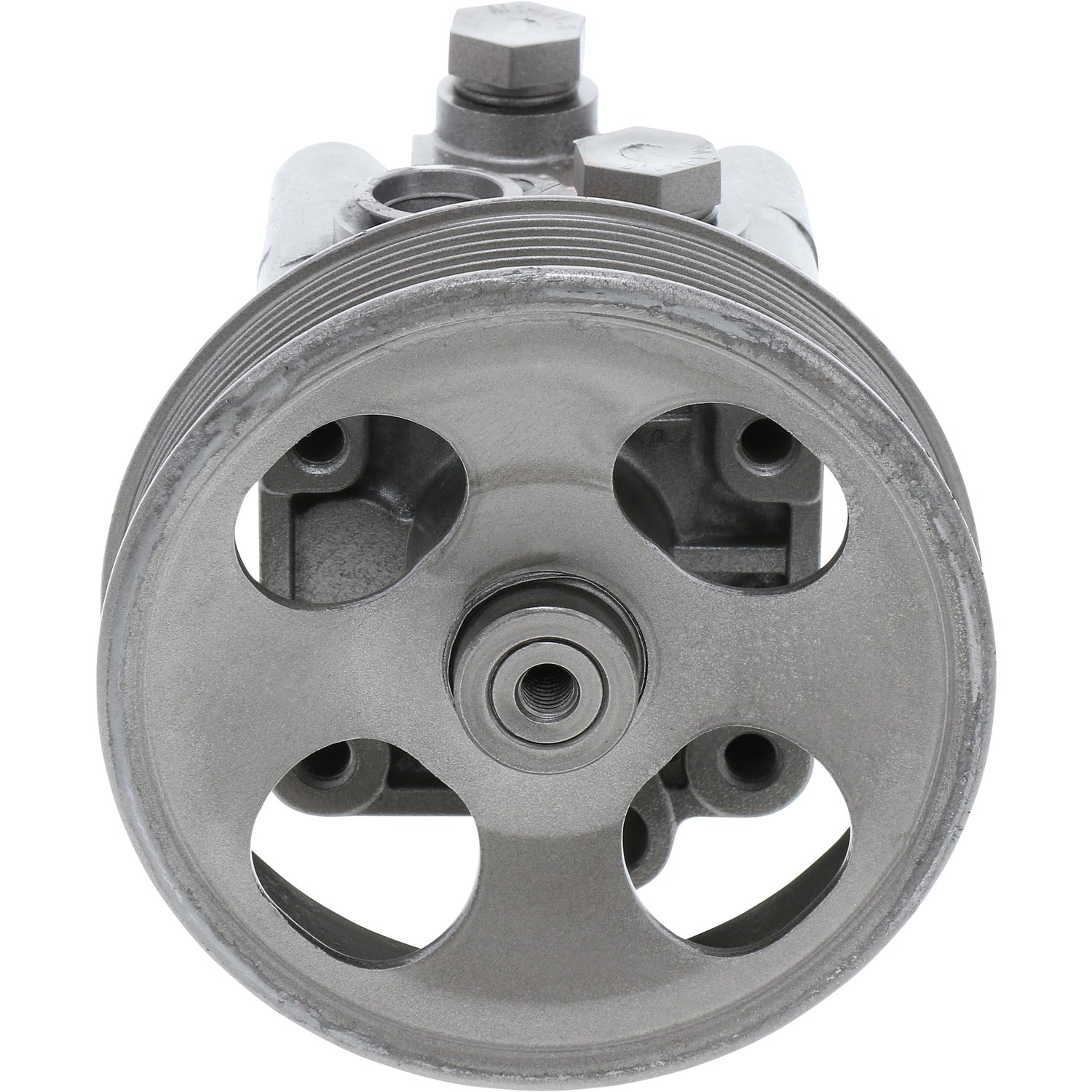

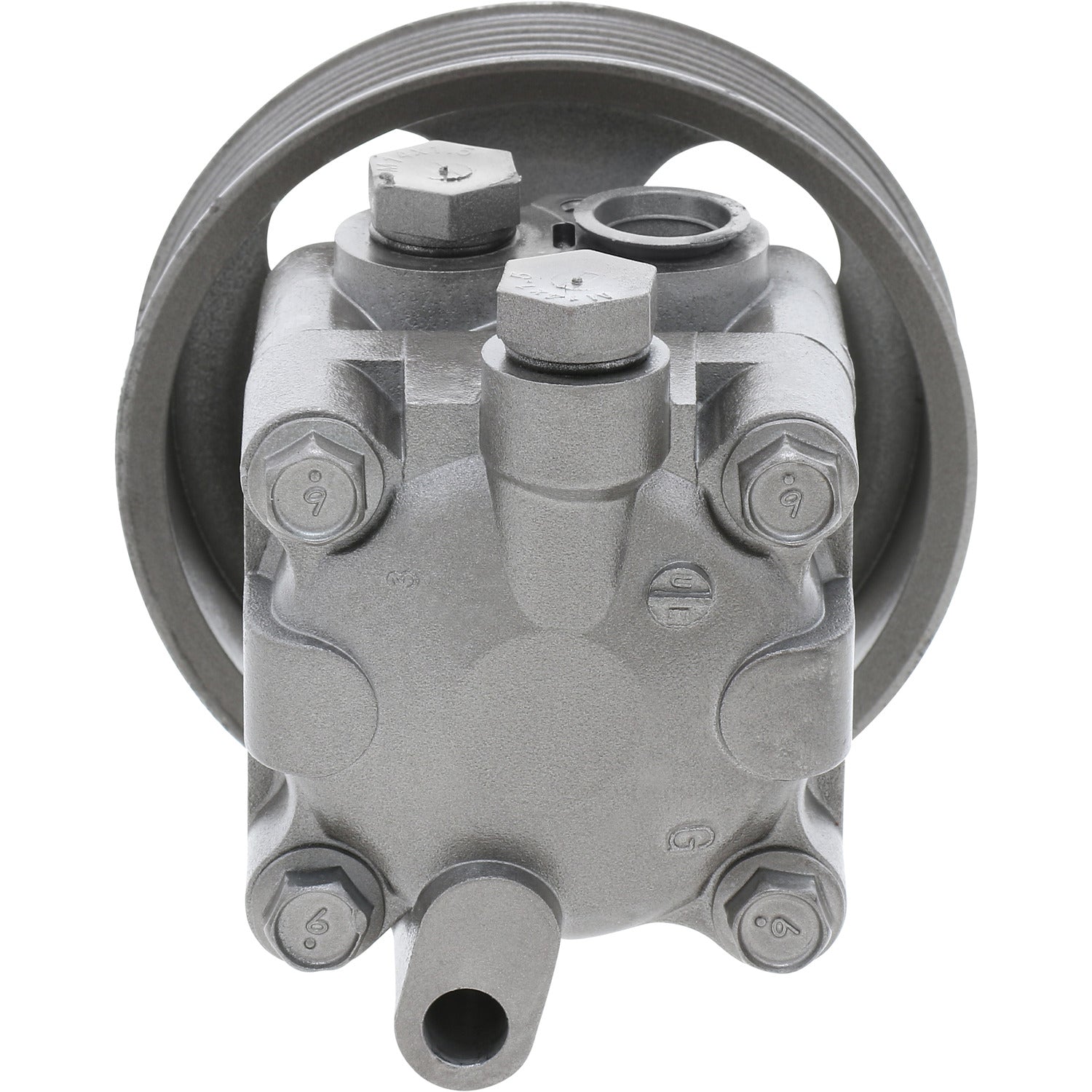

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96827M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96827M

SKU:96827M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type O-Ring
Housing Material Aluminum
Outlet Thread Size 14x1.5
Inlet Attachement Type Pipe
Outlet Attachment Type Threaded
Pulley Attachment Type Press-on
Pulley Included Yes
Remote Reservoir No
Reservoir Included No

Application Info: Subaru Tribeca (2008-14) ***W/3.6L H6 Engine, W/Pulley, W/O Reservoir***

Interchange: 34430-XA010, 34430-XA011, 34430-XA0119L

BBB Cross-Reference: 990-0760/990-1249

Cardone Cross-Reference: 21-694

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
