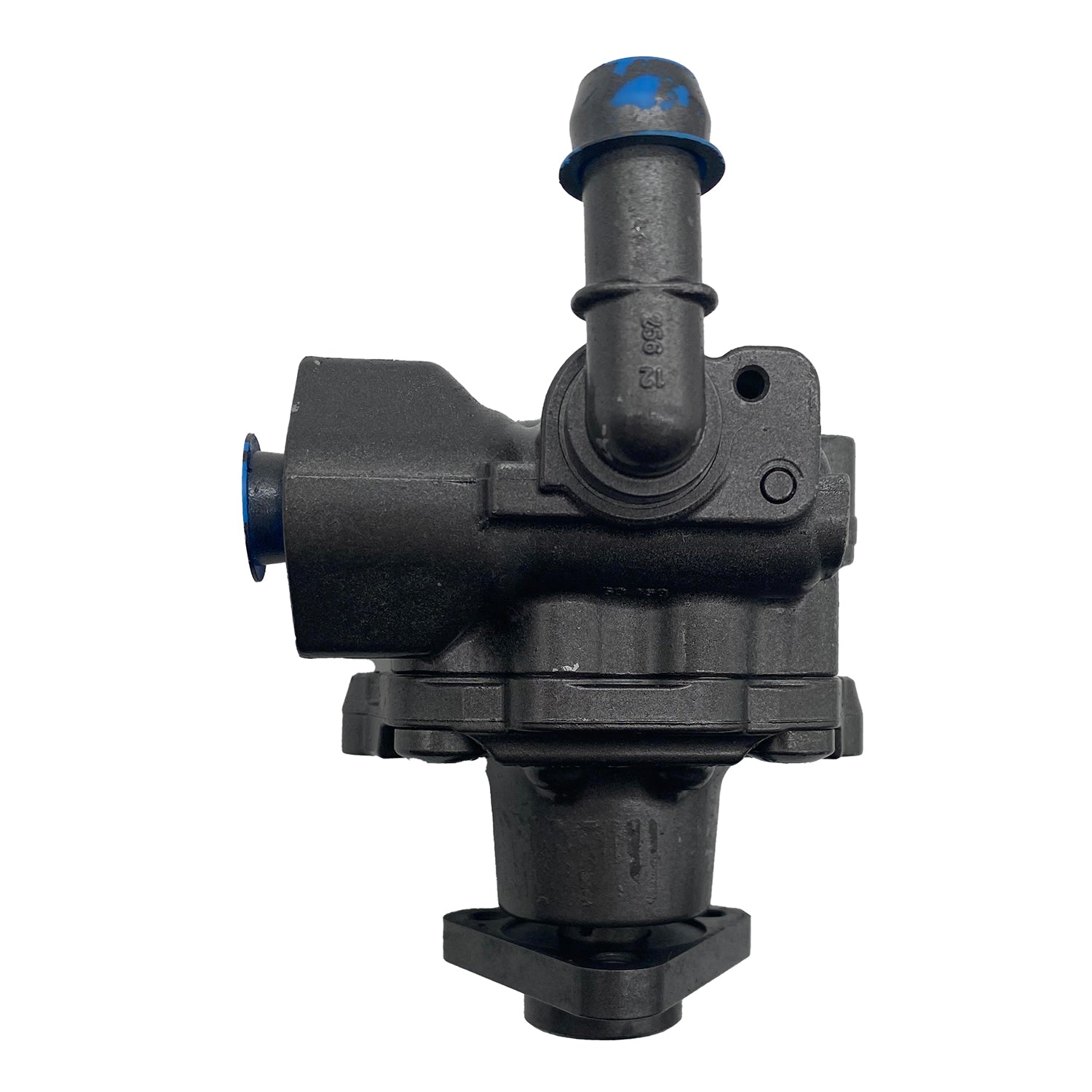

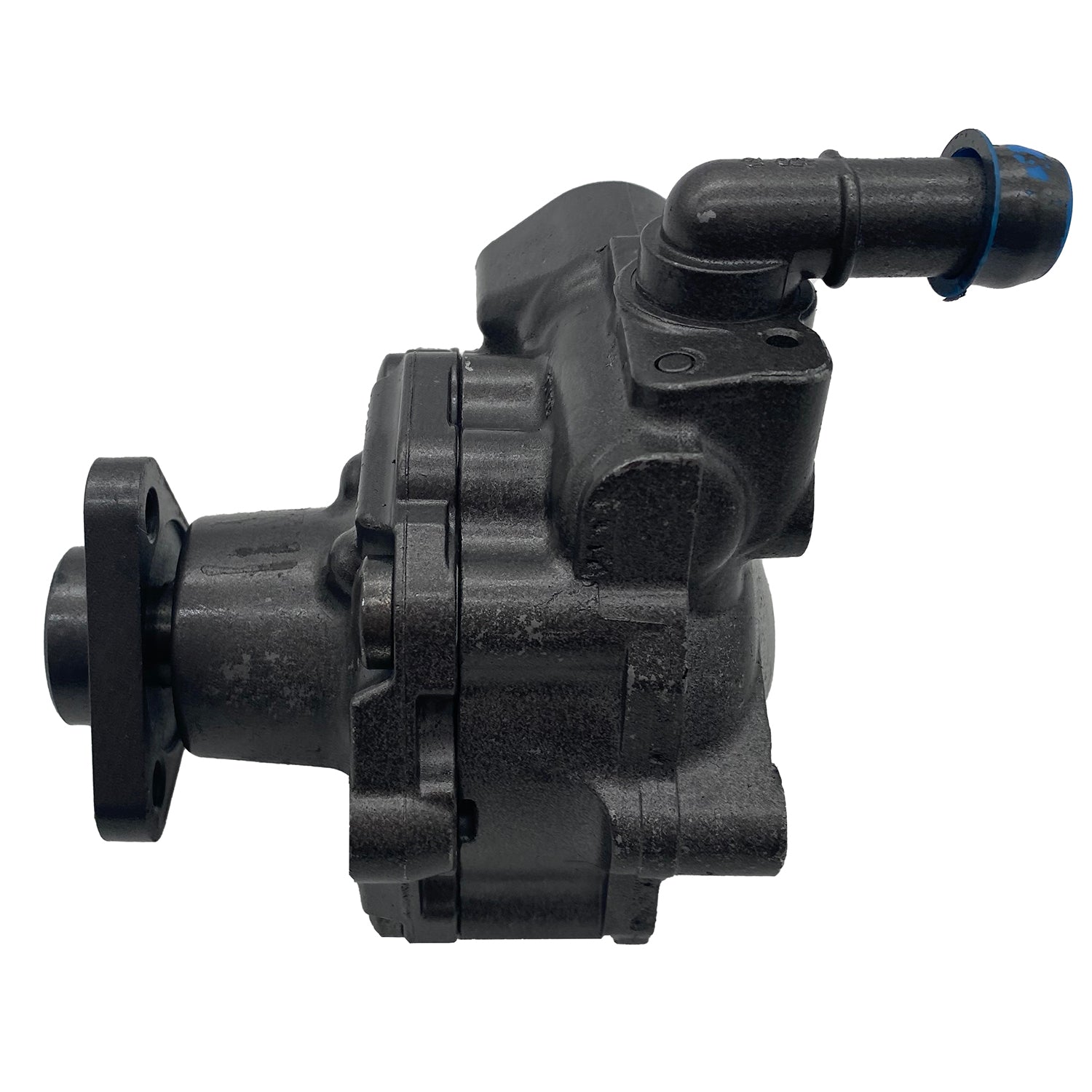

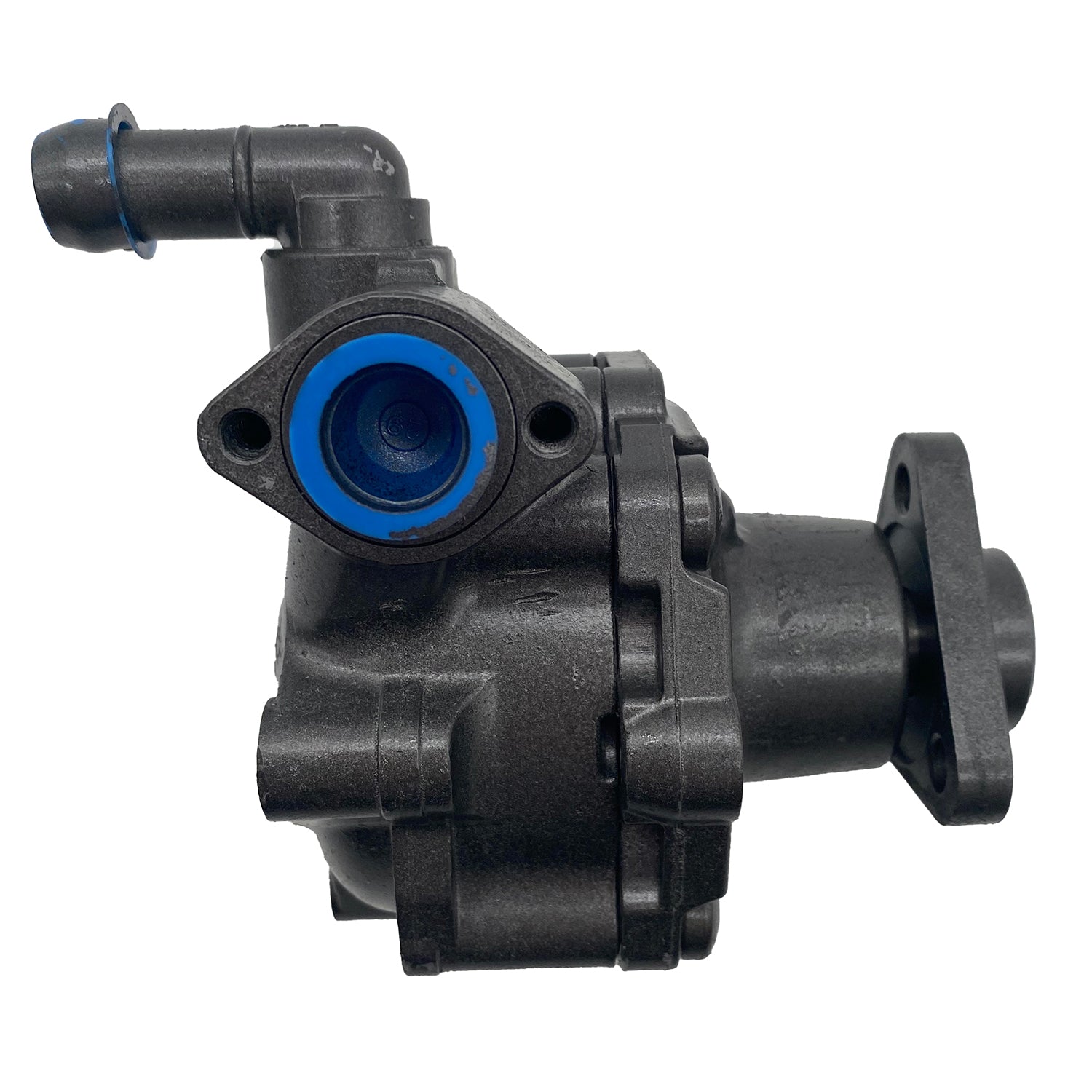

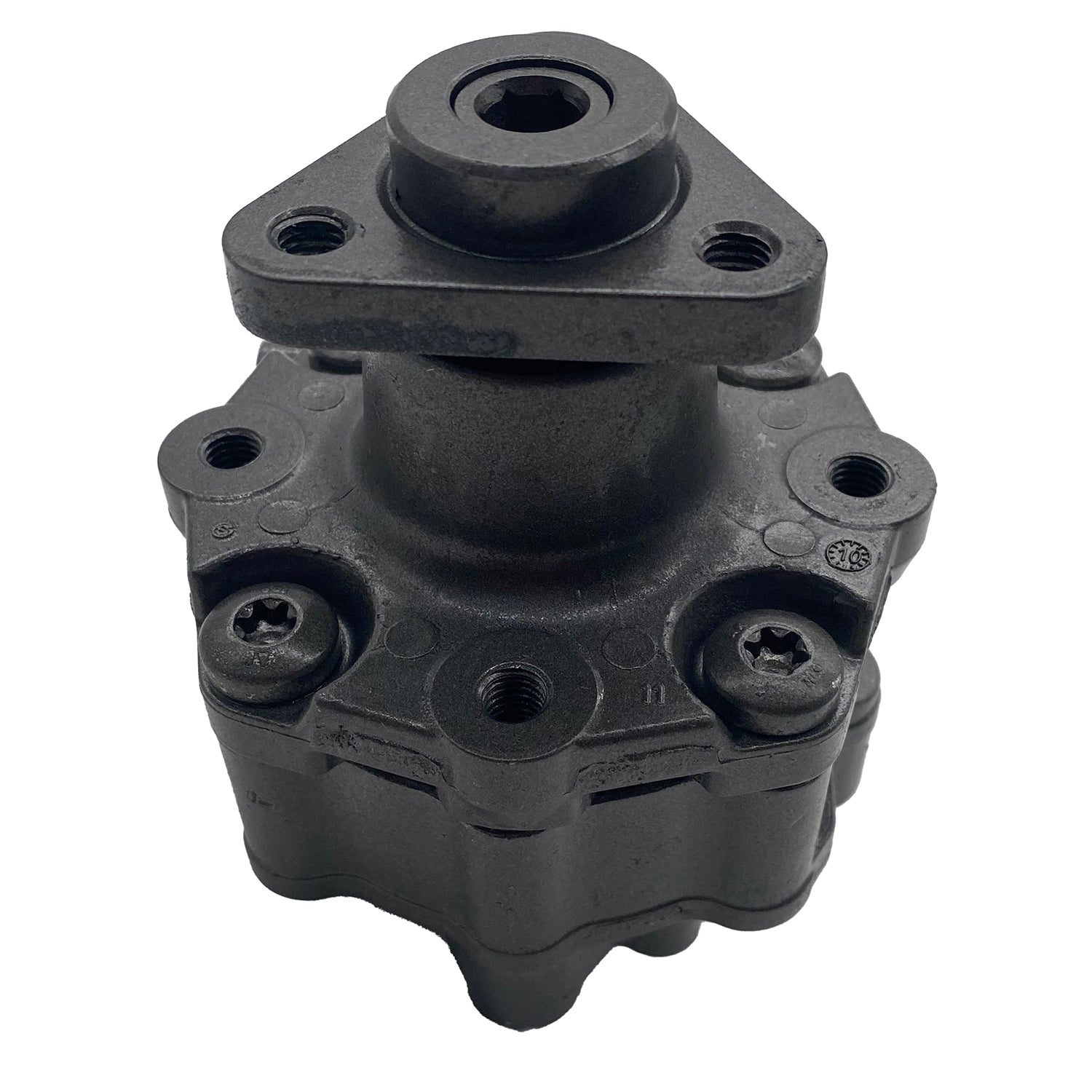

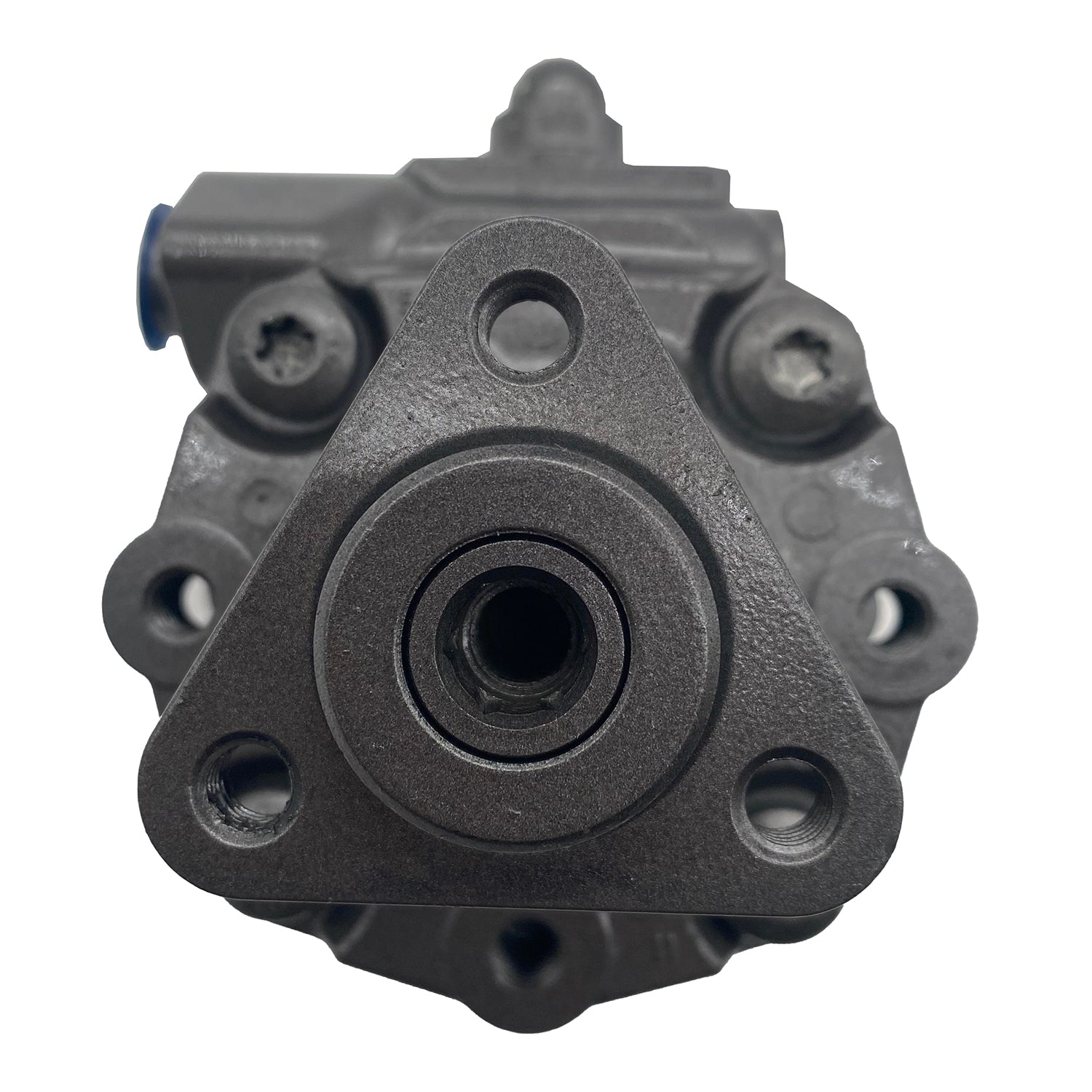

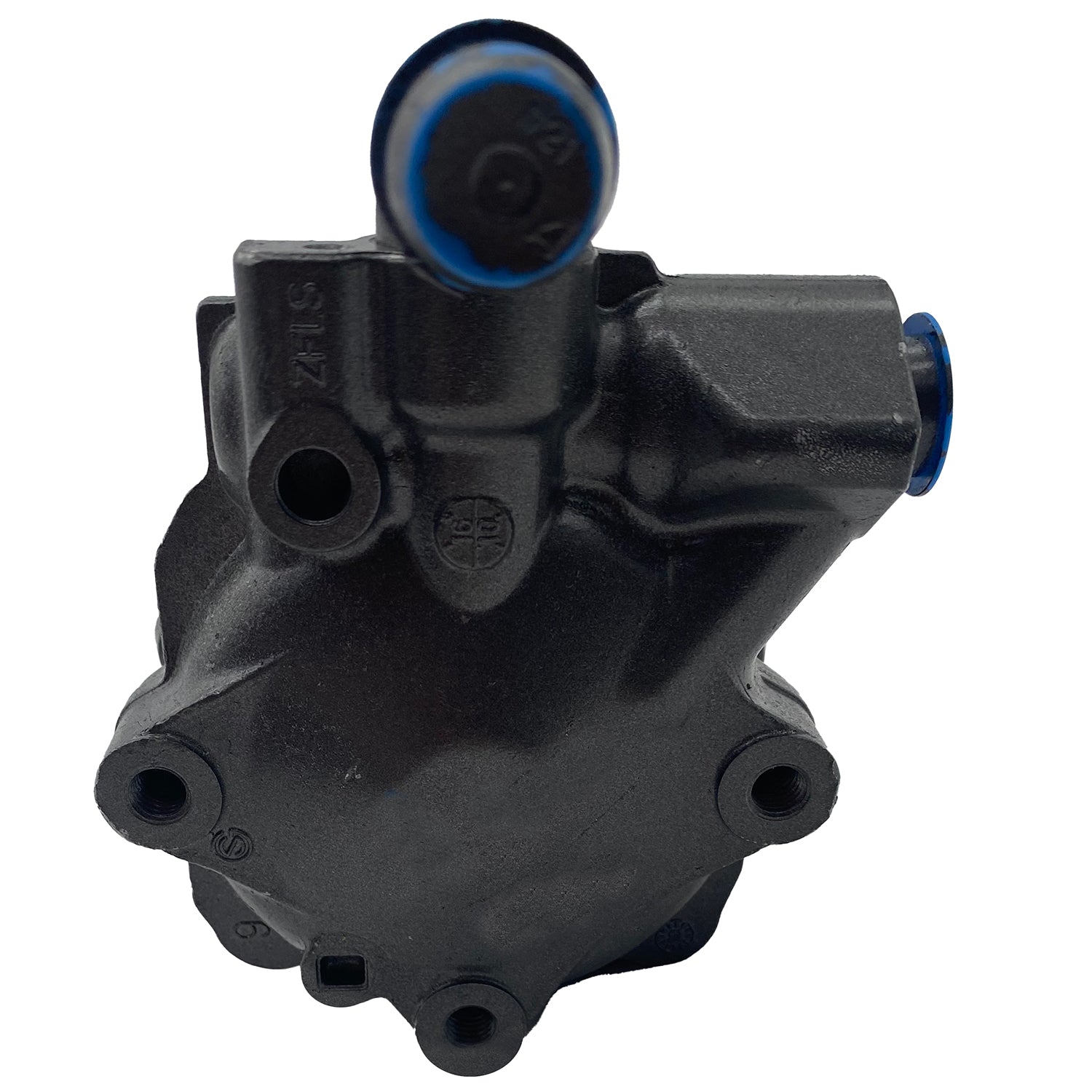

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96789M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96789M


MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Housing Material Aluminum
Inlet Attachment Type Pipe
Inlet Diameter 0.629
Inlet Quantity 1
Inlet Size 0.629
New Or Remanufactured Remanufactured
Mounting Hole Quantity 3
Outlet Attachment Type Bolt-on
Outlet Thread Size 0.629
Outlet Size 0.629
Outlet Thread Size M6X1.0
Pulley Attachment Type Hub
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: Audi A5 Quattro (2008-09), S4 (2010-11), S5 (2010-11) ***W/3.0L V6 Engine, W/PR Code 1N3, W/O Servotronic Steering, W/O Pulley, W/O Reservoir***

Interchange: 8K0-145-154A, 8K0-145-154B, 8K0-145-154E, 8K0-145-154F, 8K0-145-154J

BBB Cross-Reference: 990-1179

Cardone Cross-Reference:

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
