MAVAL

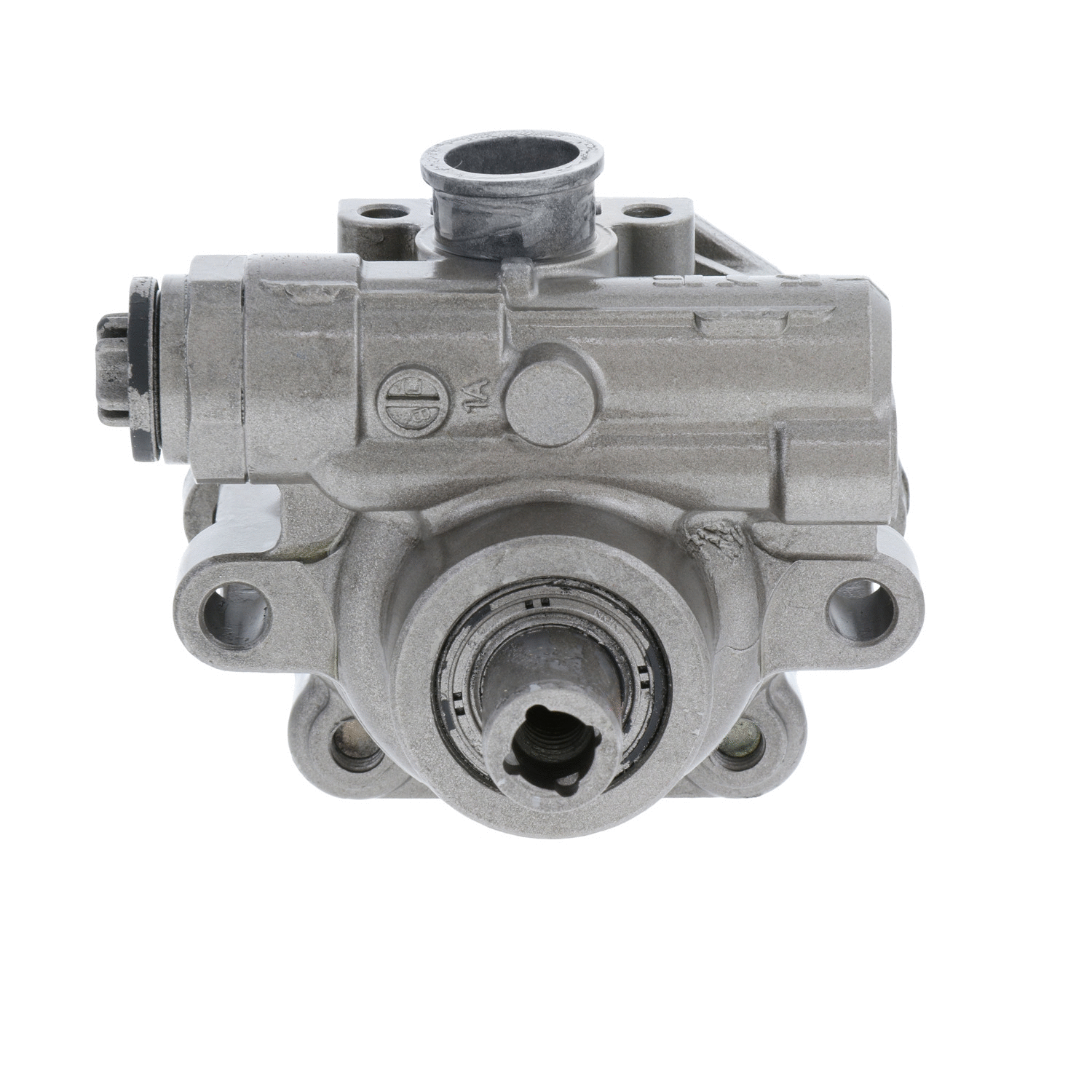

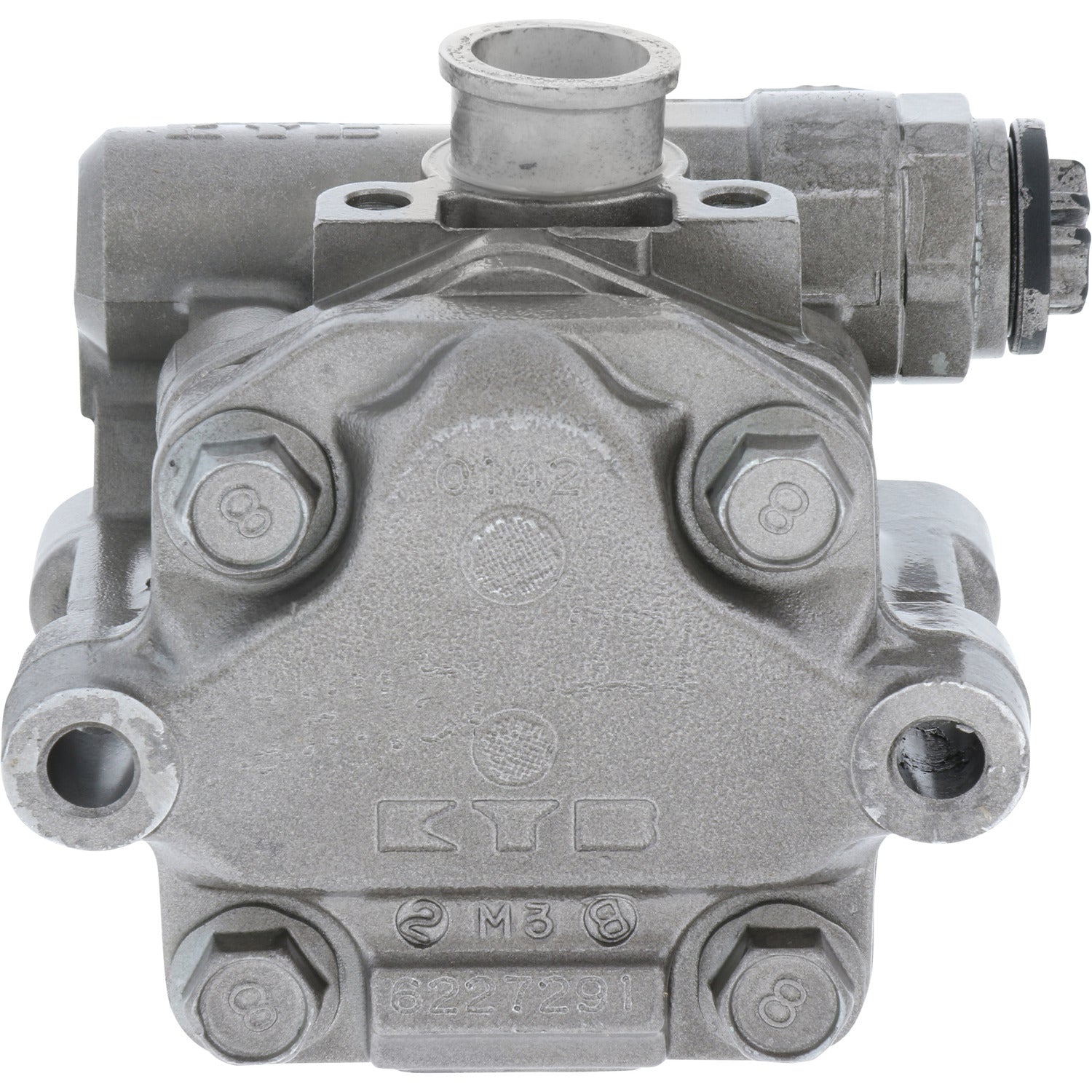

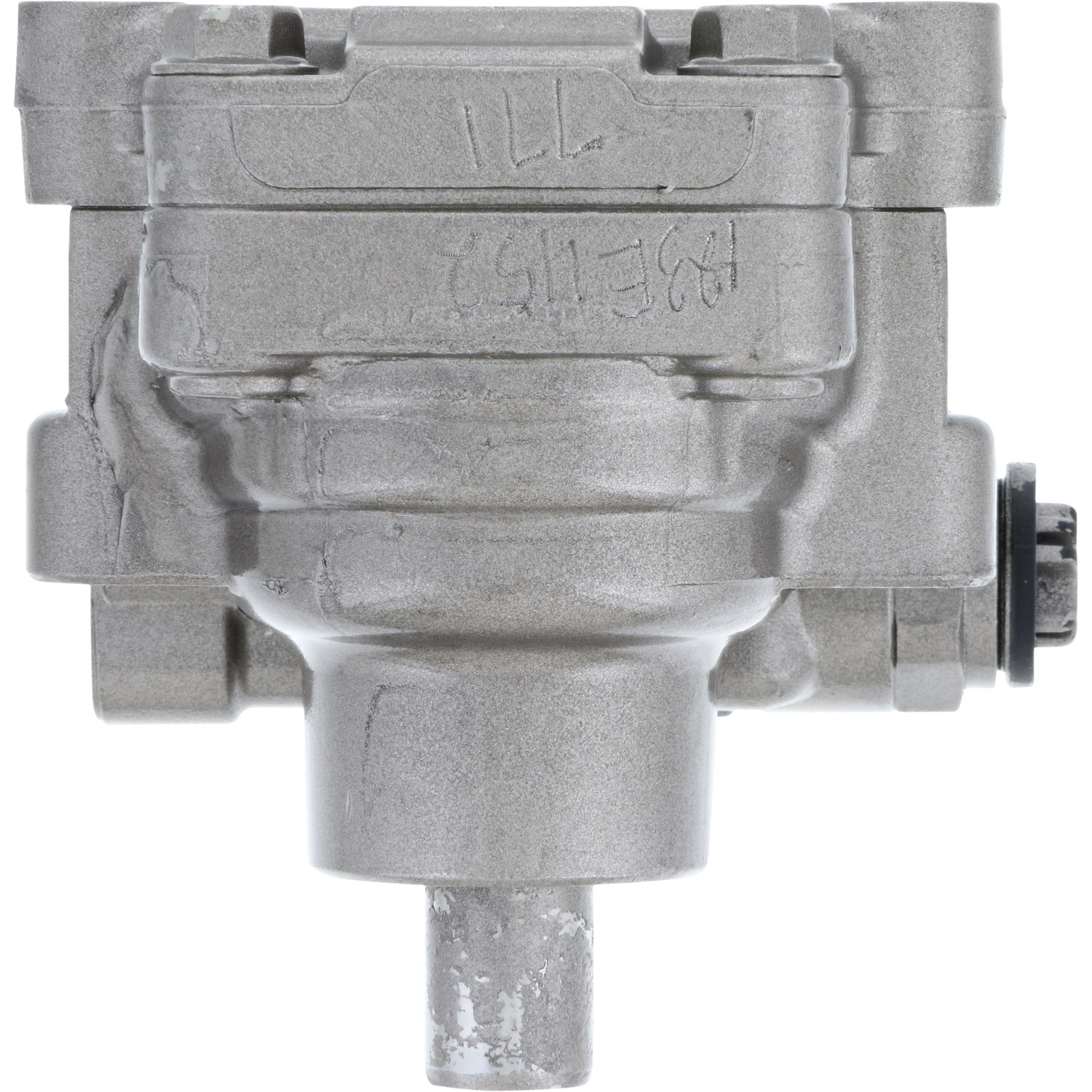

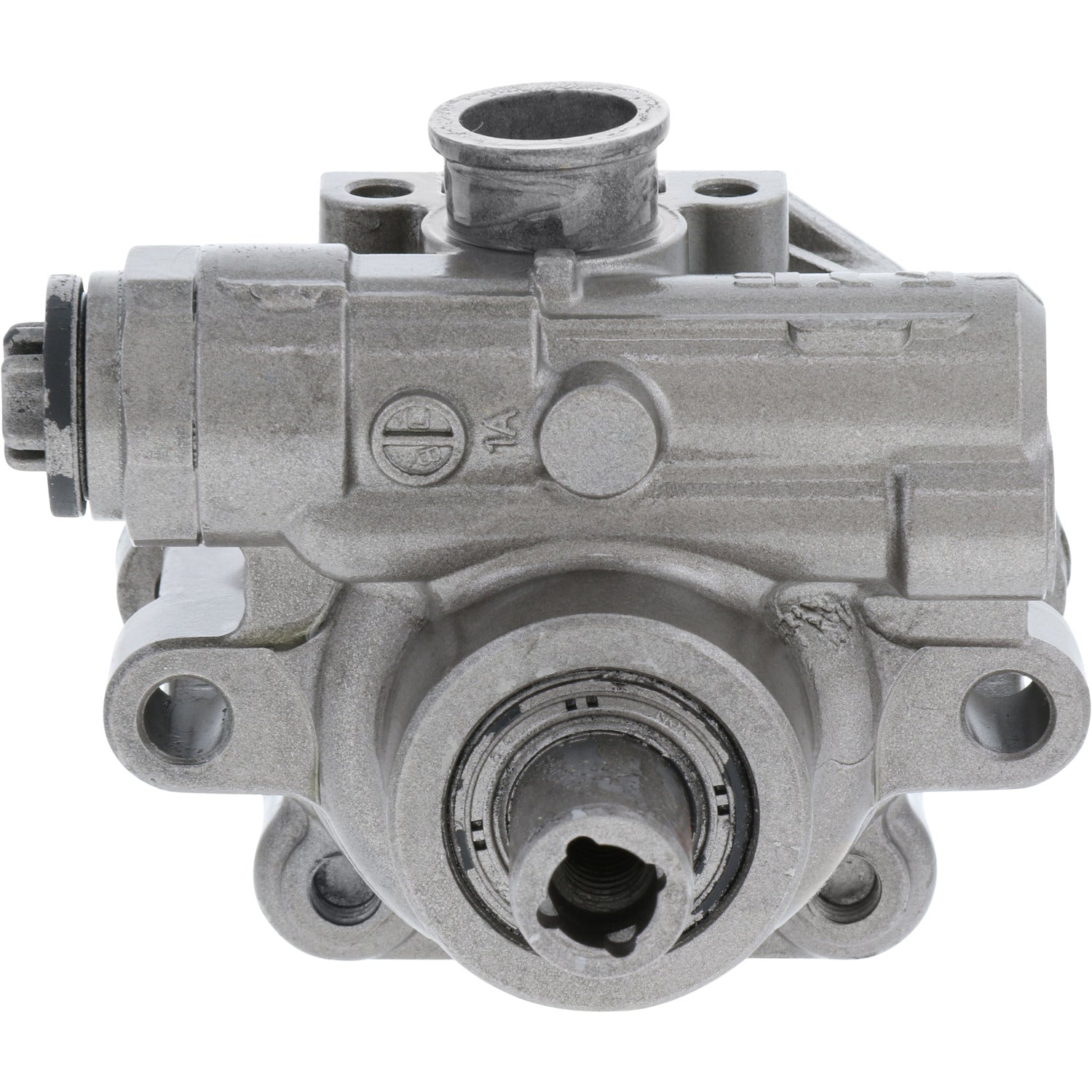

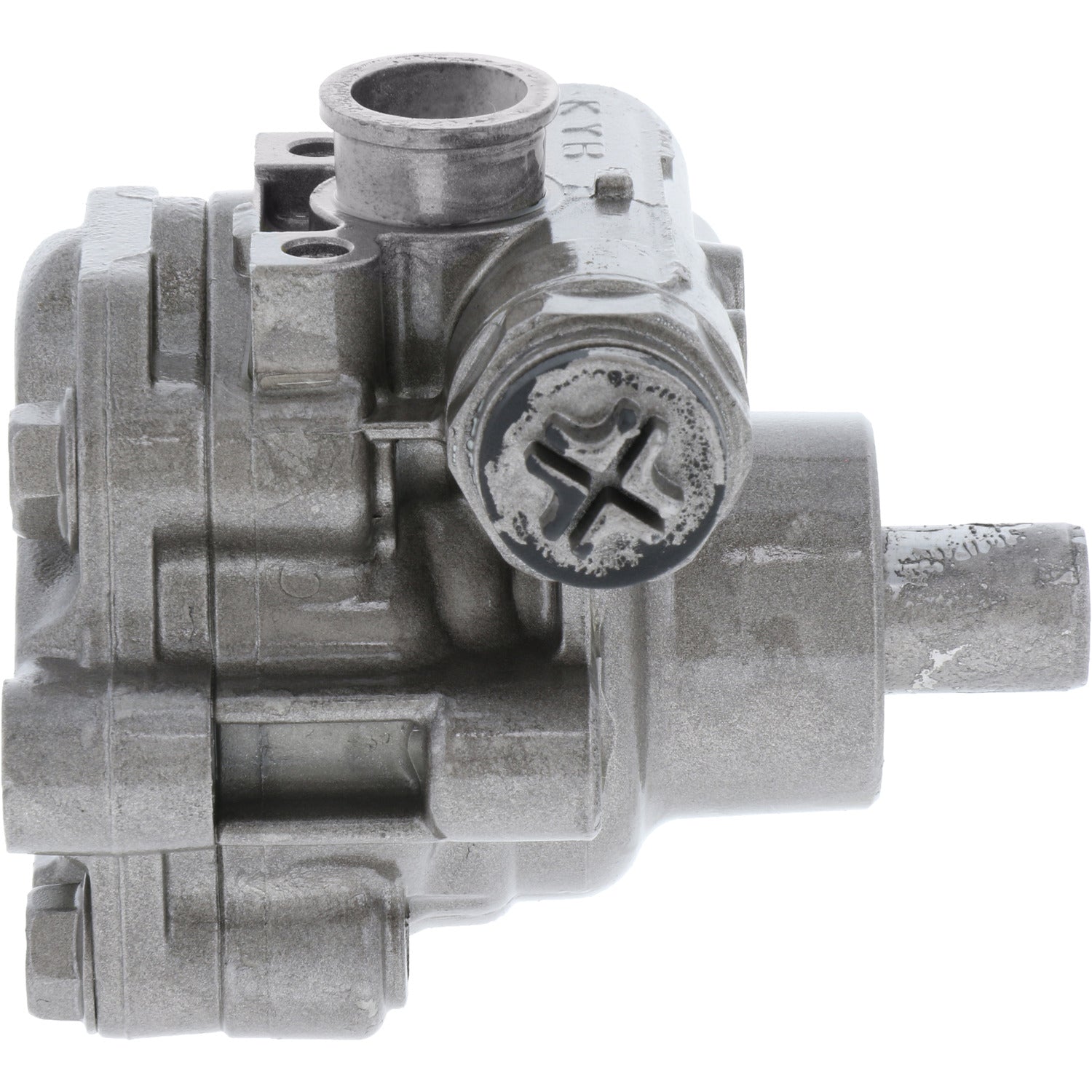

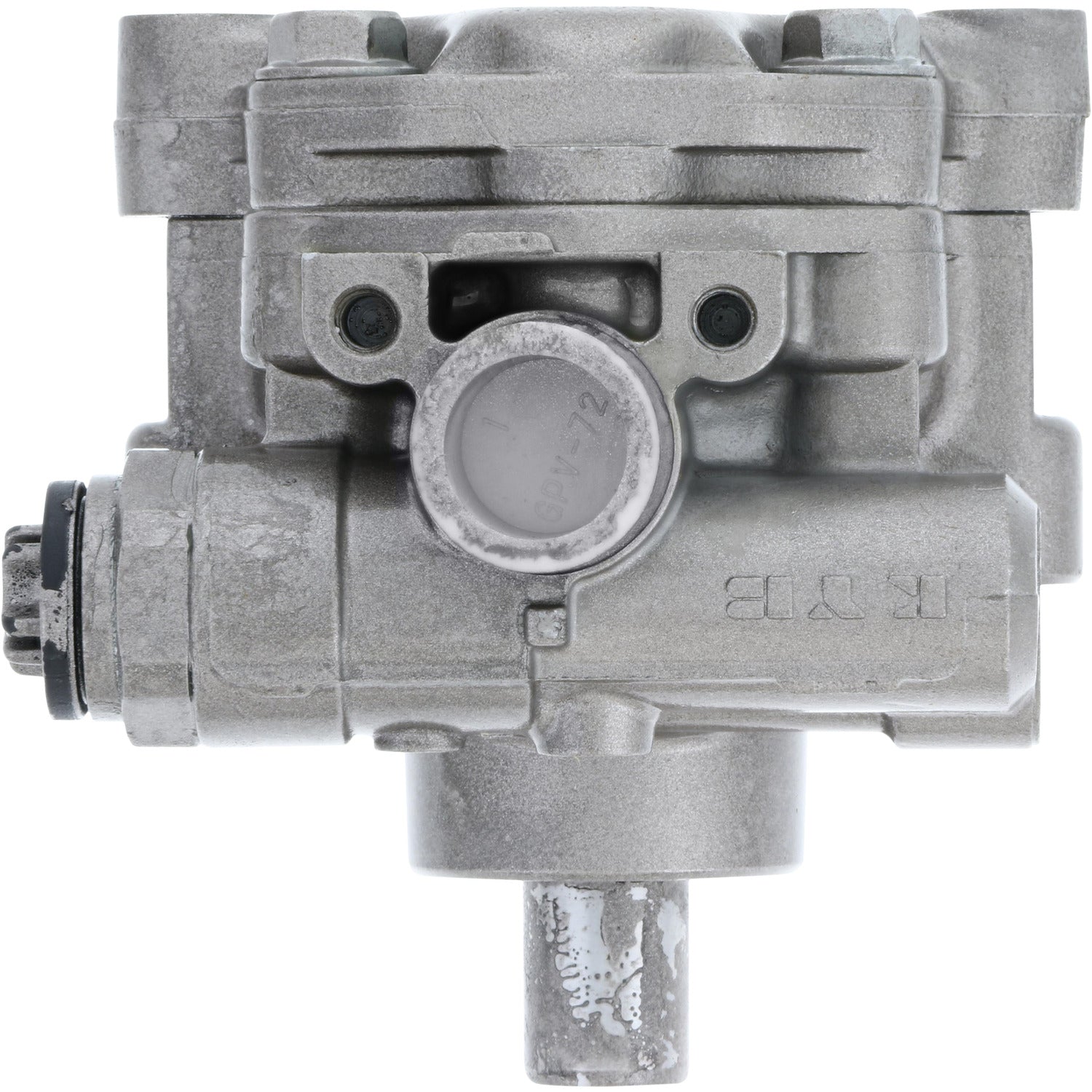

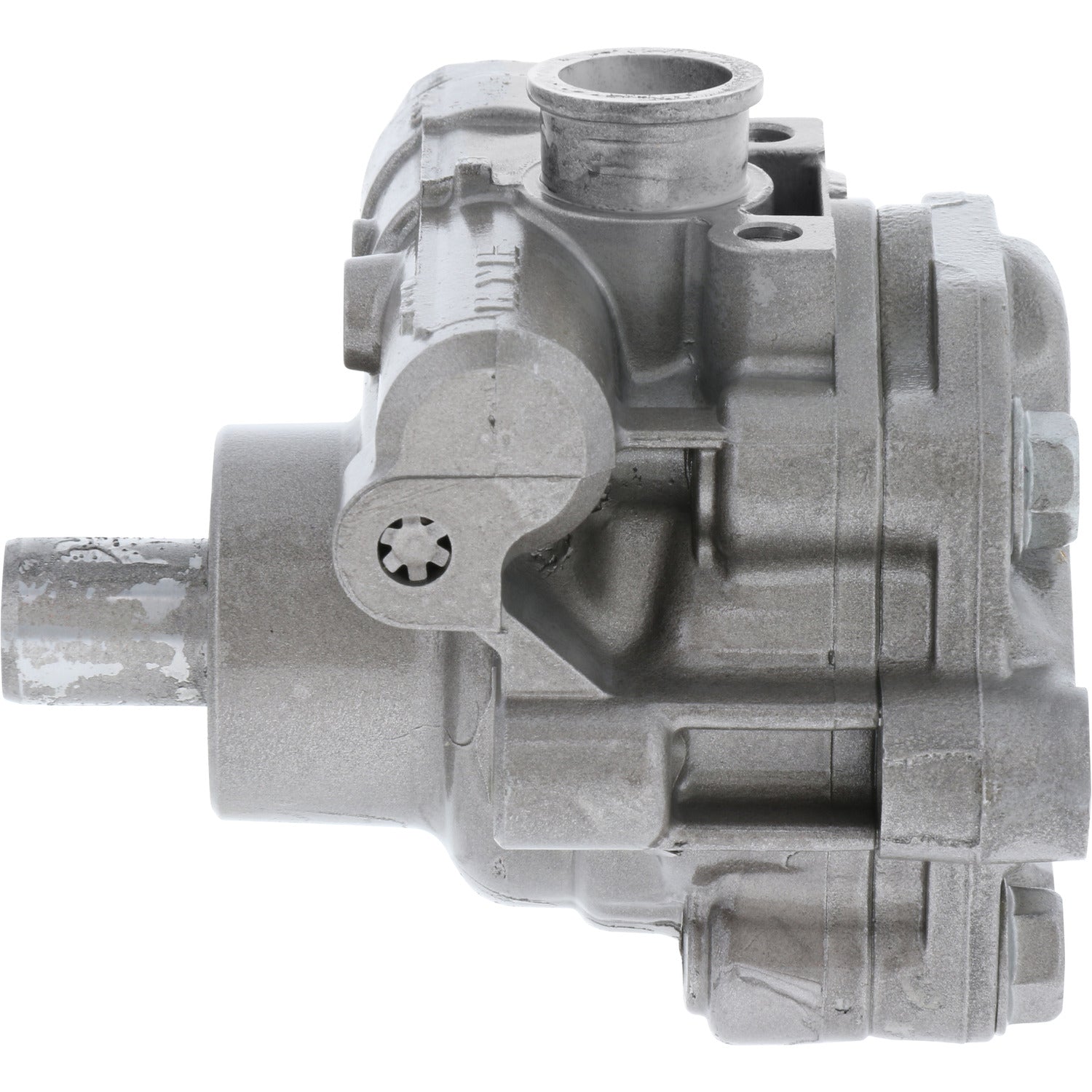

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96771M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96771M

SKU:96771M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Housing Material Aluminum
Inlet Attachment Type Pipe
Inlet Quantity 1
Inlet Thread Size M8-1.25
New Or Remanufactured Remanufactured
Mounting Hole Quantity 2
Outlet Attachment Type Threaded
Outlet Thread Size M16x1.50
Outlet Size M16x1.50
Outlet Thread Size M16x1.50
Pulley Attachment Type Press-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: Cadillac XLR (2004-09) ***W/O Pulley, W/O Reservoir***

Interchange: 26084648

BBB Cross-Reference: 730-0120

Cardone Cross-Reference: 21-5325

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
