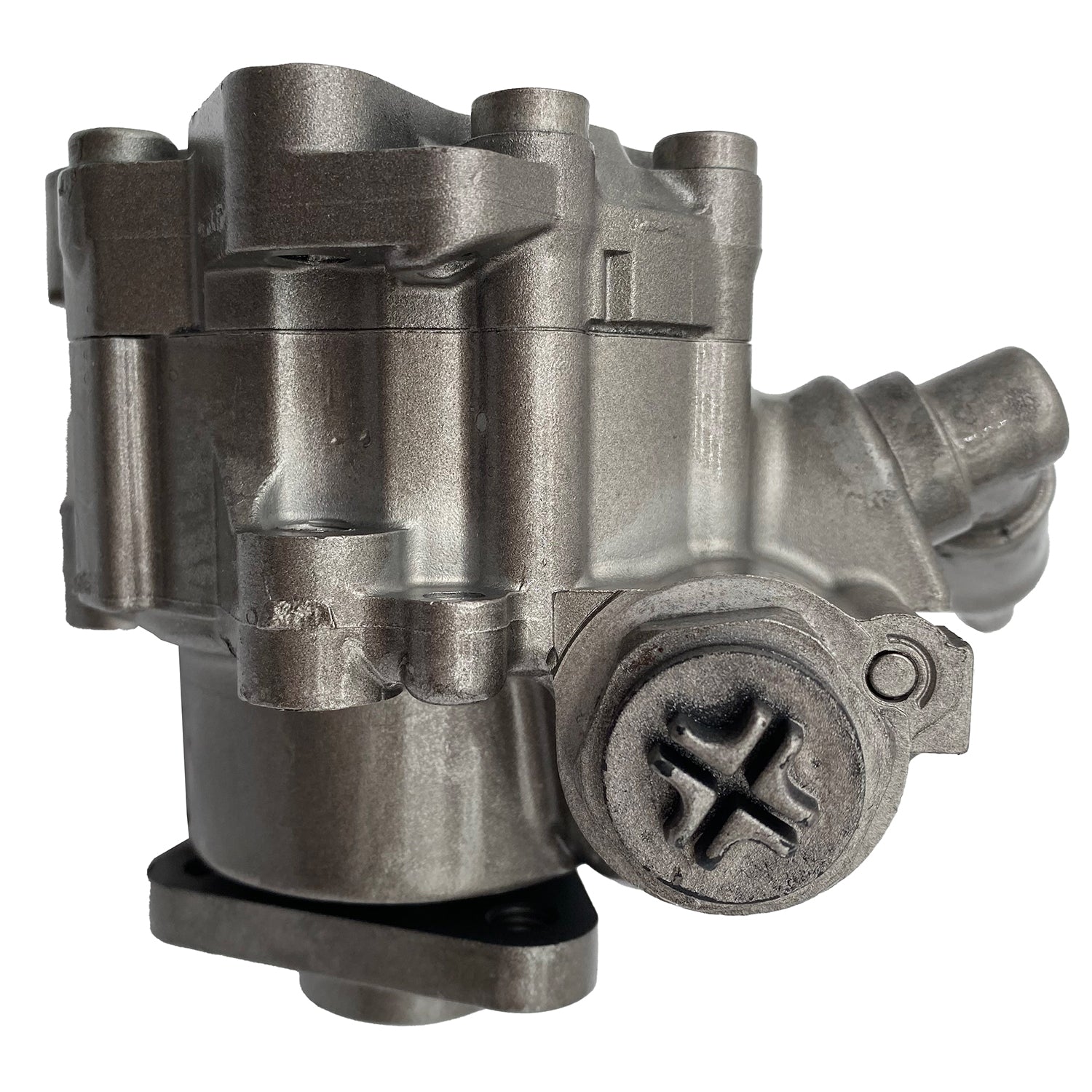

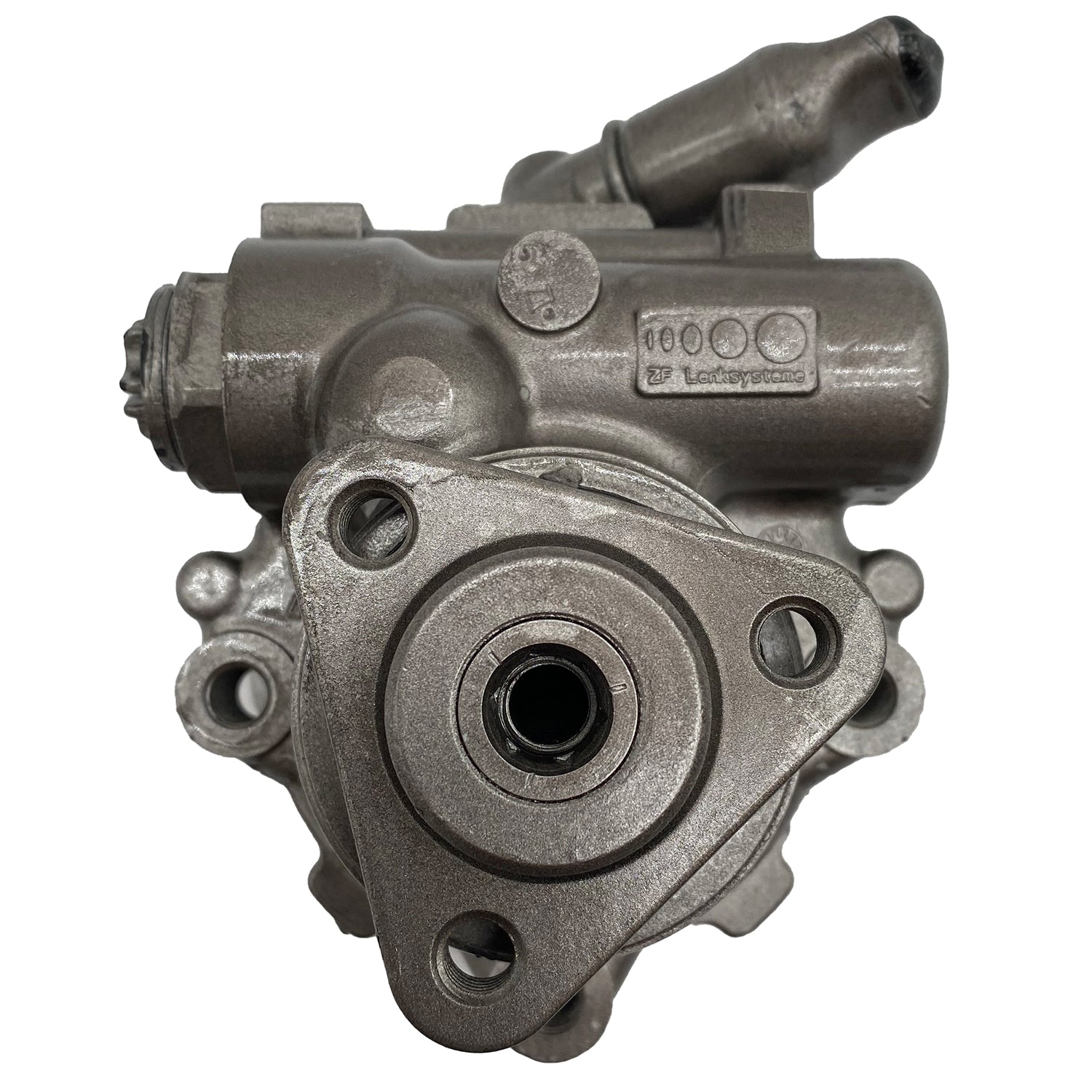

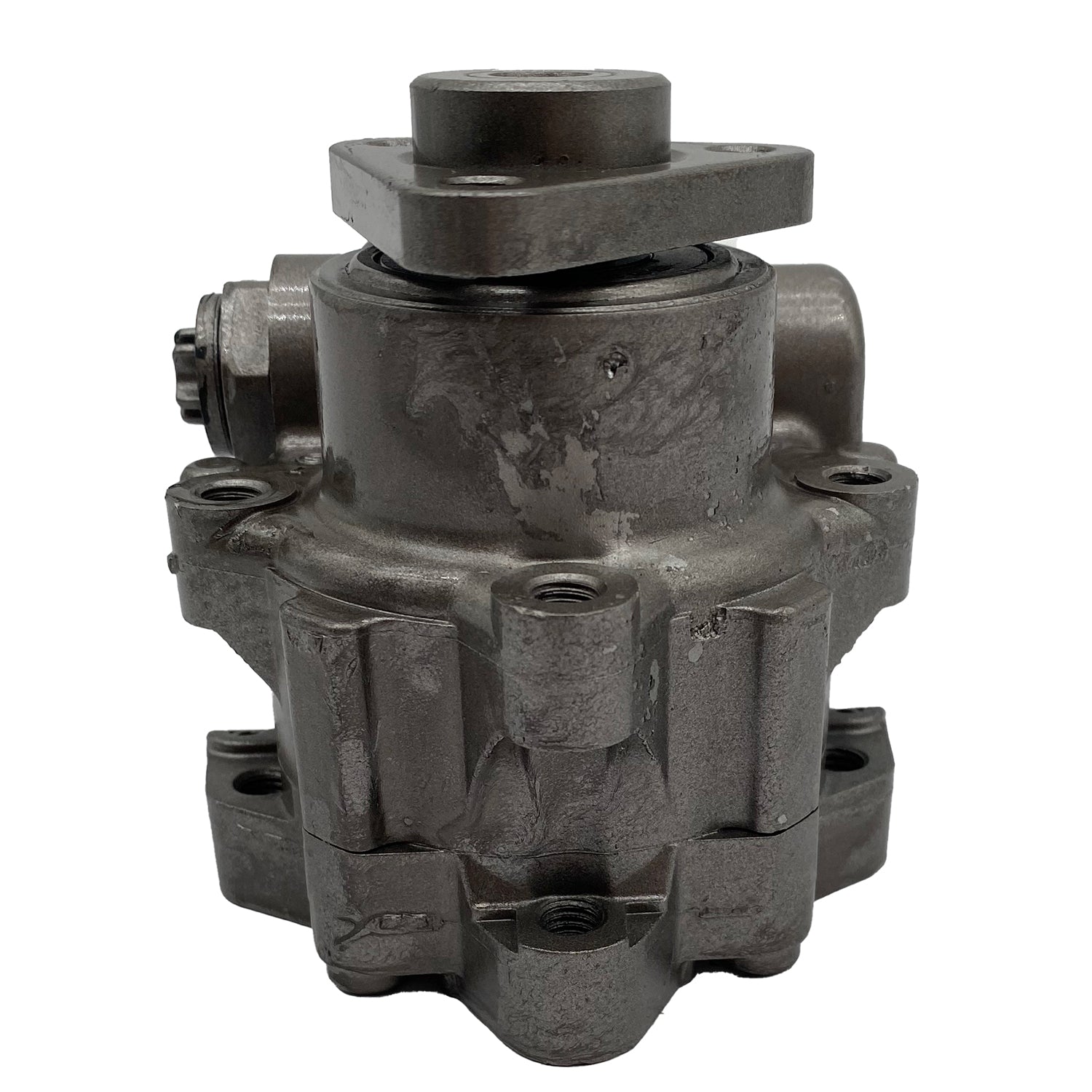

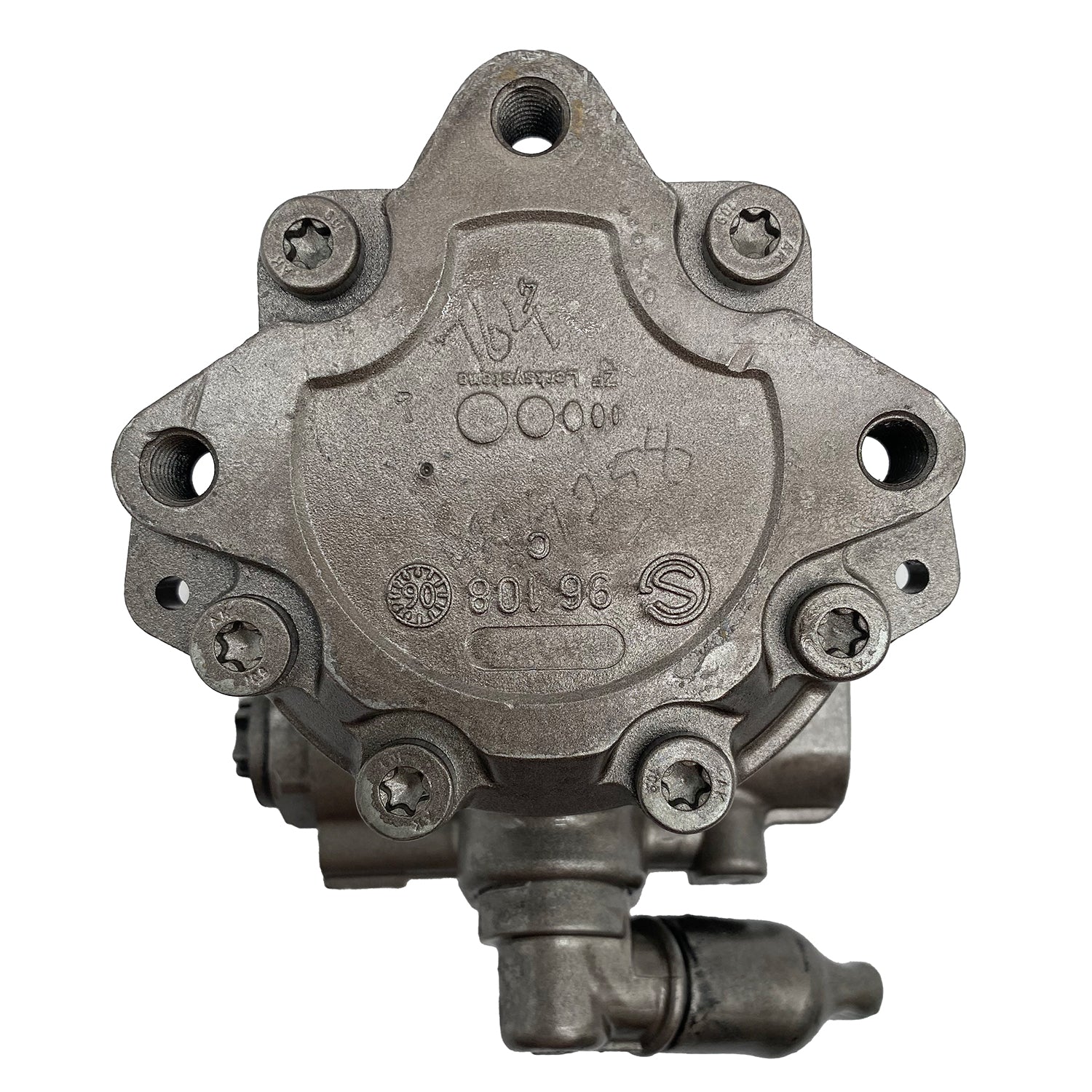

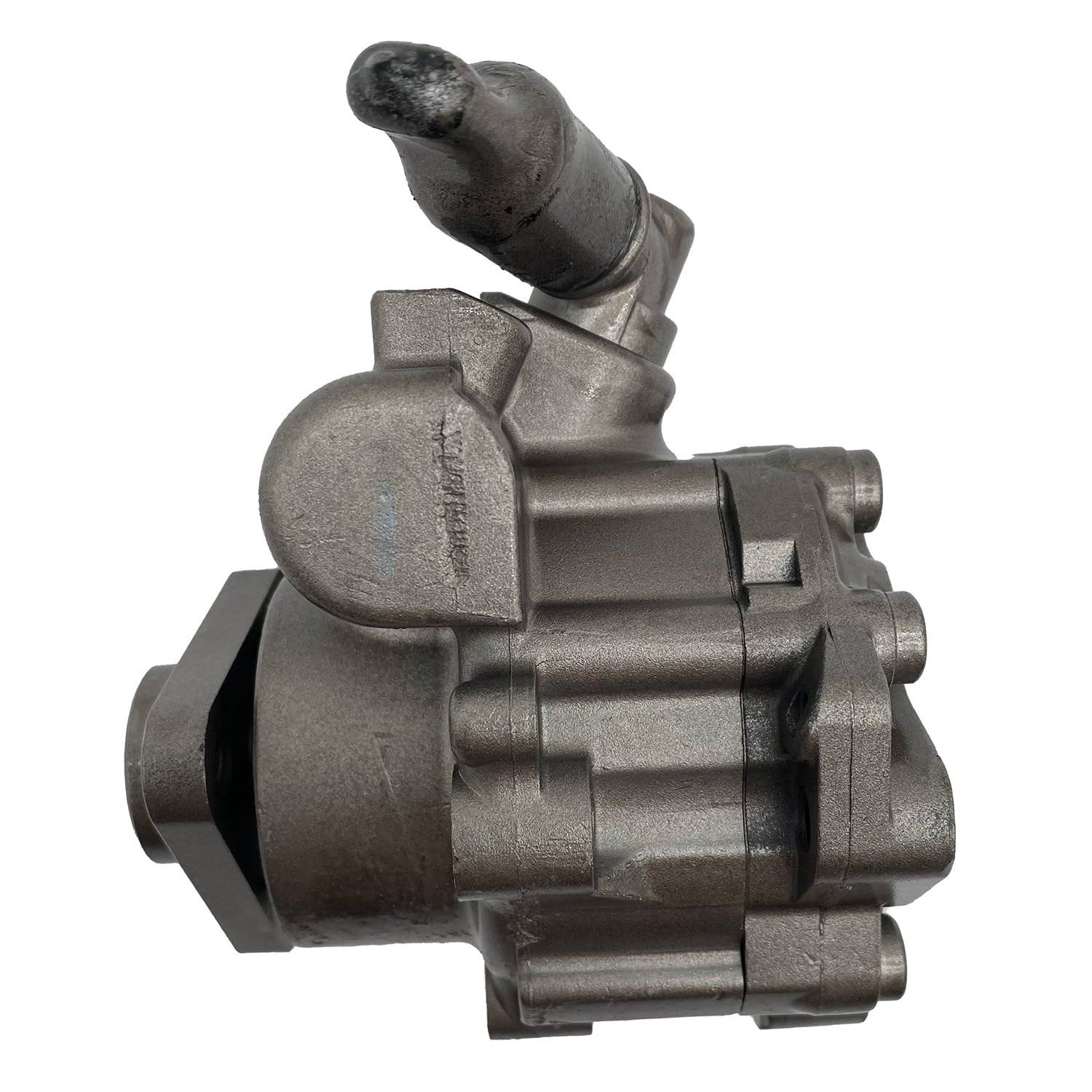

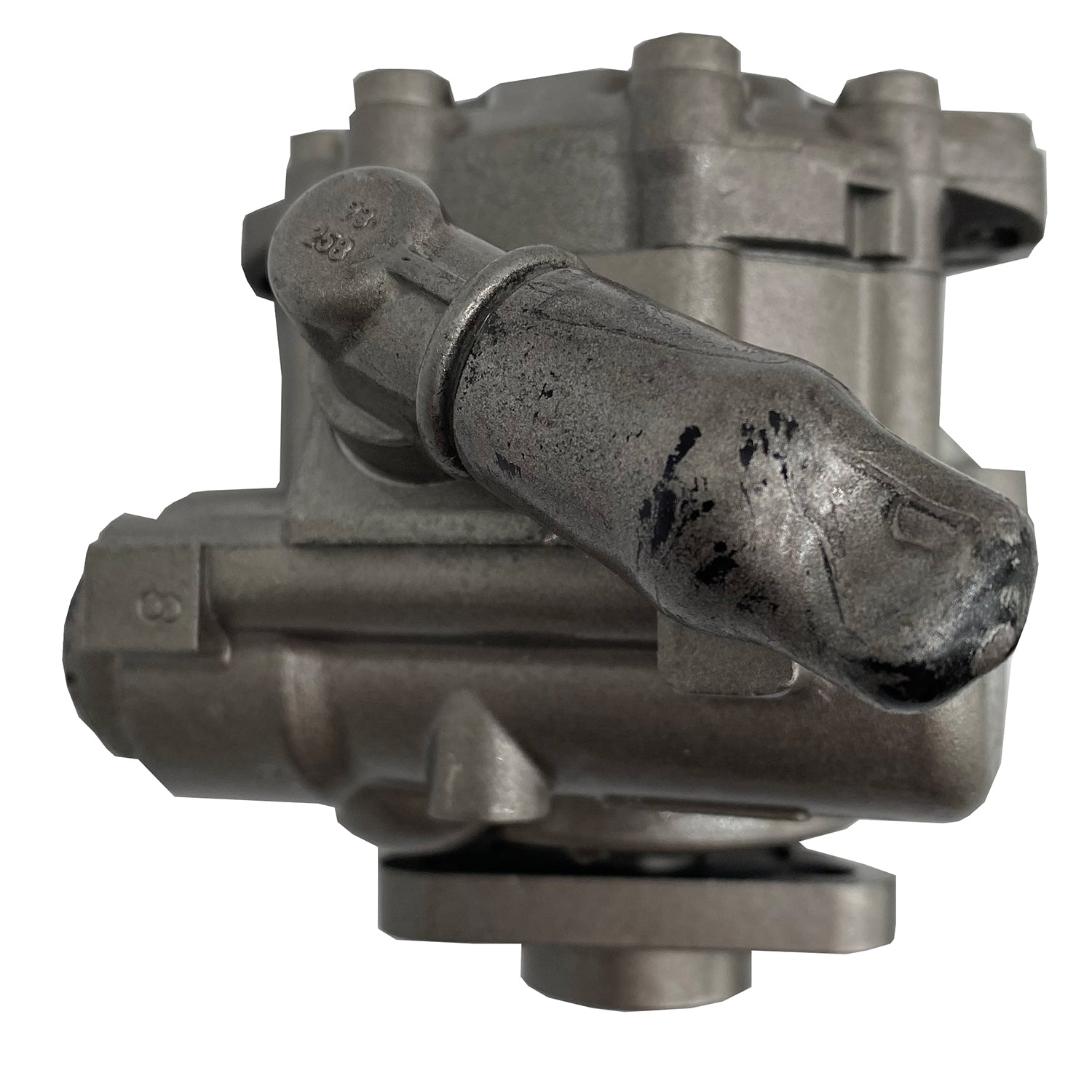

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96764M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96764M

SKU:96764M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Housing Material Aluminum
Inlet Diameter 0.635
Inlet Quantity 1
New Or Remanufactured Remanufactured
Mounting Hole Quantity 3
Outlet Attachment Type Threaded
Outlet Thread Size M16x1.50
Outlet Thread Size M16x1.50
Outlet Thread Size M16x1.50
Pulley Attachement Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: BMW M5 (2006-10), M6 (2006-10) ***W/O Pulley, W/O Reservoir***

Interchange: 324 12 282 951

BBB Cross-Reference: 990-0907

Cardone Cross-Reference: 21-305

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
