MAVAL

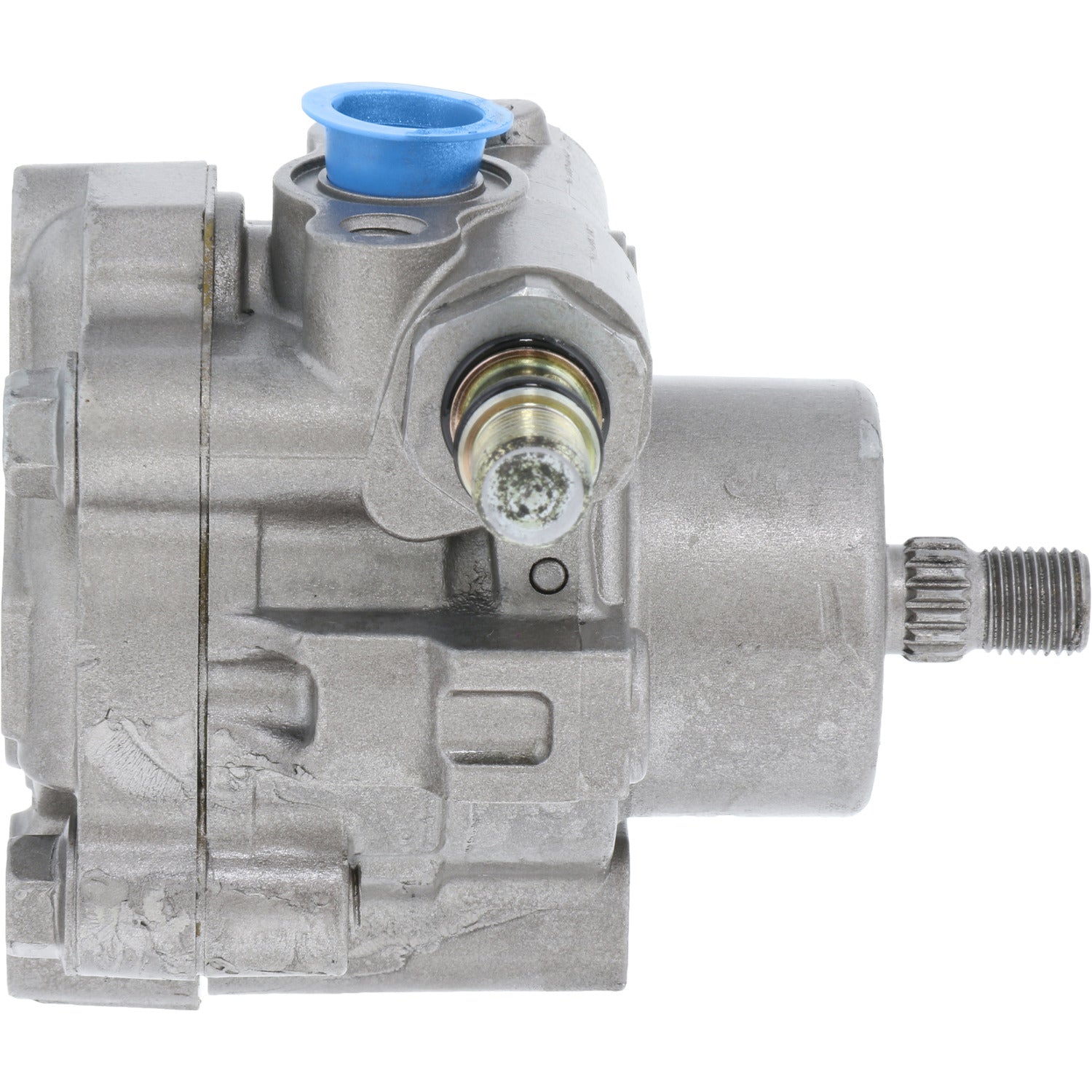

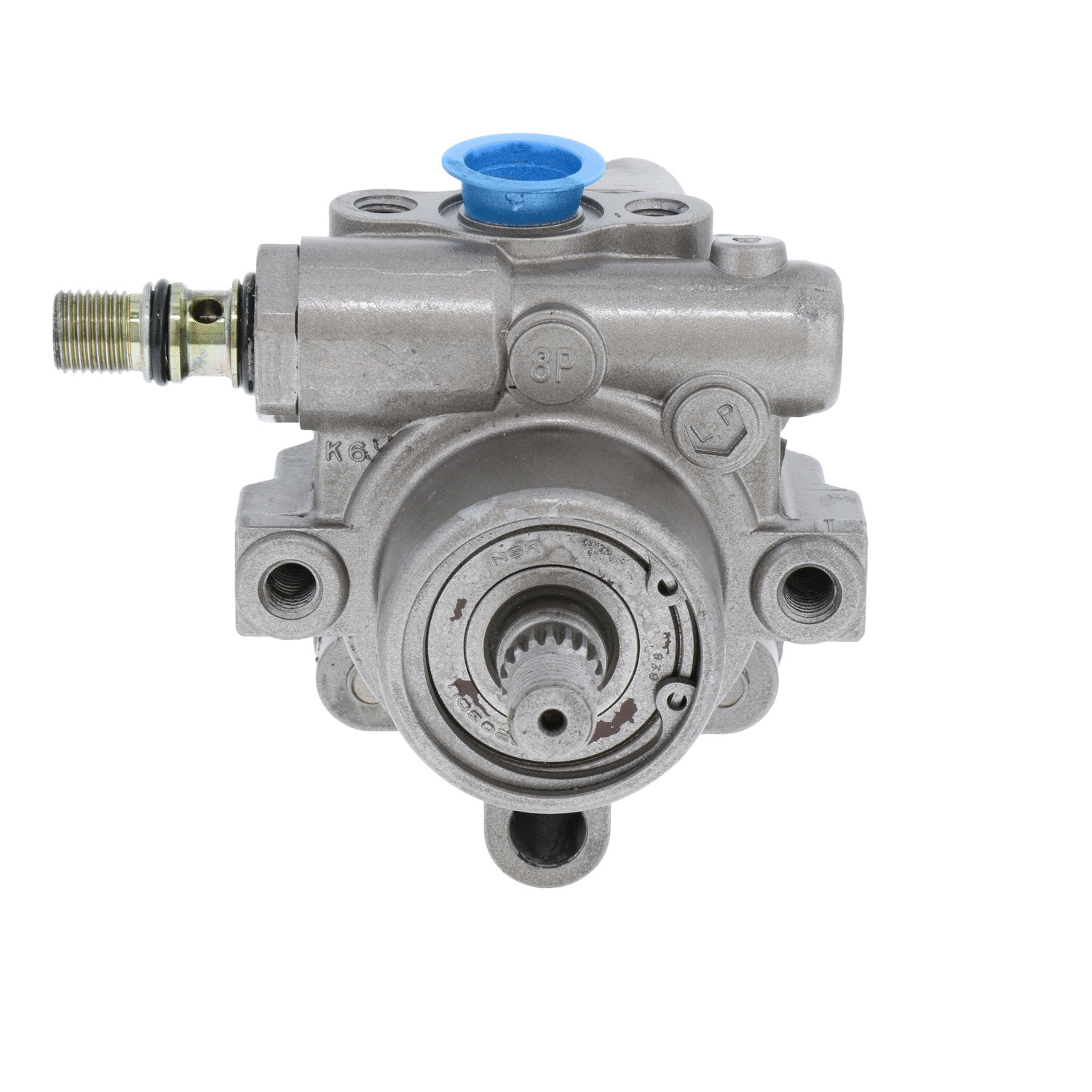

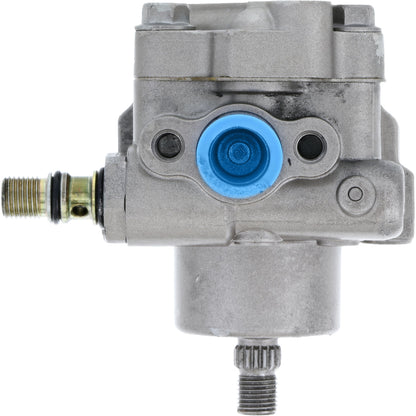

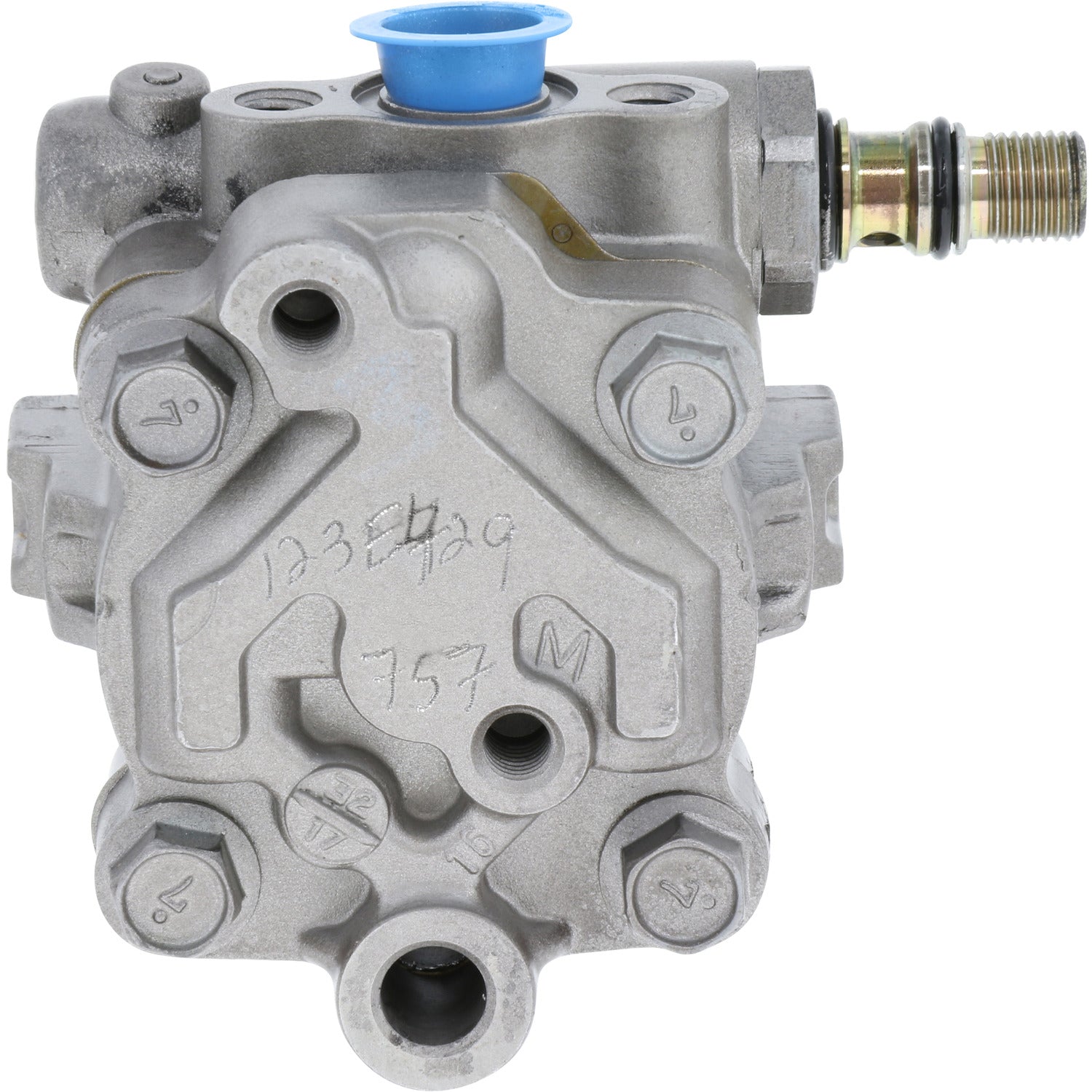

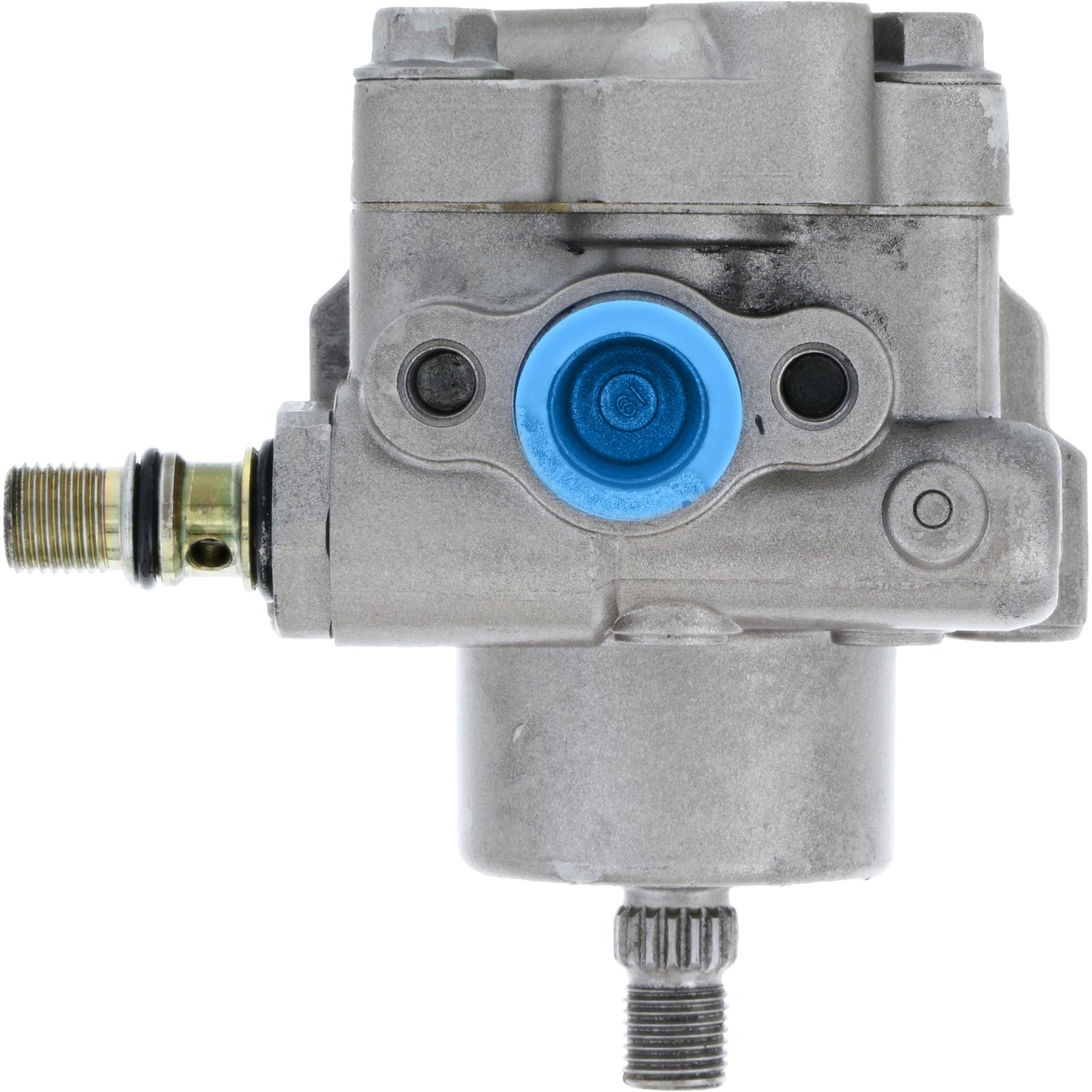

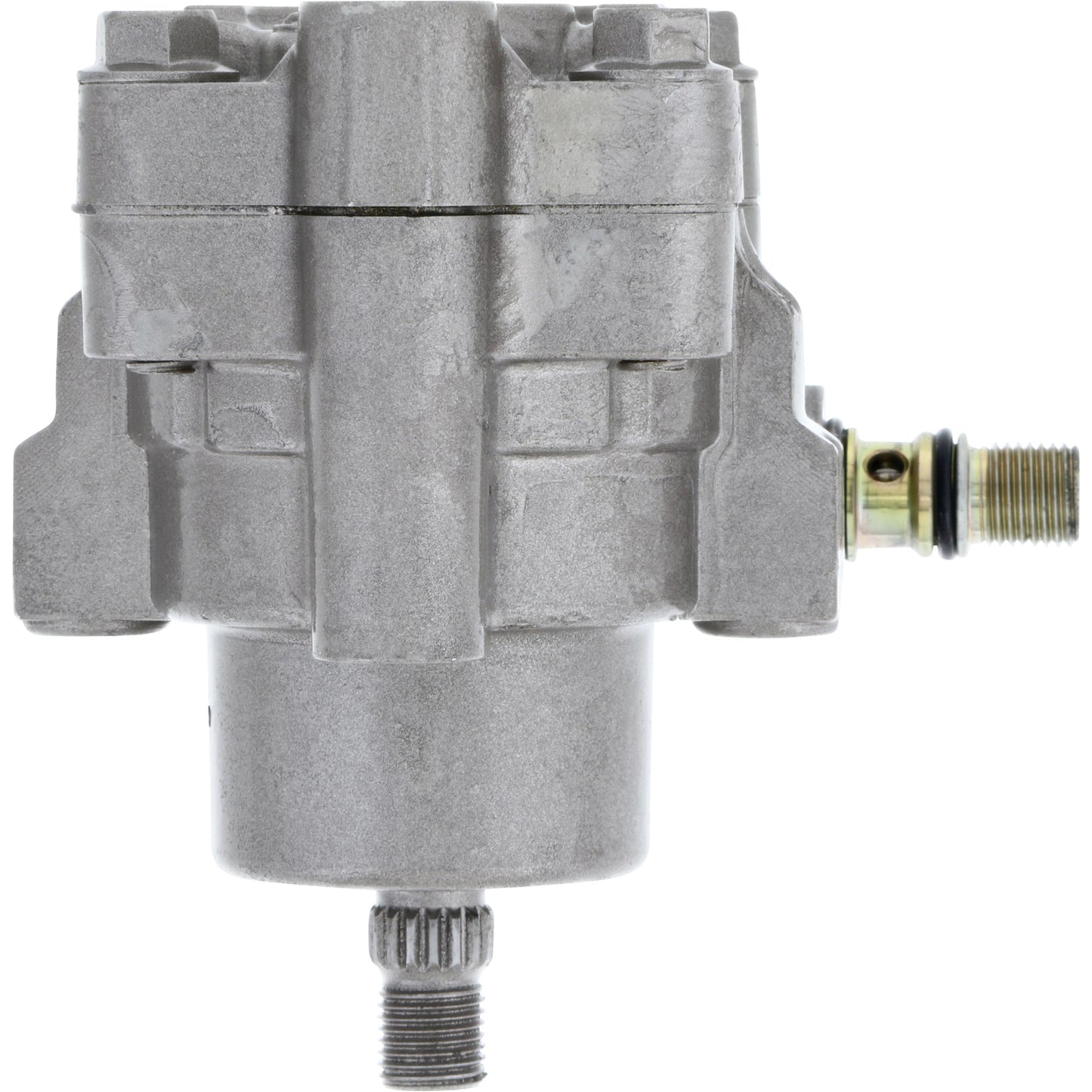

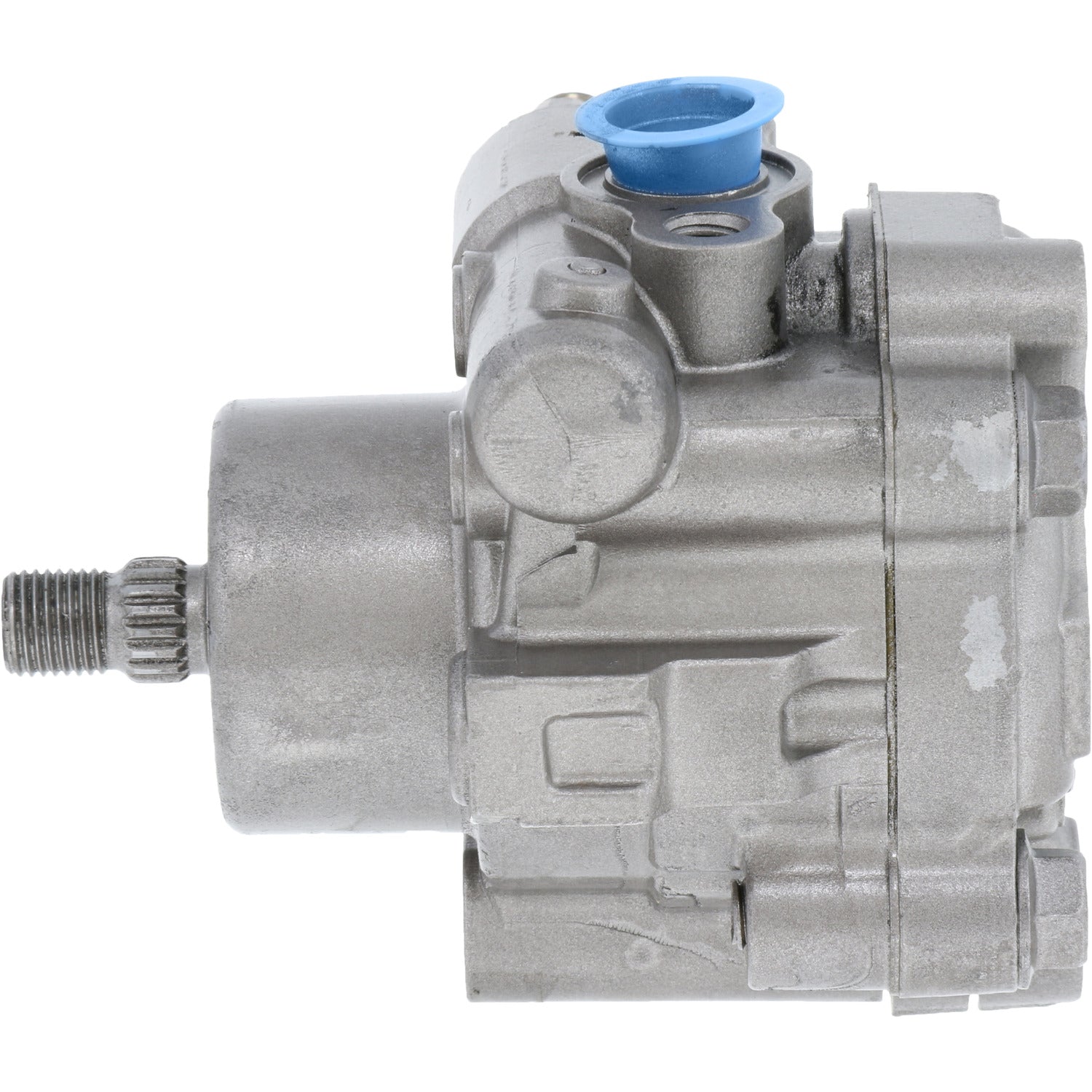

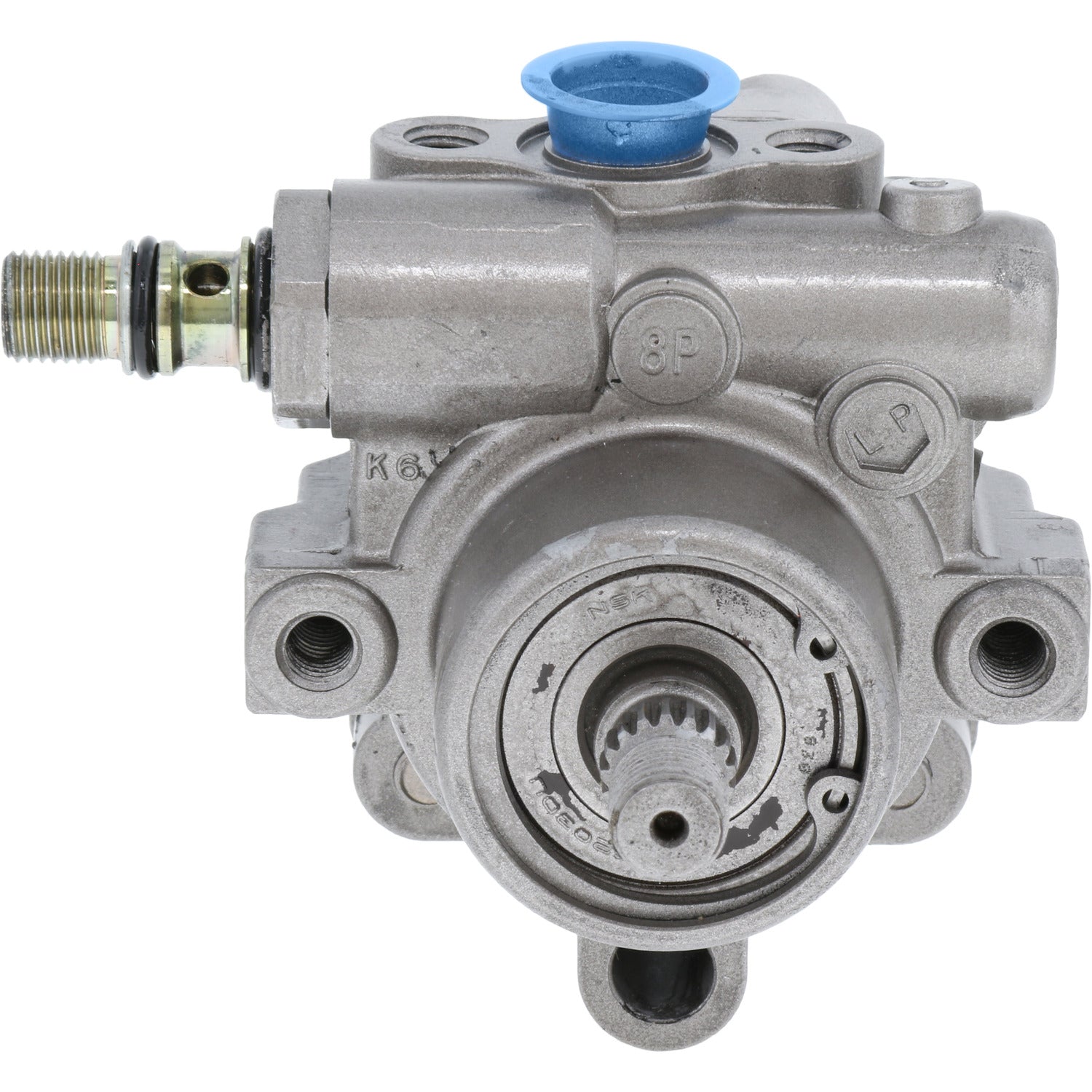

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96757M

Power Steering Pump - MAVAL - Hydraulic Power - Remanufactured - 96757M

SKU:96757M

MAVAL power steering pumps come turn-key ready for installation. The pressure fitting and pressure relief valve of the pump are inspected while the existing seals and bearings are replaced with OEM parts. The rotor, cam ring, vanes and pressure plates are inspected and replaced as needed during the reman process. Each pump has the MAVAL part number etched into the housing as well as a serial number for traceability.

Hose Port Type Washer
Housing Material Aluminum
Mounting Hardware Included No
Outlet Thread Size 12x1.25
Inlet Attachement Type Hose Barb
Outlet Attachment Type Threaded
Outlet Quantity 1
Pulley Attachement Type Bolt-on
Pulley Included No
Remote Reservoir Yes
Reservoir Included No

Application Info: Infiniti FX45 (2003-08) ***W/O Pulley, W/O Reservoir***

Interchange: 49110-CG200

BBB Cross-Reference: 990-0747

Cardone Cross-Reference: 21-5417

Instructions - 1          Instructions - 2

Instructions - 3          Instructions - 4

Instructions - 5          Instructions - 6
